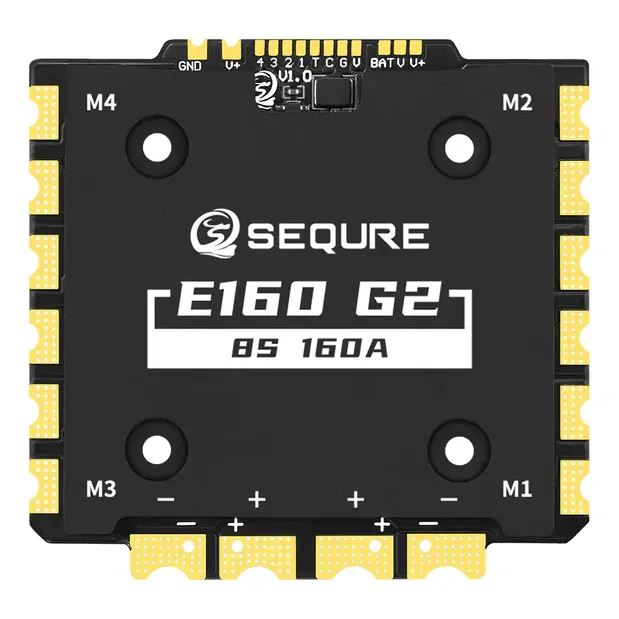

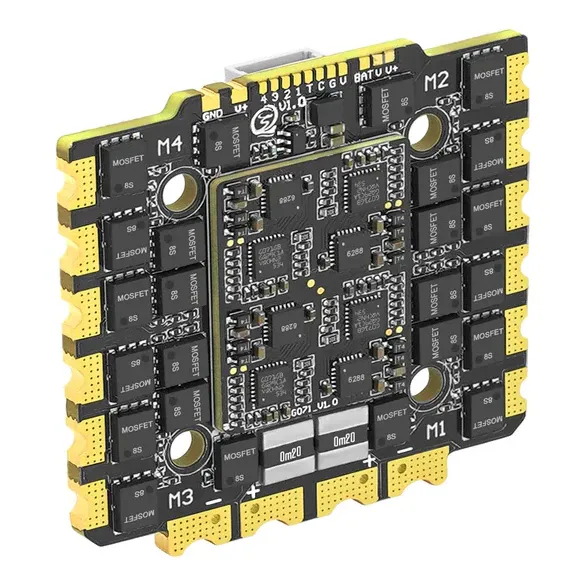

SEQURE E130/E160 G2 12S 130A/160A BLHeli_32 ESC

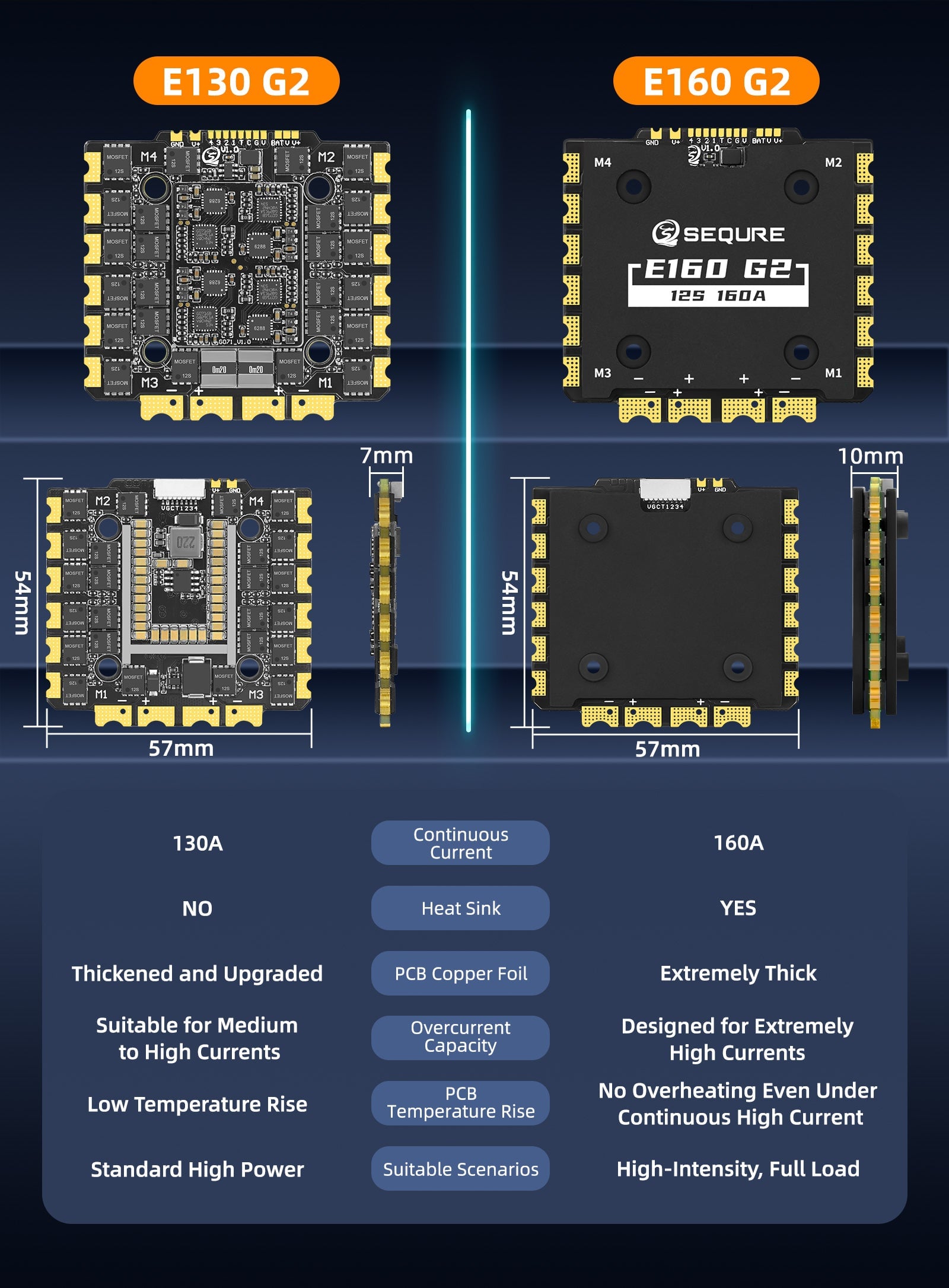

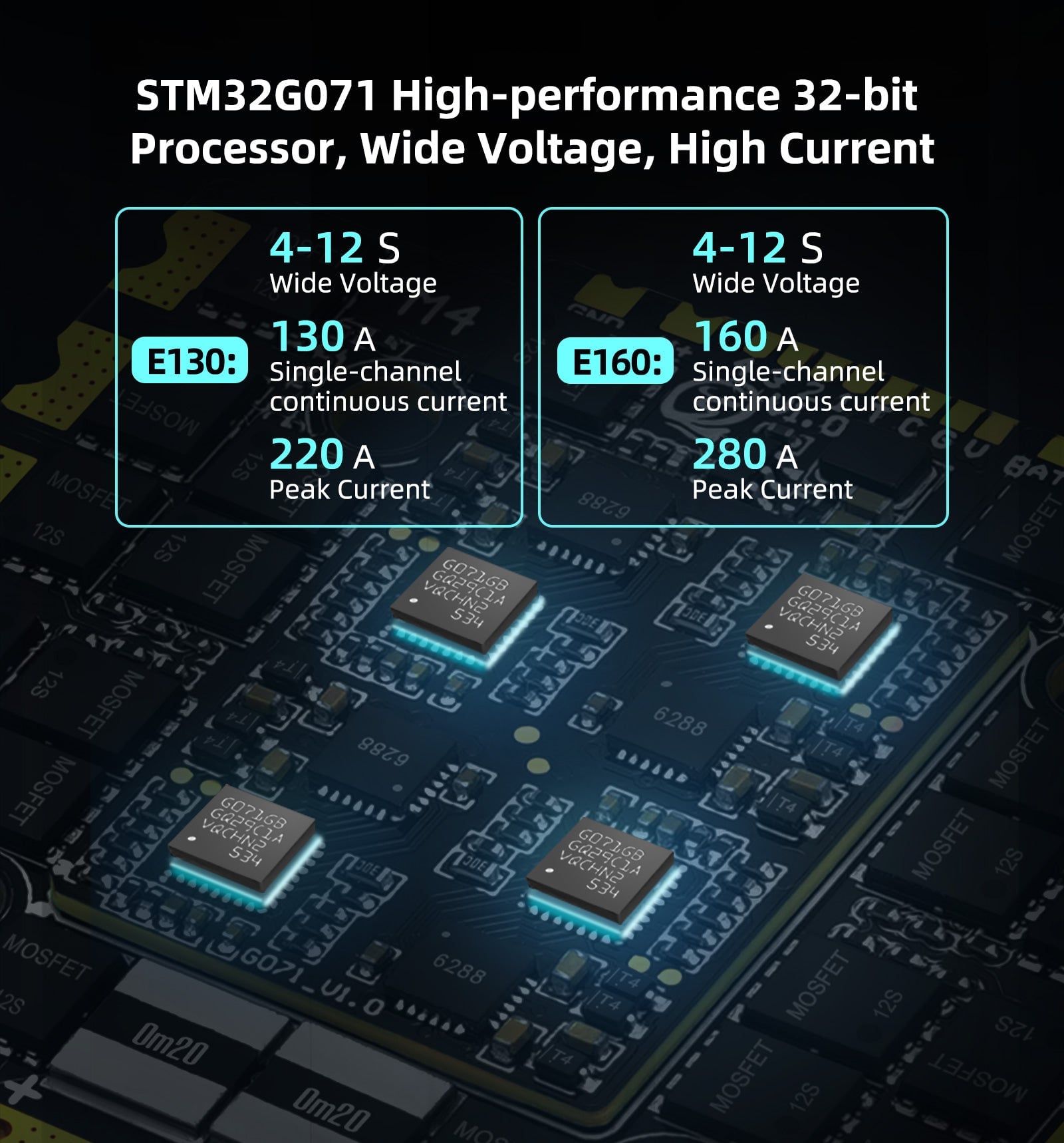

The SEQURE G2 is a high-current single ESC for 4-12S heavy-lift multirotors and X-Class builds. It runs on an STM32G071 32-bit processor and supports AM32 and BLHeli_32 firmware. Two ratings are offered: the E130 G2 at 130 A continuous and the E160 G2 at 160 A continuous.

Key features

• Burst headroom of 220 A (E130 G2) and 280 A (E160 G2) for short current spikes under heavy load

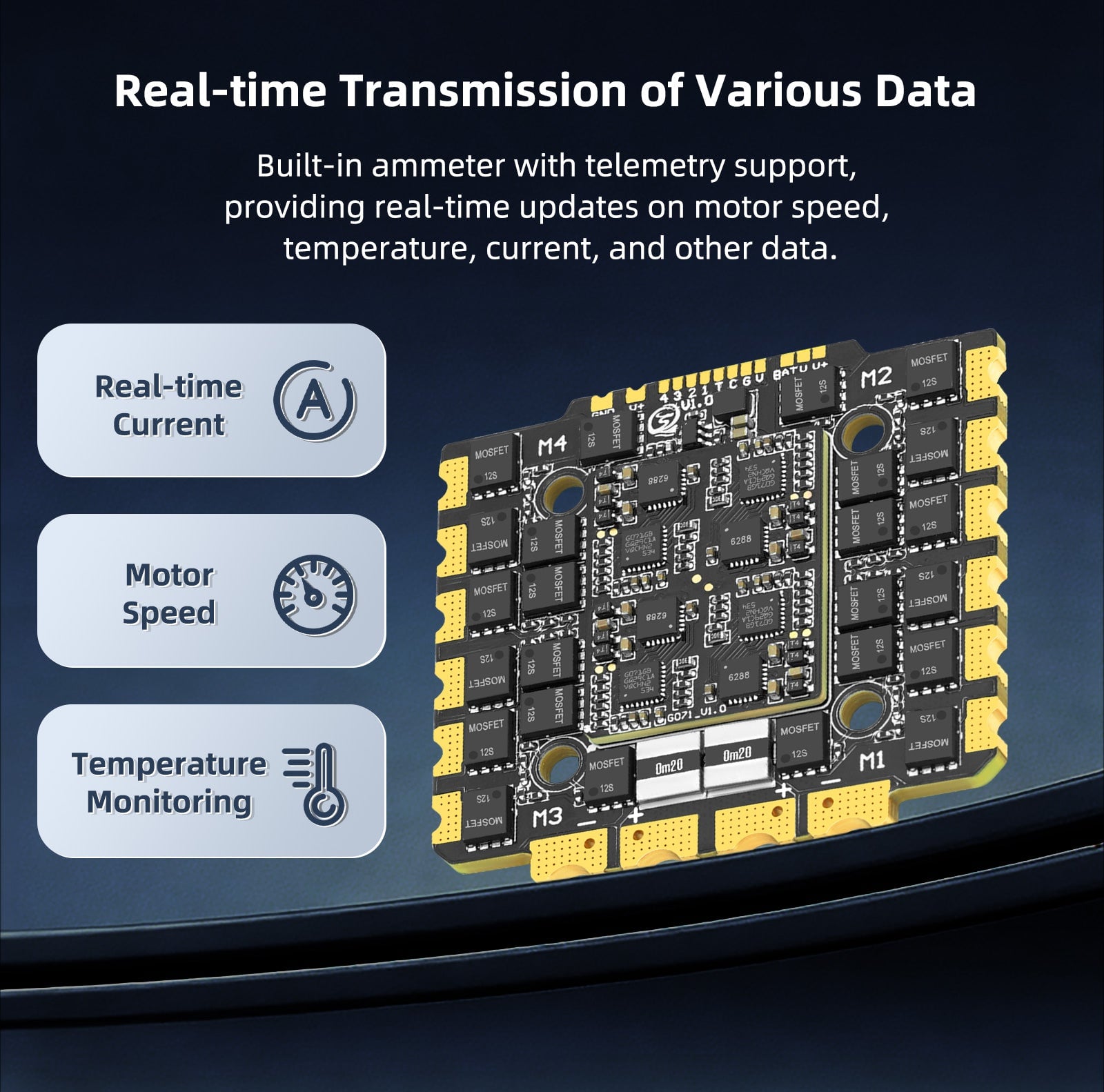

• Built-in current sensor with telemetry of motor speed, temperature and current

• Accepts every DShot rate plus PWM, OneShot and MultiShot, detecting the throttle signal automatically at power-up

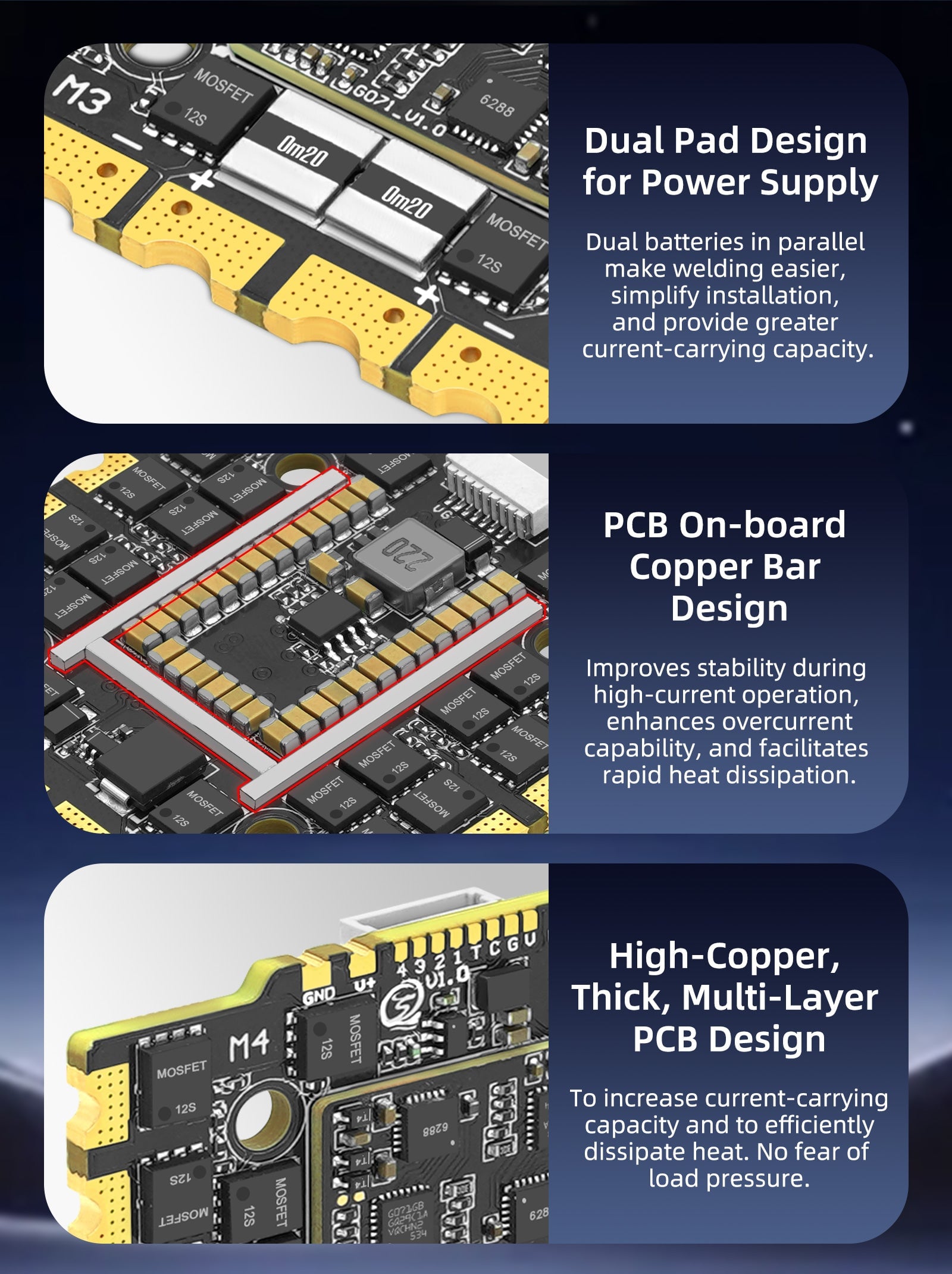

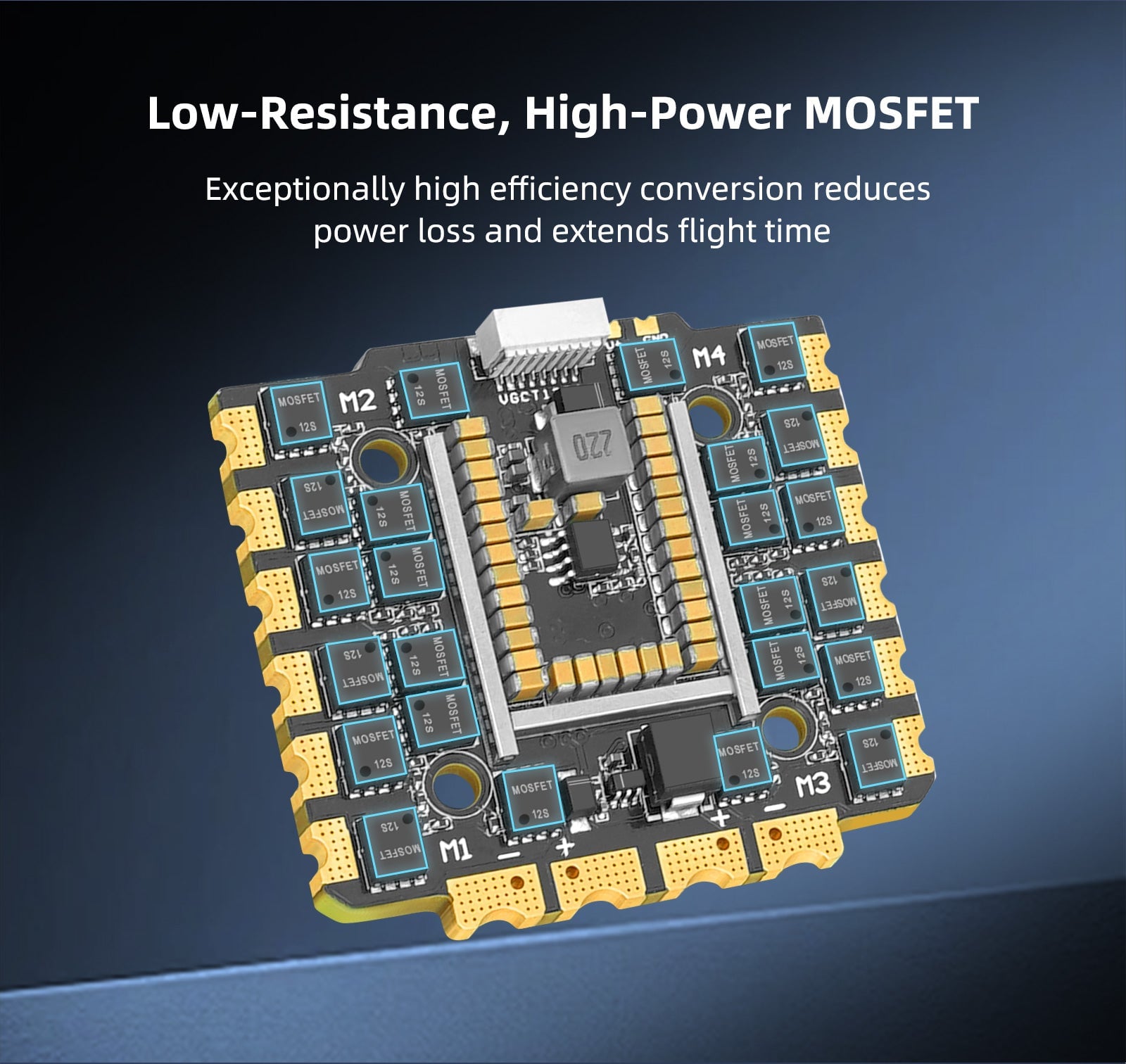

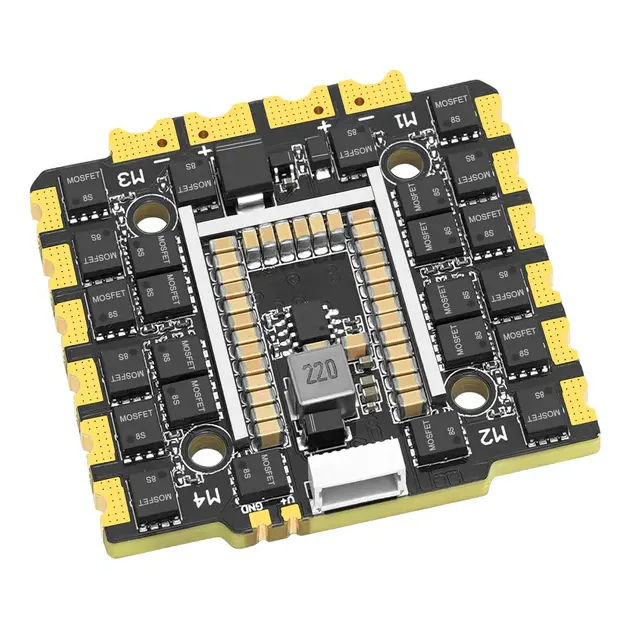

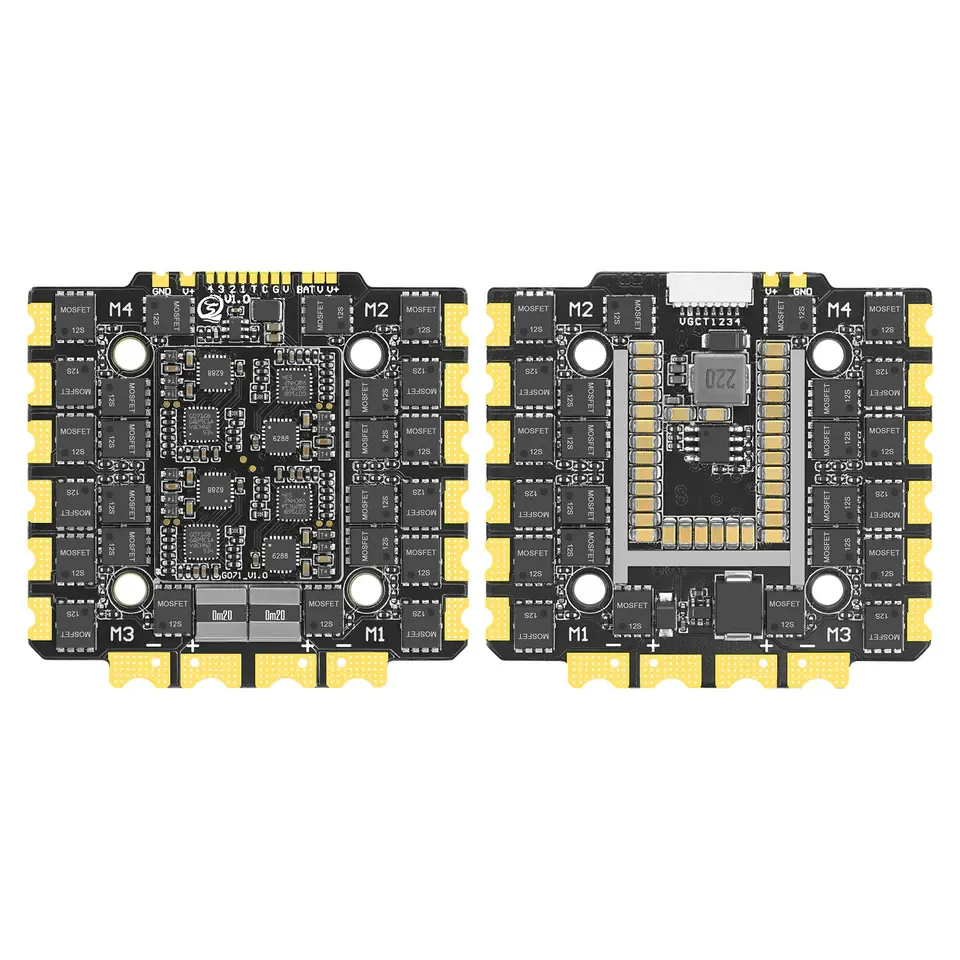

• Low-resistance MOSFETs on a multi-layer, thick-copper PCB with on-board copper bars to carry current and spread heat

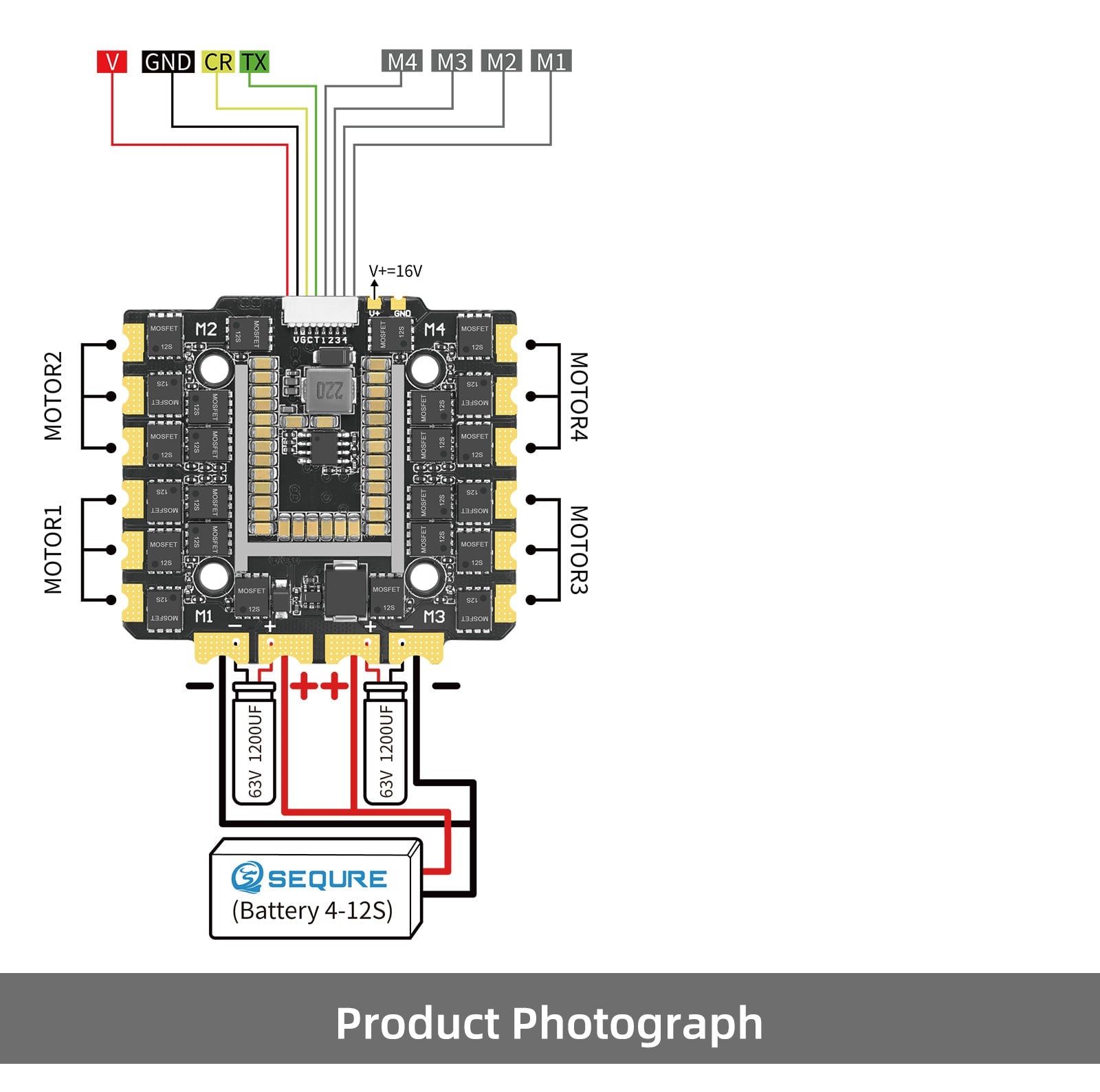

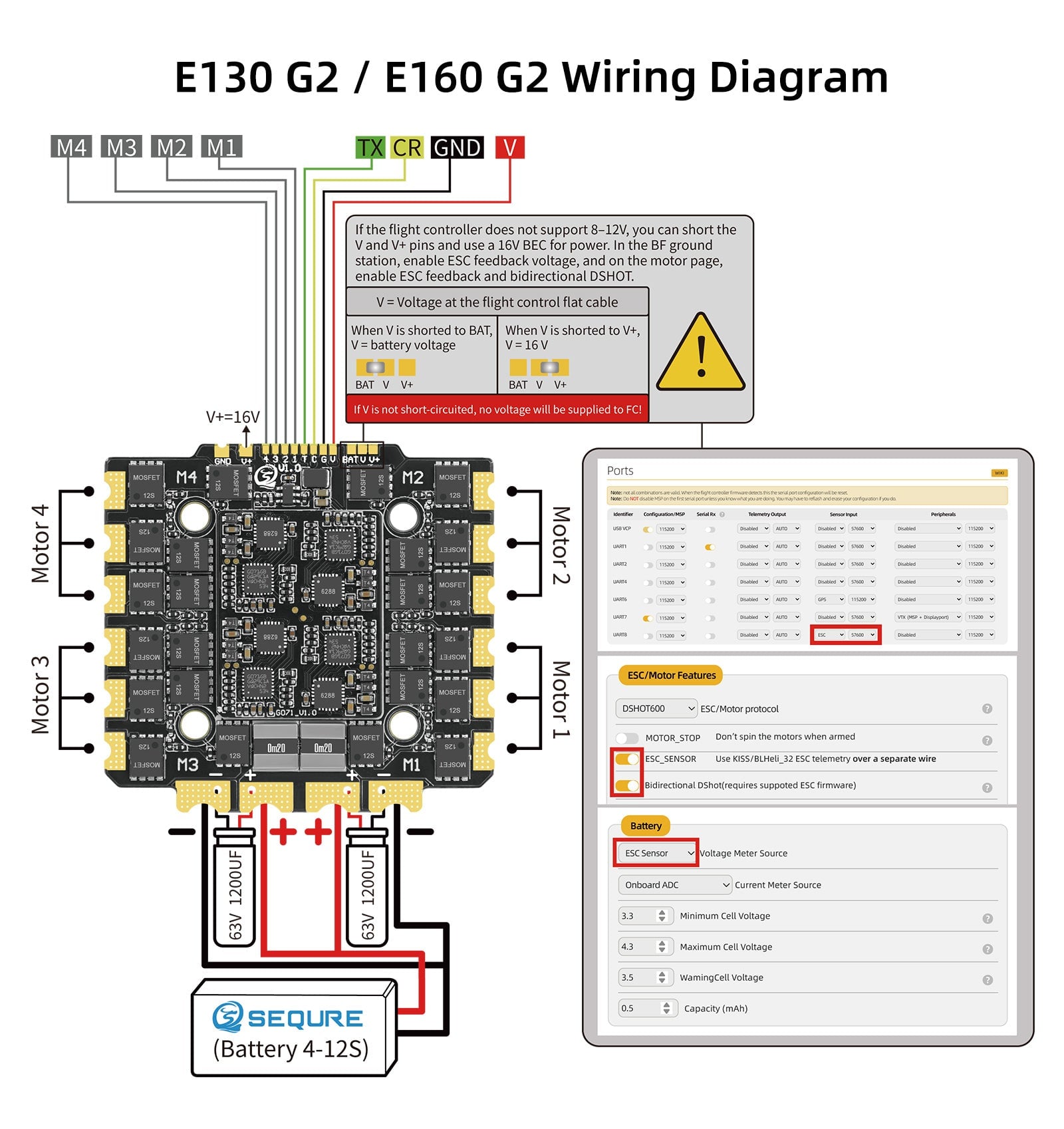

• Dual battery pads for paralleled power leads, making high-current soldering easier

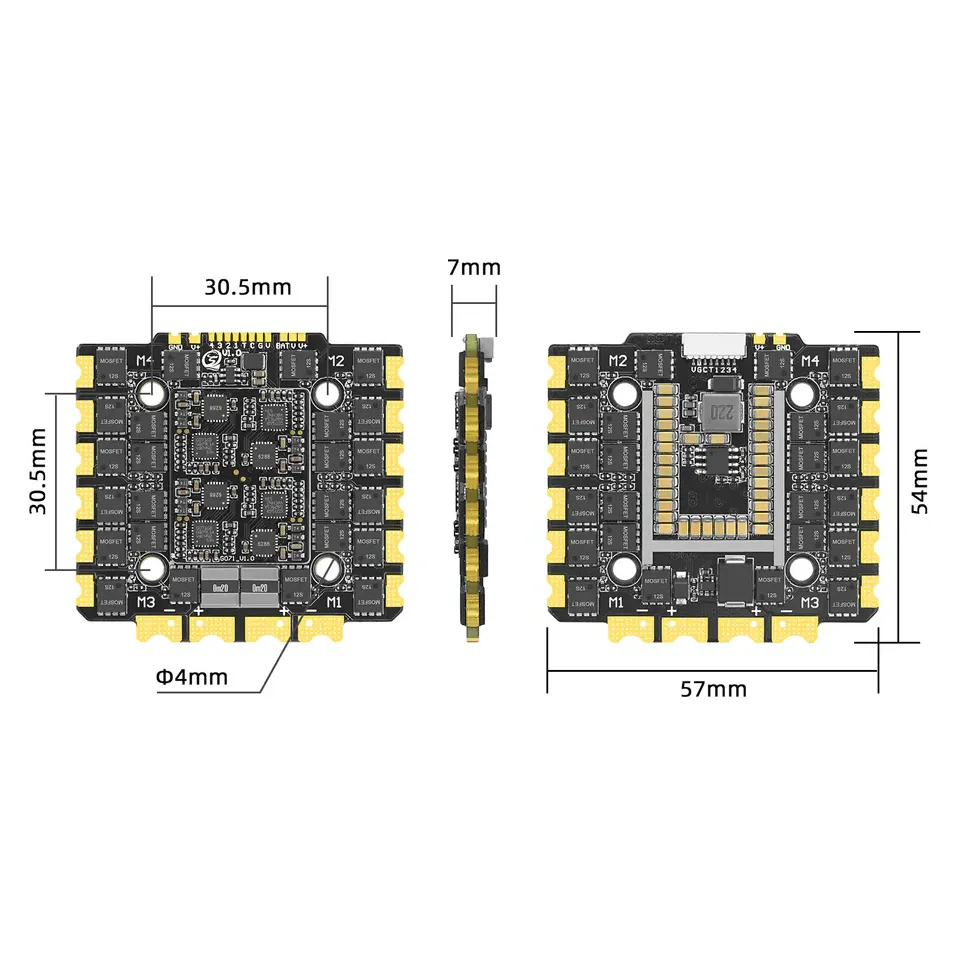

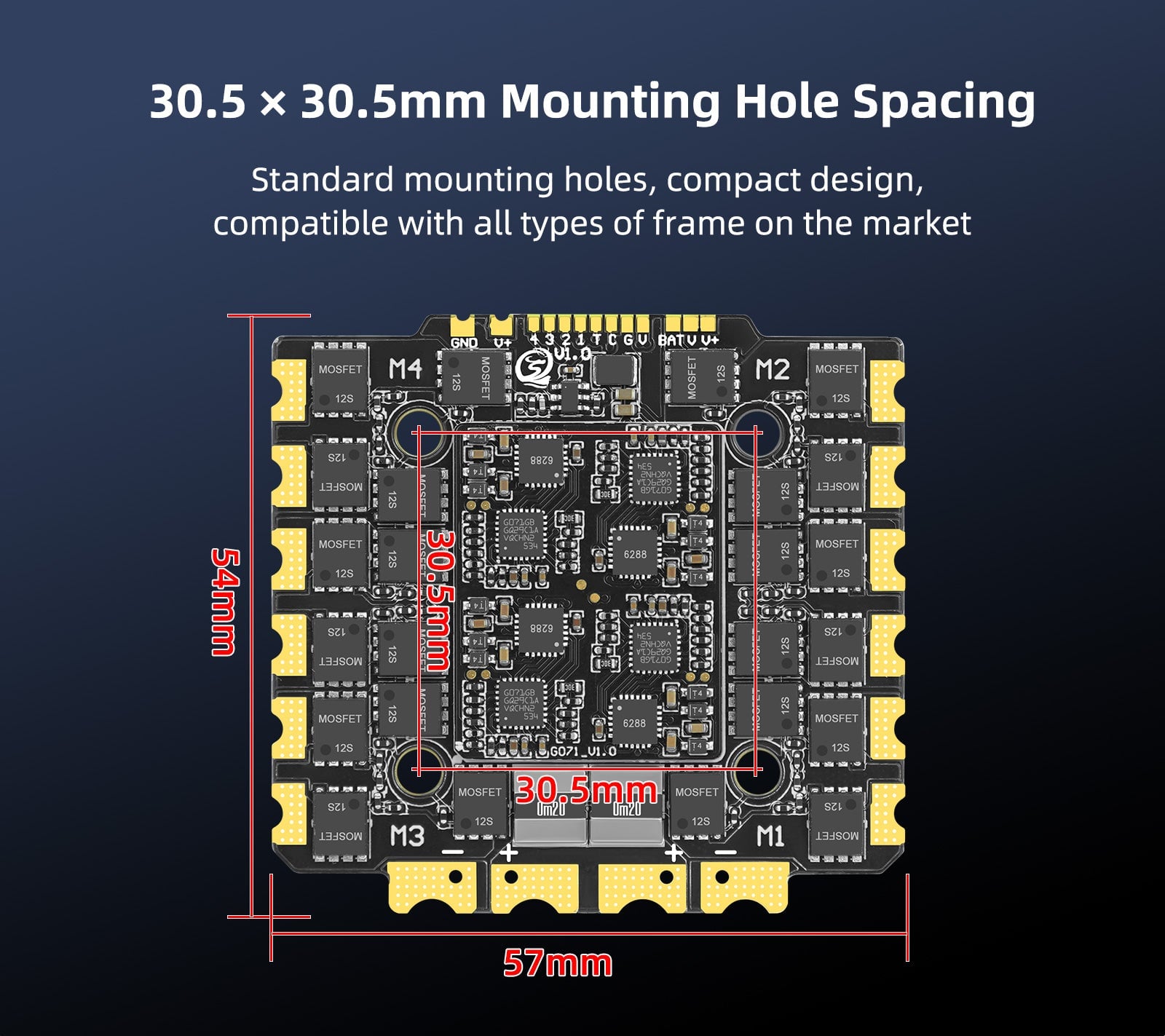

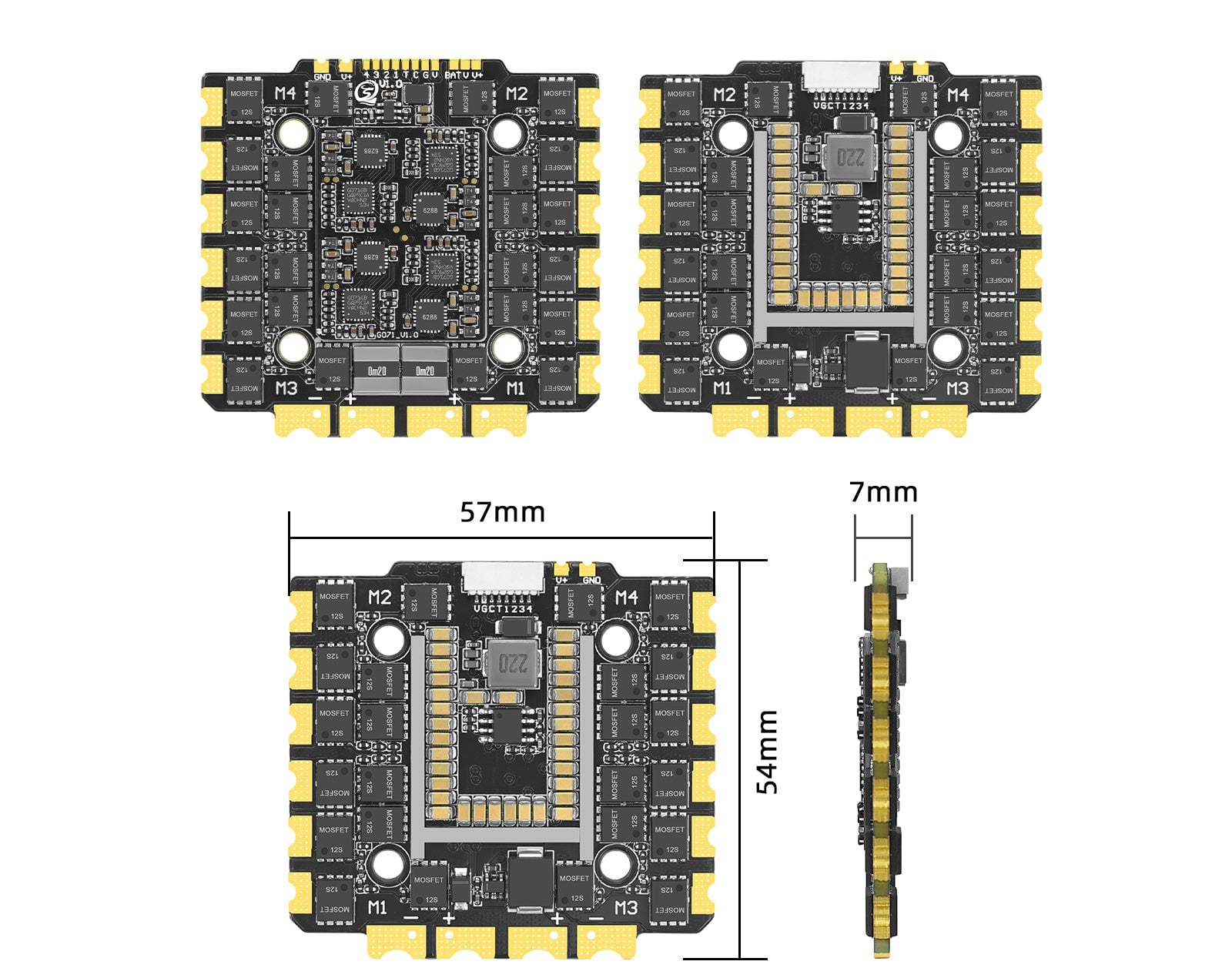

• Standard 30.5 x 30.5 mm mounting pattern

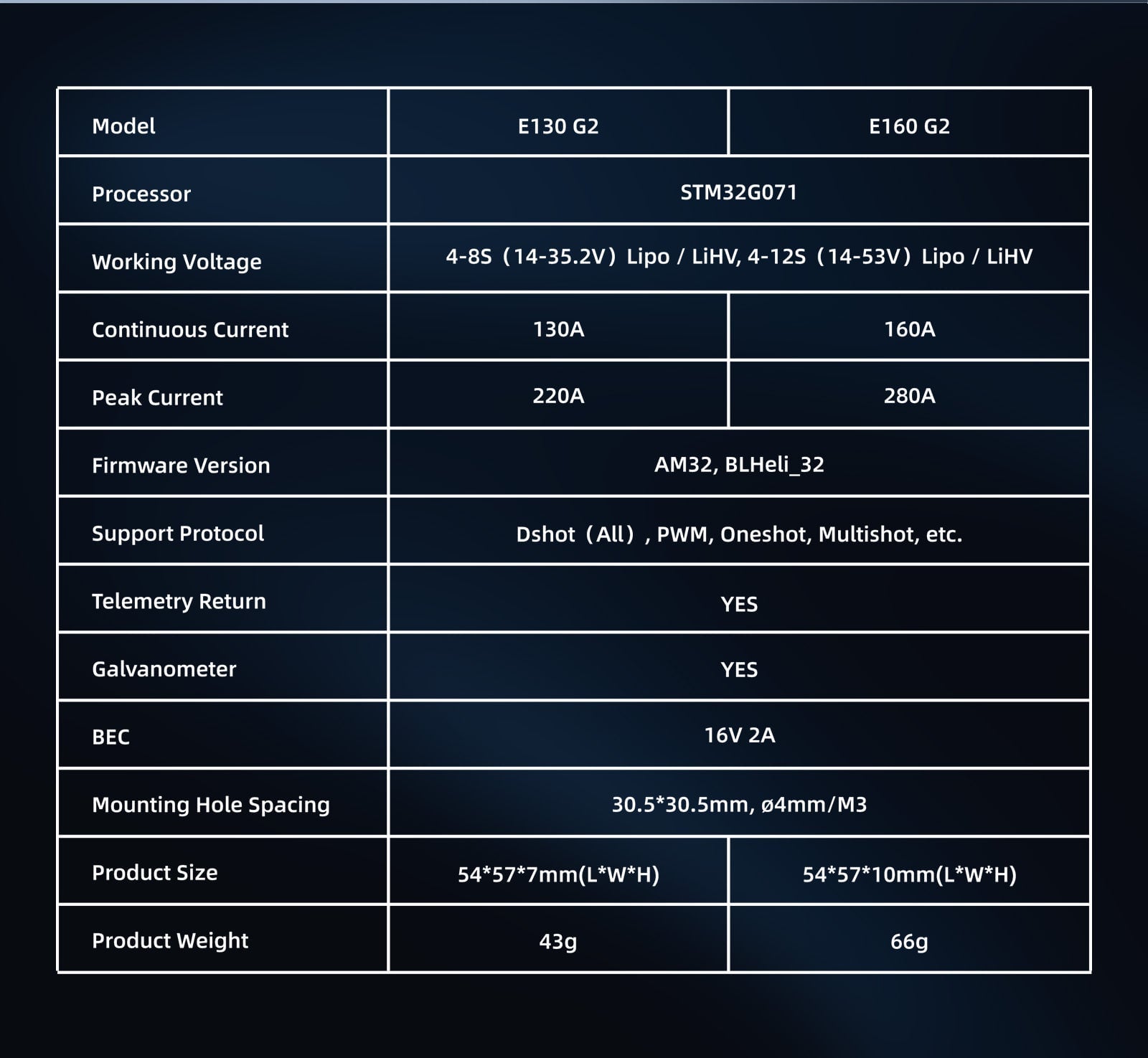

Specifications

• Processor: STM32G071, 32-bit

• Firmware: AM32, BLHeli_32

• Input voltage: 4-12S LiPo (14.8-44.4 V nominal)

• Continuous current: 130 A (E130 G2), 160 A (E160 G2)

• Peak current: 220 A (E130 G2), 280 A (E160 G2)

• Throttle protocols: DShot, PWM, OneShot, MultiShot

• Telemetry: motor speed, temperature, current

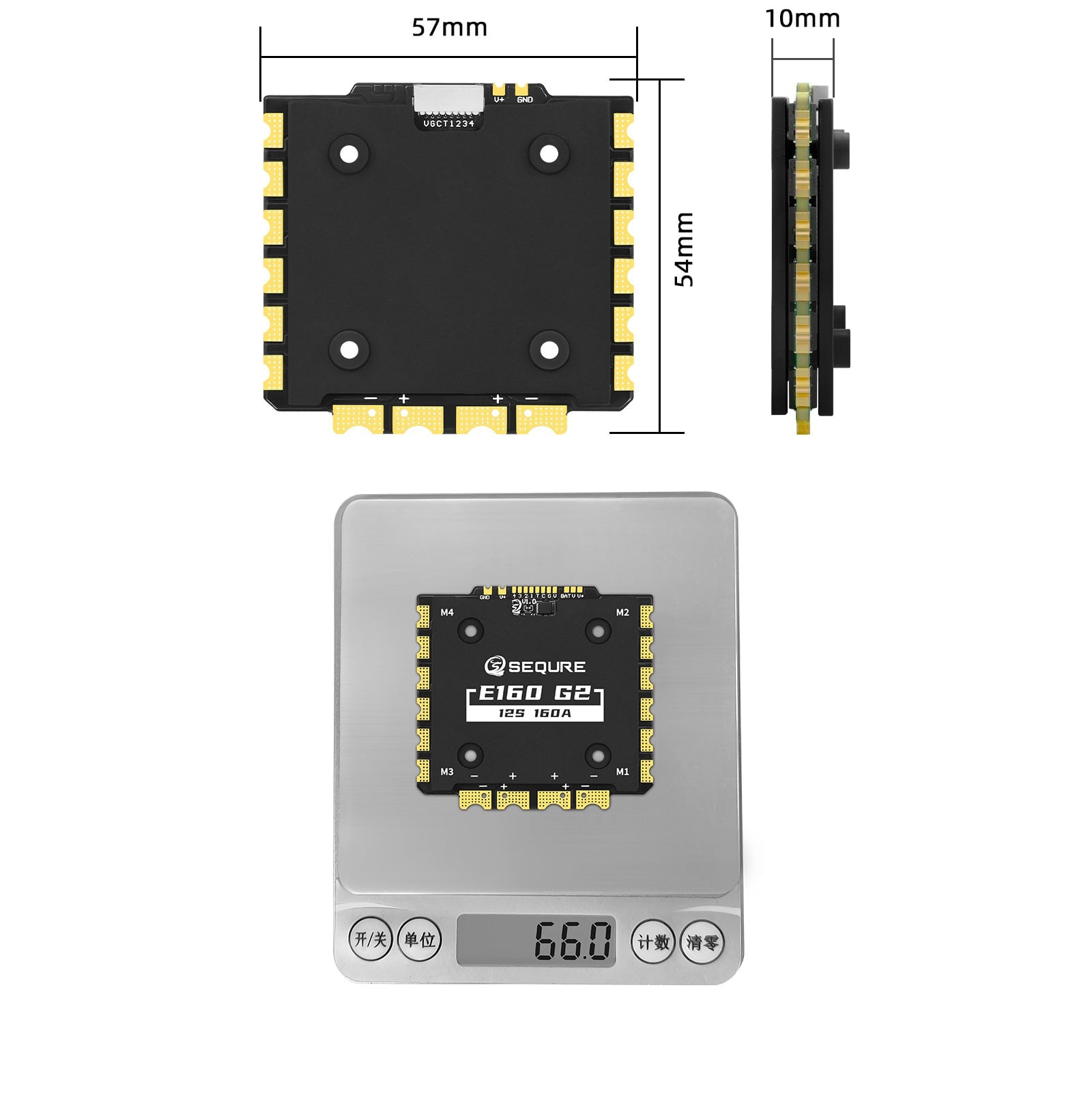

• Mounting: 30.5 x 30.5 mm

Choose the E130 G2 when your motor's rated maximum current sits comfortably below 130 A, and step up to the E160 G2 for larger X-Class motors or heavier lift with more thermal margin. Each unit drives one motor, so a quad needs four.
