XC 12S 40A 48V 4 HP Brushless ESC

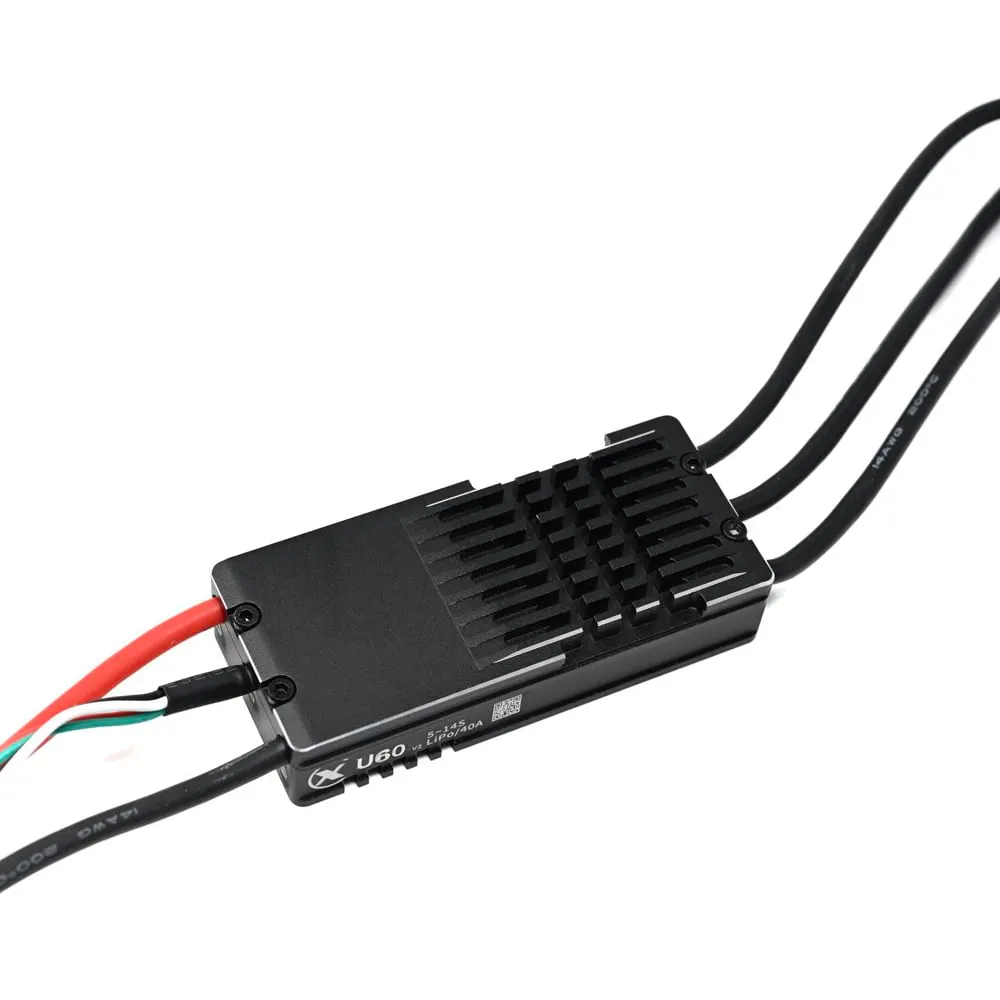

The XC 12S 40A 48V ESC is a single brushless-motor controller for high-voltage propulsion, industrial equipment and other motor-control builds. It is the U60 V2 controller (model printed on the case), taking 5-14S LiPo input and rated for 40A continuous (80A peak); it is listed for 12S / 48V systems with a stated 4 HP capability. Use it only with a compatible brushless motor and power system.

Key features

• 5-14S LiPo input (printed on the case), covering 12S / 48V systems.

• 40A current rating for the ESC output.

• 48V system rating as listed for this controller.

• 4 HP capability for demanding motor applications.

• Brushless motor control in a single ESC format.

Specifications

• Input voltage: 5-14S LiPo (12S / 48V class)

• ESC current: 40A continuous (with good cooling)

• Peak current: 80A

• Voltage rating: 48V

• Power rating: 4 HP

• Motor type: Brushless

• BEC: None

• Throttle signal: PWM 1050-1940 us, 3.3 V or 5 V logic

• Power/motor leads: 14AWG

• Protection: IPX4

• Operating temperature: -25 to 60 C

• Weight: approx. 42.5 g (excluding wires)

Confirm the motor, battery and wiring ratings before use, and ensure the complete system is suitable for 12S operation.
