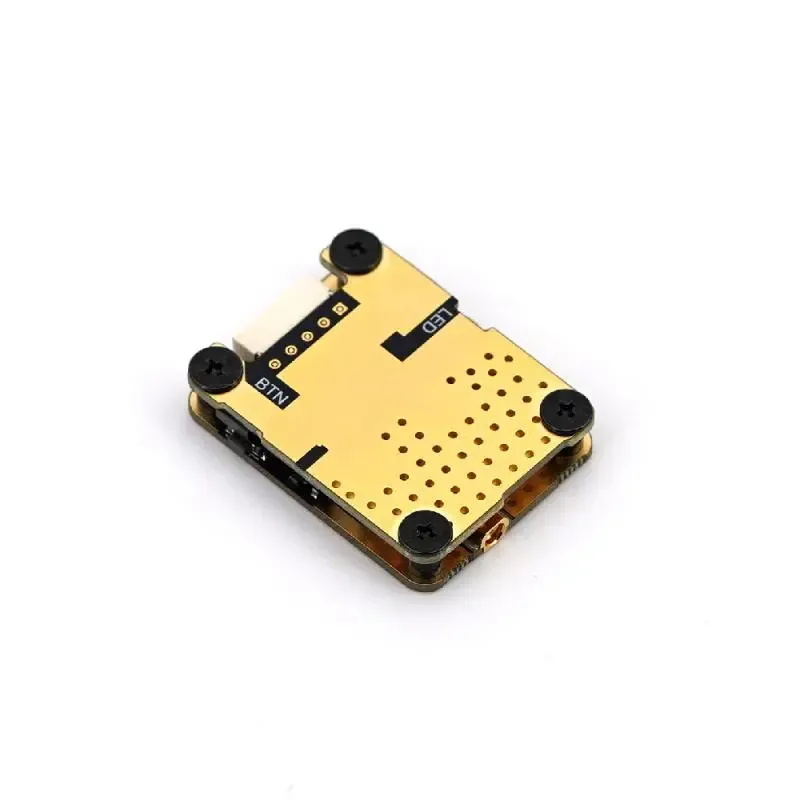

TBS Unify Pro32 DP (MMCX)

The TBS Unify Pro32 DP is a premium 5.8GHz analogue video transmitter engineered for demanding FPV racing and freestyle builds. Built on Team BlackSheep's advanced 32-bit architecture, it delivers faster processing, an ultra-clean RF profile, and reliable heat management for high-stress flight environments.

Key features

• Built on a 32-bit processor for rapid telemetry response and tighter RF filtering across the entire video band.

• Integrated SmartAudio support allows quick band, channel, and power adjustments directly via your flight controller OSD or radio.

• Robust MMCX antenna connector withstands repeated crashes and mating cycles significantly better than fragile U.FL alternatives.

• CleanSwitch technology ensures interference-free powering up on crowded flight lines without disrupting other airborne pilots.

Specifications

• Brand: TBS

• Signal type: Analogue

• Frequency band: 5.8GHz wide band, 4990-6030 MHz

• Output power: 10 / 25 / 100 / 200 / 400 / 500 / 999 mW / MAX (up to 3 W)

• Input voltage: 6-25V (2-6S)

• Control protocol: SmartAudio

• Antenna connector: MMCX

• Audio: none

• Dimensions: 37 x 28 x 10 mm

• Weight: 8.7 g

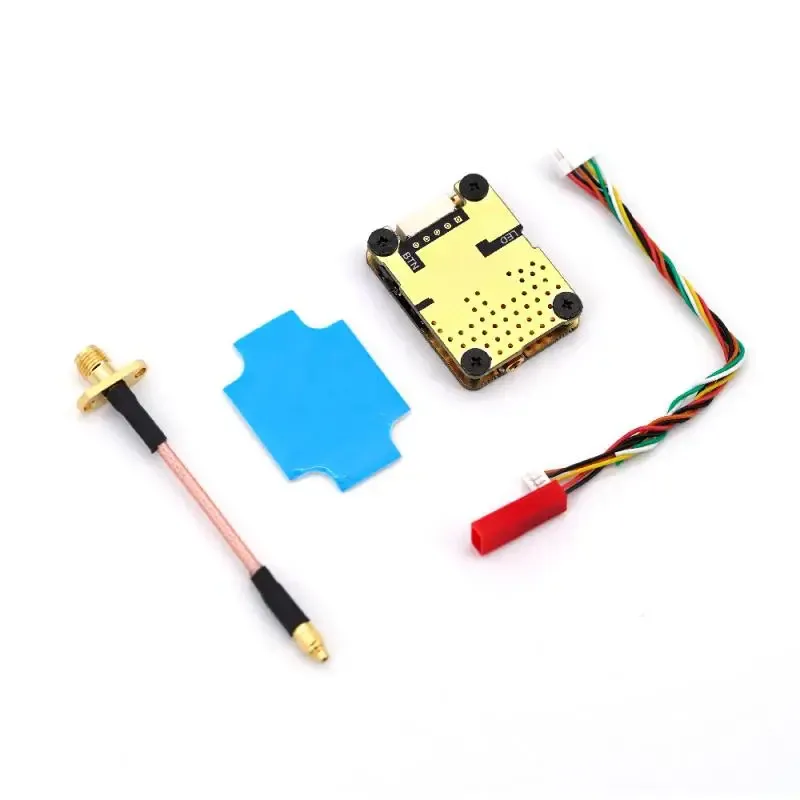

• In the box: VTX, silicone cable, MMCX to SMA pigtail, heat-transfer tape

With its durable mechanical connection and interference-rejecting design, this VTX is an optimal choice for aggressive freestyle rigs and competitive racing drones where video signal reliability cannot be compromised.
