TBS Unify PRO 5G8 HV (SMA)

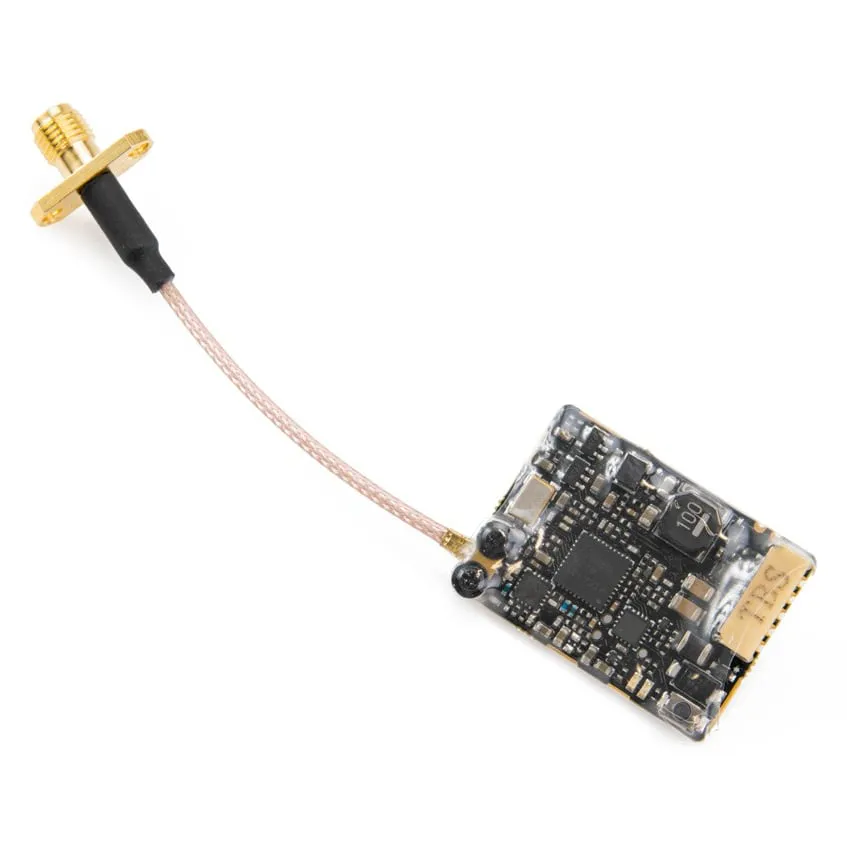

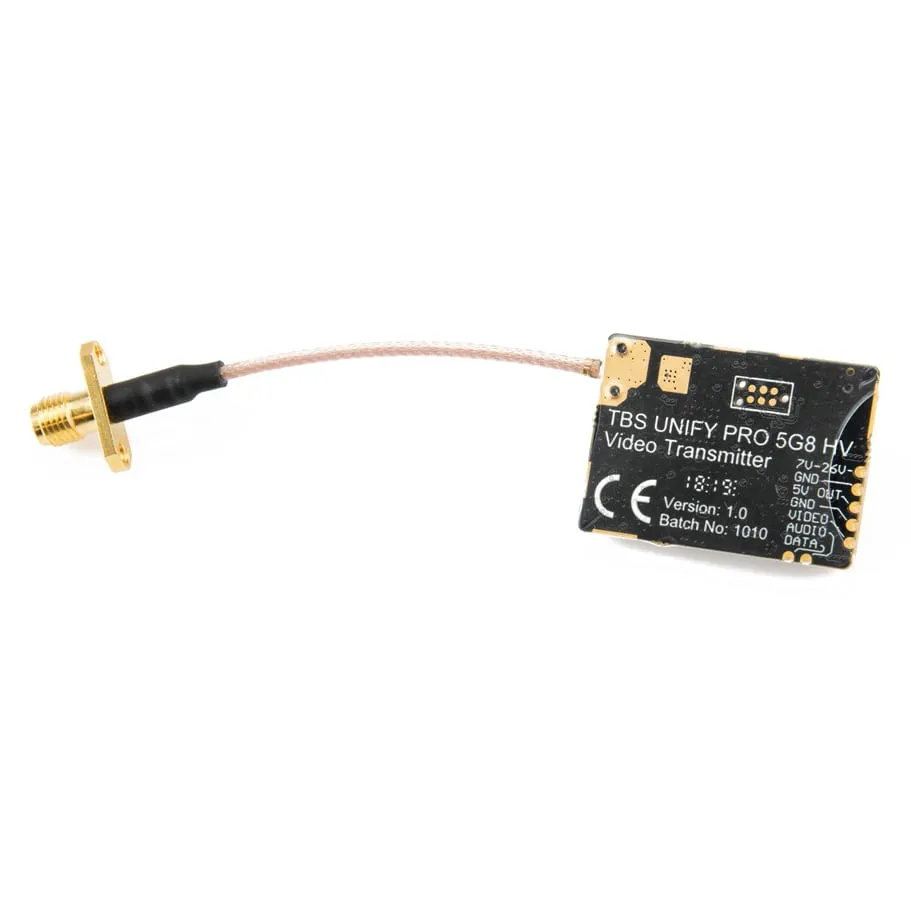

The TBS Unify Pro 5G8 HV (SMA) is a high-power analog video transmitter built for 5.8GHz freestyle and long-range FPV drones. Capable of taking direct battery voltage up to 6S, this VTX features a robust SMA pigtail that isolates the main circuit board from mechanical stress during crashes.

Key features

• Selectable transmission levels up to 800mW for reliable RF penetration through heavy foliage and concrete.
• Fully configurable via OSD or radio using the native TBS SmartAudio protocol.
• CleanSwitch technology prevents frequency bleed-over, ensuring you do not interfere with other pilots during power-up or channel changes.
• PitMode drops output to a bare minimum for safe bench testing and race-day quad retrieval.

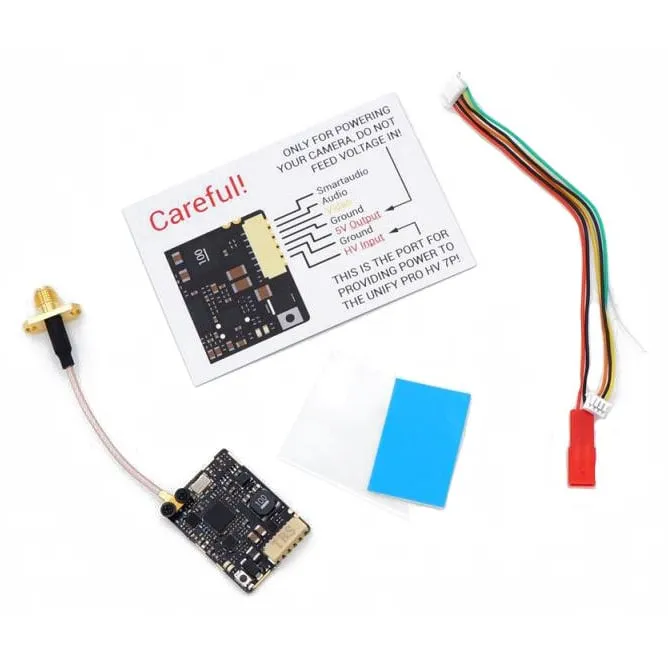

• Supplies a heavily filtered 5V output to power your analog FPV camera directly from the VTX.

Specifications

• Input voltage: 7.4V - 25.2V (2-6S LiPo)

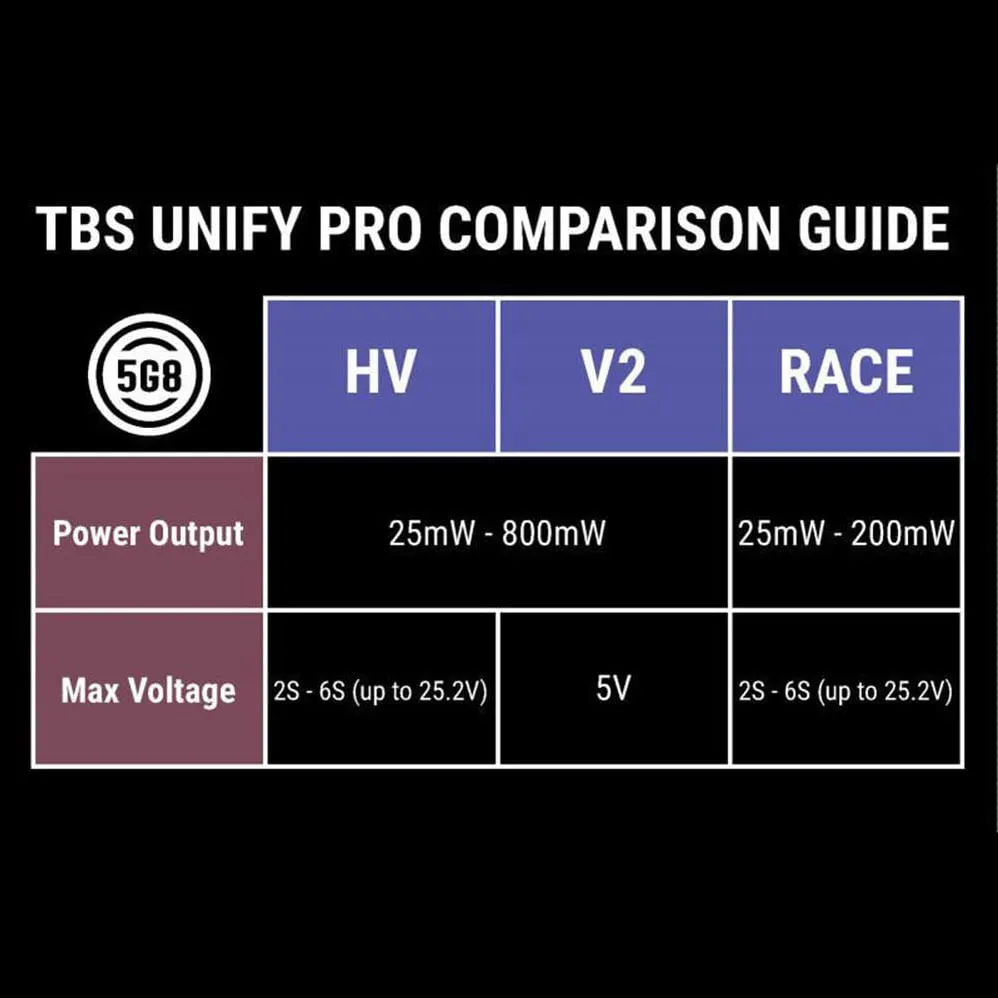

• Output power: 25mW, 200mW, 500mW, 800mW

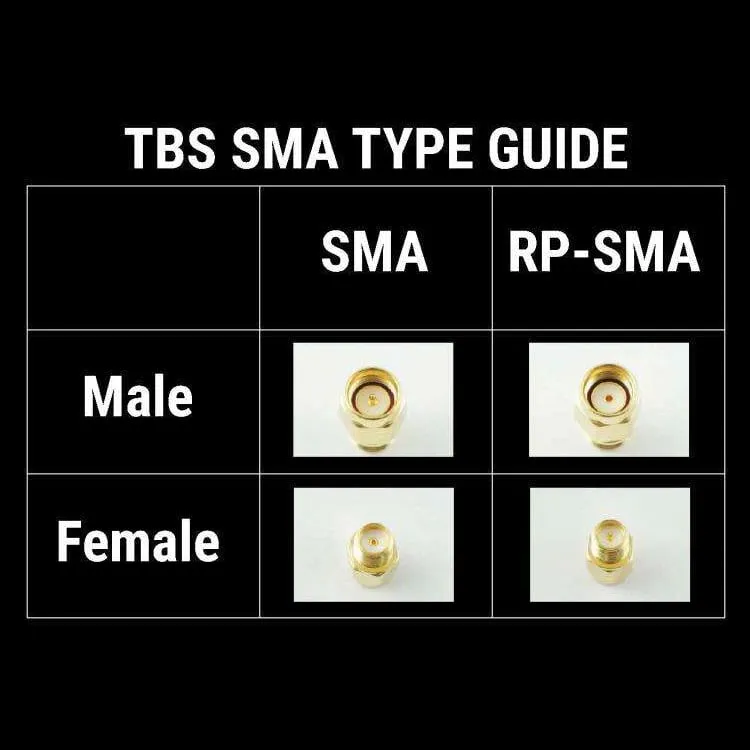

• Antenna connector: SMA Female (on pigtail)
• Control protocol: TBS SmartAudio
• Dimensions: 31 x 22 x 6 mm
• Weight: 8.7g

Always ensure an antenna is firmly attached before applying battery power. Due to the high output levels, mount the VTX where it will receive adequate airflow from the propellers to prevent thermal throttling during flight.
