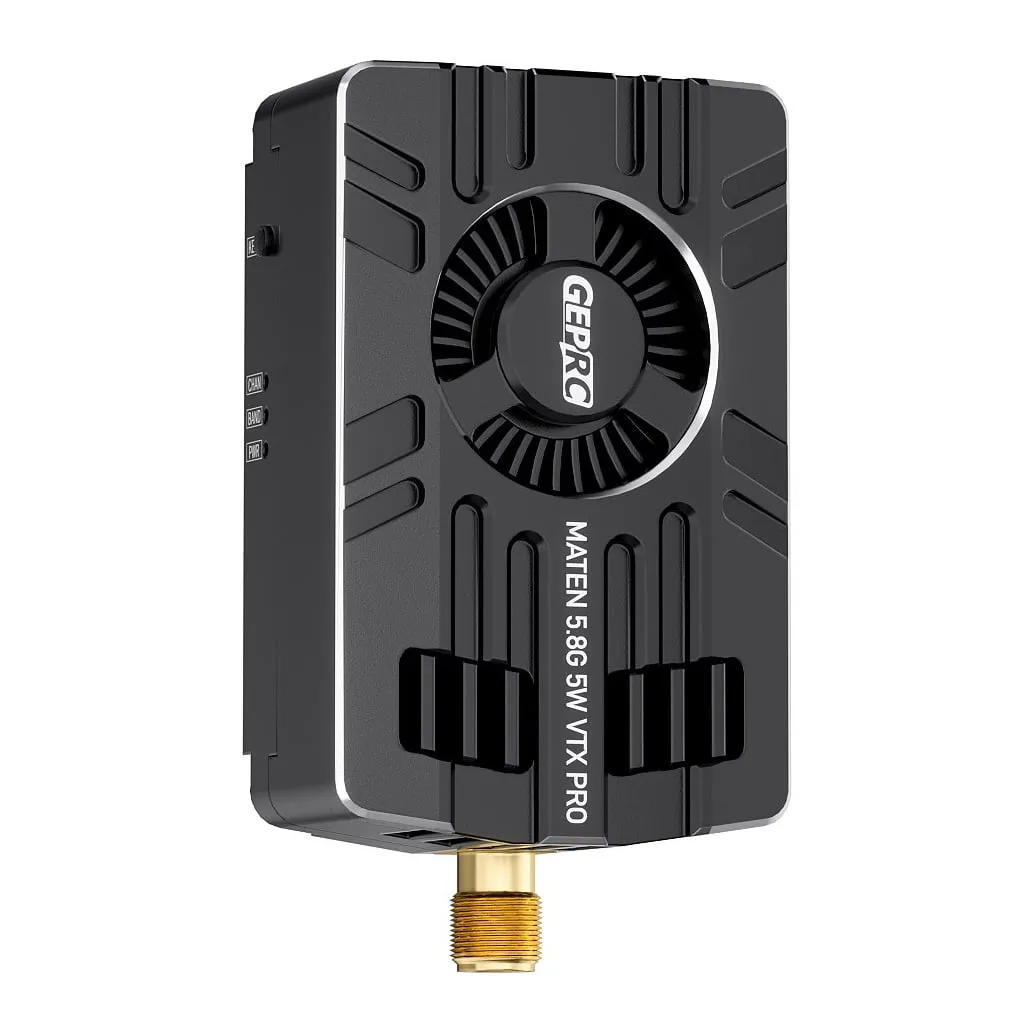

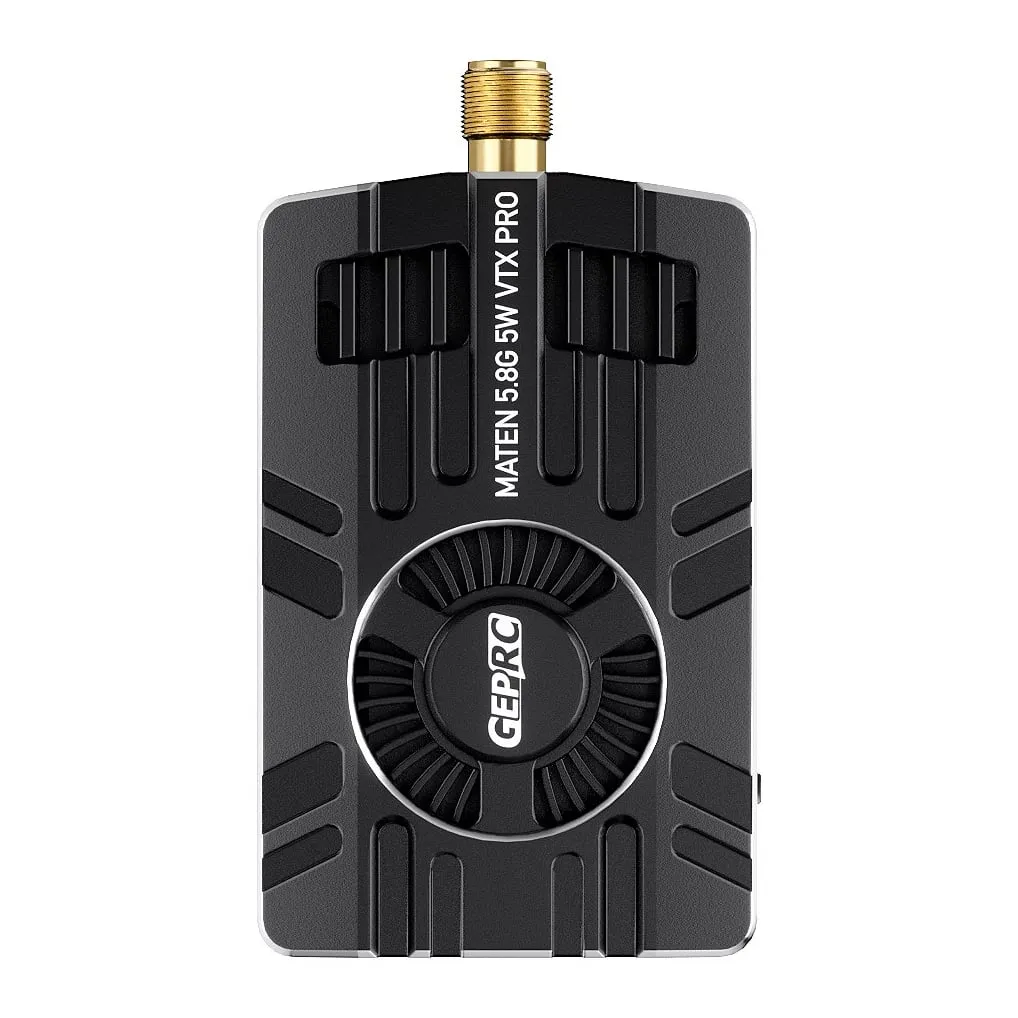

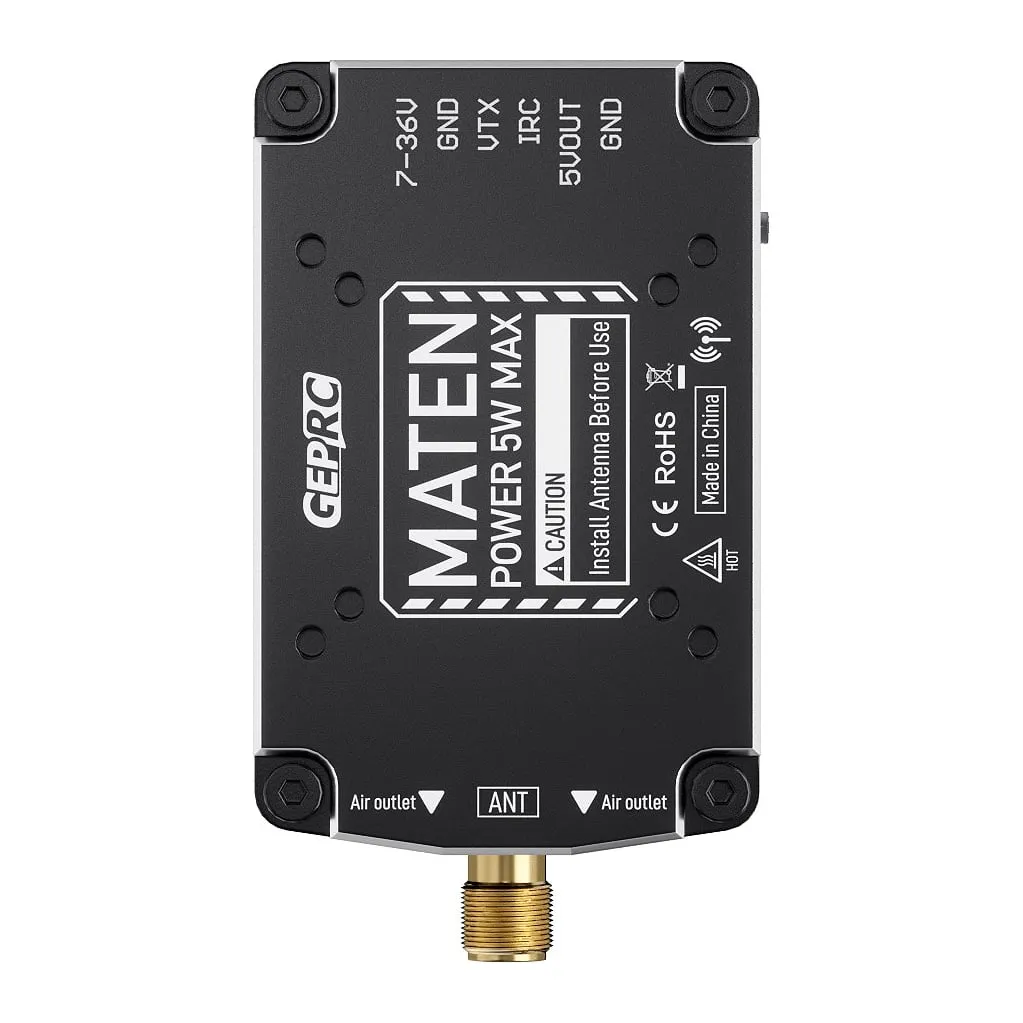

GEPRC Maten 5.8G 5W VTX PRO

The GEPRC MATEN 5.8G 5W VTX PRO is an ultra-high-power analog video transmitter built for extreme long-range flights, mountain surfing, and maximum-penetration bando missions. Pushing up to a massive 5000mW output, it guarantees a locked-in video feed in environments where standard transmitters fail. Because 5W of RF power generates significant heat, GEPRC has housed the VTX in a fully enclosed CNC aluminium alloy heatsink paired with an active cooling fan to prevent thermal throttling during flight.

Key features

• Six adjustable output power levels ranging from Pit mode up to 5000mW (5W).

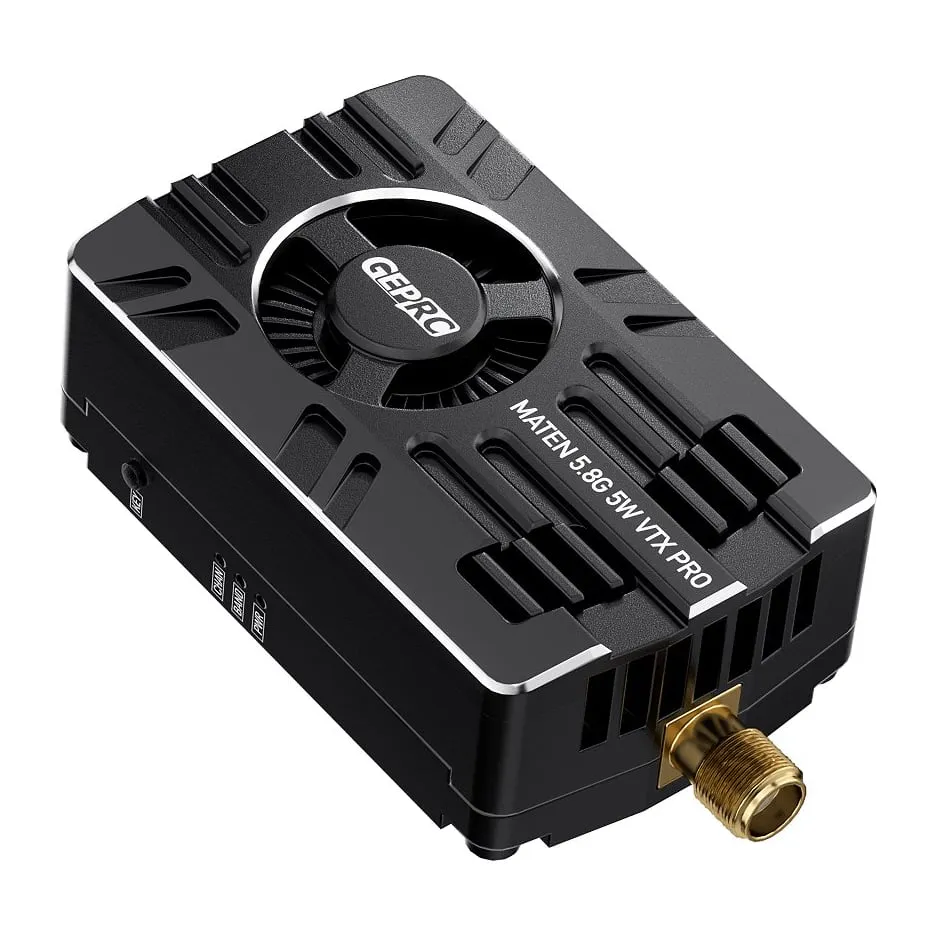

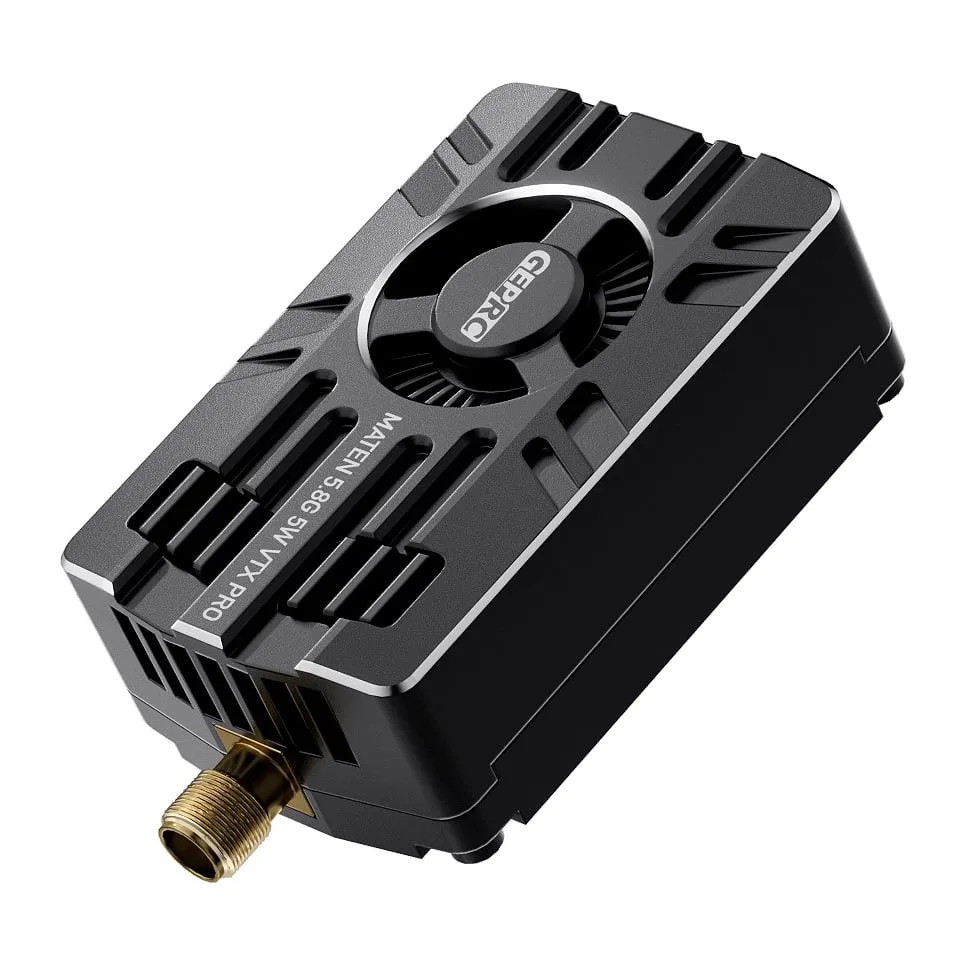

• CNC aluminium casing and integrated active cooling fan to manage extreme thermal loads.

• Wide 7–36V (2-8S LiPo) input voltage range with a dedicated 5V/1A BEC to power your FPV camera.

• Supports IRC Tramp protocol for quick OSD parameter and frequency adjustments.

• Built-in microphone for transmitting onboard audio to your goggles.

Specifications

• Model: GEPRC MATEN 5.8G 5W VTX PRO

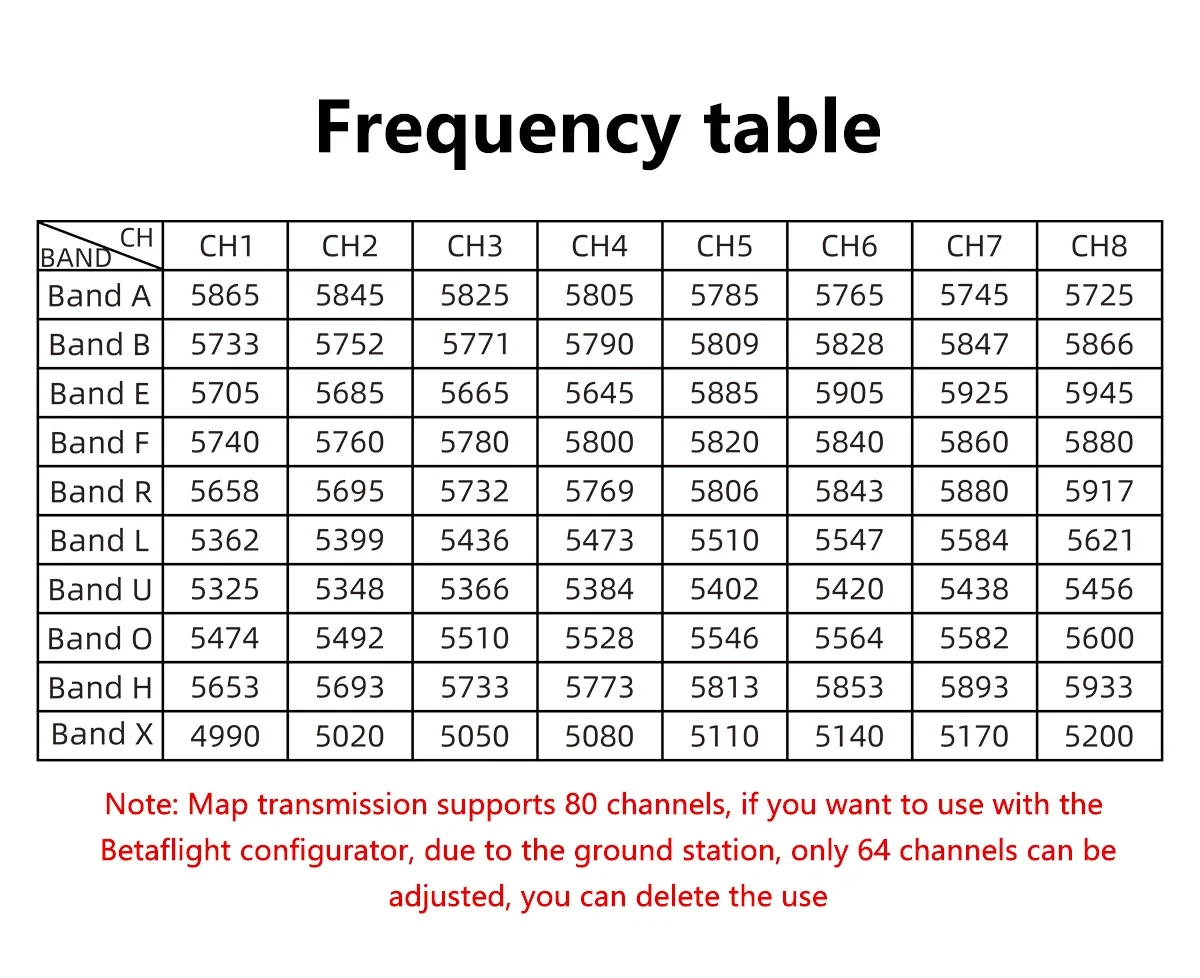

• Frequency band: 5.8GHz (72 Channels)

• Output power: Pit / 25mW / 400mW / 1600mW / 2500mW / 5000mW

• Input voltage: 2-8S LiPo (7–36V)

• Camera output: 5V @ 1A

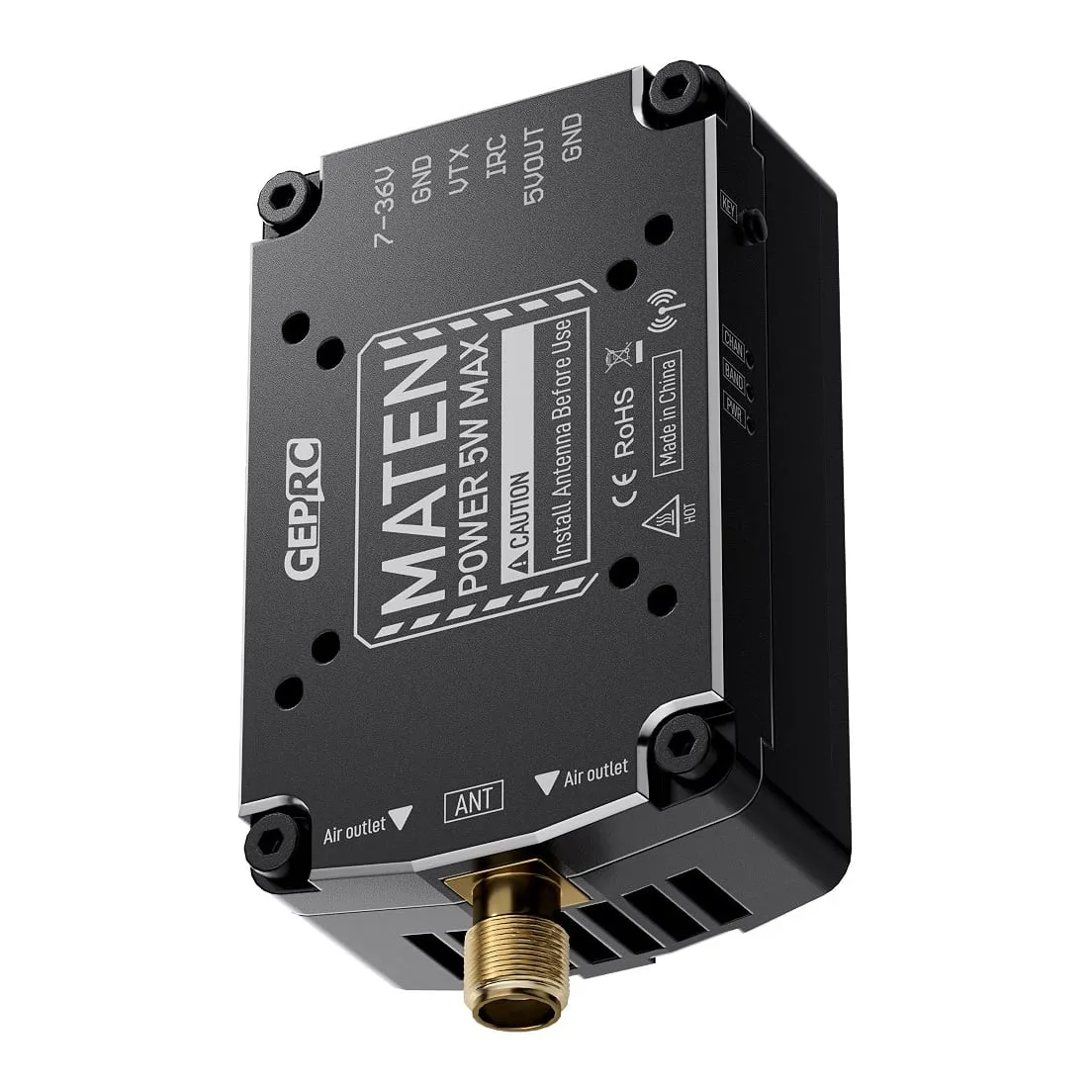

• Antenna connector: SMA

• Protocol: IRC Tramp

• Mounting pattern: 30.5x30.5mm (M3)

• Dimensions: 38x38x17.5mm

• Weight: 31.2g

With its standard 30.5x30.5mm mounting footprint and heavy-duty thermal design, this VTX is ideal for large 7-inch to 10-inch long-range builds, fixed-wing platforms, and heavy-lift cinelifters requiring the absolute maximum analog range possible.
