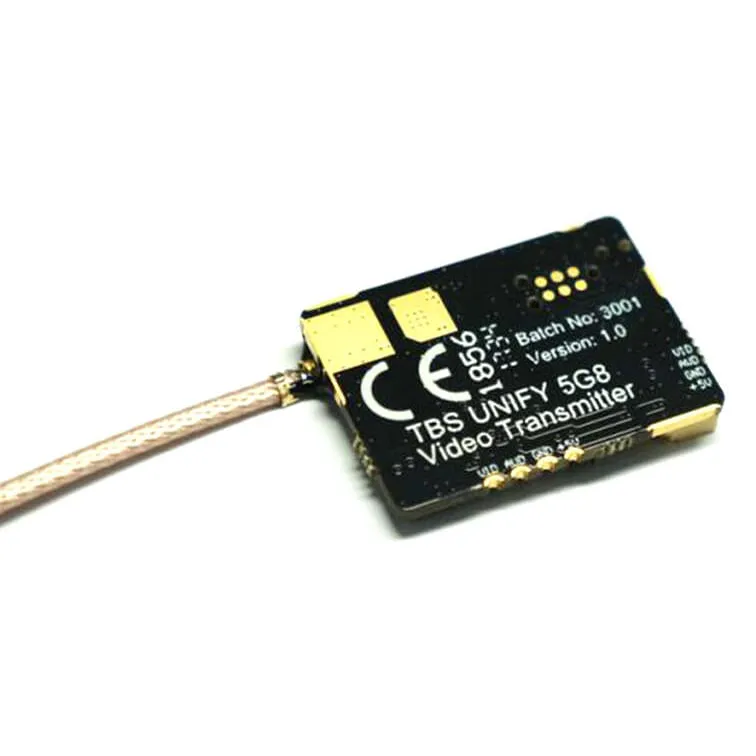

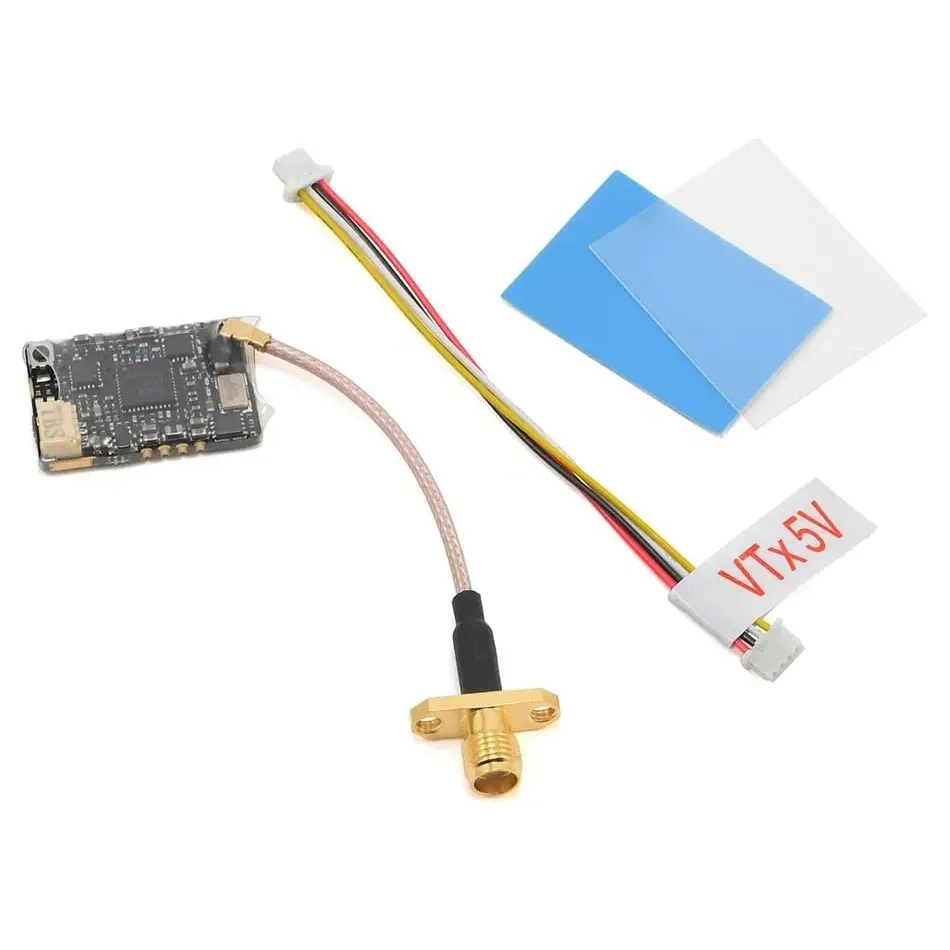

TBS Unify Pro 5G8 V3 800mW Video Transmitter

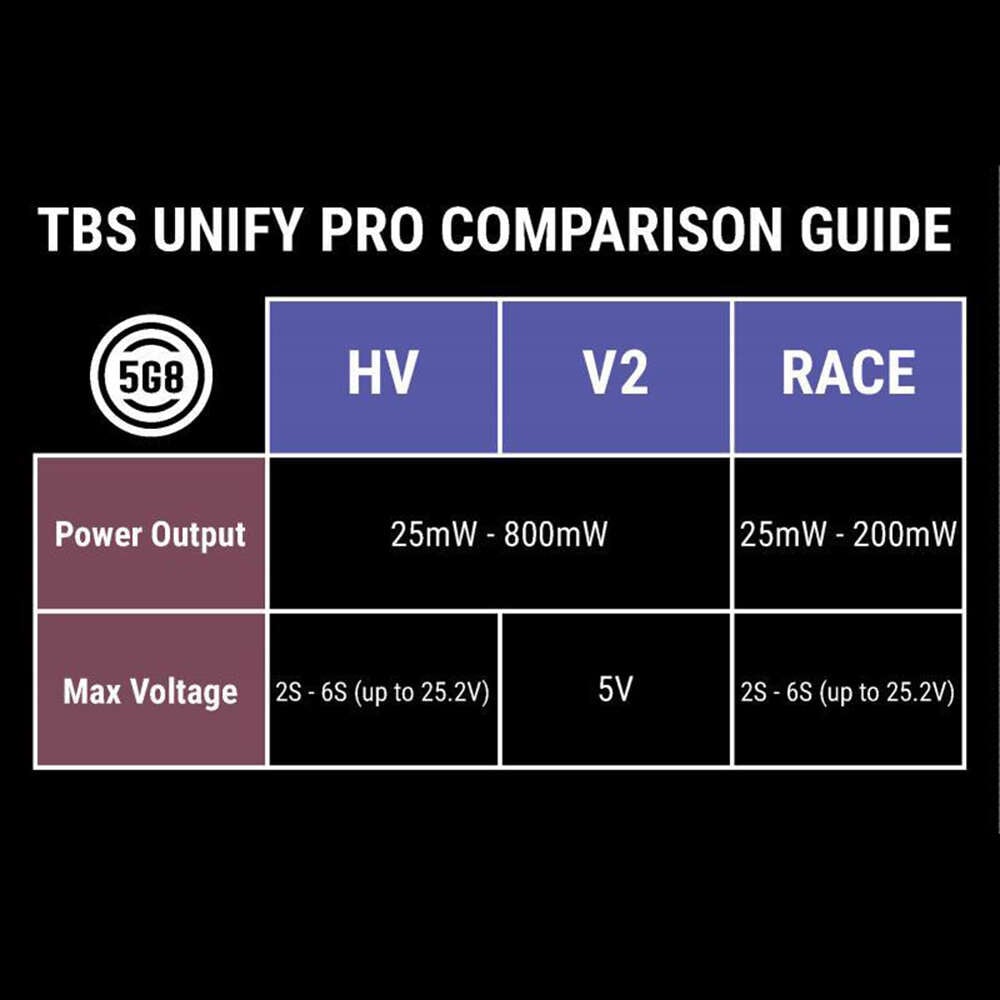

TBS's compact 5.8GHz analog video transmitter for racing and freestyle quads, delivering up to 800mW from a 5g board. It runs from a filtered 5V supply, and the V3 revision raises voltage-spike tolerance to 13V, up from 6.5V on V2. Choose the SMA or RP-SMA antenna connector to match your antenna.

Key features

• Four output levels of 25, 200, 500 and 800mW, set from the OSD, the flight controller or the onboard button menu

• SmartAudio V2 control over a UART, so the flight controller's OSD can change channel and power

• PitMode drops output far below 1mW and moves off race channels, so you can power up in the pits without wiping out other pilots' video

• Clean power-up and channel switching; TBS rates the spectrum clean enough for up to 16 pilots at once

• Robust RF amplifier that TBS says survives power-up without an antenna; still fit one before every flight

Specifications

• Frequency band: 5.8GHz

• Output power: 25 / 200 / 500 / 800mW

• Supply: filtered 5V, spikes up to 13V tolerated

• Supply current: 600mA

• Video format: NTSC / PAL

• Video input impedance: 75 ohm

• Audio carrier: 6.5MHz

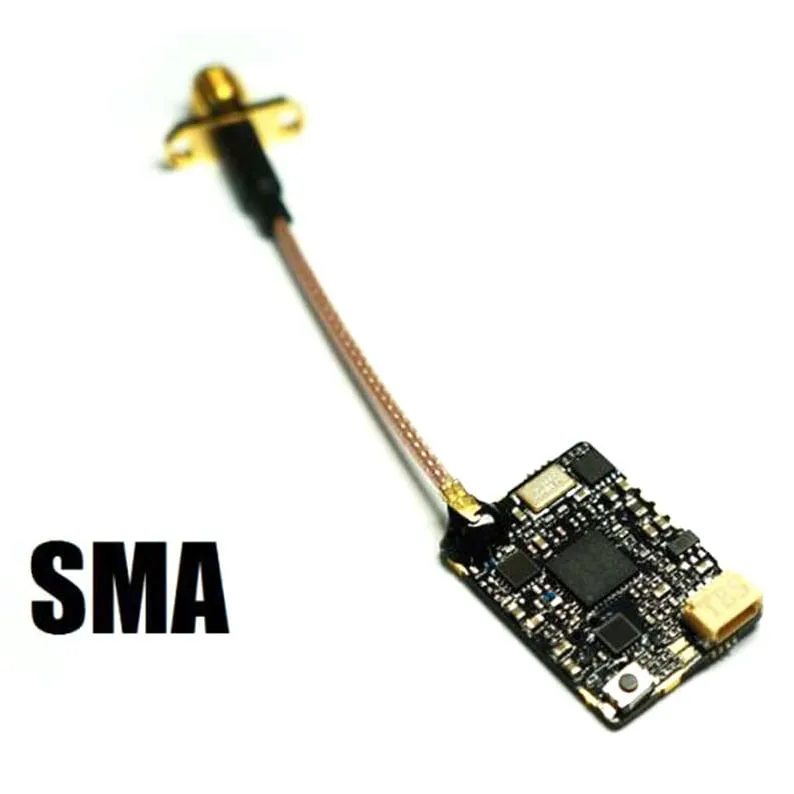

• Antenna connector: SMA or RP-SMA female, by variant

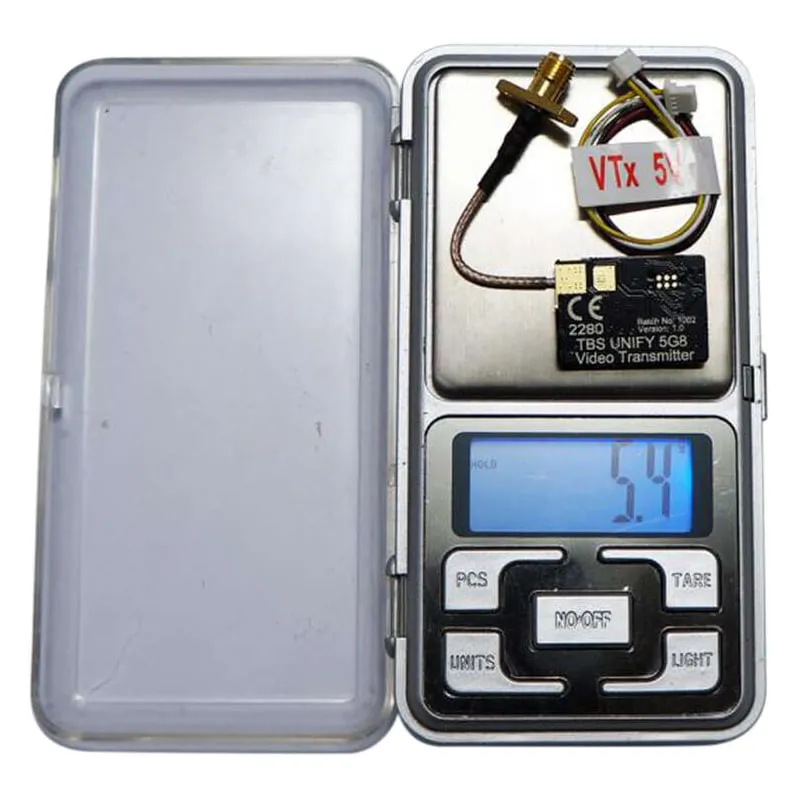

• Weight: 5g with connector, without antenna

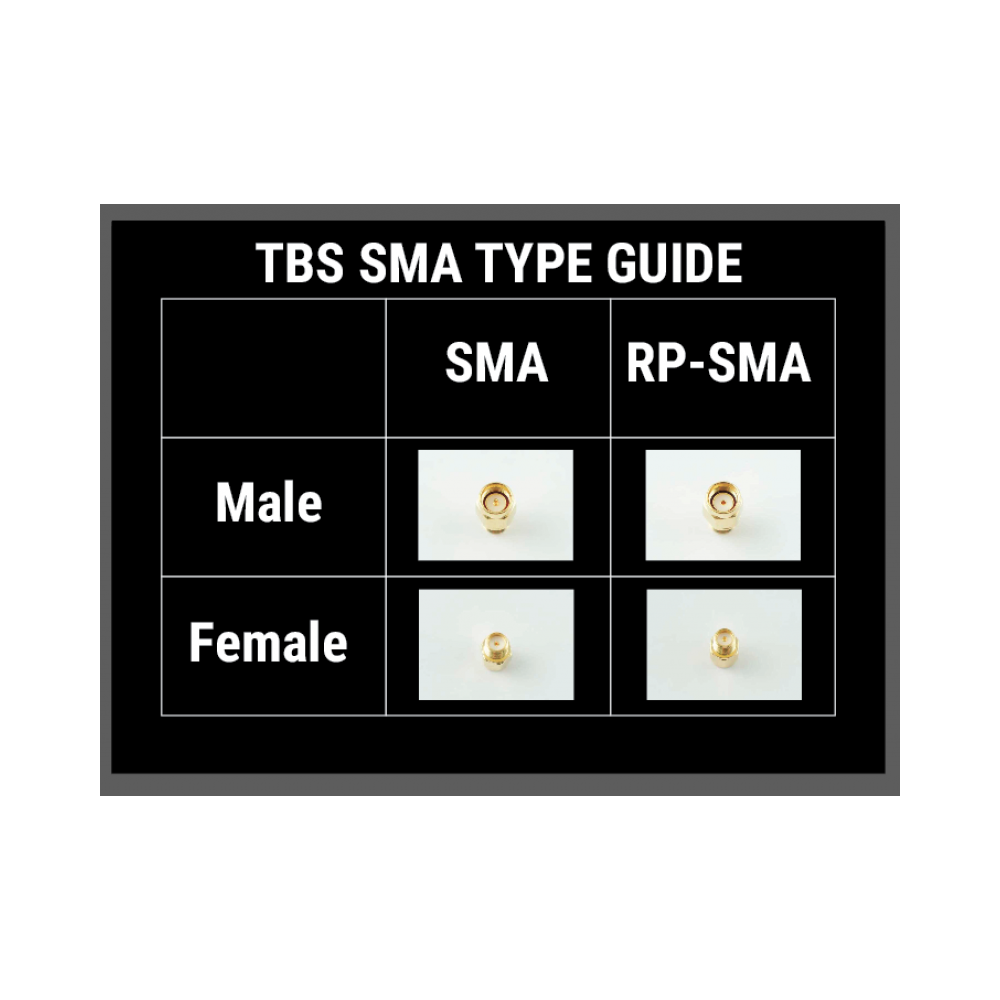

Feed it from a clean 5V rail, such as a flight-controller BEC, TBS Core Pro or PowerCube, never straight from the battery. Pick the connector variant that mates with your antenna: SMA antennas need the SMA version, RP-SMA antennas the RP-SMA version.
