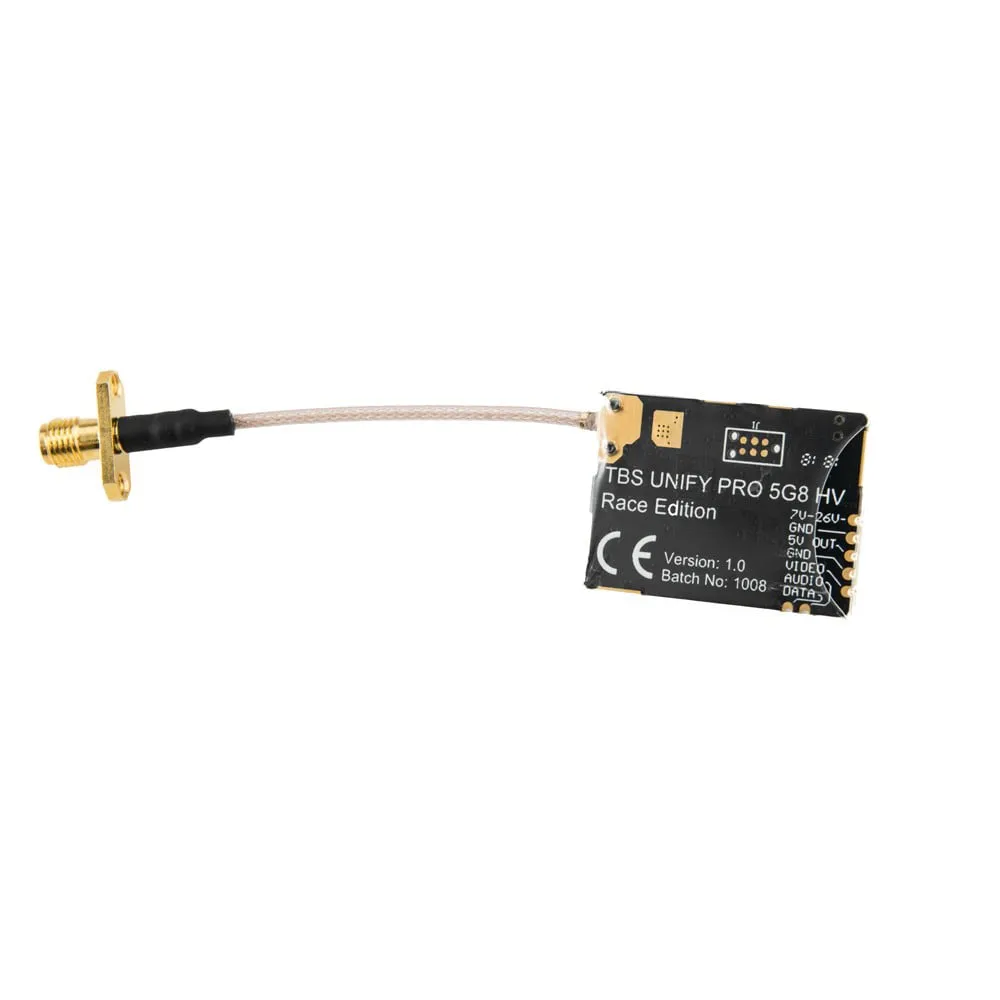

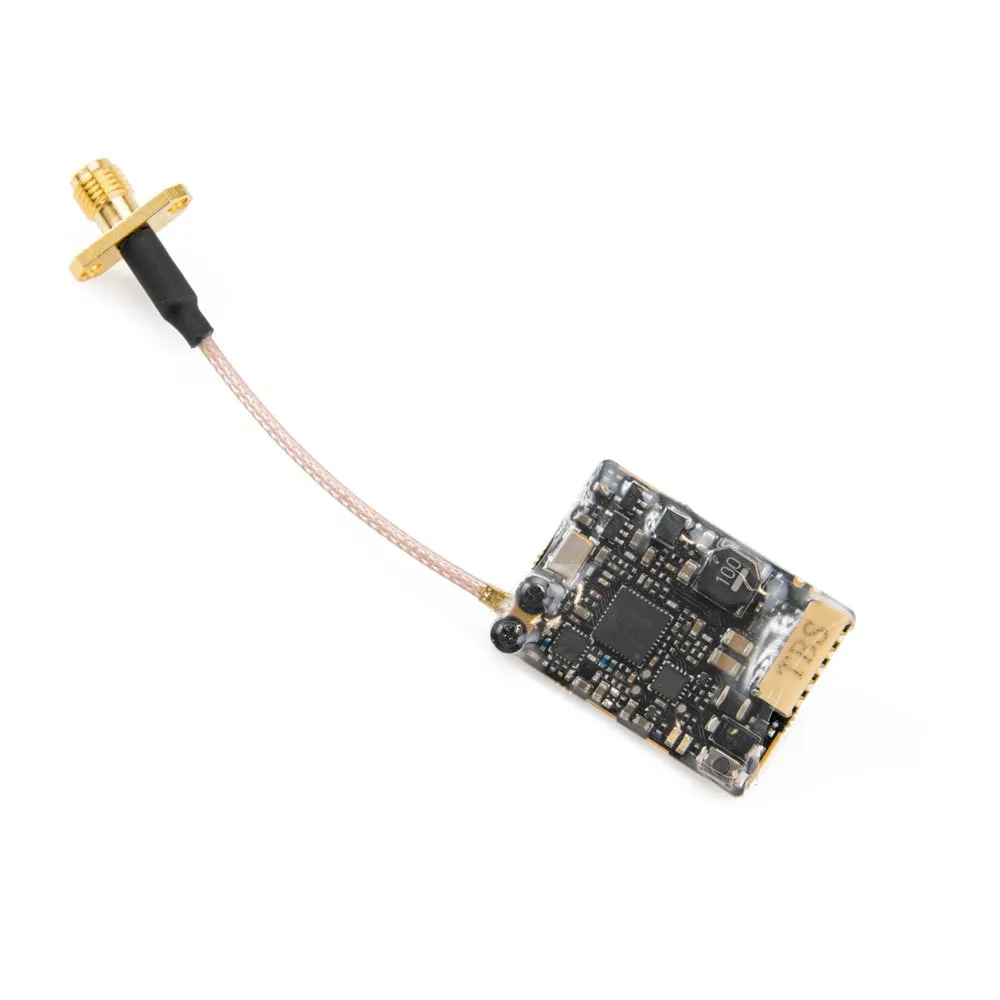

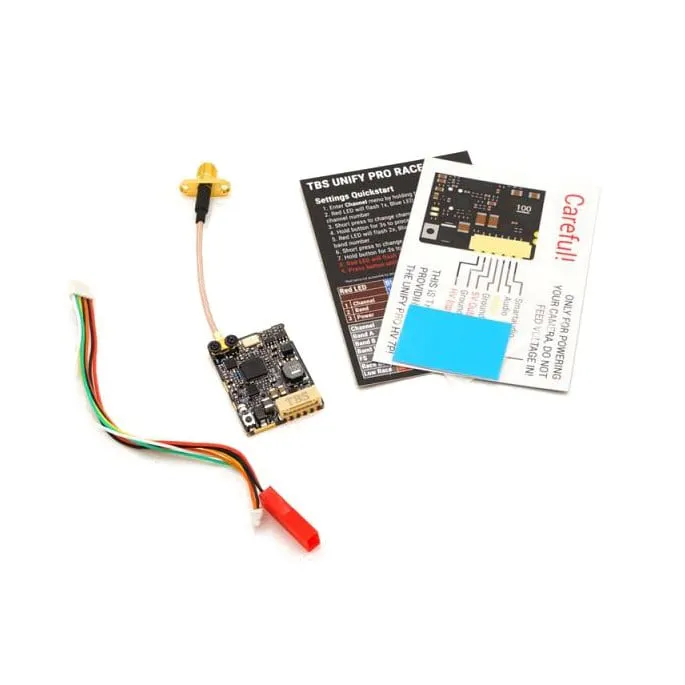

TBS Unify Pro HV 5G8 Race VTX (SMA)

The TBS Unify Pro HV 5G8 Race is a dedicated 5.8GHz analog video transmitter tailored for FPV racing quads. Stripped down to essential race-day output levels to reduce thermal mass, this VTX accepts direct 2-6S LiPo voltage and integrates Team BlackSheep's signature CleanSwitch and PitMode technologies for safe, interference-free event operation.

Key features

• Adjustable 25mW and 200mW output power for strict compliance at race events.

• SmartAudio V2.0 protocol allows remote channel, band, and power changes directly through the flight controller OSD or radio.

• CleanSwitch technology ensures the transmitter powers up or switches channels without bleeding over into adjacent frequencies.

• High-voltage direct input handles power spikes up to 26V while providing a clean 5V output to an FPV camera.

• Chassis-mountable SMA connector handles direct antenna strikes without stressing the main VTX board.

Specifications

• Input voltage: 6V - 26V (2-6S LiPo)

• Supply current: 600 mA

• Output power: 25mW, 200mW

• Frequency band: 5.8GHz (NTSC/PAL compatible)

• Channels: 40

• Control protocol: SmartAudio V2.0

• Antenna connector: SMA Female

• Input connector: JST GH 7-pin

• Camera power supply: 5V

• Dimensions: 27 x 20 x 4 mm

• Weight: 7 g (with SMA, without antenna)

Using the built-in PitMode, racers can power up their quads on the bench or the starting block at a fractional output level, keeping the video feed confined to a few metres and preventing disruption to airborne pilots before arming.
