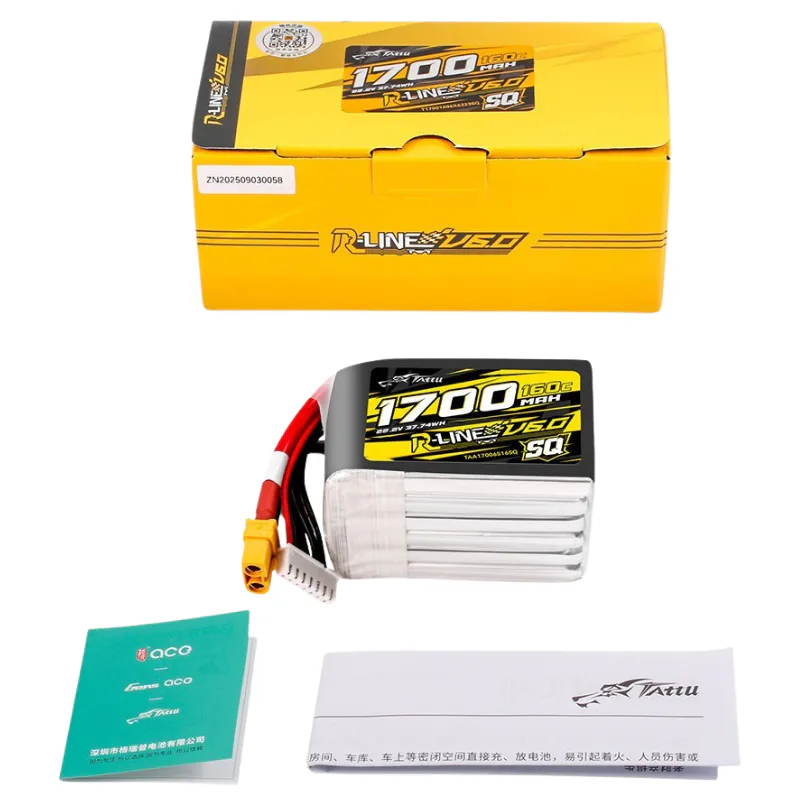

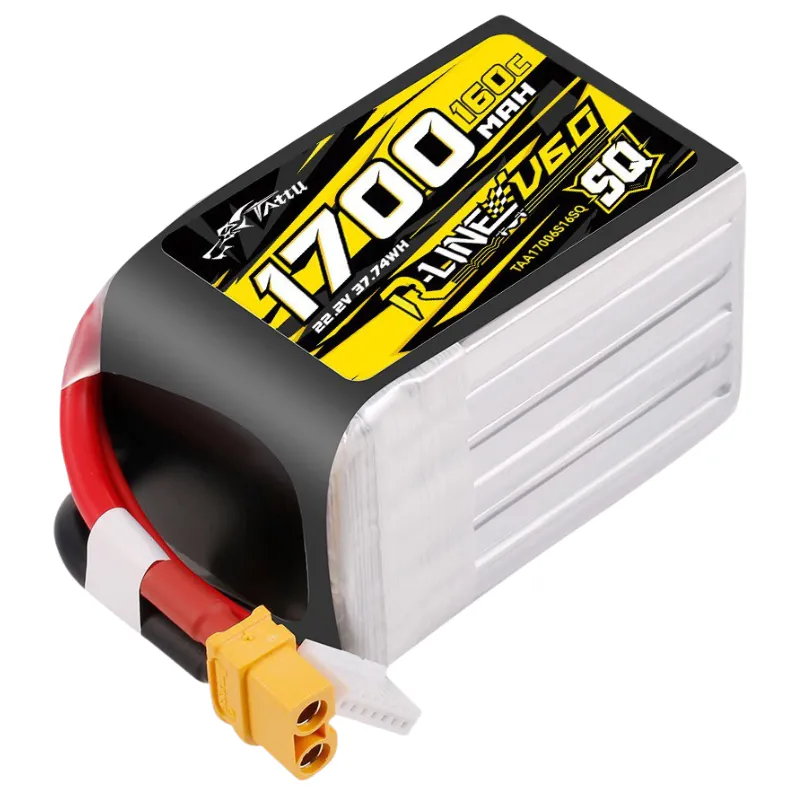

Tattu R-Line V6 1700mAh 6S 160C 22.2V LiPo Battery - XT60U-F

The Tattu R-Line V6 1700mAh 6S LiPo battery is built for demanding 5-inch freestyle setups and heavier 6-inch quads. Utilising Tattu's latest Version 6 chemistry, it offers significantly lower internal resistance compared to previous generations, ensuring your voltage remains stable even under extreme amp draw. The "SQ" (square) form factor gathers the mass into a shorter, thicker profile, centralising your drone's centre of gravity to yield snappier flips, rolls, and overall rotational responsiveness.

Key features

• V6 cell chemistry delivers reduced internal resistance and lower operating temperatures.
• 160C continuous discharge rating provides consistent high voltage during aggressive punch-outs.
• Square (SQ) profile concentrates the battery mass to improve the drone's rotational inertia; the ST (stick) version has a narrower, longer shape for frames with a long battery bay.
• Factory-fitted with a compact XT60U-F connector and standard balance lead.

Specifications

• Configuration: 6S1P / 22.2V
• Capacity: 1700mAh
• Discharge rating: 160C
• Dimensions: 72.18 x 43.34 x 41.24 mm (SQ); 78 x 38 x 40 mm (ST)
• Weight: 262 g (SQ); 246 g (ST)
• Power connector: XT60U-F, 12AWG silicone lead
• Balance connector: JST-XHR

This 1700mAh pack is highly recommended for 5-inch bando bashers or heavy cinematic builds carrying action cameras, where the extra capacity offsets the payload weight without sacrificing burst power.
