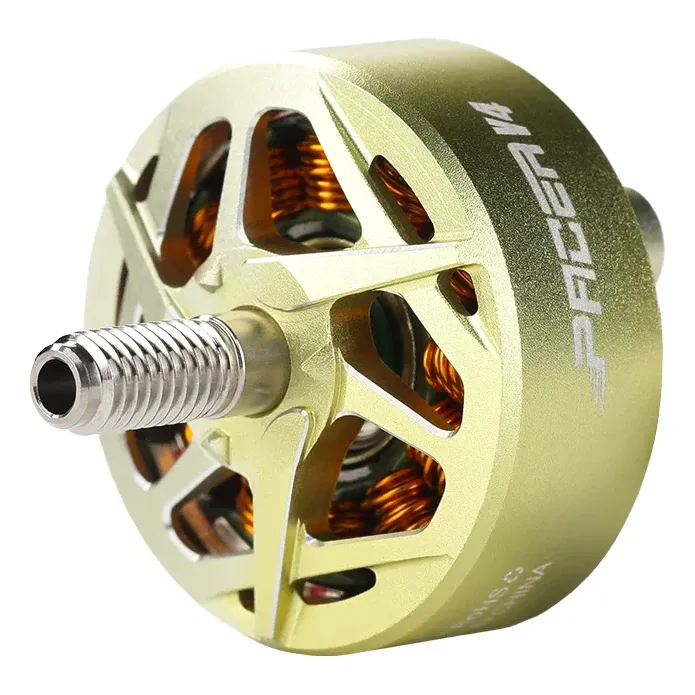

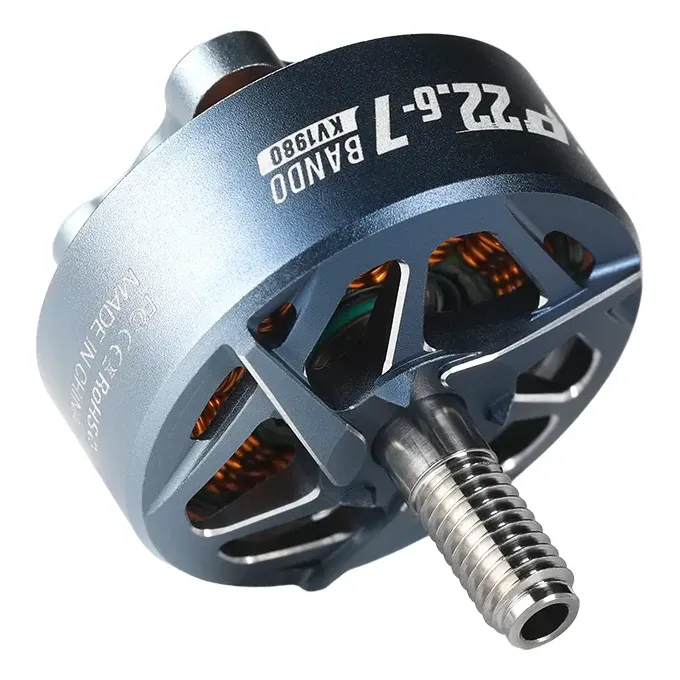

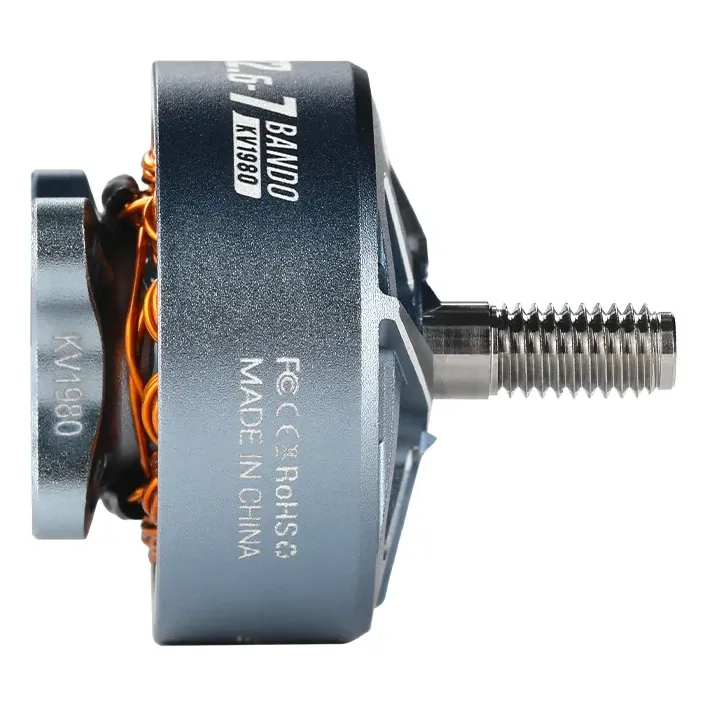

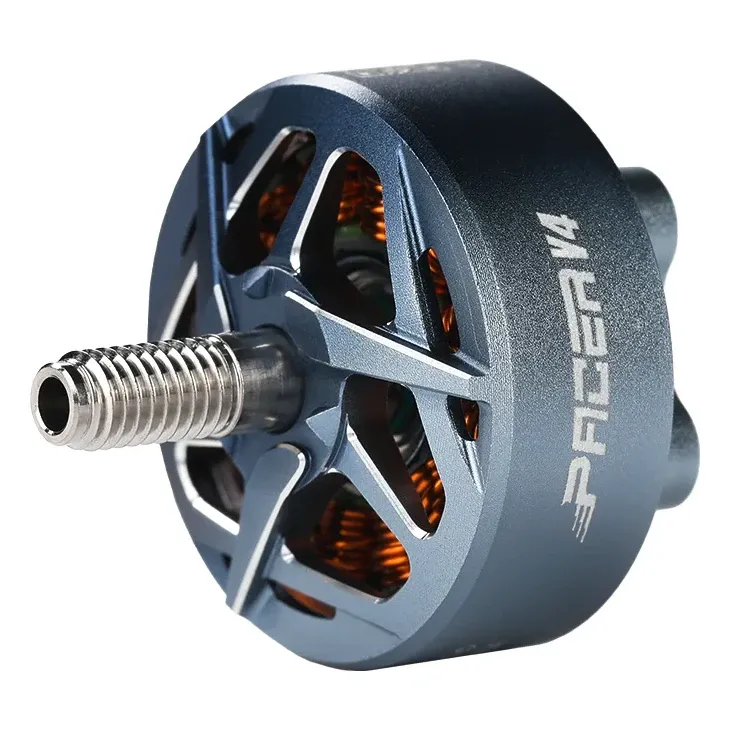

T-Hobby Pacer P22.6-7 1980KV 6S Freestyle FPV Motor

The T-Hobby Pacer P22.6-7 is a 6S motor from T-Motor's T-Hobby line for 5-inch freestyle and bando quads, where shafts and bells take regular hits.

Key features

• Upgraded 5 mm inner shaft with M5 prop thread resists bending and cuts the risk of jamming after hard impacts
• Reinforced structure for crash-heavy flying: flow, bando, acro and tight gaps
• 12N14P configuration with nickel-plated arc magnets and imported MR105 bearings, dynamically balanced to 5 mg or better for smooth, precise throttle
• Up to 1739 g thrust and 193 W at a 43 A peak on 6S
• 16 × 16 mm M3 mount and 170 mm 20AWG PTFE leads suit standard 5-inch freestyle frames

Specifications

• Model: Pacer P22.6-7
• KV: 1980KV
• Stator: 22.6 × 7 mm
• Configuration: 12N14P
• Motor size: Ø29 × 32.2 mm
• Shaft: 5 mm inner shaft, M5 prop thread
• Mounting: 16 × 16 mm, 4 × M3
• Bearings: MR105
• Magnets: nickel-plated arc
• Leads: 20AWG PTFE, 170 mm
• Dynamic balance: ≤5 mg
• Weight: 36–36.5 g
• Battery: 6S LiPo (22.2 V nominal)
• Max thrust: 1739 g
• Max power: 193 W
• Peak current: 43 A

Order four for a quad. Pair them with a 50–60 A 6S ESC, 5-inch props such as the T-Hobby F5146, Gemfan 5127 or T-Motor T5143S, and 6S 1000–1300 mAh LiPo packs.
