7" Deadcat HD FPV Frame 333mm, 3K Carbon Fibre

A 7-inch long-range frame in the deadcat layout, built for HD digital FPV systems such as the DJI FPV air unit. Boomerang-shaped arms keep the props out of the camera's view on long cruises, and the video unit and stack sit centred for balanced handling. The 333mm wheelbase takes 7-inch props on 22xx–23xx motors.

Key features

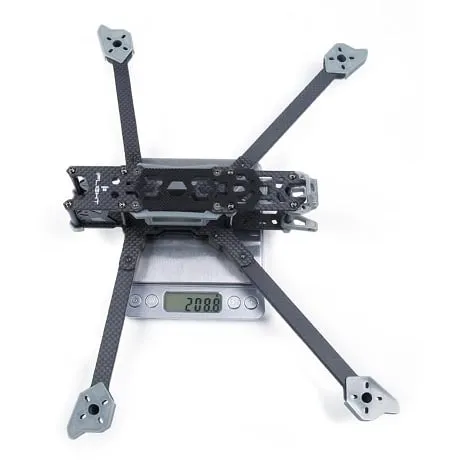

• 208.8 g dry, weighed with the TPU parts fitted.
• Full 3K carbon fibre airframe with chamfered boomerang arms.
• Two stack sizes: mounting for 30.5 x 30.5 and 20 x 20 stacks.
• TPU kit included: camera mount adapters, an air-unit bracket and antenna mount, front and rear bottom-plate protectors and four arm guard / motor mount pieces.

Specifications

• Prop size: 7 inch
• Wheelbase: 333 mm
• Dry weight: 208.8 g with TPU parts
• Material: 3K carbon fibre
• Stack mounting: 30.5 x 30.5 mm and 20 x 20 mm
• Recommended motors: 22xx–23xx
• In the box: frame, screw bag, TPU camera mount adapters, 4 x arm guard/motor mount, TPU air-unit bracket, TPU antenna mount, front and rear TPU bottom-plate protectors, battery anti-slip mat, 2 x battery straps

With straps and a battery pad in the box, the build needs only motors, a stack, the video system, a receiver, props and a battery to fly.
