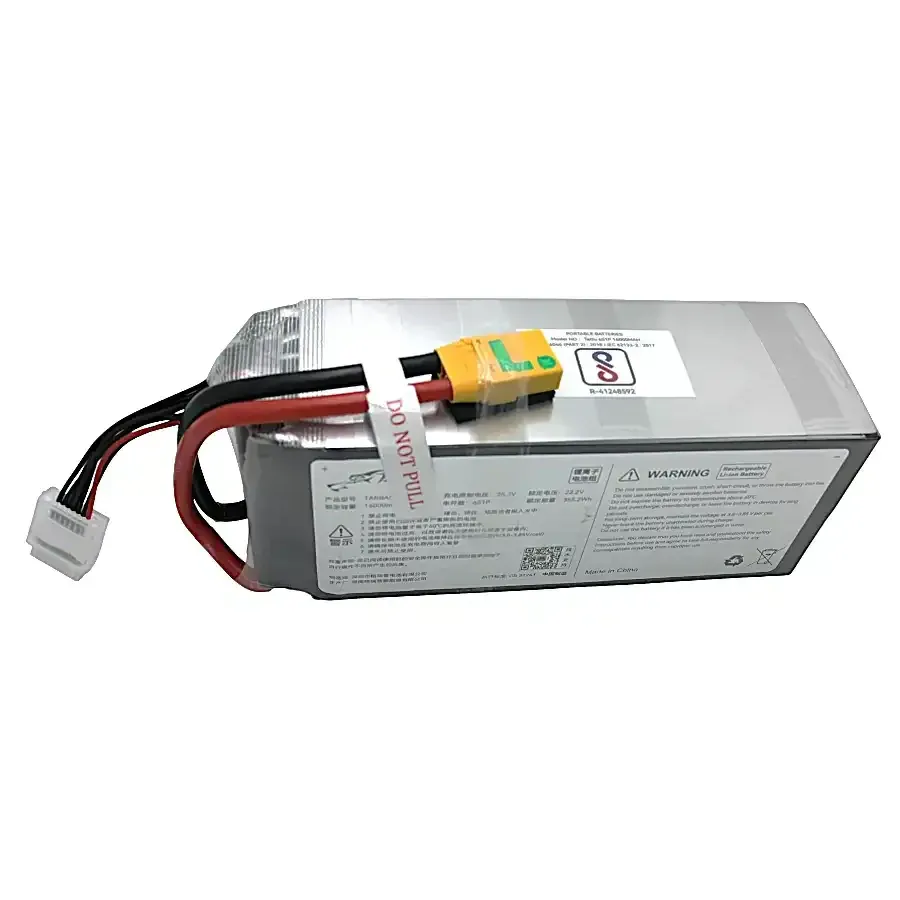

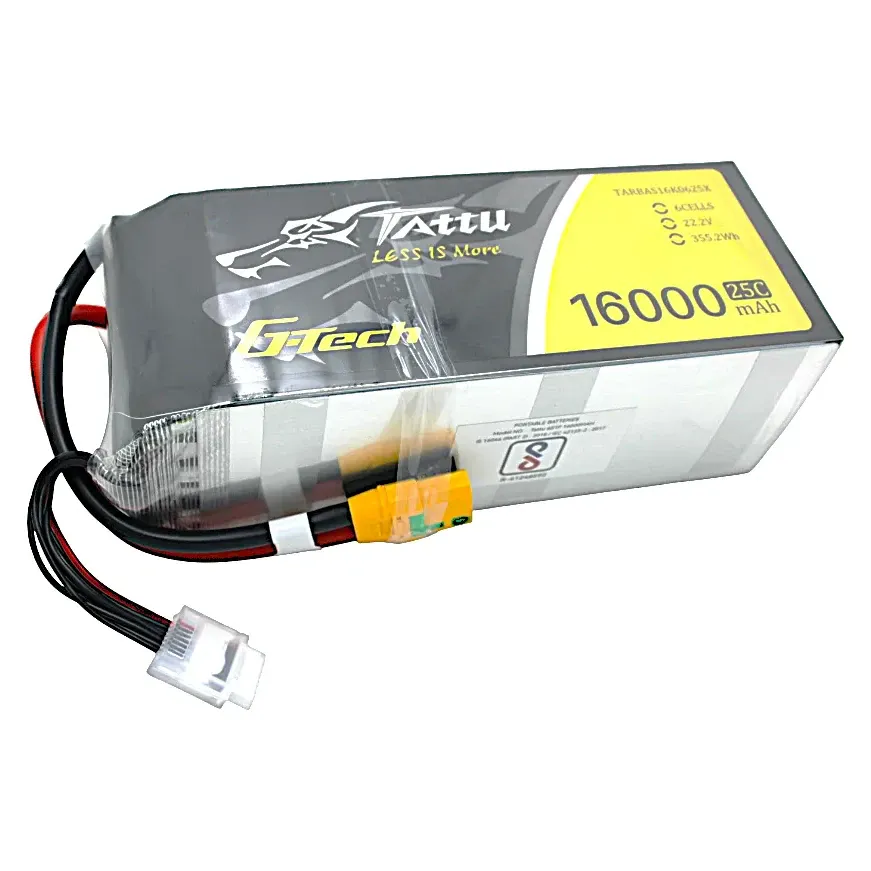

Tattu G-Tech 16000mAh 6S 25C 22.2V LiPo Battery (XT90-S)
SKU TATTU-GTECH-6S-16000-25C-XT90S
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Tattu G-Tech 16000mAh 6S1P is a high-capacity 22.2 V LiPo pack for large multirotors, agricultural sprayers, survey platforms, fixed-wing aircraft and other long-endurance UAVs. Its 25C rating allows up to 400 A continuous discharge, and the pack stores 355.2 Wh behind an XT90-S anti-spark plug.
Key features
- 16000 mAh, 6S1P: long endurance on heavy-lift frames; two packs in series give the 12S supply many agri sprayers run on.
- 25C continuous discharge: 400 A available from the cells for high-thrust power systems.
- XT90-S anti-spark connector: a built-in resistor limits the arc when connecting at 6S, sparing connector contacts and ESC capacitors.
- JST-XH balance lead: works with standard 6S balance chargers.
Specifications
- Capacity: 16000 mAh
- Configuration: 6S1P
- Nominal voltage: 22.2 V (25.2 V fully charged)
- Energy: 355.2 Wh
- Continuous discharge: 25C (400 A)
- Recommended charge rate: 1C (16 A)
- Discharge connector: XT90-S anti-spark
- Balance connector: JST-XH
- Chemistry: LiPo
At 355 Wh this pack is over the 160 Wh limit for carriage on passenger flights, so plan to move it by road. Charging at 1C (16 A) needs a 6S charger that can deliver about 400 W, and packs should go to storage voltage between flying days.
| Capacity | 16000 mAh |
|---|---|
| Chemistry | LiPo |
| Cell Count | 6S |
| Made in India | No |
| Brand | Tattu |
| C-Rating | 25 C |
| Battery Connector | XT90-AS |
