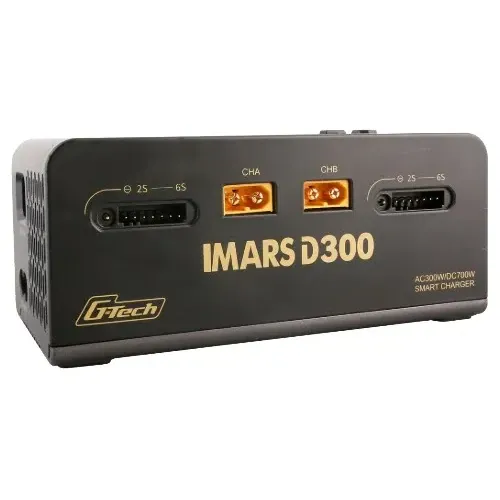

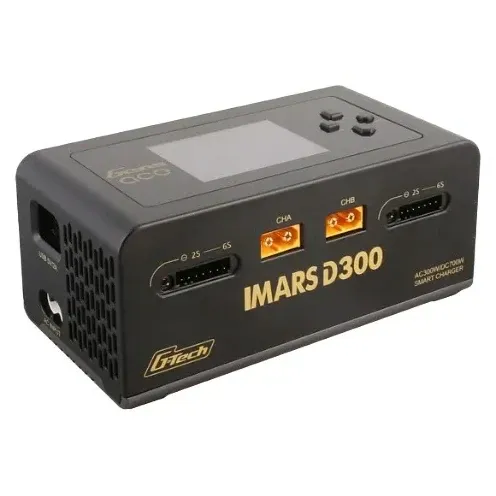

Gens ace iMars D300 Plus G-Tech Dual-Channel AC/DC Charger 300W/700W

The Gens ace iMars D300 Plus is a two-channel smart balance charger that runs from mains or a DC supply and charges two 1–6S lithium packs at once, at up to 16 A per channel. Connect a Gens ace G-Tech smart battery and it reads the battery type, voltage and recommended charge current through the smart balance plug; ordinary packs are set up manually.

Key features

• 300 W from AC mains (100–240 V) or 700 W from a 7–30 V DC supply, 350 W per channel
• LiPo, LiHV and LiFe 1–6S with balancing, plus NiMH 1–16S
• Seven modes: charge, discharge, balance, storage, external discharge, synchronous charging and DC power supply
• 2.4-inch IPS display and a 5 V/2.4 A USB port for charging a phone or other USB device
• Short-circuit, over-current, overcharge and over-voltage protection in a UL94-V0 flame-retardant housing with controlled cooling

Specifications

• AC input: 100–240 V, 300 W max
• DC input: 7–30 V, 700 W max (350 W × 2)
• Charge current: 0.1–16 A × 2
• Discharge: 0.1–3 A × 2, 15 W × 2
• Output voltage: 1–30 V DC
• Battery types: LiPo, LiHV, LiFe 1–6S; NiMH 1–16S
• USB output: 5 V / 2.4 A
• Display: 2.4-inch IPS
• Dimensions: 145 × 76 × 62 mm
• Weight: approx. 530 g

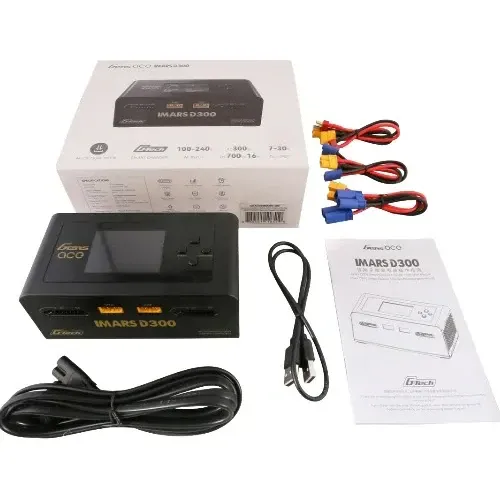

• In the box: charger, mains cord (EU plug), USB-A to USB-A cable, six charge leads (EC5, XT60, Deans T), user manual

On mains the two channels share 300 W, roughly 6 A each when charging two 6S packs together, so run it from a DC power supply when you need full speed on large packs. The mains cord has an EU plug; keep an adapter handy for Indian sockets.
