iFlight XING2 2205 2300KV Unibell FPV Motor

iFlight XING2 2205 brushless motor in the 2300KV winding: a light unibell motor for 6S quads, used on lightweight 5-inch freestyle and racing builds where a smaller stator than the usual 2207 saves weight. iFlight's peak figures for this KV are measured at 25.2 V, a fully charged 6S pack.

Key features

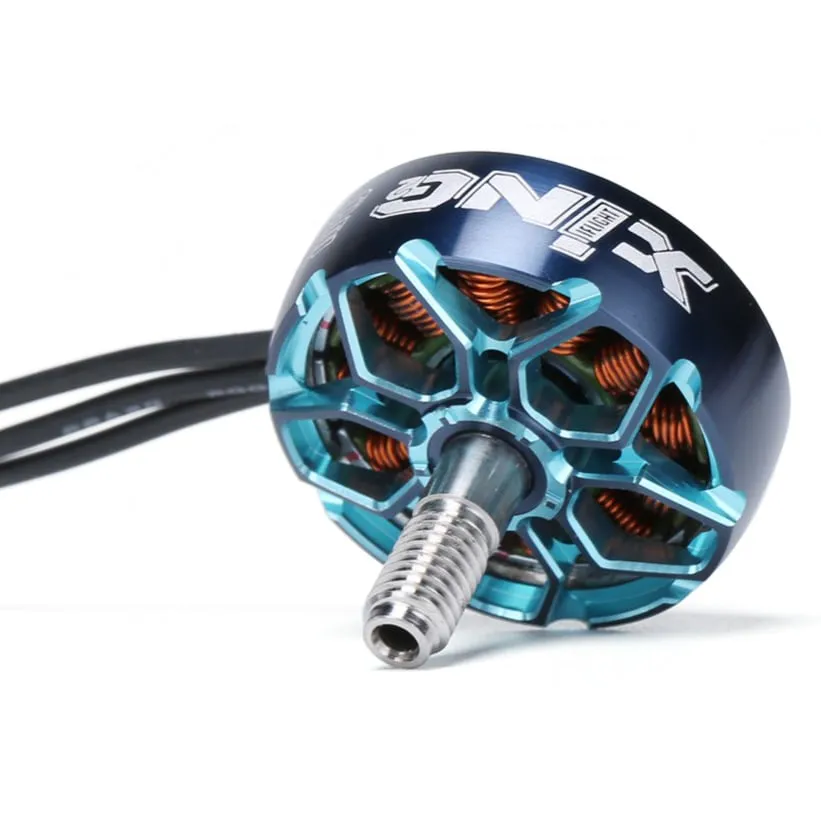

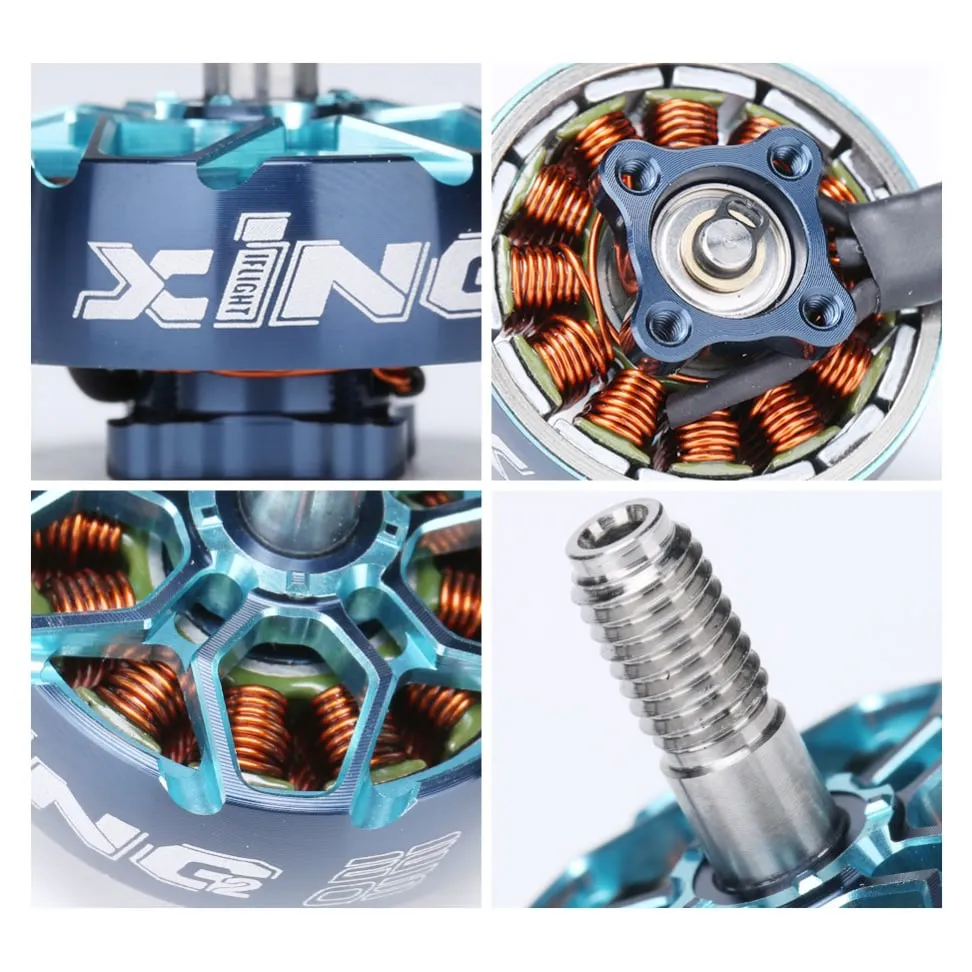

• Unibell rotor with N52H curved arc magnets for quick throttle response

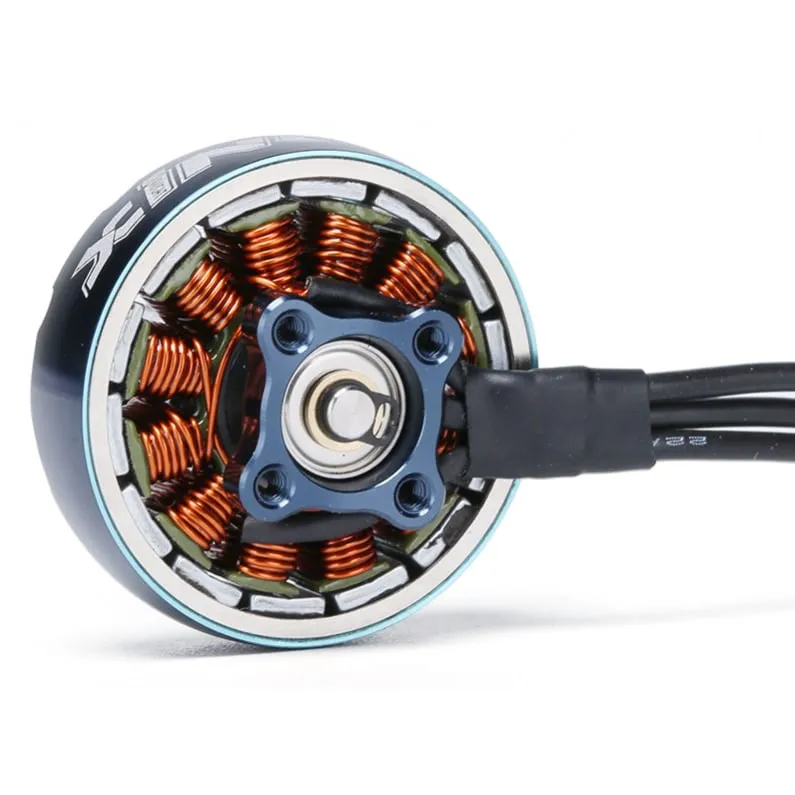

• 12N14P configuration with single-strand copper windings

• 5 mm shaft with 13.5 mm protrusion and an M5 flange prop nut

• NSK/NMB 9 × 4 × 4 mm bearings, with an internal damping ring to protect them

• 25.2 g including leads

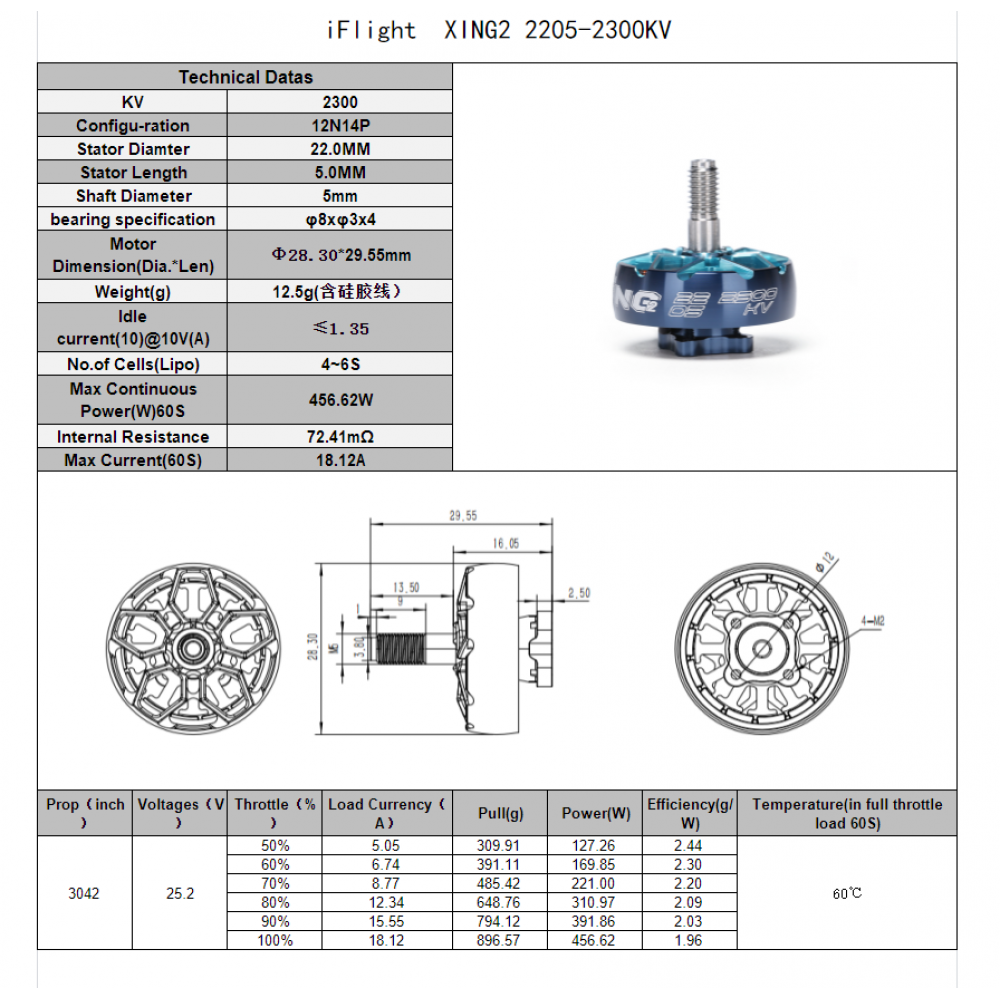

Specifications

• Stator: 2205 (22 × 5 mm)

• KV: 2300KV

• Configuration: 12N14P

• Test voltage: 25.2 V (6S)

• Peak current: 18.12 A

• Max power: 456.62 W

• Interphase resistance: 72.41 mΩ

• Shaft: 5 mm, 13.5 mm protrusion

• Dimensions: Ø28.3 × 29.55 mm

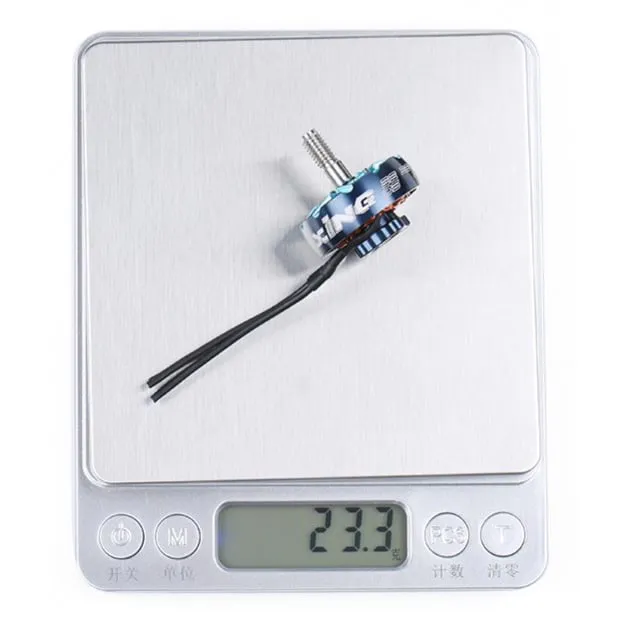

• Weight: 25.2 g (with leads)

• Leads: 160 mm, 22AWG

• Bearings: NSK/NMB, 9 × 4 × 4 mm

• Magnets: N52H curved arc

• In the box: 1 motor, 4 × M3×7 screws, 1 × M5 flange nut

Sold as a single motor, so order four for a quad. Check screw length against your arm thickness before mounting: a screw that reaches the windings will short the motor.
