EV-PEAK U6Q 3000W 60A 6-14S Quad-Channel Agri Drone Charger

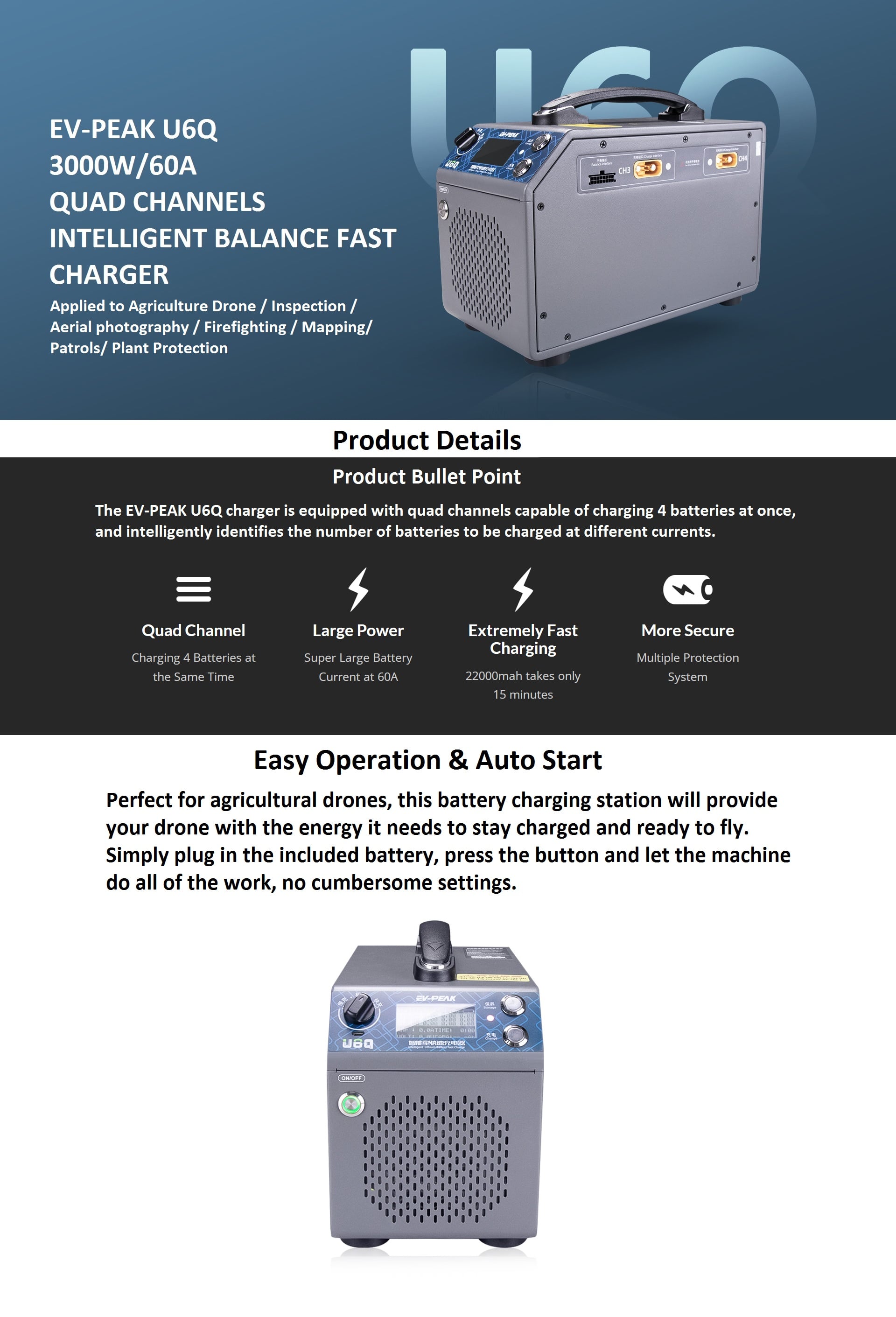

The EV-PEAK U6Q is a 3000 W mains charger for agricultural spraying-drone batteries from 6S to 14S. It splits 60 A across up to four outputs, balance-charges LiPo and LiHV packs, and talks UAVCAN/DroneCAN to smart batteries, making it a field-station charger for spray operators cycling several packs a day.

Key features

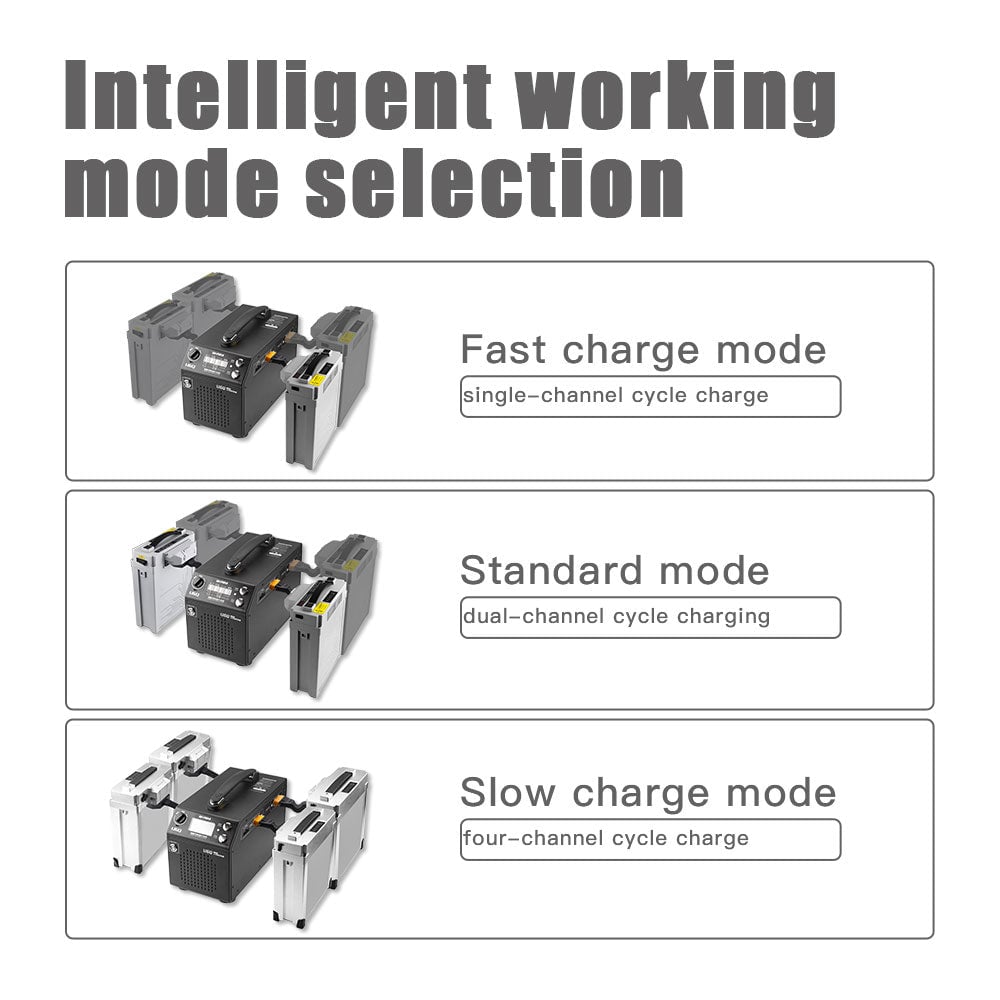

• Output current configurable as 1 × 60 A, 2 × 30 A or 4 × 15 A

• Balance-charges up to two packs at once through MX3.0 balance ports; up to four smart batteries charge simultaneously

• Per-cell charge voltage adjustable from 4.20 V to 4.50 V for LiPo and LiHV packs

• AS150U main output connectors on both sides of the case

• LCD shows charging mode, current, voltage, elapsed time and capacity

• Over-current, over-voltage, overcharge and over-temperature protection, with active cooling

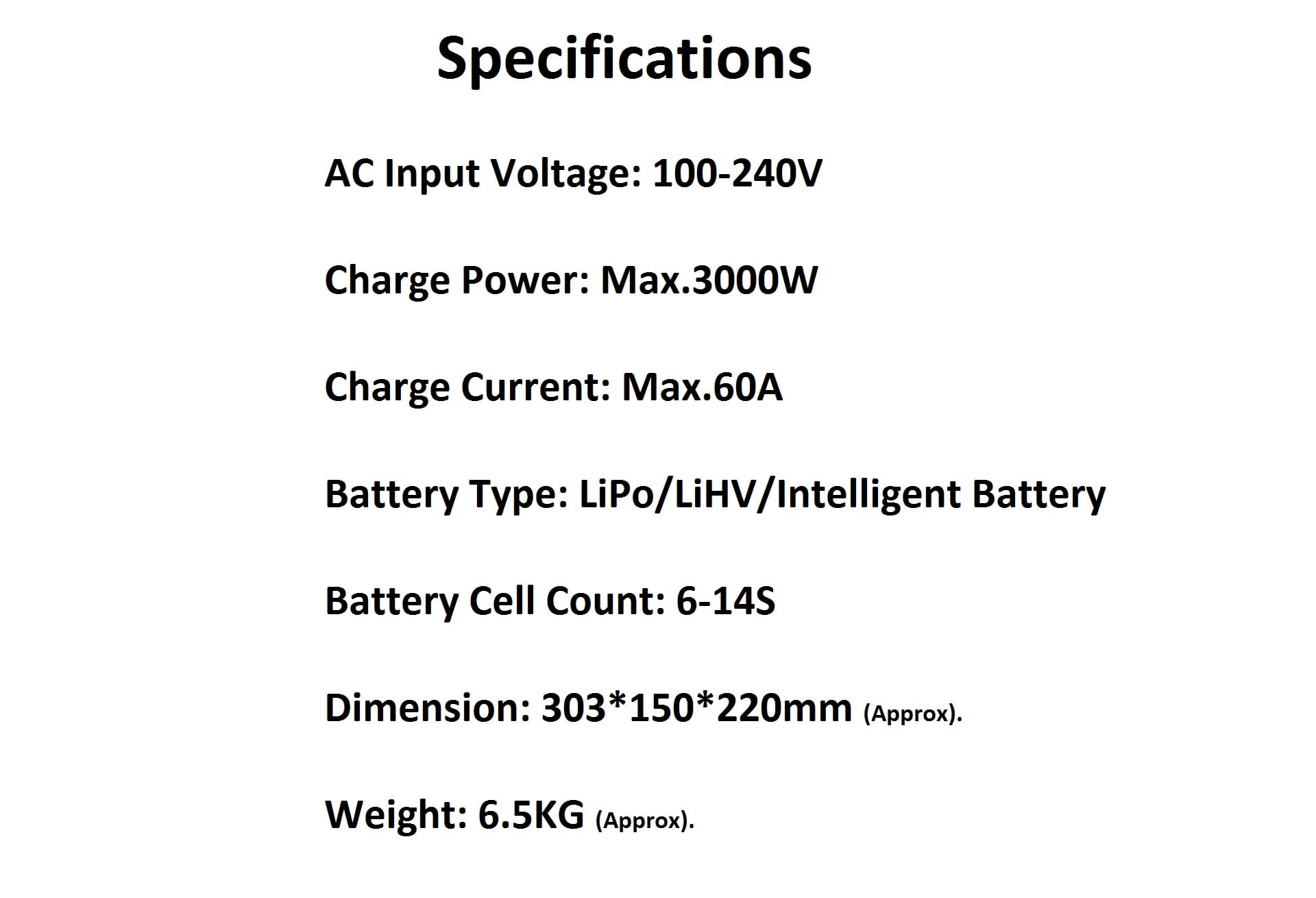

Specifications

• Input: 100–240 V AC

• Maximum output: 3000 W at 220 V AC (approx. 1500 W at 110 V AC)

• Maximum charge current: 60 A total

• Channels: 4 (balance charging on up to 2)

• Battery types: LiPo, LiHV, smart batteries

• Cell count: 6S–14S

• Cell voltage setting: 4.20–4.50 V

• Charge connector: AS150U

• Balance connector: MX3.0

• Communication: UAVCAN / DroneCAN

• Dimensions: 303 × 150 × 220 mm

• Weight: 6.5 kg

On Indian 230 V mains the U6Q can deliver its full 3000 W, which means drawing more than 13 A from the wall. Run it from a 16 A socket or a generator rated comfortably above 3 kW, not a standard 6 A outlet.
