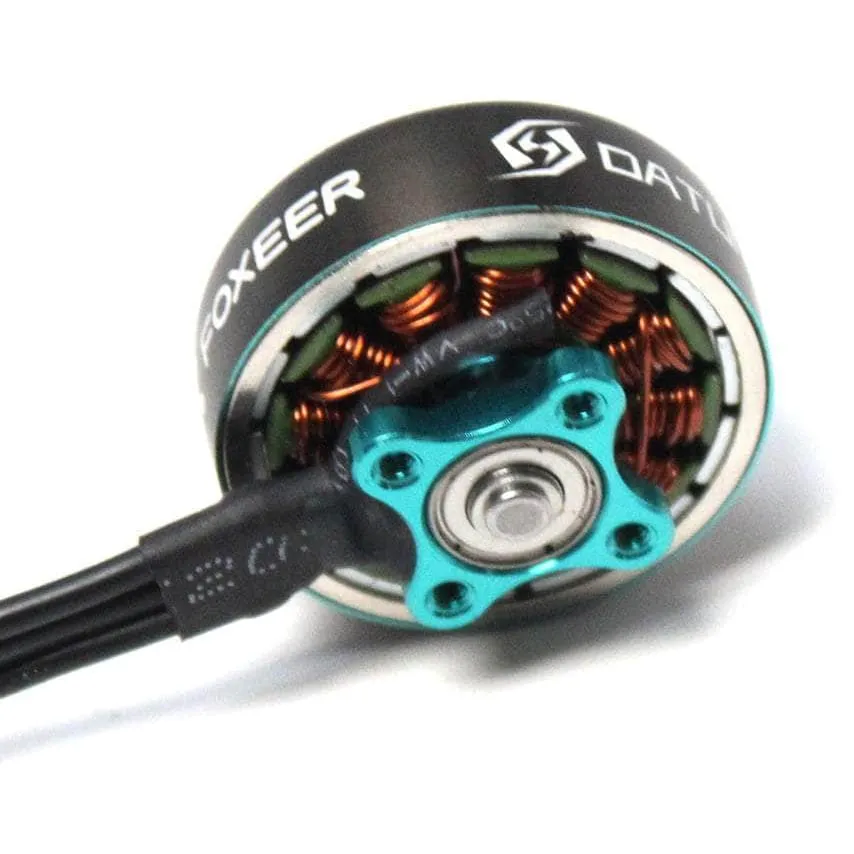

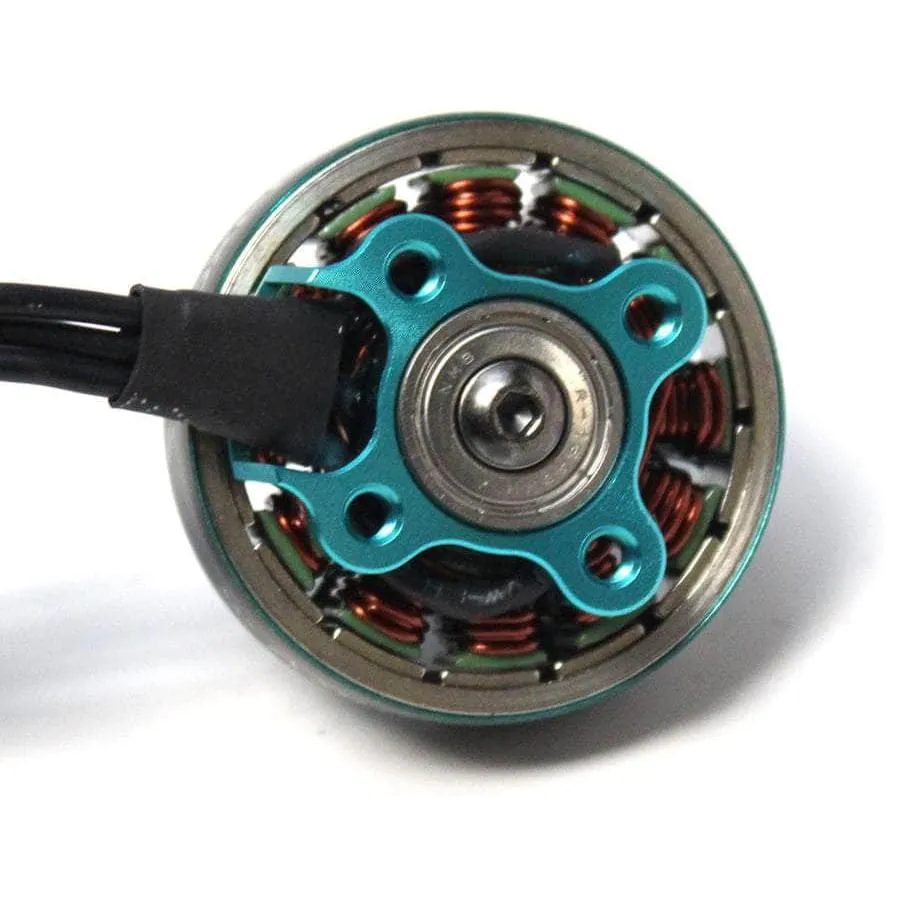

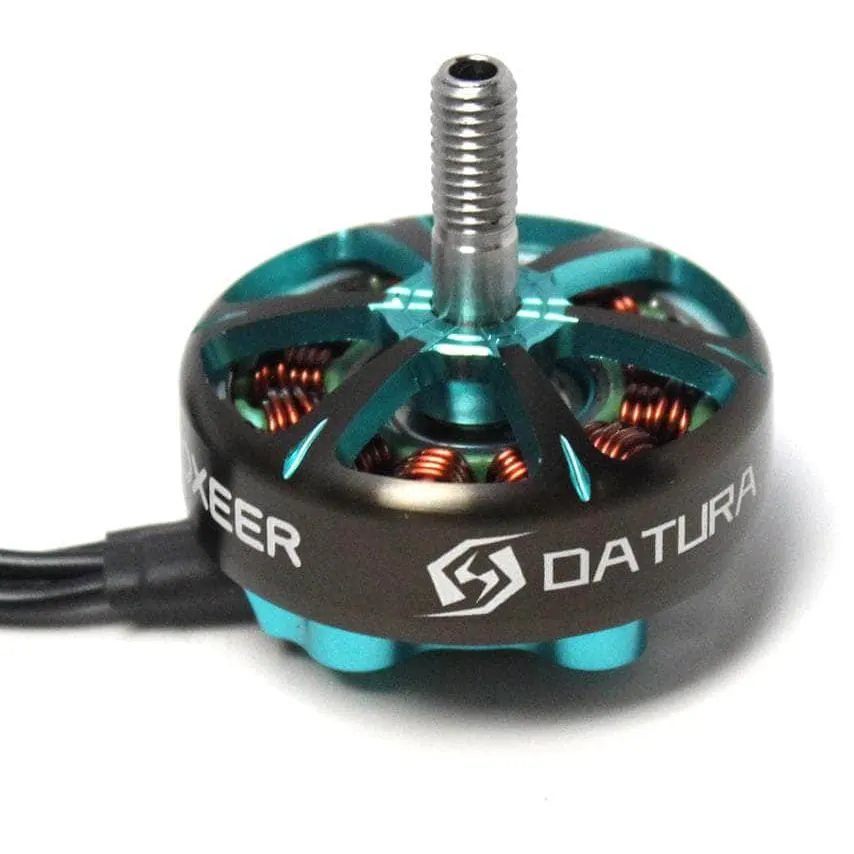

Foxeer Datura 2806.5 1350KV FPV Motor

The Foxeer Datura 2806.5 is a brushless motor for 7-inch long-range and cinematic FPV quads, where the 28mm-wide, 6.5mm-tall stator supplies the torque to turn larger props efficiently.

Key features

• Semi-hollow titanium shaft — saves rotating weight compared with a solid steel shaft.

• Rubber dampener ring — absorbs shock from hard landings and knocks.

• N52H magnets — high-grade neodymium in the heat-resistant H grade, so magnetic strength holds up as the motor warms on long flights.

• High-temperature windings — insulation rated to 260°C resists heat damage under sustained high throttle.

Specifications

• Stator: 2806.5 (28mm × 6.5mm)

• KV: 1350KV

• Recommended battery: 6S LiPo (22.2V nominal)

• Prop size: 7-inch

• Shaft: semi-hollow titanium, M5 prop mount

• Magnets: N52H

• Winding temperature rating: 260°C

Order four for a quad. Before you build, check that your frame's motor-mount holes match the motor base and that your ESC is rated for 6S.
