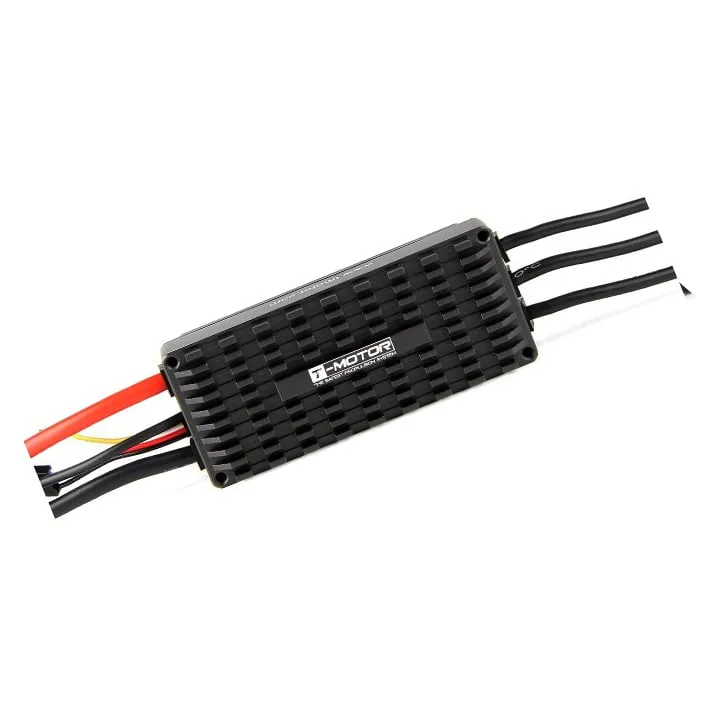

T-Motor Flame 80A 12S V2.0 Single ESC

The T-Motor Flame 80A 12S V2.0 is a single ESC for heavy-lift and agricultural multirotor power systems, rated for 80A continuous and 120A peak current on 6–12S LiPo.

Key features

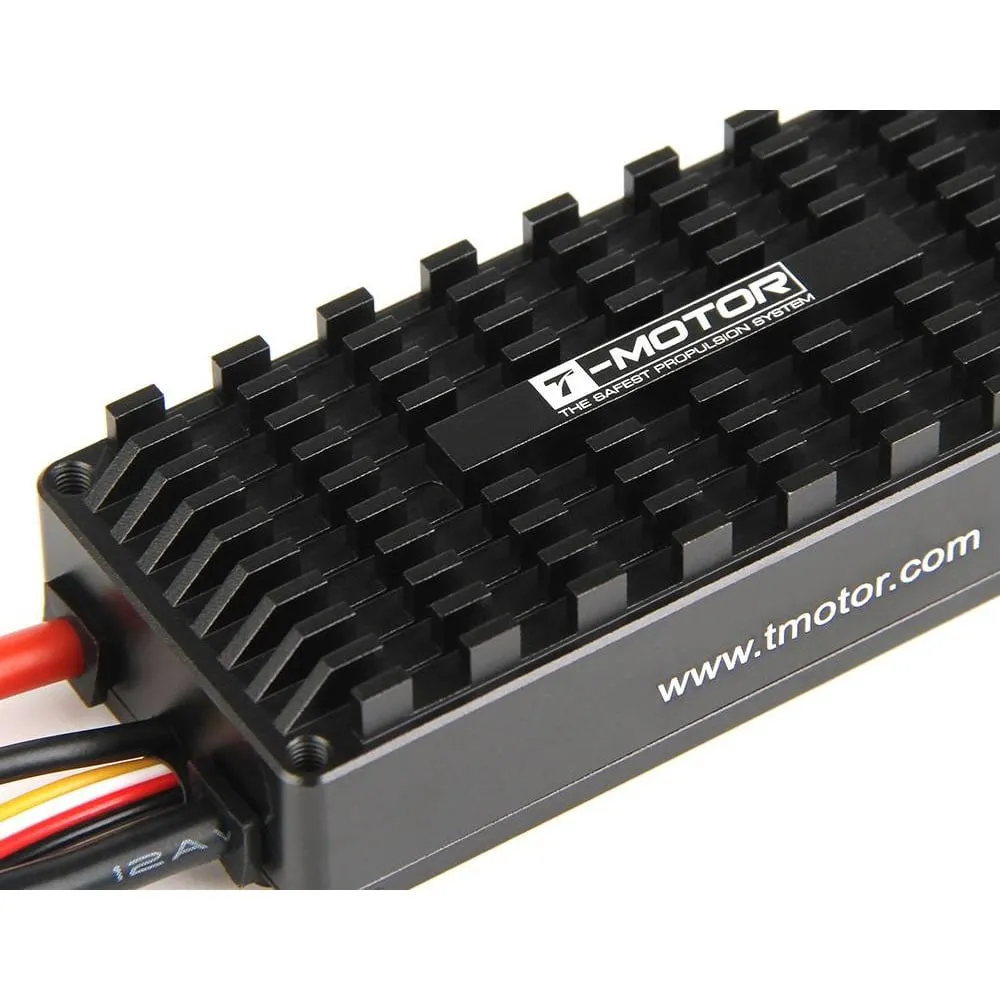

• Machined aluminium enclosure with an IP55-rated, nano-coated PCB resists dust and water ingress for outdoor agricultural and industrial use.
• 120A peak current (10s burst) on top of the 80A continuous rating gives headroom for hard throttle transients under load.
• 600Hz refresh rate and a separate voltage-regulator IC for the microprocessor keep throttle response smooth and resistant to electrical noise.

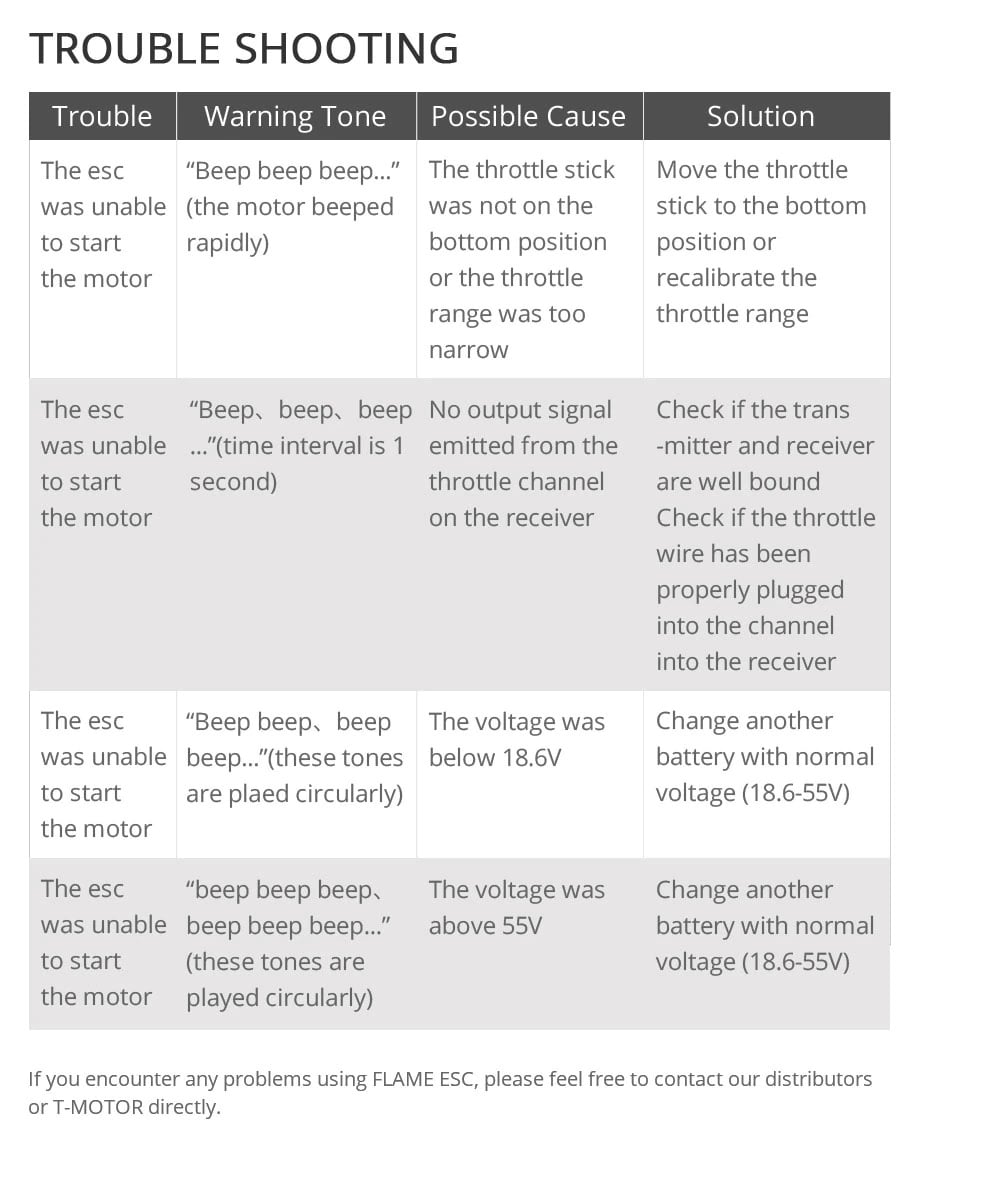

• Built-in protection against start-up faults, overload, motor lock-up and throttle-signal loss.
• Firmware updates load over USB; a hardware kit is included alongside the ESC.

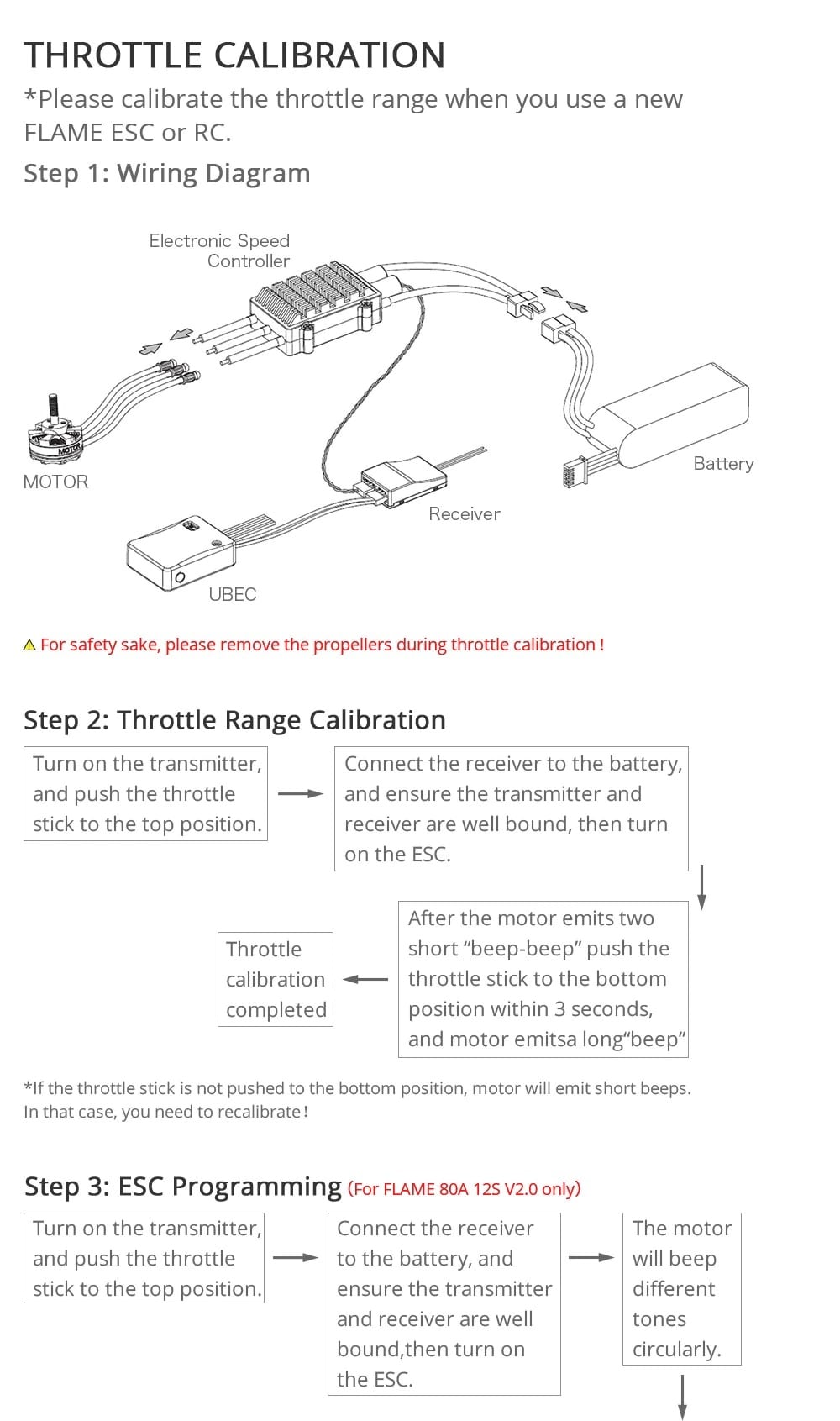

• Configurable throttle range works with the transmitters and program cards commonly used to set up high-current agricultural and industrial ESCs in the field.

Specifications

• Continuous current: 80 A
• Peak current: 120 A (10s)
• Input voltage: 6–12S LiPo
• Protection rating: IP55 (PCB)
• Refresh rate: 600 Hz

Matches T-Motor U12-series motors and similar high-current setups — confirm your battery's minimum cell count is 6S before wiring, as this ESC is not rated for lower-voltage packs.
