T-Motor Alpha 60A 6S ESC
SKU TMOTOR-ALPHA-60A-6S
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The T-Motor Alpha 60A 6S is a FOC-driven speed controller for industrial and heavy-lift UAV motors, built for precise, low-noise control on a 6S power system.
Key features
Field-oriented control (FOC) delivers faster throttle response and steadier startup than square-wave driving.

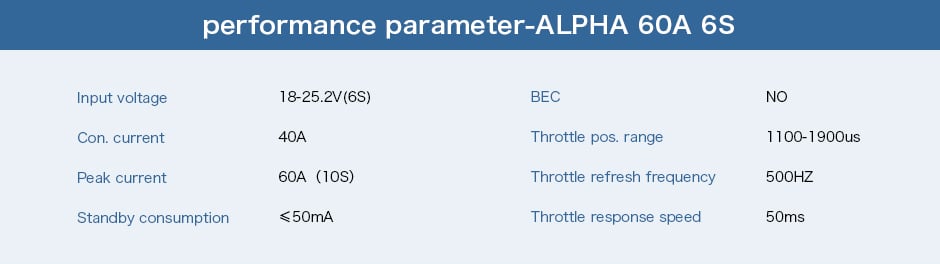

Rated for 40A continuous and 60A peak (10s) at 18-25.2V, matched to T-Motor's U8 V2 and U8 Lite motor range.
Built-in over-current, motor lock-up, short-circuit and low-voltage protection.
IP55-rated against water and dust, including pesticide spray on agricultural drones.
Standby current draw of 50mA or less.

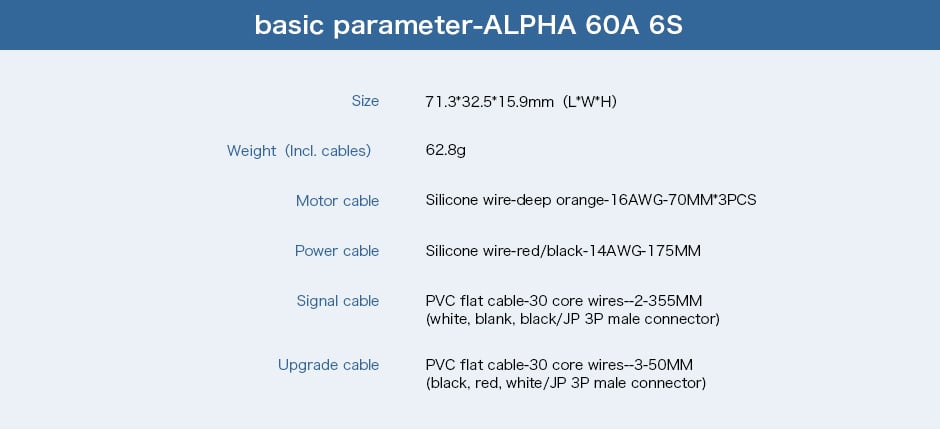

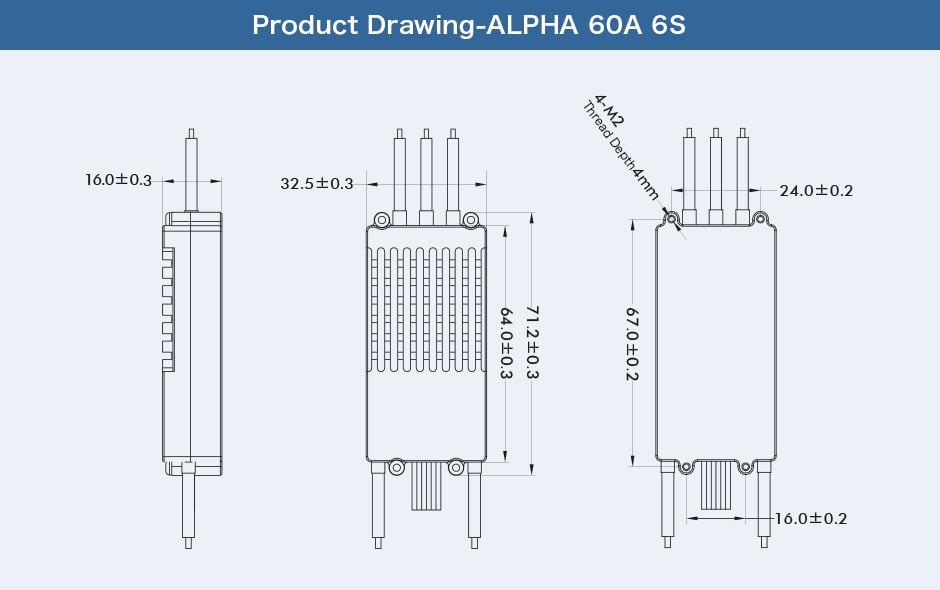

Weighs 62.8g including cables, in a 71.3 x 32.5 x 15.9mm housing.
No BEC on board, so a separate power supply is needed for the flight controller.
Confirm the paired motor and battery stay within the 40A continuous / 60A peak rating, and note the motor type when wiring for correct FOC operation.
| ESC Current | 60 A |
|---|---|
| Input Voltage | 6S |
| ESC Firmware | Proprietary |
| Made in India | No |
| Brand | T-Motor |
| BEC | No |
