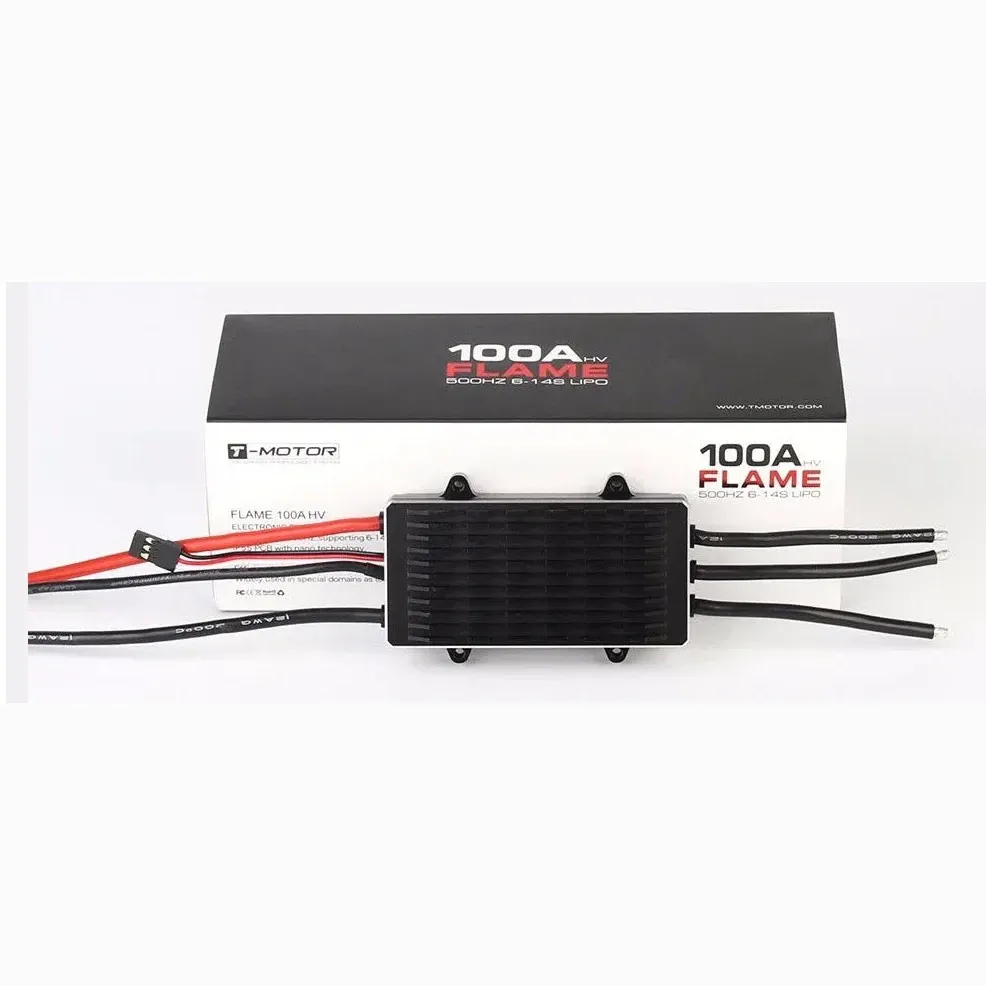

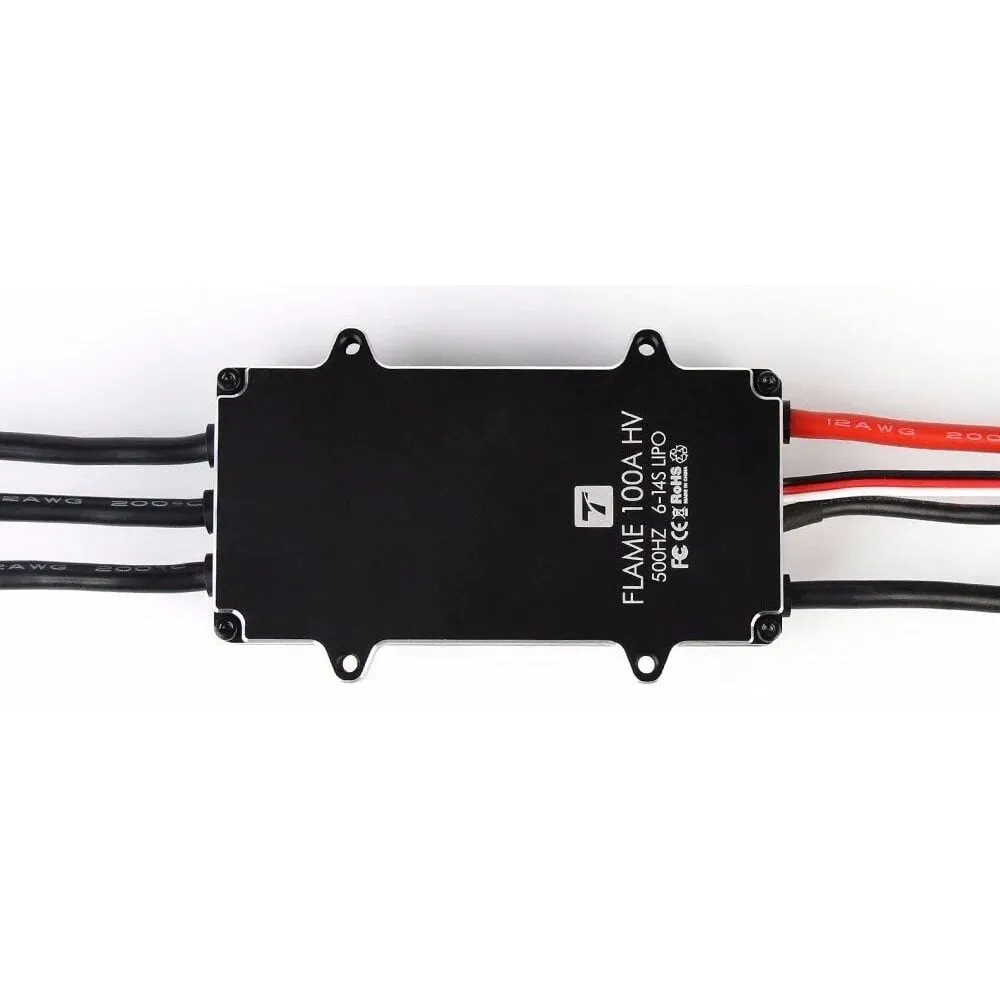

T-Motor Flame 100A 14S HV ESC (IP55)

The T-Motor Flame 100A is a 6–14S high-voltage ESC for heavy-lift and agricultural multirotors, rated 100 A continuous and 120 A peak for 10 seconds. A CNC aluminium housing with a layered heat-dissipation structure and IP55 sealing keeps it working through dust and spray, and it is designed to drive T-Motor's U12-class motors.

Key features

• Low-voltage cut-off, over-temperature and throttle-signal-loss protection
• Three start modes (Normal, Soft and Super-Soft), so it also suits fixed-wing aircraft and helicopters
• Configurable throttle range that works with standard transmitters and flight controllers, with smooth, linear response
• Field programming through the pocket-sized T-Motor program card (sold separately), which also unlocks 15 selectable start-up tunes

Specifications

• Input voltage: 6–14S LiPo (22.2–51.8 V nominal)
• Continuous current: 100 A
• Peak current: 120 A (10 s)
• Throttle refresh: 500 Hz
• BEC: None
• Protection: IP55
• Housing: CNC aluminium

There is no BEC on board, so power the flight controller and accessories from a separate regulator or power module. One ESC drives one motor, so order one per arm.
