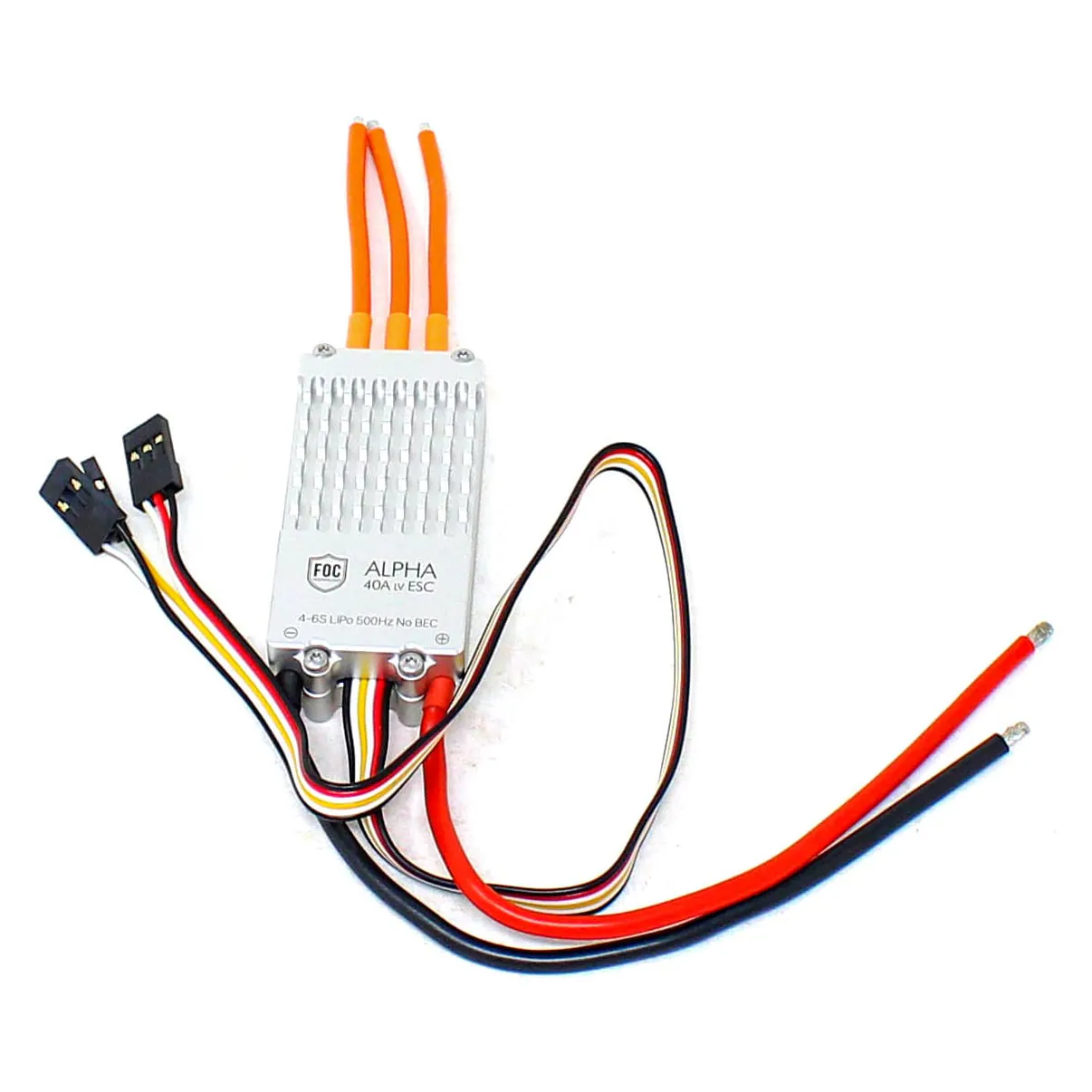

T-Motor Alpha 40A 6S ESC
SKU TMOTOR-ALPHA-40A-6S
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The T-Motor Alpha 40A 6S is a single FOC electronic speed controller for one motor position on a 6S multirotor, built with an IP55-rated housing for dust and splash protection.
Key features
FOC (field-oriented control) sine-wave driving for lower noise and smoother torque than square-wave ESCs
20A continuous current with a 40A rating over a 10-second peak
IP55-rated housing keeps out dust and light water for outdoor and agricultural use
Real-time throttle, RPM, current, capacity and MOSFET temperature reporting to a compatible flight controller
Firmware is upgradeable over T-Motor's Alpha Data Link tool
Matched to T-Motor's U3, U5, MN5212 and MN4006 series motors
Specifications
Input voltage: 6S (18–25.2V)
Continuous / peak current: 20A / 40A (10s)
Size: 64.5 x 29.4 x 14.7mm
Weight: 54.5g (with cables)
Ingress protection: IP55
BEC: None
Use one ESC per motor and check the connected motor's KV and current draw fall within this ESC's 20A continuous rating before flight.
| ESC Current | 40 A |
|---|---|
| Input Voltage | 6S |
| ESC Firmware | Proprietary |
| Made in India | No |
| Brand | T-Motor |
