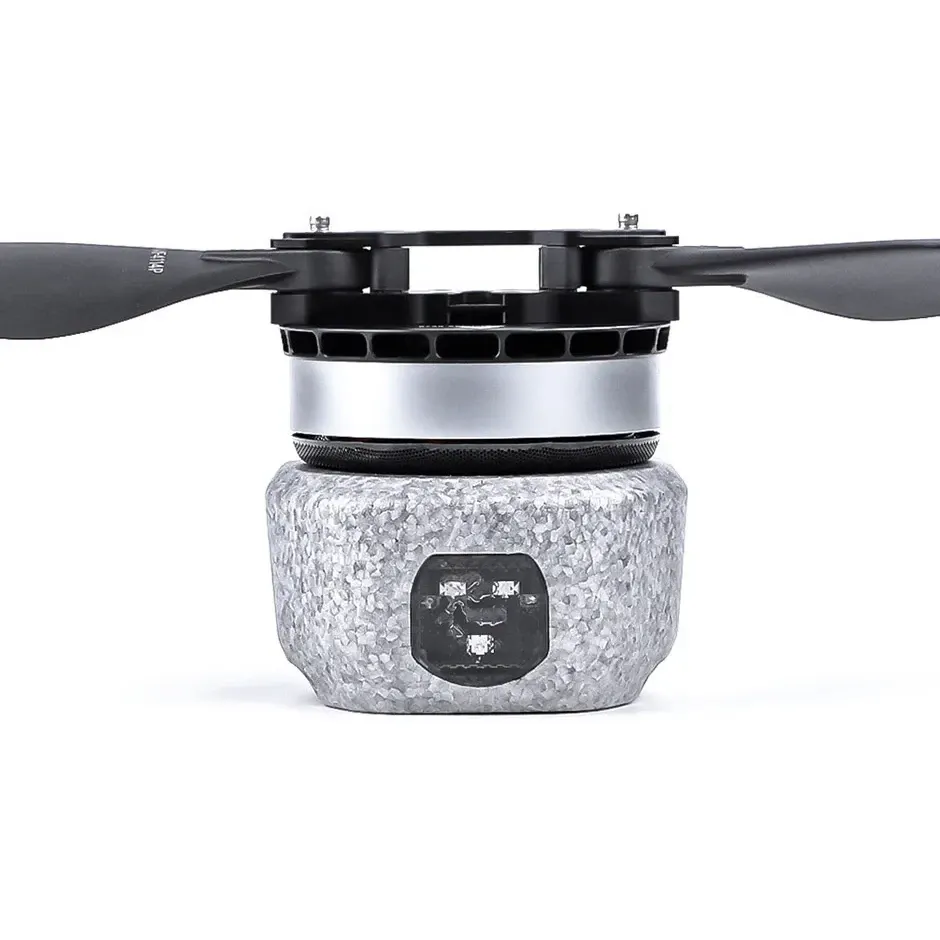

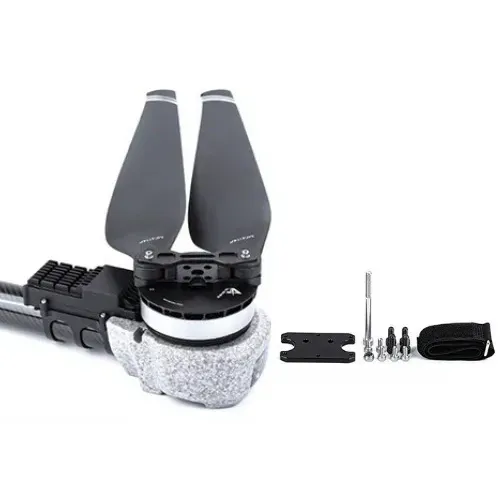

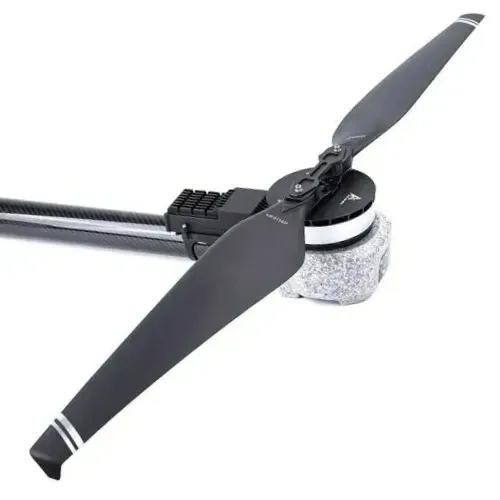

T-Motor A12L KV92 14S Modular Propulsion System

The T-Motor A12L combines a KV92 brushless motor, a 14S FOC ESC and a 43-inch folding propeller in one propulsion unit for 30L agricultural quadcopters and large hexacopters. It mounts on 50 mm carbon fibre arm tubes and is available in CW and CCW versions.

Key features

• Built-in 14S FOC ESC (200A peak) with PWM or CAN control, supporting DroneCAN, UAVCAN and Cube CAN
• MF4315P 43-inch polymer folding propeller included, with wiring pre-installed
• 15–18 kg rated thrust per unit
• Recommended take-off weight 60–72 kg as a 30L quadcopter or 90–108 kg as a hexacopter
• IPX6 water protection for spraying work

Specifications

• Motor: A12L KV92, 111 × 18 mm stator
• Arm tube: 50 mm
• ESC: 14S FOC, 200A peak, 61 V max, no BEC
• Control: PWM / CAN
• Propeller: MF4315P folding, 43 in (1090.7 mm)
• Rated thrust: 15–18 kg
• Battery: 12–14S LiPo
• Weight: 2400 g incl. wires and propeller
• Wire length: 1700 mm
• IP rating: IPX6

Step up from the A10L when the build carries a 30L tank. Order CW and CCW units in equal numbers — two of each for a quadcopter, three of each for a hexacopter — and power the flight controller from a separate regulator, as the ESC has no BEC.
