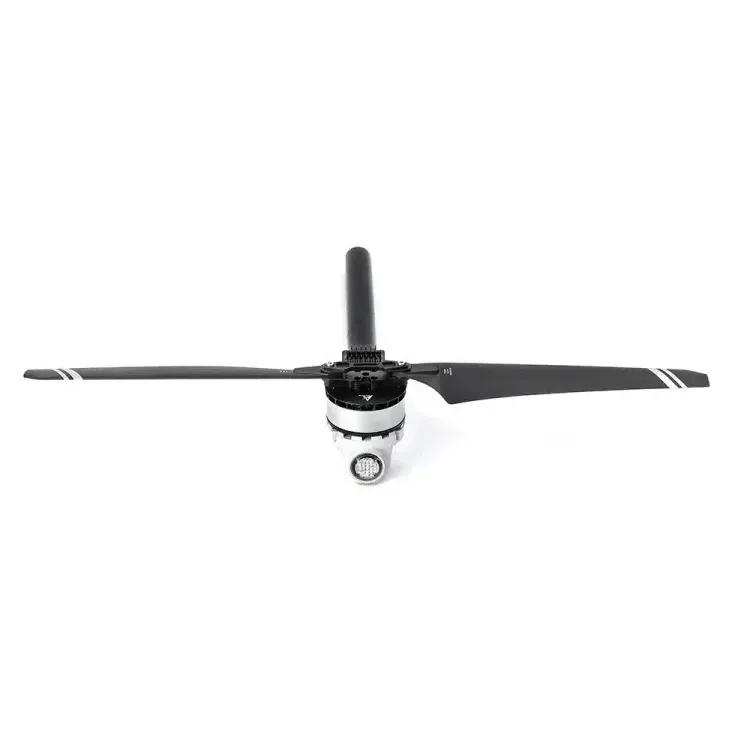

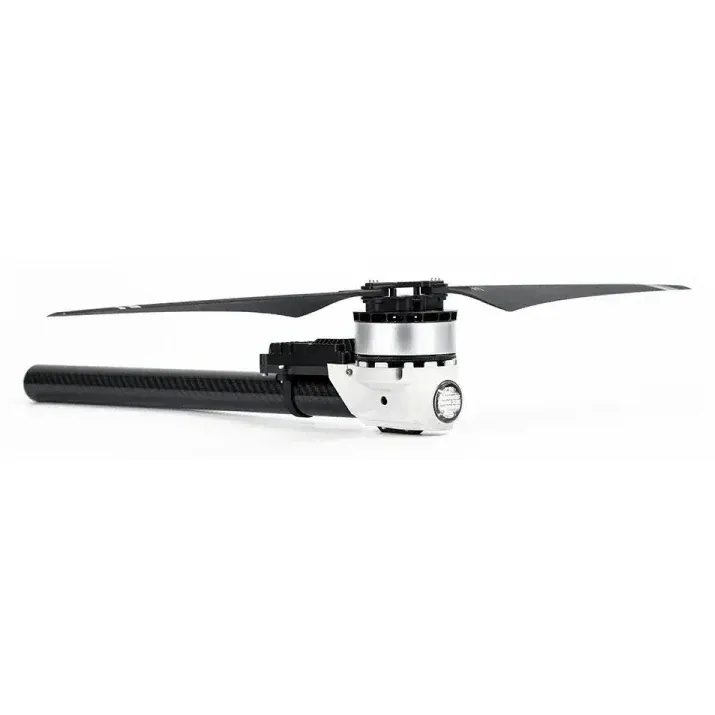

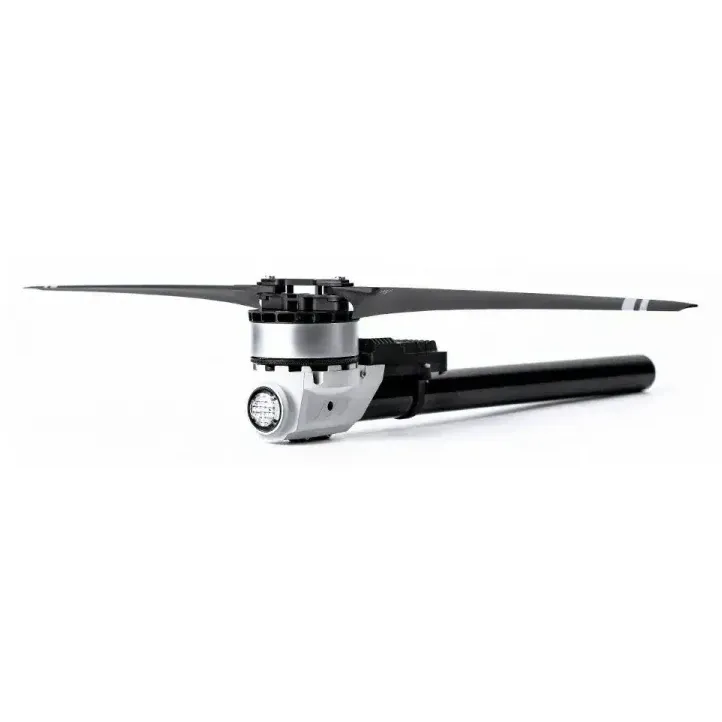

T-Motor A6L KV160 Modular Propulsion System with MF24P Prop, 12-14S

The T-Motor A6L is a ready-to-mount propulsion unit for medium agricultural sprayers, typically 5-litre quadcopters and 10-litre hexacopters. Motor, 14S FOC ESC, folding propeller and wiring come as one module, so an arm can be fitted or swapped in the field without custom wiring.

Key features

• A6L KV160 motor matched to a 14S FOC 80A ESC and an MF2407P 24-inch folding propeller
• Rated thrust of 4–5.5kg per arm and 12kg maximum, with 7.8g/W efficiency at 4.2kg
• Clamps onto 30mm arm tubes
• Adaptive propeller locking and quick disassembly for field servicing
• Suited to multirotors of 16–22kg take-off weight
• Choose CW or CCW to match each arm's rotation

Specifications

• Motor: A6L, 160KV
• ESC: 14S FOC, 80A
• Propeller: MF2407P folding, 24 inch
• Recommended battery: 12–14S LiPo (44.4–51.8V nominal)
• Rated thrust: 4–5.5kg
• Maximum thrust: 12kg
• Efficiency: 7.8g/W at 4.2kg
• Tube size: 30mm
• Power wires: 14AWG
• System weight: 760g including propeller

Order two CW and two CCW units for a quadcopter, or three of each for a hexacopter, and size the battery for 12–14S.
