T-Motor A10L KV110 14S Modular Propulsion System

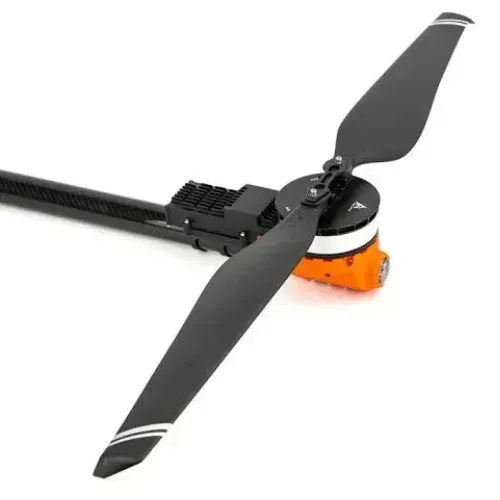

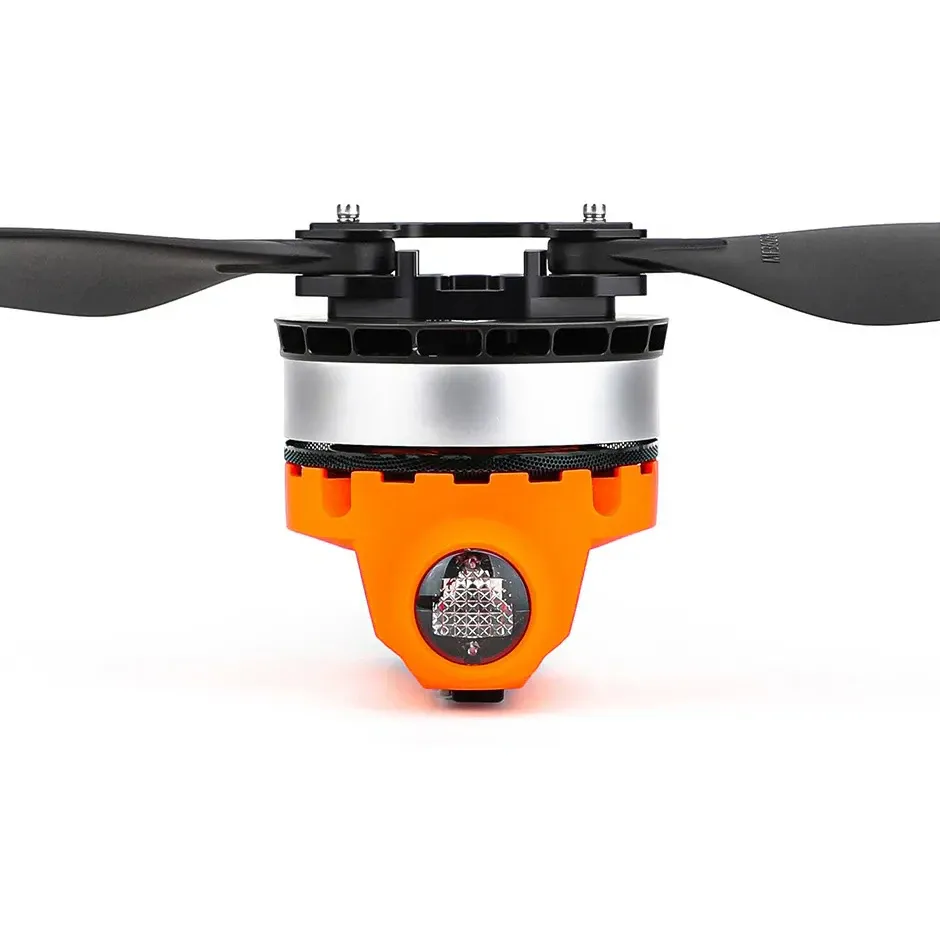

The T-Motor A10L is an integrated propulsion unit that combines a KV110 brushless motor, a 14S FOC ESC and a 36-inch folding propeller. It is sized for 20L agricultural quadcopters and 30L hexacopters, slides onto 40 mm carbon fibre arm tubes and is sold in CW and CCW versions.

Key features

• Built-in 14S FOC ESC (200A peak) controlled by PWM or CAN, with DroneCAN, UAVCAN and Cube CAN support

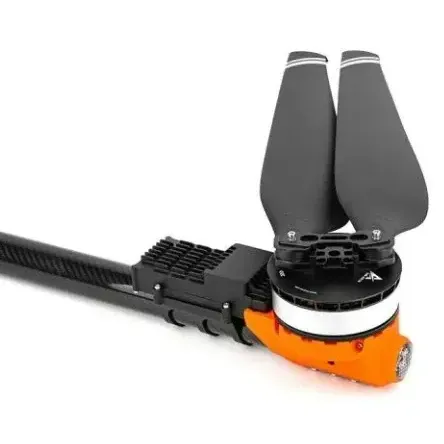

• MF3628P 36-inch polymer folding propeller included, with wiring pre-installed
• 11–13 kg rated thrust and 26 kg maximum thrust per unit, 7.3 g/W at 13 kg
• Recommended take-off weight 44–52 kg as a quadcopter or 66–78 kg as a hexacopter
• IPX6 water protection, operating from −30 to 50 °C

Specifications

• Motor: A10L KV110, 99 × 19 mm stator
• Arm tube: 40 mm
• ESC: 14S FOC, 200A peak, 61 V max
• Control: PWM / CAN
• Propeller: MF3628P folding, 36 in (914 mm)
• Rated thrust: 11–13 kg
• Max thrust: 26 kg
• Efficiency: 7.3 g/W at 13 kg
• Battery: 12–14S LiPo
• Weight: 1870 g incl. wires and propeller
• IP rating: IPX6
• Operating temperature: −30 to 50 °C

Each unit is one arm's worth of propulsion; order CW and CCW in equal numbers — two of each for a quadcopter, three of each for a hexacopter.
