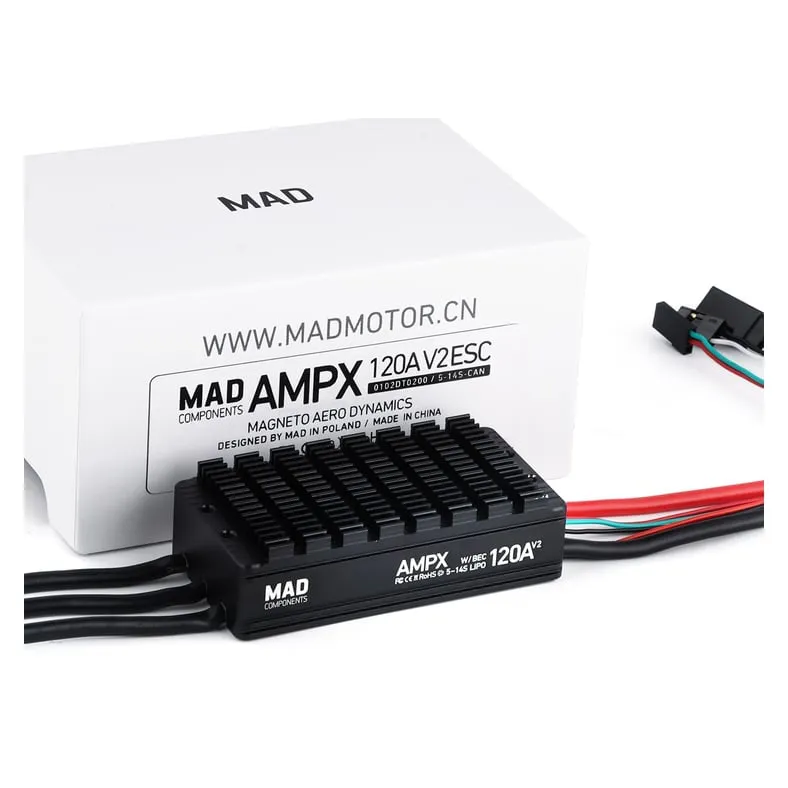

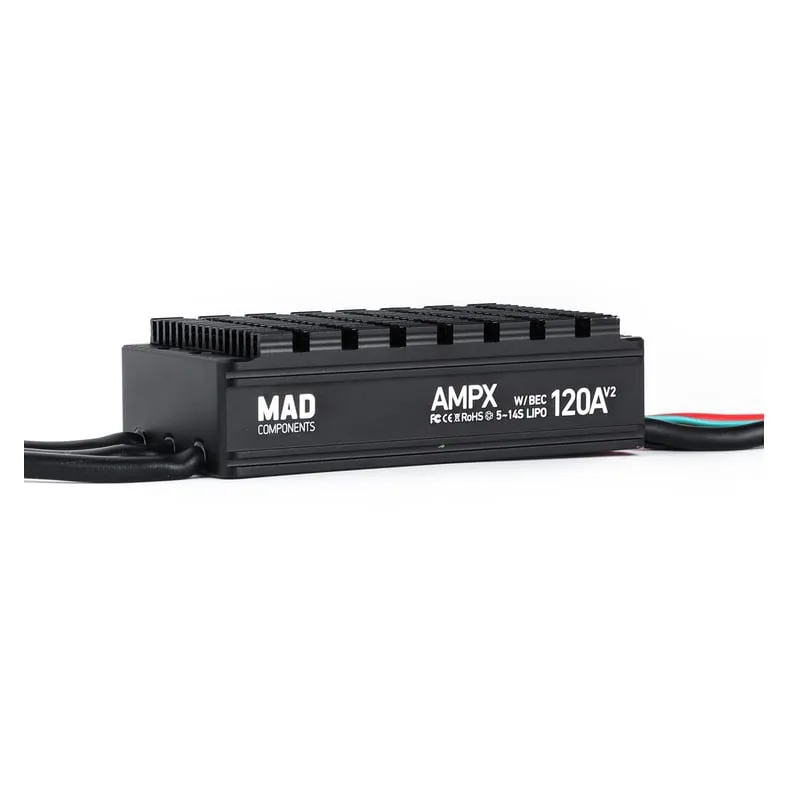

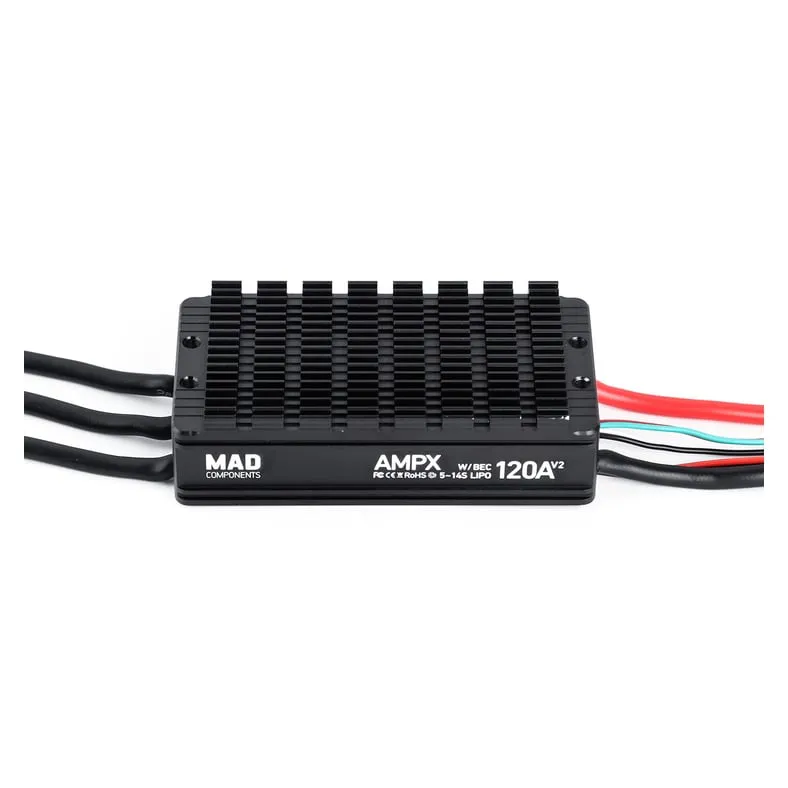

MAD AMPX 120A 5-14S Drone ESC V2.0 DroneCAN

The MAD Components AMPX 120A V2.0 is a single brushless ESC for 5–14S LiPo heavy-lift multirotors, agricultural sprayers and industrial UAVs. This is the DroneCAN version: it takes PWM throttle and exchanges real-time operating data with the flight controller over CAN, all inside an IP67-rated finned enclosure.

Key features

• 120A continuous rating with adequate cooling, with the current limit set at 120A.
• DroneCAN link for flight-controller integration and live operating data, alongside PWM throttle input with range calibration.

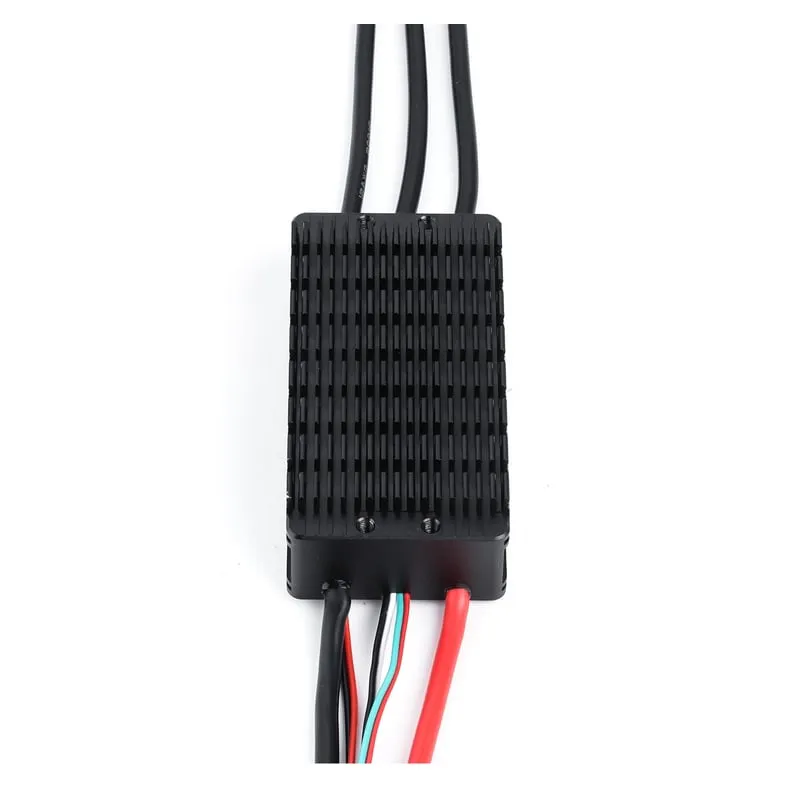

• Manufacturer-rated IP67 enclosure with cooling fins and mounting holes, suited to exposed arms on spray and survey aircraft.
• Built-in 5V / 200mA BEC output.
• Protection against phase short circuit, motor stall, over-temperature, throttle-signal loss and abnormal start-up voltage.
• Firmware can be updated.

Specifications

• Battery: 5–14S LiPo (16–64V)
• Continuous current: 120A with adequate cooling
• BEC: 5V / 200mA
• Throttle input: PWM, 3.3V / 5V signal compatible
• Default throttle range: 1050–1940µs, calibratable
• CAN protocol: DroneCAN

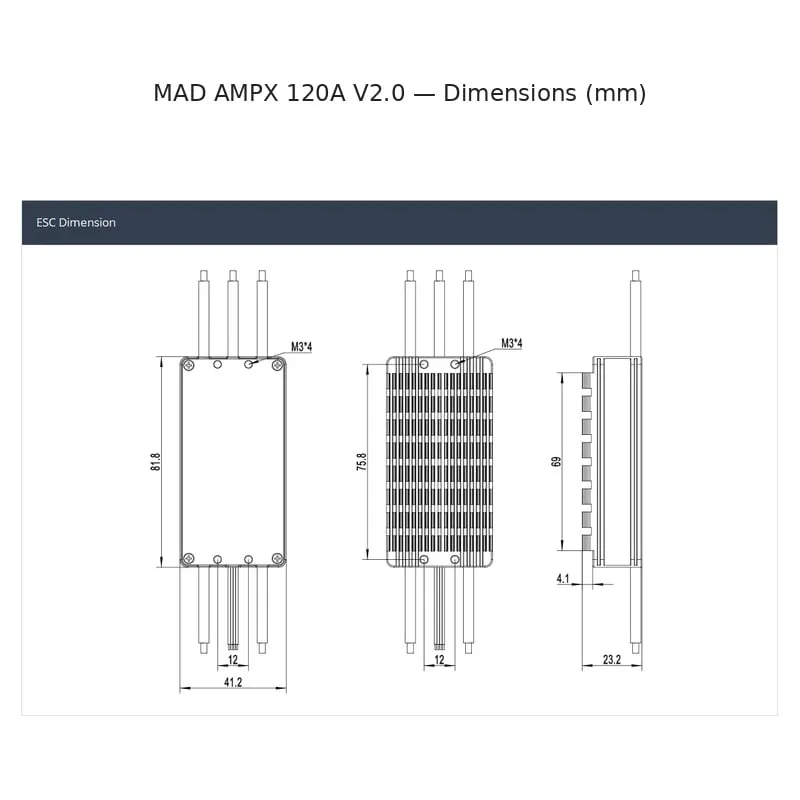

• Dimensions: 81.8 × 41.2 × 23.2mm
• Protection rating: IP67
• Operating temperature: −20°C to +65°C

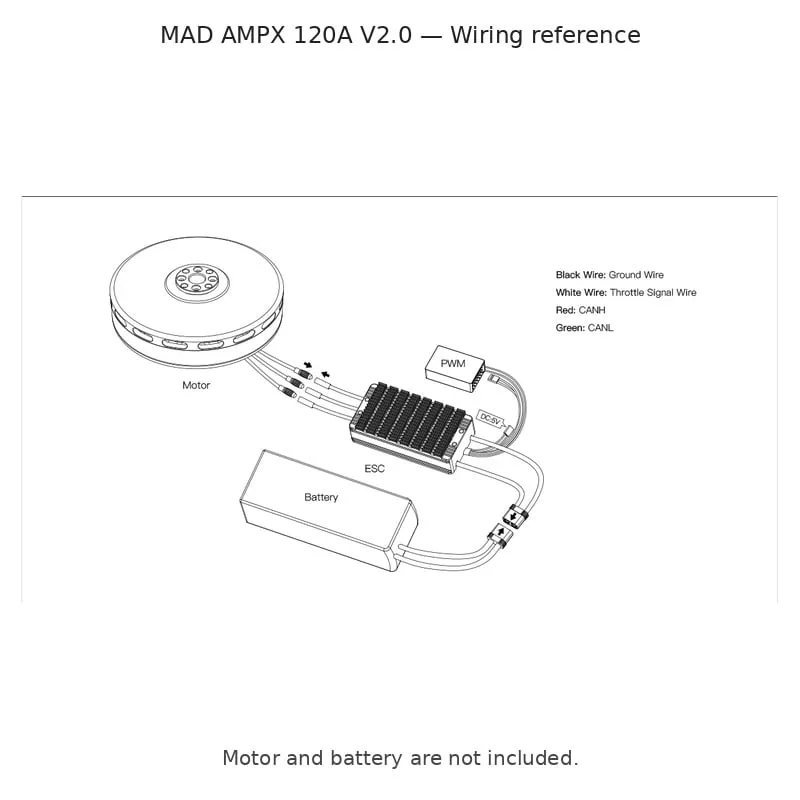

To use the CAN features, connect it to a flight controller with a CAN port running ArduPilot or PX4 and enable DroneCAN ESC output on that interface; order one ESC per motor.
