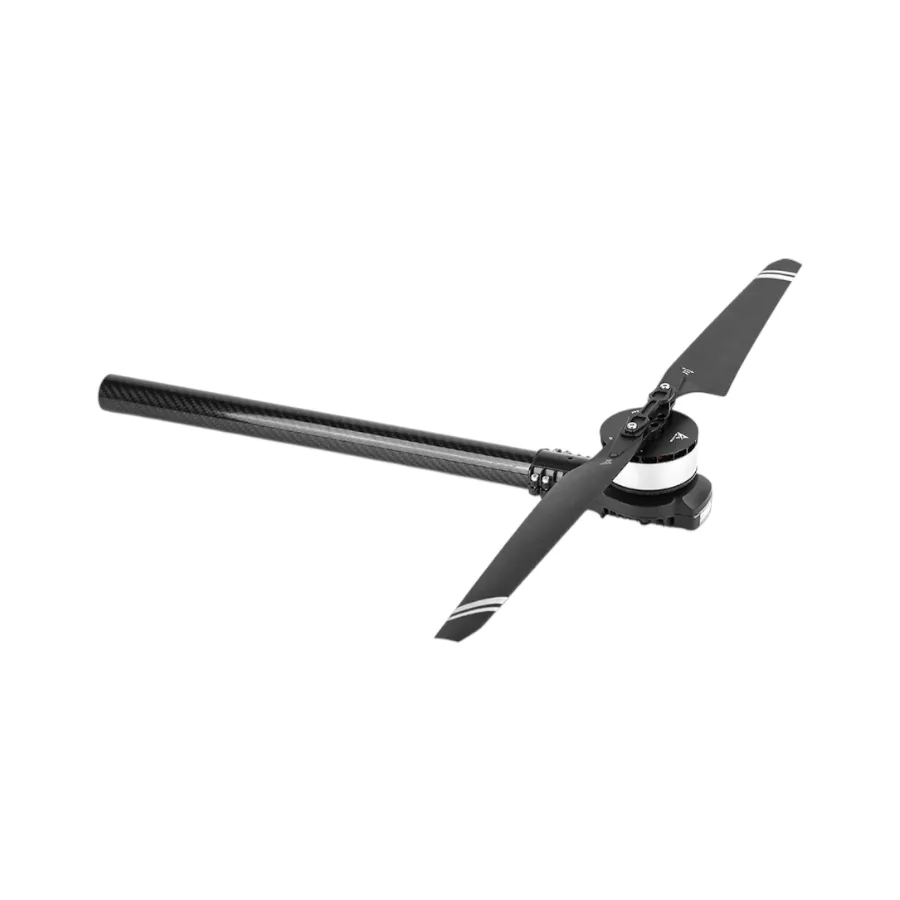

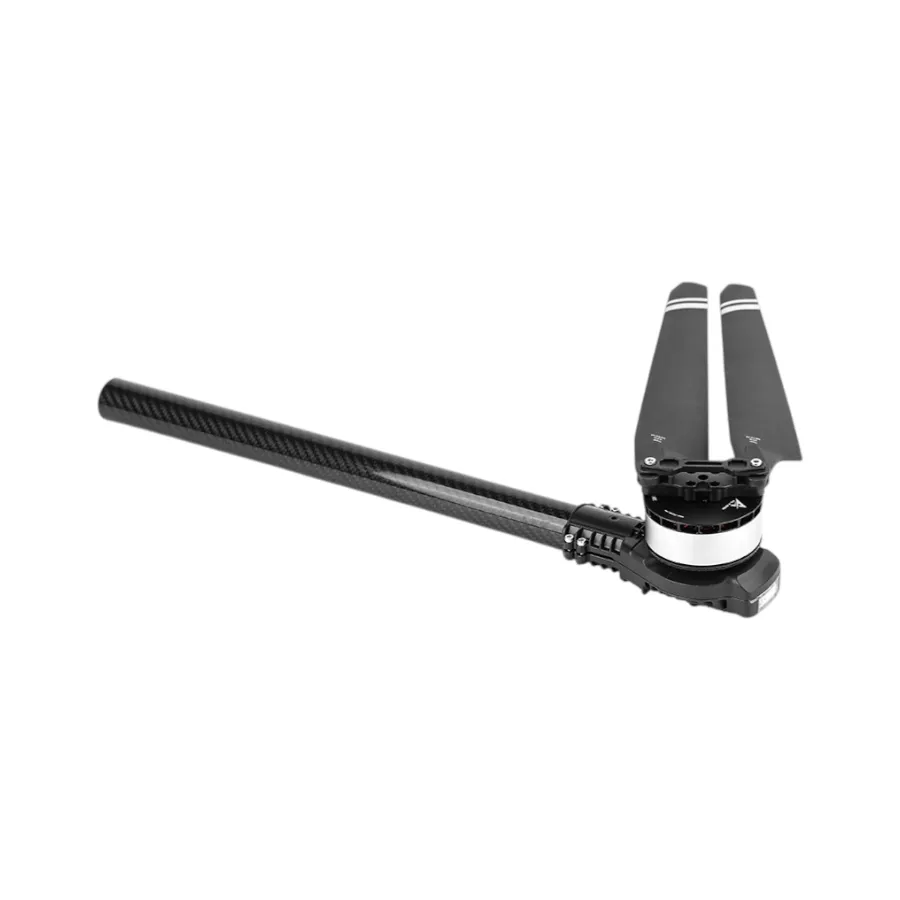

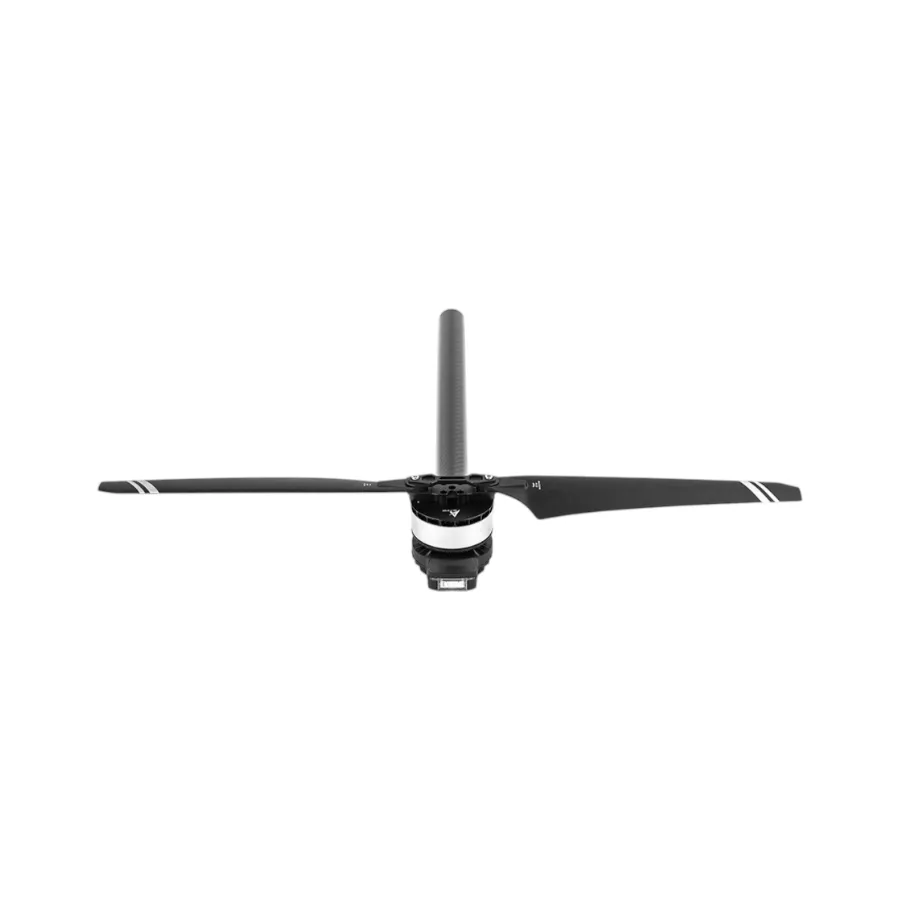

T-Motor A6L-X KV160 Modular Propulsion Combo Kit, 12-14S

The T-Motor A6L-X combines a KV160 motor, a 14S FOC 80A ESC and an MF2407P 24-inch folding propeller in one integrated module for 5–10 litre agricultural spraying drones. It clamps onto 30mm arm tubes and is rated IPX6 against powerful water jets, so units can be washed down after spraying.

Key features

• 62 x 18mm stator at 160KV, matched to a 14S FOC ESC with 80A short-time peak current
• Rated thrust of 4–5.5kg and 12kg maximum, with 7.98g/W efficiency at 4.4kg
• DroneCAN, UAVCAN and Cube CAN control as well as PWM, with a fixed 1100–1940µs throttle range
• Operates from -30°C to 50°C
• 1160mm leads: 14AWG power wires and a 5-pin Teflon signal wire
• CW and CCW versions for each arm position

Specifications

• Motor: A6L-X, 160KV, 62 x 18mm stator
• ESC: 14S FOC, 80A peak, 61V maximum, no BEC
• Control: PWM / CAN (DroneCAN, UAVCAN, Cube CAN)
• Propeller: MF2407P polymer folding, 24 inch (622mm)
• Recommended battery: 12–14S LiPo (44.4–51.8V nominal)
• Rated thrust: 4–5.5kg
• Maximum thrust: 12kg
• Efficiency: 7.98g/W at 4.4kg
• Tube size: 30mm
• Wire length: 1160 ±5mm
• Weight: 780g ±2% including wires and propeller
• Ingress protection: IPX6
• Operating temperature: -30°C to 50°C

Carbon arm tubes are not included. Order two CW and two CCW units for a quadcopter, or three of each for a hexacopter.
