Product details

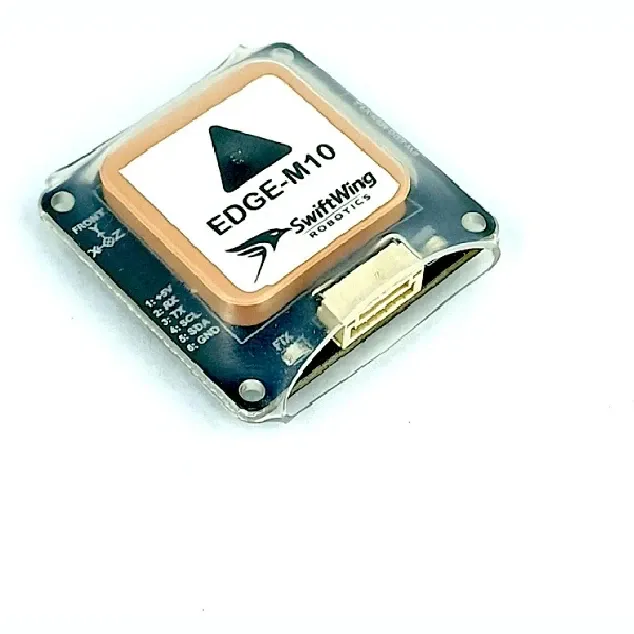

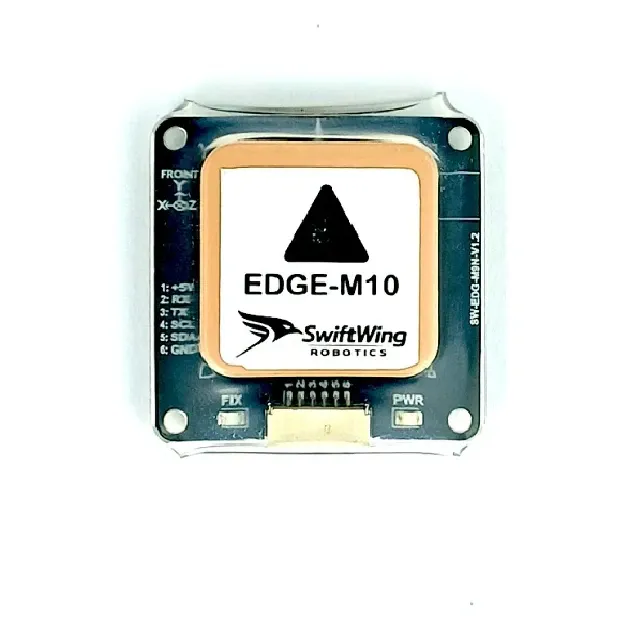

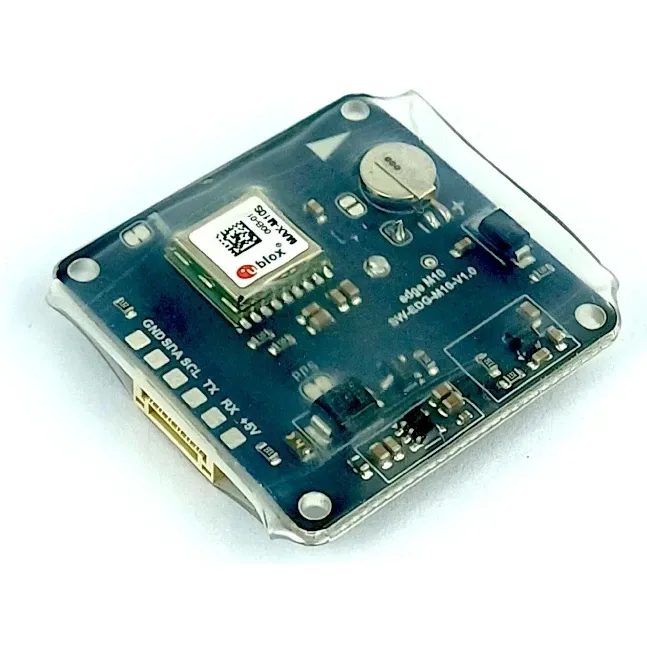

The SwiftWing EDGE-M10 is a combined GNSS and compass module for UAVs, autonomous ground vehicles and robotics platforms that need reliable positioning and heading. It pairs a u-blox MAX-M10S multi-constellation receiver with an LIS3MDL 3-axis digital compass.
Key features
Concurrent GPS, Galileo, BeiDou, GLONASS, QZSS and SBAS reception for robust global coverage
25 x 25mm ceramic patch antenna on a 35 x 35mm ground plane, with an external SAW filter for interference rejection
Navigation update rate up to 10Hz, with RF jamming and GNSS spoofing detection
Hot-start satellite acquisition in around 1 second
Automatic GPS configuration with PX4 and ArduPilot flight controllers over UART or I²C

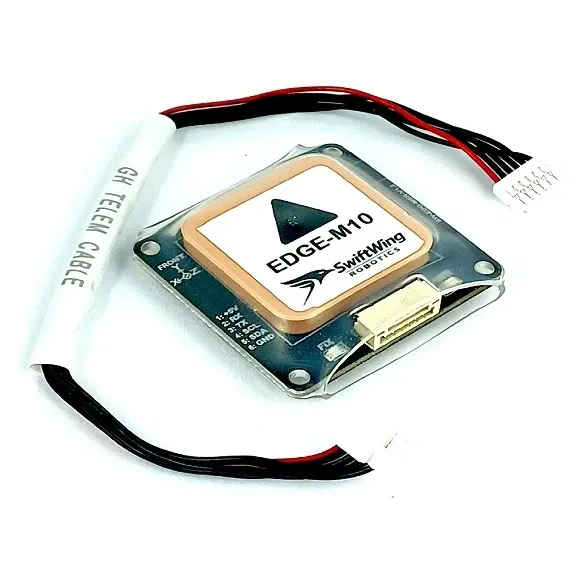

JST-GH 6-pin connector for straightforward wiring
Specifications
GNSS Chipset: u-blox M10 (MAX-M10S)
Compass: LIS3MDL 3-axis magnetometer
Input voltage: 4.75–5.5V (5V nominal)

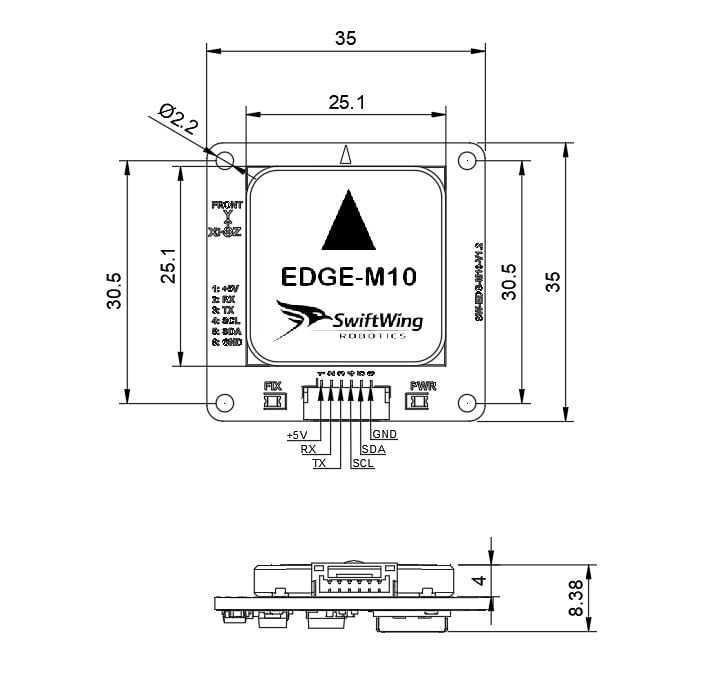

Mounting pattern: 30.5 x 30.5mm, M2 holes
Weight: 17g
Operating temperature: -40°C to +85°C

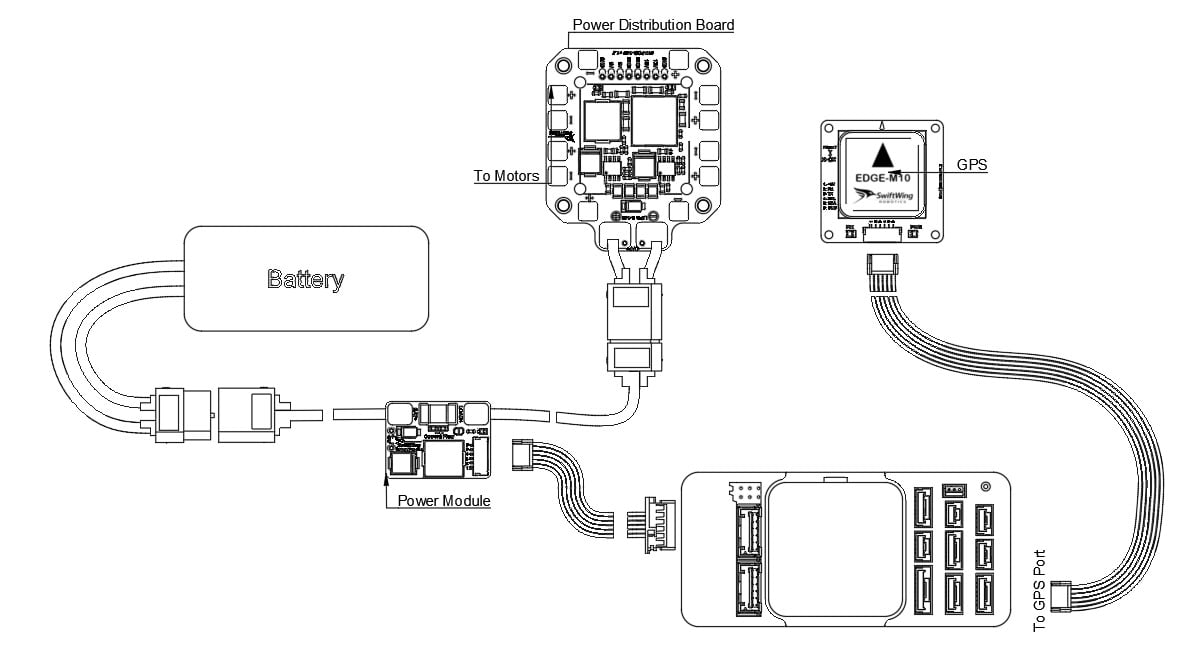

Mount it on the standard 30.5 x 30.5mm pattern shared by most PX4 and ArduPilot flight controllers, and route the JST-GH lead to a free UART or I²C port.
| Compass Included | Yes |
|---|---|
| Made in India | Yes |
| Brand | SwiftWing |
| GNSS Chipset | u-blox M10 |
| Weight | 17 g |
