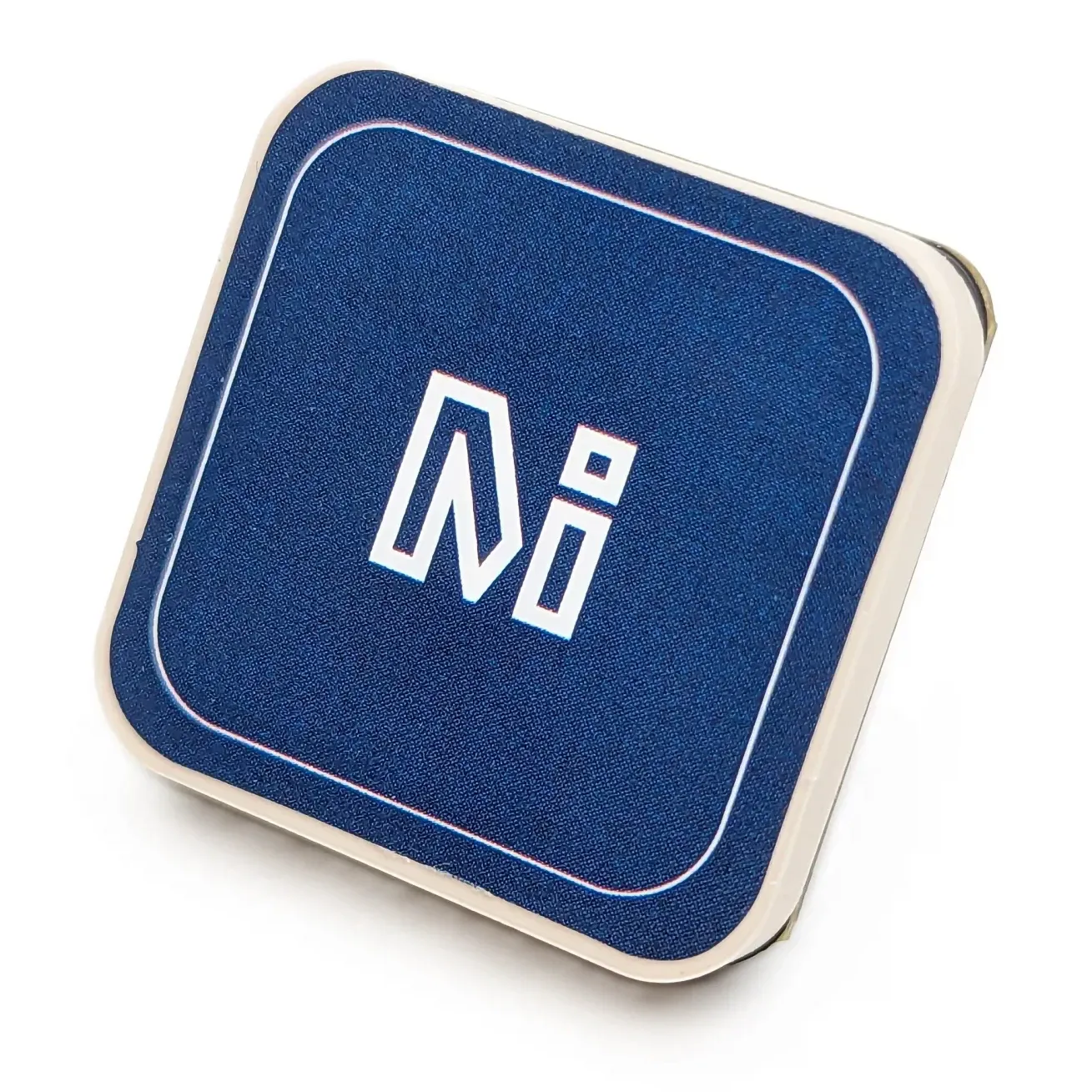

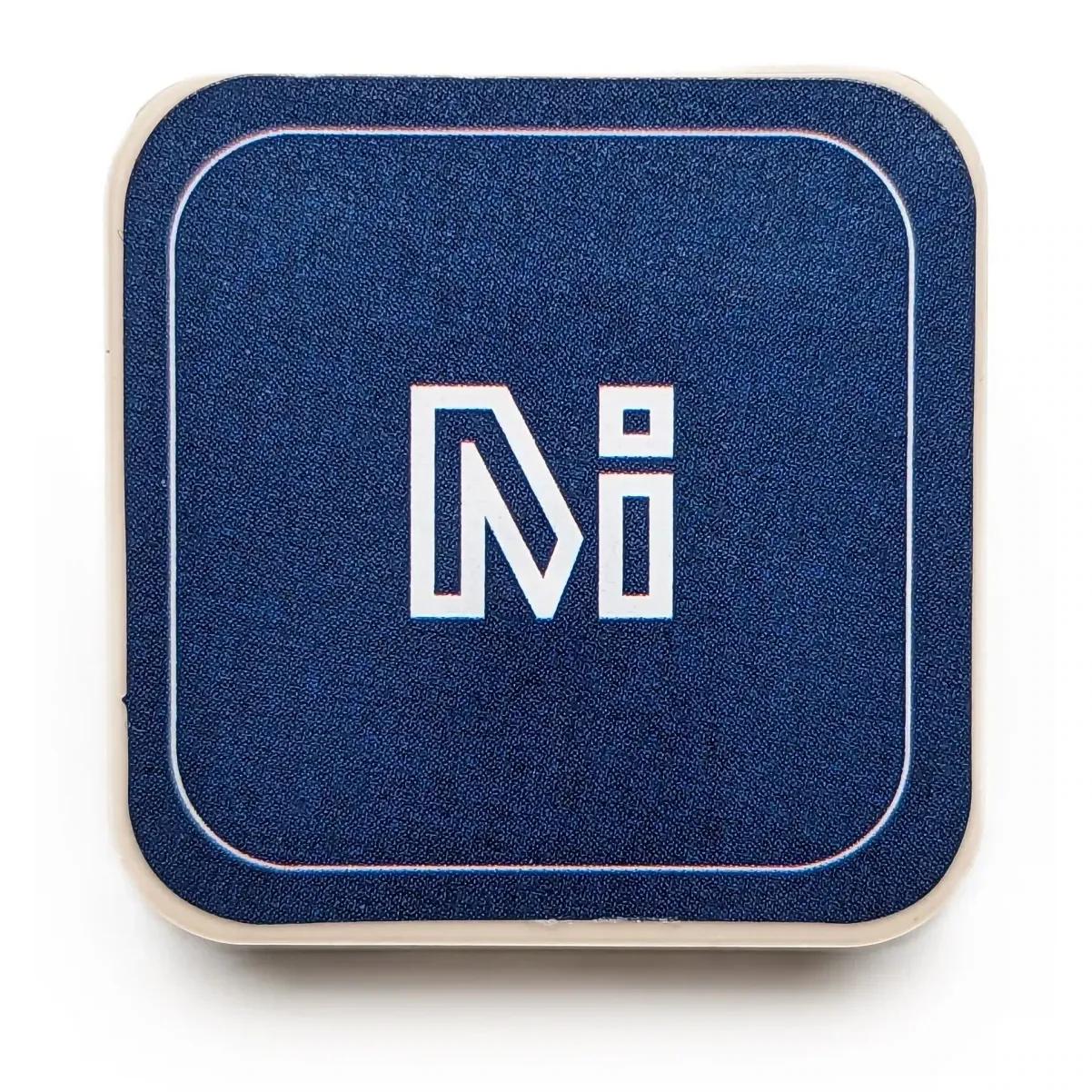

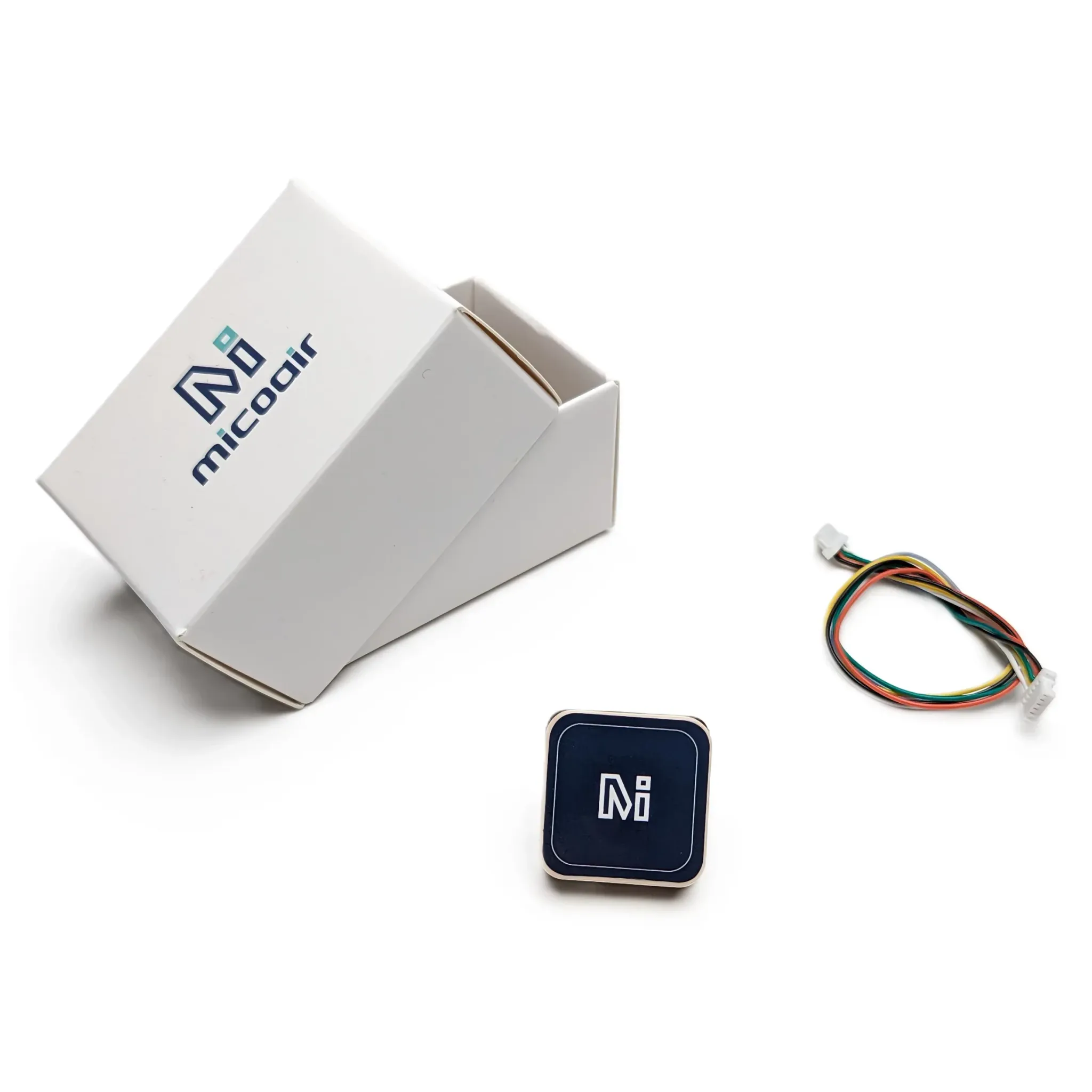

MicoAir MG-A01 GNSS Module
₹1,849Incl. GST
SKU MICOAIR-MG-A01-GNSS
Compass Included: YesMade in India: NoBrand: MicoAirRTK Support: No
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

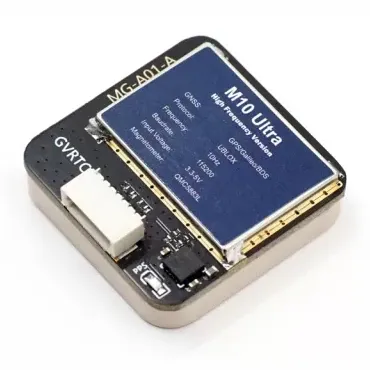

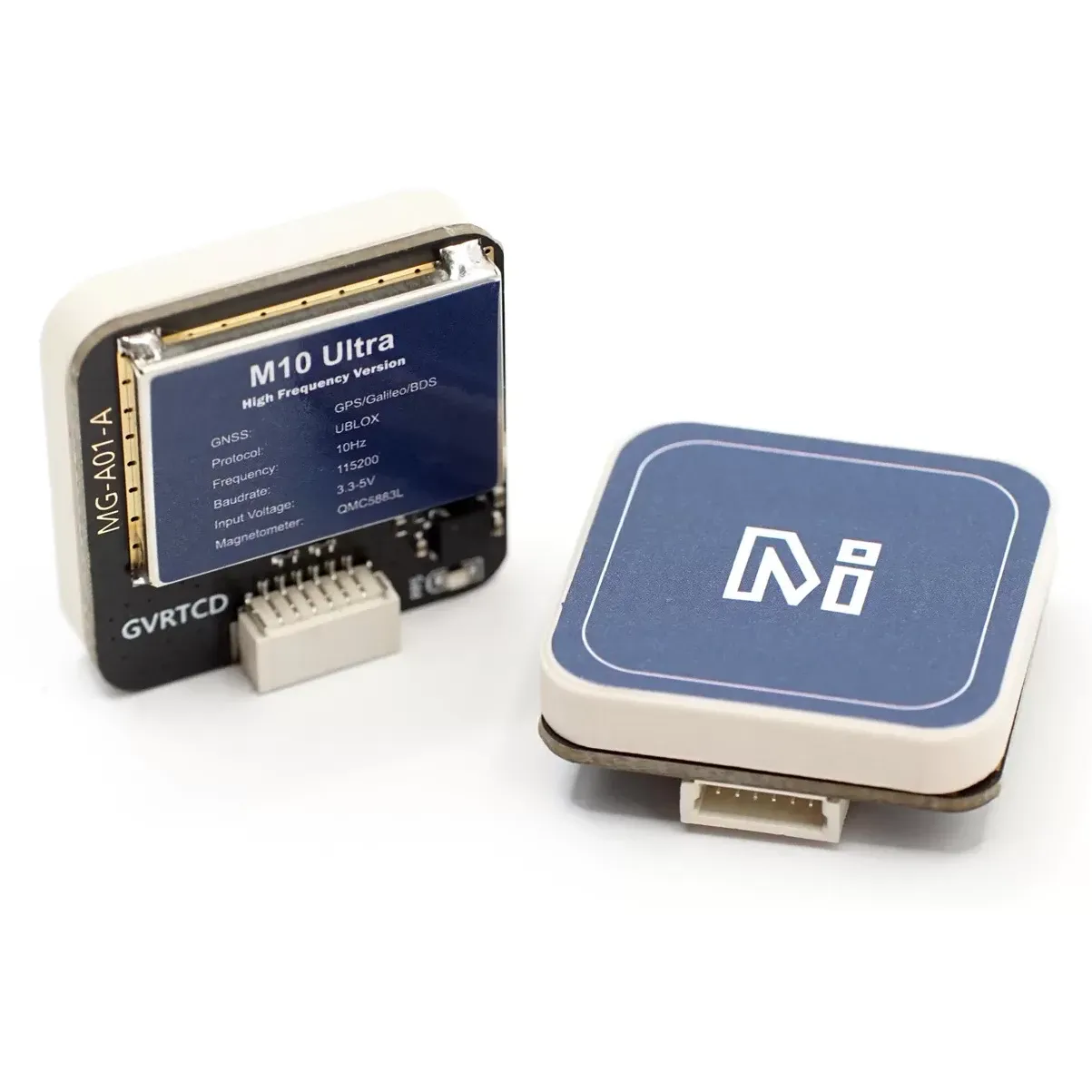

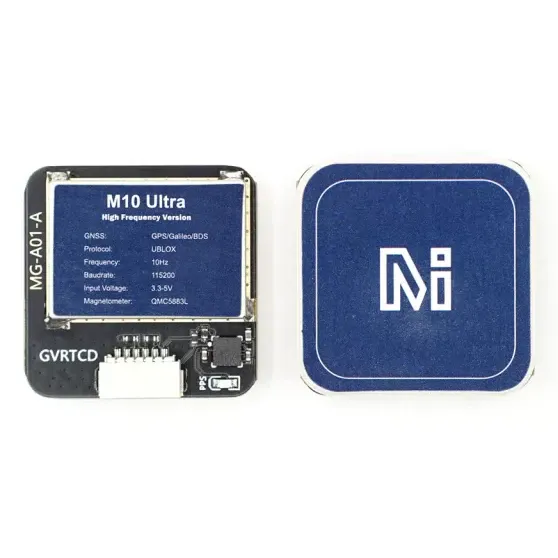

The MicoAir MG-A01 (M10 Ultra) is a compact GNSS module built around a high-frequency version of the u-blox M10 receiver, giving FPV drones and fixed-wing aircraft the satellite fix needed for GPS Rescue, position hold or autonomous navigation.
Key features
- u-blox M10050 receiver tracks GPS, GLONASS, Galileo and BeiDou concurrently across up to 32 satellites, at up to a 10Hz navigation rate.
- Built-in QMC5883L magnetic compass and a high-gain 25 x 25 x 4mm patch antenna in one module.
- Onboard flash keeps GNSS settings saved through a power loss.
- Compatible with Betaflight 4.3+, INAV 5.0+, ArduPilot 4.3+ and PX4 1.14+.
Specifications
- Input voltage: 5V
- Current draw: 30 mA
- Output: UART (GPS, 3.3V LVTTL), I2C (compass)
- Connector: SH1.0-6P
- Dimensions: 25 x 25 x 7.8 mm
- Weight: 12 g
Mounts via a 3D-printed battery-strap GPS mount, keeping it clear of freestyle frames, long-range cruisers and cinelifters where weight and space are tight.
| Compass Included | Yes |
|---|---|
| Made in India | No |
| Brand | MicoAir |
| RTK Support | No |
| GNSS Chipset | u-blox M10 |
| Weight | 12 g |
| Supported Firmware | Betaflight, ArduPilot, INAV, PX4 |
| Barometer | No |
