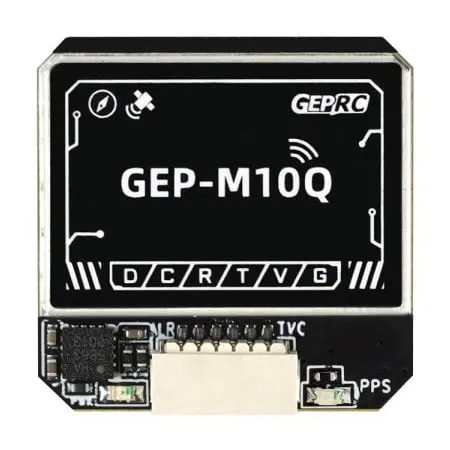

GEPRC M10Q GPS Module with Compass

The GEPRC GEP-M10Q is a fast-locking GPS and compass module built around the 10th-generation u-blox M10 chipset. Designed for long-range FPV drones, autonomous fixed-wings, and cinematic quadcopters, it delivers significantly faster cold-start satellite acquisition and tighter positioning accuracy than older M8N receivers. By tracking GPS, Galileo, GLONASS, and BDS constellations simultaneously, it ensures a robust satellite link even in challenging signal environments like deep valleys or dense urban areas.

Key features

• 10th-generation u-blox M10 chipset for rapid cold starts and high-density satellite tracking.

• Built-in magnetometer provides accurate heading data for INAV, ArduPilot, and Betaflight GPS Rescue operations.

• Onboard flash memory saves configuration settings and drastically reduces warm-start lock times.

• Ships with a pre-crimped SH1.0 6-pin cable for quick, plug-and-play flight controller wiring.

Specifications

• GPS Chip: u-blox M10

• Magnetometer: QMC5883L

• Supported Constellations: GPS, GLONASS, Galileo, BDS

• Input Voltage: 5V

• Baud Rate: 115200 bps

• Output Protocol: UBLOX

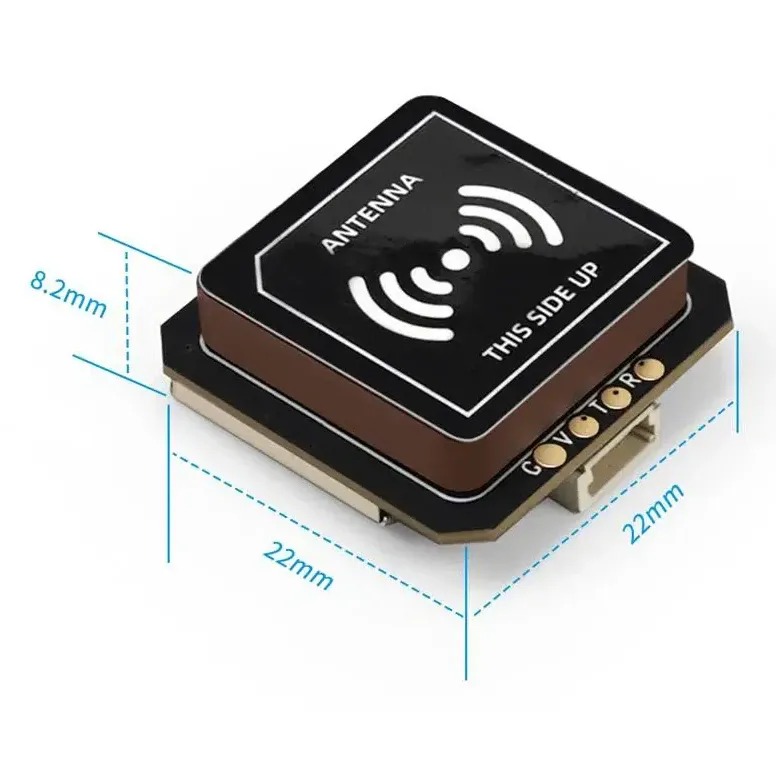

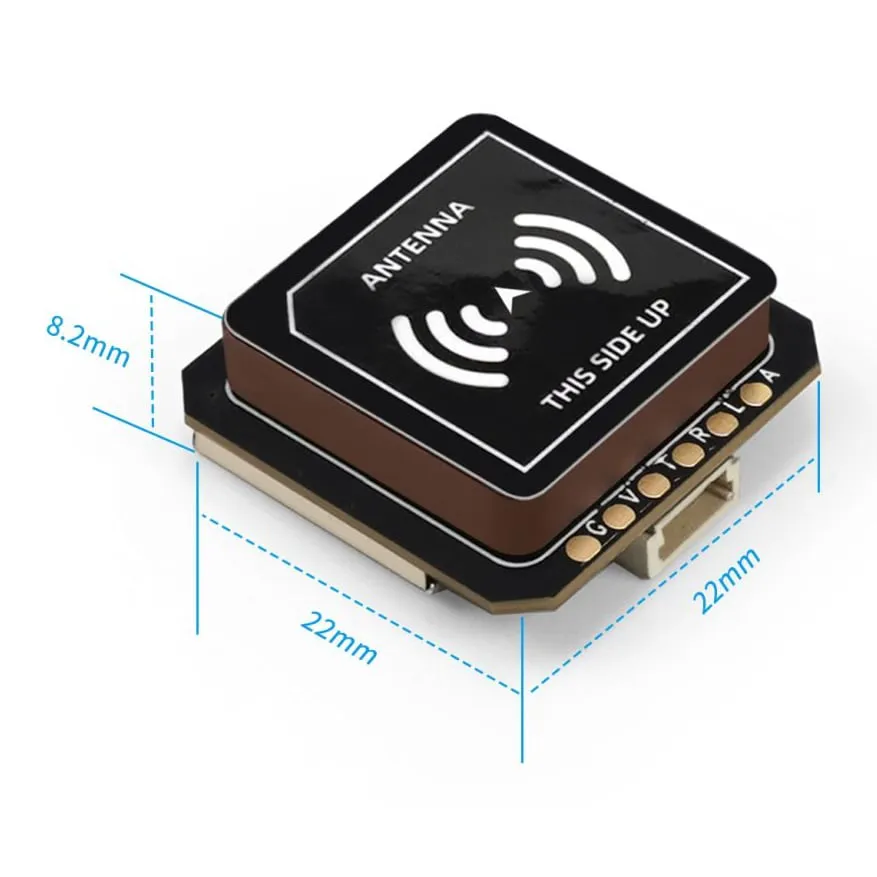

• Dimensions: 22 x 22 x 8.2 mm

• Weight: 7.9 g

• Connector: SH1.0 6-Pin

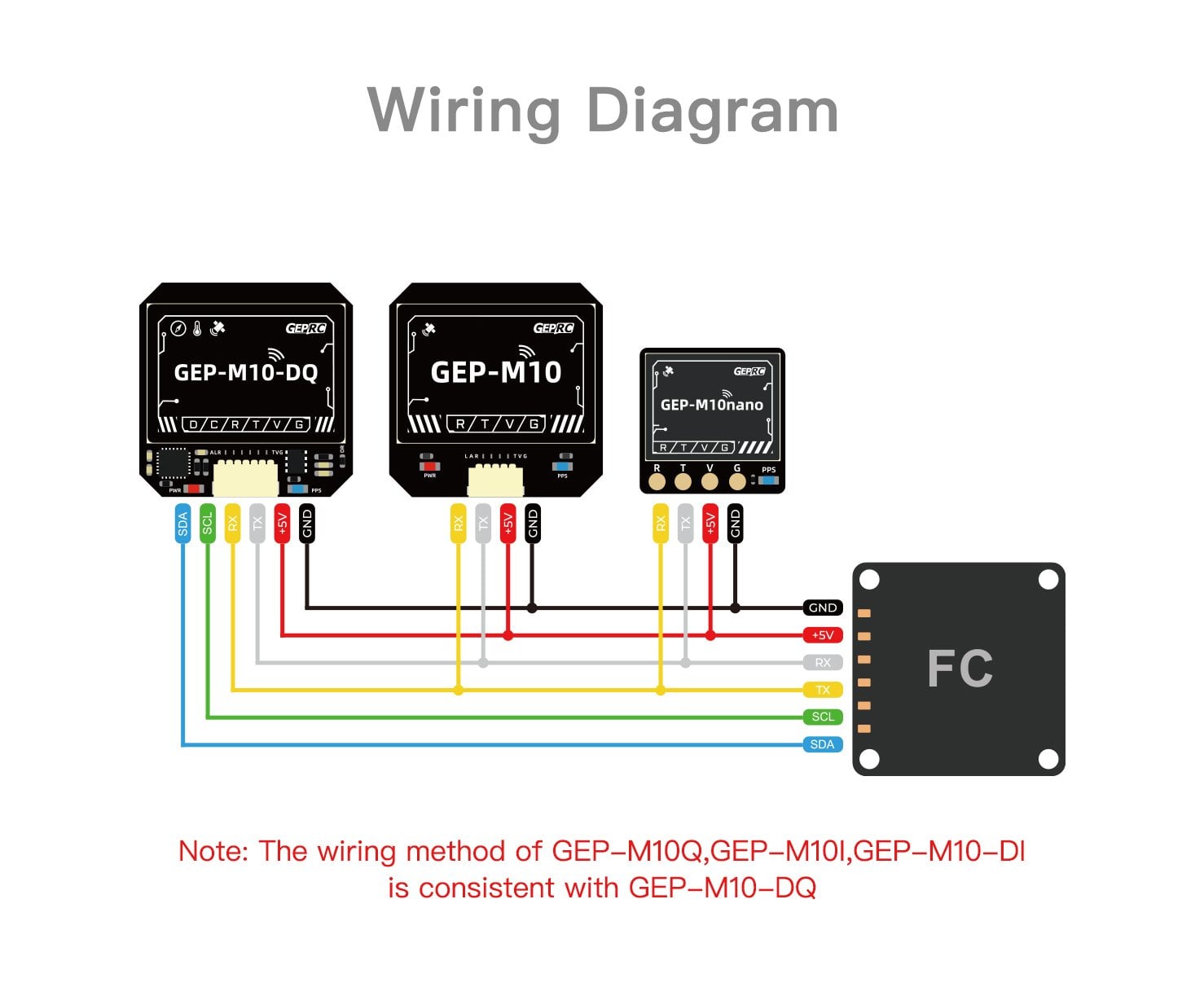

For full functionality, this module requires a flight controller with a spare UART for the GPS data and an available I2C bus (SCL/SDA pads) for the compass. Mount the module as high as possible on your airframe and away from ESCs, heavy-gauge battery leads, or VTX antennas to minimise electromagnetic interference with the magnetometer.
