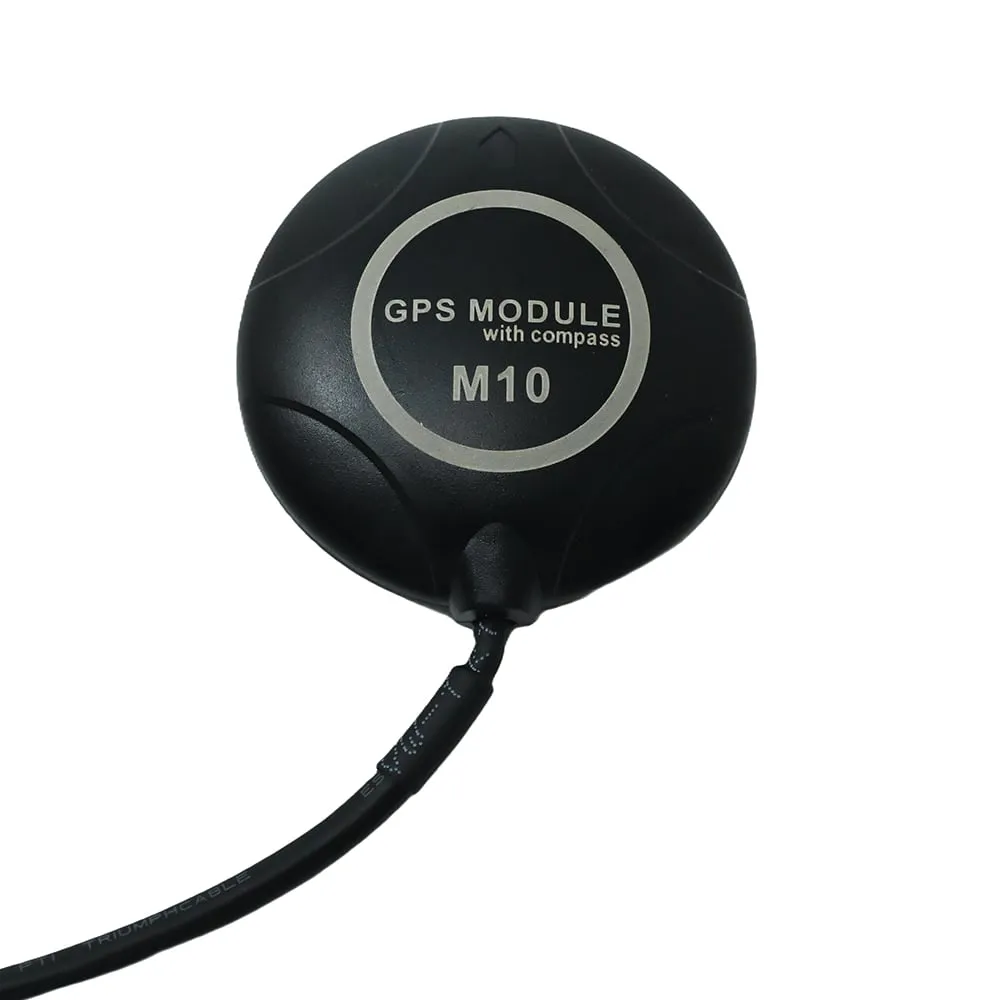

M10 GPS Module with Compass for Pixhawk

This M10 GPS module pairs a high-sensitivity u-blox 10th-generation GNSS receiver with a built-in magnetometer, ready for Pixhawk-based flight controllers. Built for autonomous multirotors, fixed-wing platforms, and agriculture drones, it provides the rapid satellite acquisition and precise heading data required for reliable Loiter, Waypoint navigation, and Return-to-Launch (RTL) functions.

Key features

• Powered by the u-blox M10 architecture for simultaneous reception of GPS, Galileo, GLONASS, and BeiDou constellations.

• Integrated compass provides accurate yaw tracking, preventing toilet-bowling during GPS-assisted autonomous flights.

• Significantly faster cold-start acquisition times and higher overall satellite counts compared to legacy u-blox M8 hardware.

• Ready for seamless integration with ArduPilot and PX4 open-source ecosystems.

Specifications

• GNSS chipset: u-blox M10

• Concurrent constellations: GPS, Galileo, GLONASS, BeiDou

• Sensors: GNSS receiver, Magnetometer (Compass)

• Supported firmware: ArduPilot, PX4, INAV

Ideal for commercial builds, heavy-lifters, and complex DIY drones where absolute navigational reliability and rapid position locks are critical.
