Axisflying M10 GPS Module with Compass
SKU AXIS-M10-GPS-COMPASS
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

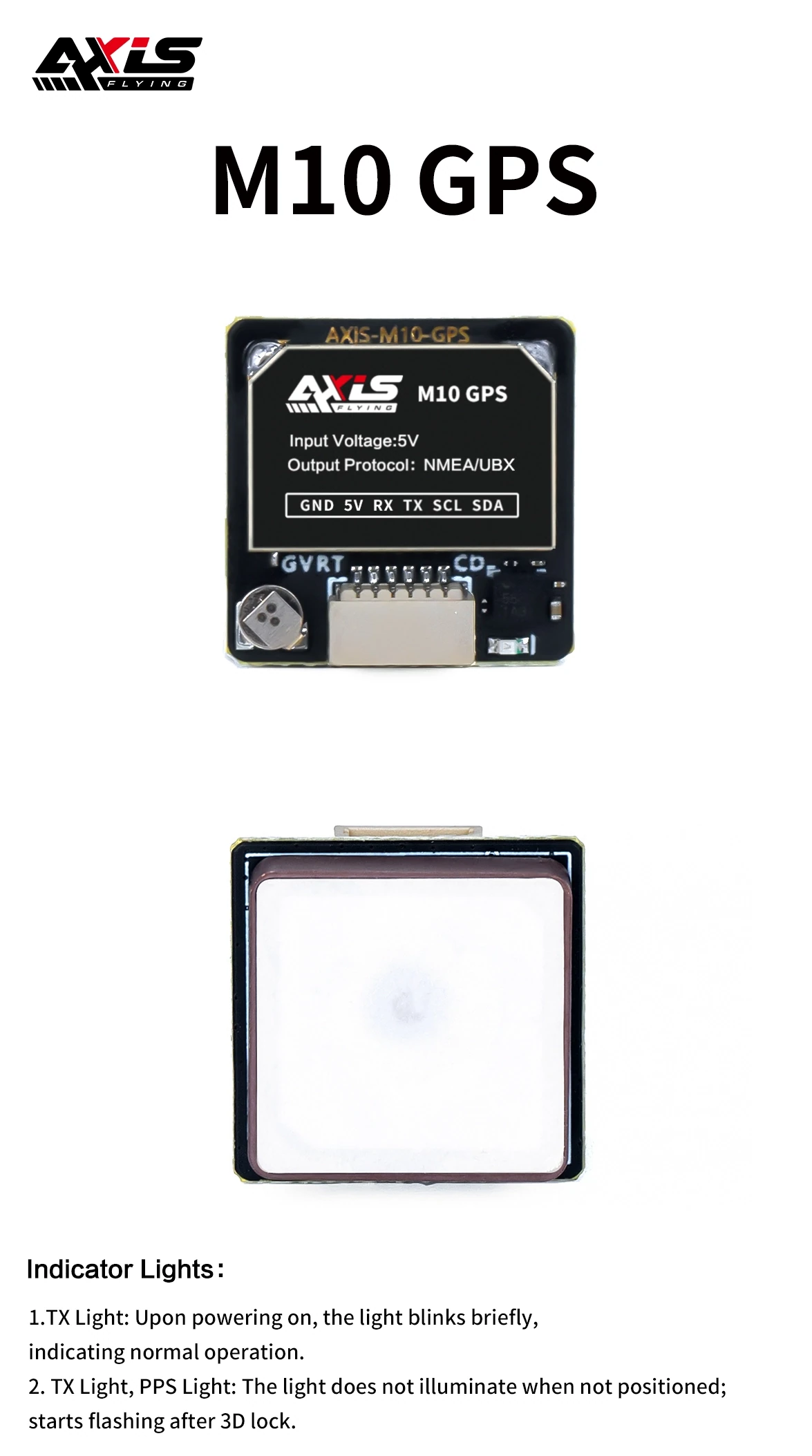

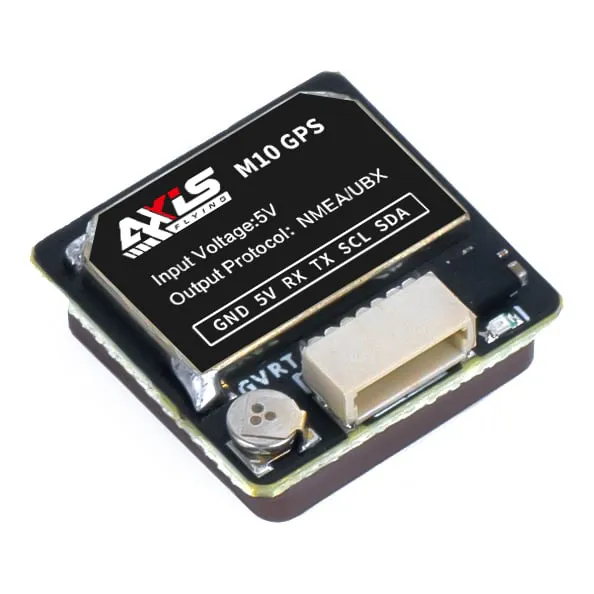

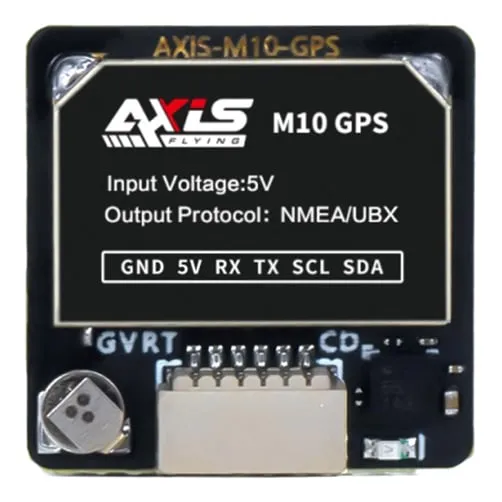

The Axisflying M10 is a GPS module with an integrated compass for FPV freestyle and long-range aircraft, combining position and heading sensors in one compact unit.
Key features
Tracking sensitivity of -167dBm helps keep a lock in weaker-signal conditions.
Cold-starts in around 26 seconds and hot-starts in about 1 second once a fix has been stored.
Delivers roughly 2.0m CEP horizontal accuracy for GPS-assisted navigation and return-to-home.
Outputs over NMEA-0183 or UBX protocols for compatibility with common flight controllers.
4MB of onboard flash retains its configuration after a power loss.
Weighs about 12g and is rated to operate from -40°C to +85°C, so it tolerates outdoor extremes.

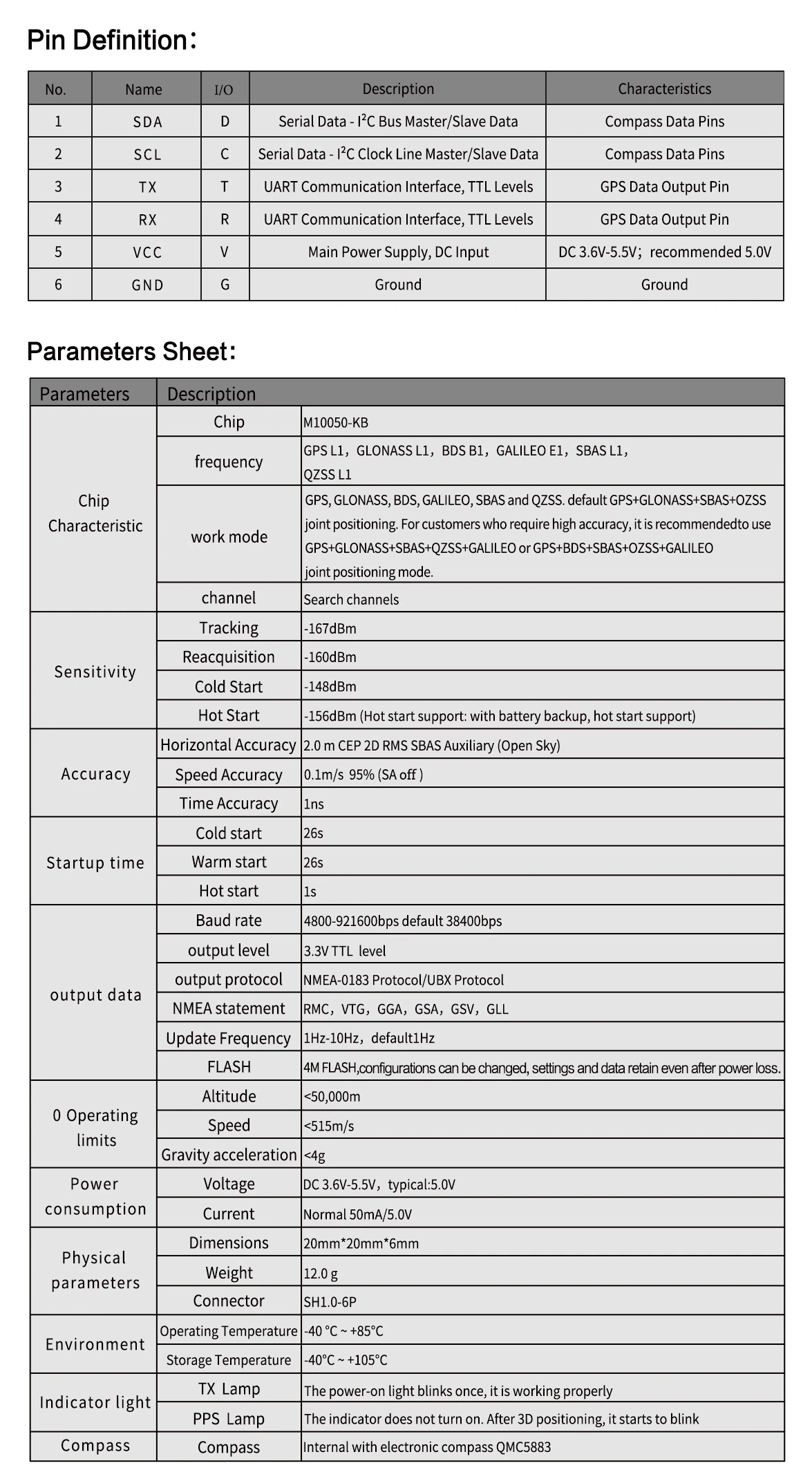

Specifications
GNSS chipset: u-blox M10
Compass: Integrated
Horizontal accuracy: approx. 2.0m CEP
Cold start: approx. 26s
Hot start: approx. 1s
Weight: approx. 12g

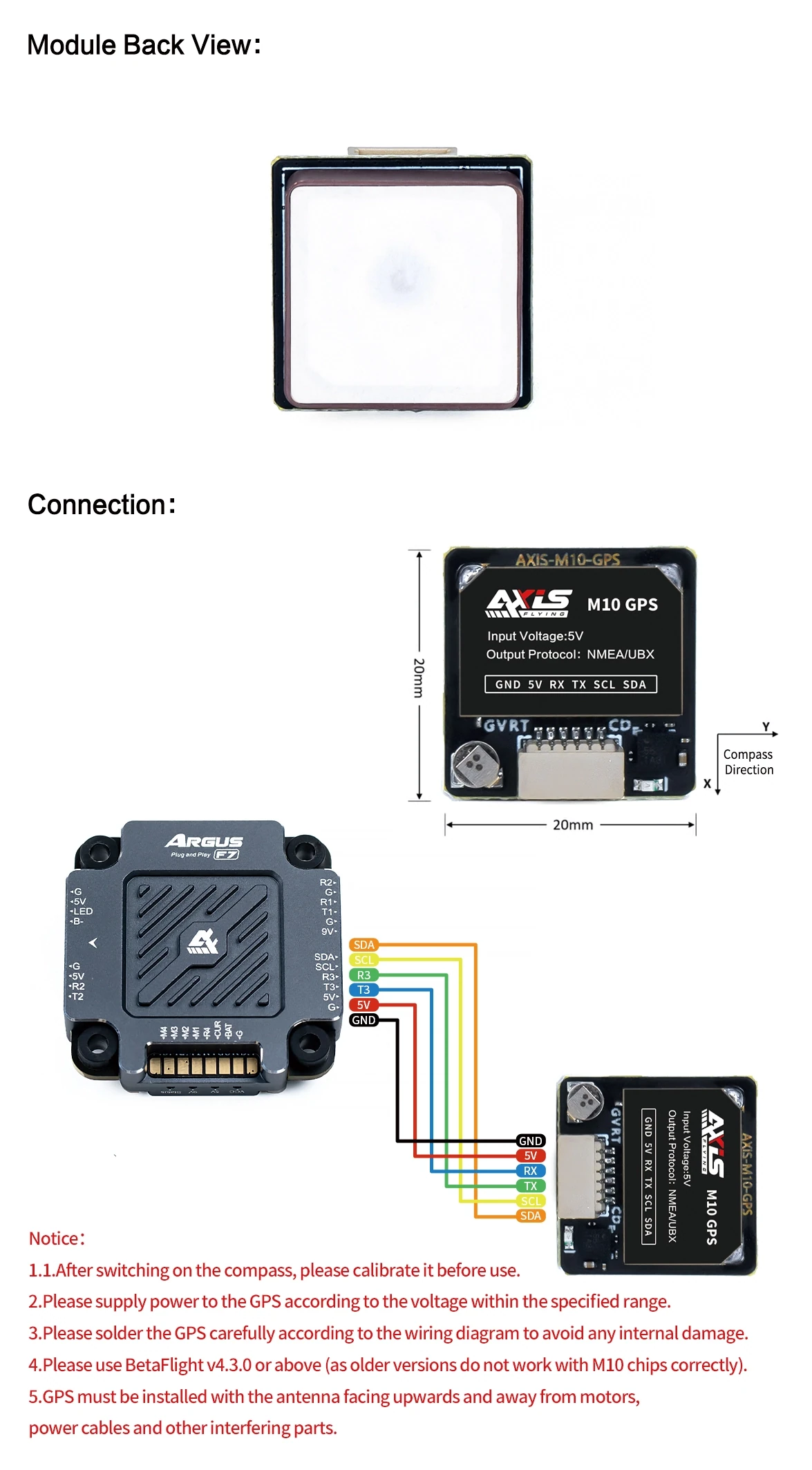

Mount it away from high-current wiring and other interference-causing electronics for the most reliable heading and position readings, and check the flight controller's GPS/compass port before fitting.
| Compass Included | Yes |
|---|---|
| Made in India | No |
| Brand | Axisflying |
| RTK Support | No |
| GNSS Chipset | u-blox M10 |
| Weight | 12 g |
| Barometer | No |
