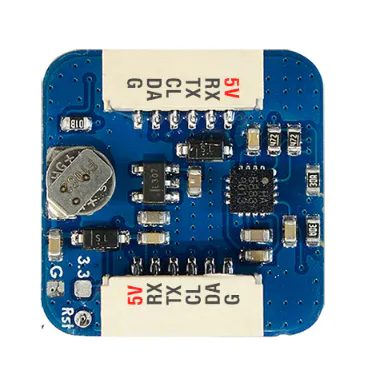

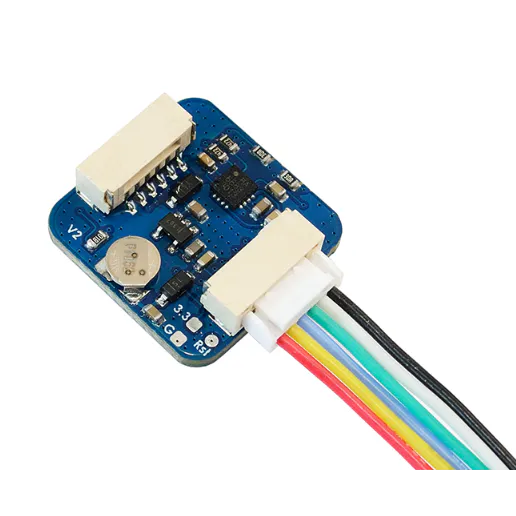

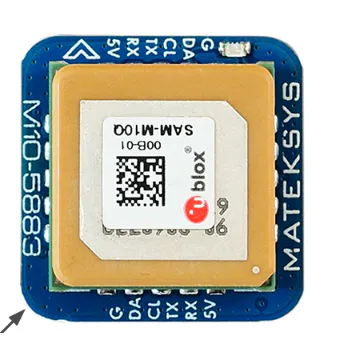

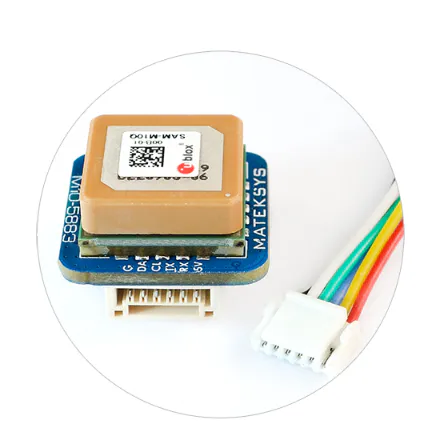

Matek M10Q-5883 GNSS & Compass Module

The Matek M10Q-5883 combines a u-blox SAM-M10Q GNSS receiver with a QMC5883L compass on a single small module, giving flight controllers the position and heading data needed for GPS Rescue, Position Hold and autonomous navigation modes.

Key features

• u-blox SAM-M10Q chipset tracks GPS, GLONASS, Galileo and BeiDou constellations for a fast, stable fix.
• Integrated QMC5883L magnetometer supplies heading data on the same board, saving a separate compass module.
• Compact footprint suits both freestyle quads and longer-range fixed-wing or GPS Rescue builds.
• Connects to Betaflight, INAV or ArduPilot flight controllers over UART.

Specifications

• GNSS receiver: u-blox SAM-M10Q
• Compass: QMC5883L
• Antenna: 15 x 15 x 4 mm patch
• Input voltage: 4-9 V (5 V pad/pin)
• Current draw: 13 mA
• Interfaces: UART (GNSS), I2C (compass)
• Default baud rate: 9600 bps (the flight controller reconfigures it over UBX)
• Update rate: 5 Hz UBX (GPS+Galileo+BeiDou+GLONASS) or 1 Hz NMEA
• Dimensions: 20 x 20 x 12.4 mm
• Weight: 8 g
• Firmware: INAV 5.0.0+, Betaflight 4.3.0+, ArduPilot 4.3+

Mount the compass away from power wiring and motors to avoid magnetic interference on the heading reading.
