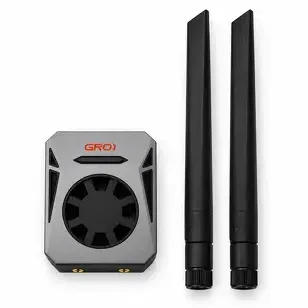

Skydroid GR01 2.4GHz/5.8GHz Dual-Band Receiver

The Skydroid GR01 is the airborne receiver for Skydroid's G10, G12 and G20 ground-station remotes. It carries control, telemetry and data on a dual-band 2.4GHz/5.8GHz link. A wide 7.2–72V input lets it run from the flight pack on agricultural sprayers and other high-voltage UAVs: a fully charged 16S LiPo (67.2 V) sits inside that range.

Key features

• Dual-band 2.4GHz / 5.8GHz link with up to 23dBm RF power
• Flight controller outputs: SBUS plus 3 PWM channels
• Data links: one serial data-transmission port with selectable baud rates and one network port
• Wide 7.2–72V supply through the included XT30 power cable
• Complete install kit: two antennas, feeder cables and a telemetry cable for Pixhawk-type flight controllers

Specifications

• Frequency: 2.4GHz / 5.8GHz dual band
• RF power: up to 23dBm (about 200 mW)
• Supply voltage: 7.2–72V
• Outputs: SBUS, 3 × PWM
• Interfaces: 1 × serial data transmission, 1 × network port
• Compatible remotes: Skydroid G10, G12, G20

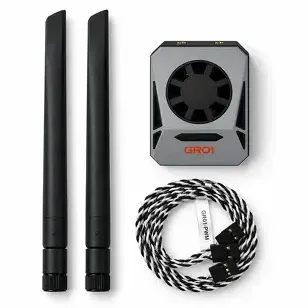

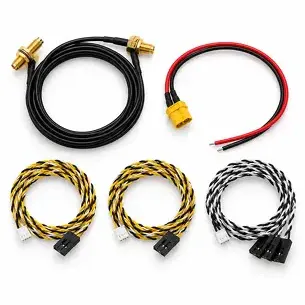

• In the box: 1 × GR01 receiver, 2 × 2.4G/5.8G antennas, 2 × antenna feeder cables, 1 × XT30 power cable, 1 × Pixhawk telemetry cable

The GR01 binds to the Skydroid G10, G12 and G20 remotes. Order it as a spare, or as a receiver for a second aircraft on an existing setup.
