SIYI UniRC 7 Pro 2.4/5.8GHz Dual-Band Handheld Ground Station

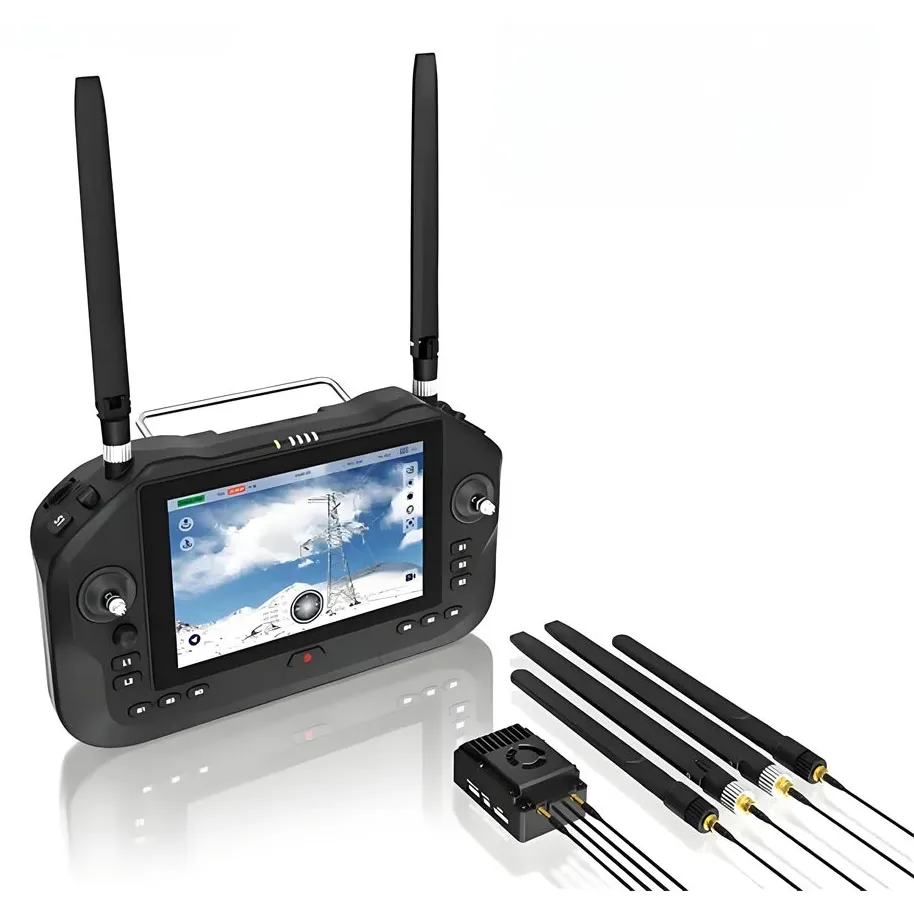

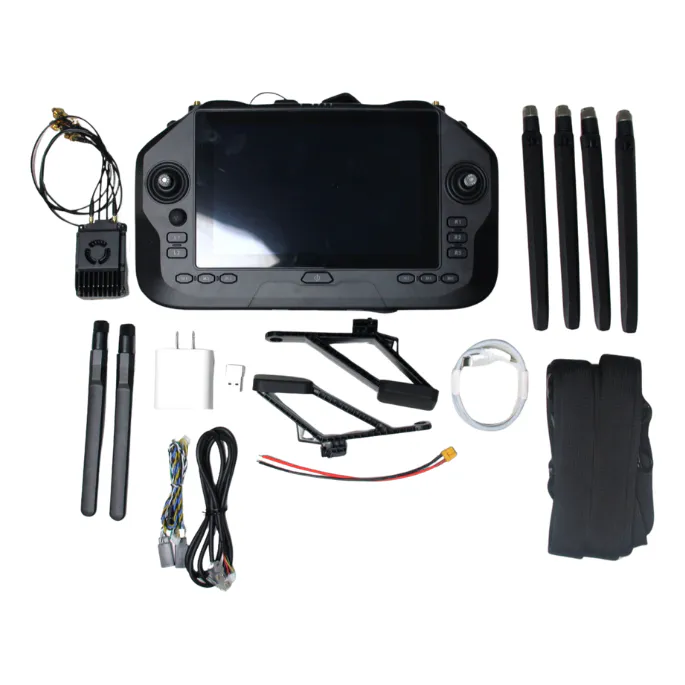

The SIYI UniRC 7 Pro is the dual-band version of SIYI's 7-inch handheld ground station, adding a 5.8 GHz band to the 2.4 GHz link plus HDMI and LAN outputs on the handset. Supplied with its air unit, it suits agricultural, survey and industrial drones as well as ground and marine robots.

Key features

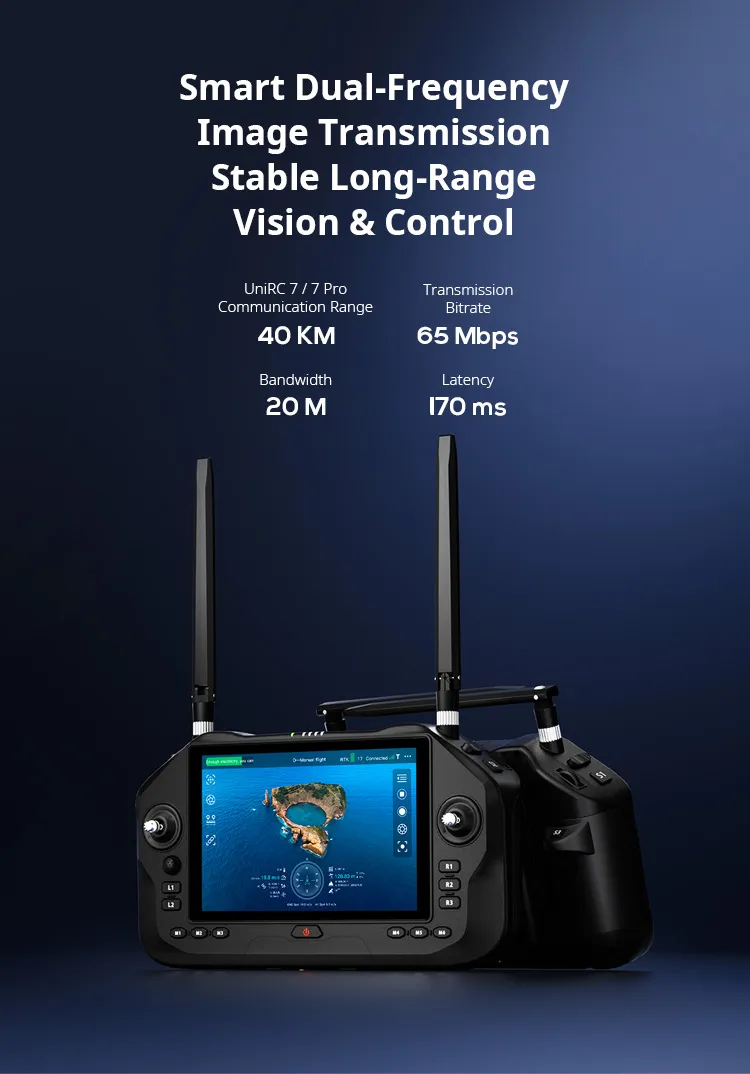

• Dual-frequency redundancy: 2.400–2.476 GHz and 5.725–5.829 GHz with AES encryption and up to 65 Mbps; rated 3–6 km at spraying altitude, 10–15 km at 120 m over rural areas and 30–40 km at 150 m over open sea.

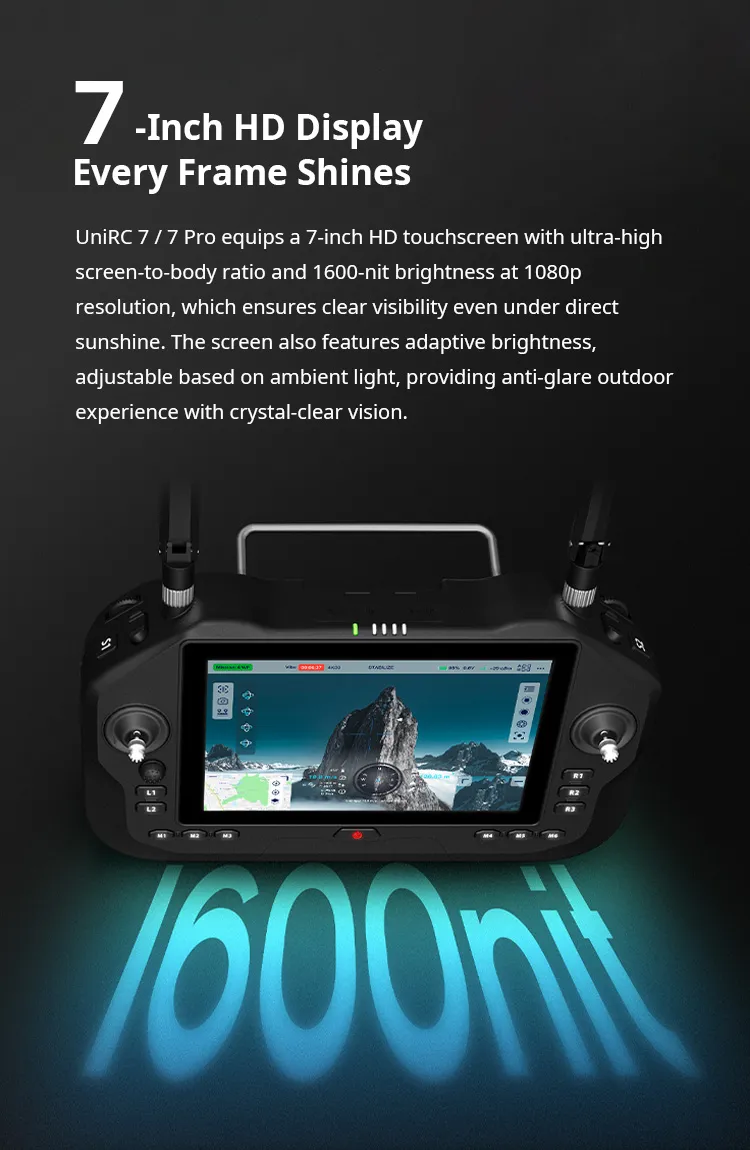

• High-resolution screen: 7-inch 1920 × 1200 touchscreen at 1600 nits, Android 13 on a Qualcomm 8-core CPU with 4 GB RAM and 64 GB storage.

• Video: 4K30 single-stream or dual 1080p60 decoding, latency from about 170 ms.

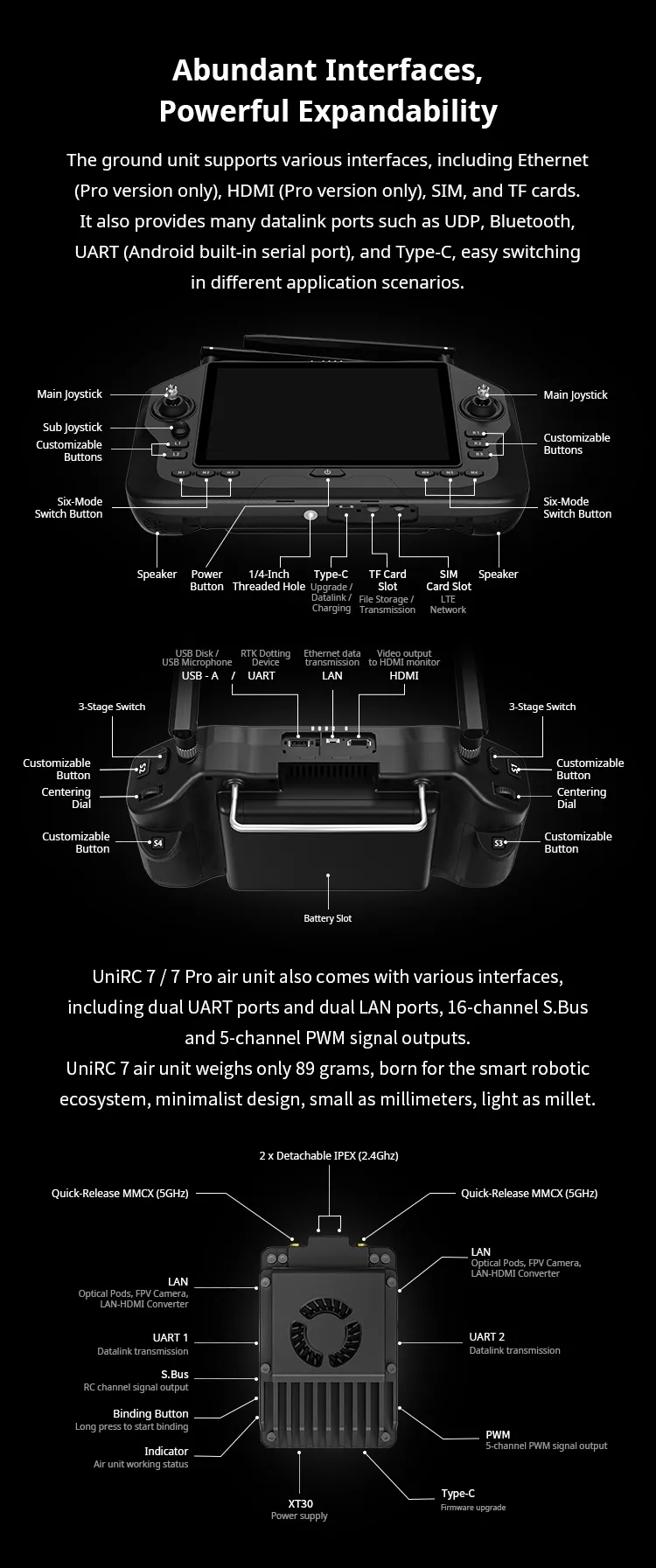

• Handset I/O: standard HDMI, LAN and a USB-A port that works as a UART for RTK dotting or as USB for drives and microphones; Wi-Fi 5, Bluetooth 5.0 and GNSS.

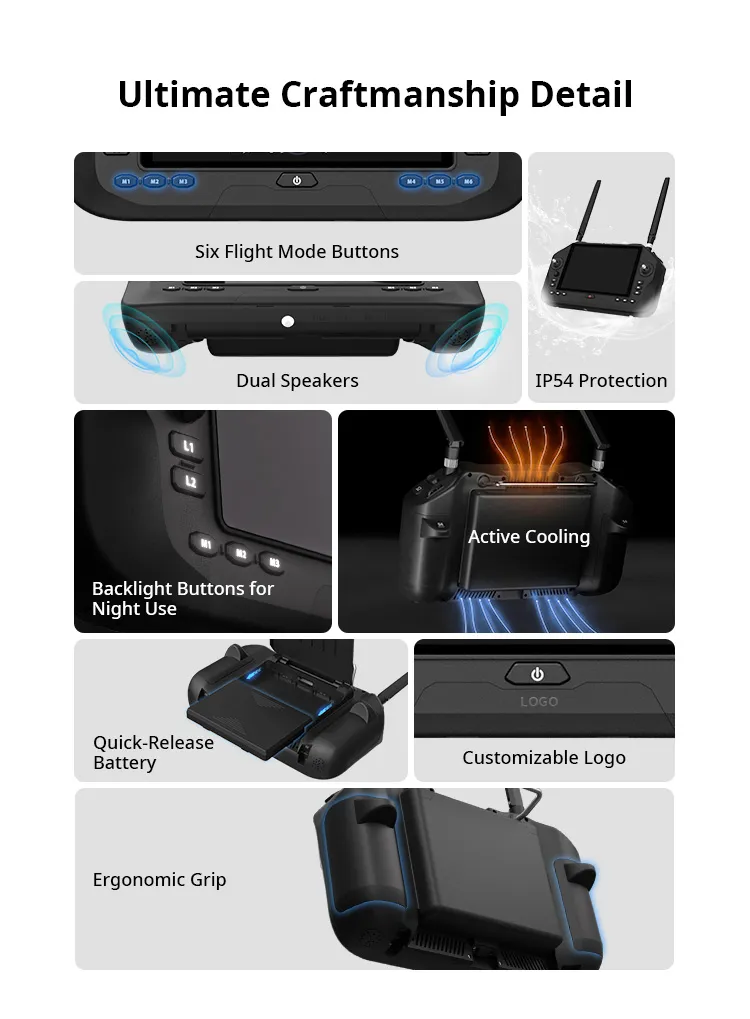

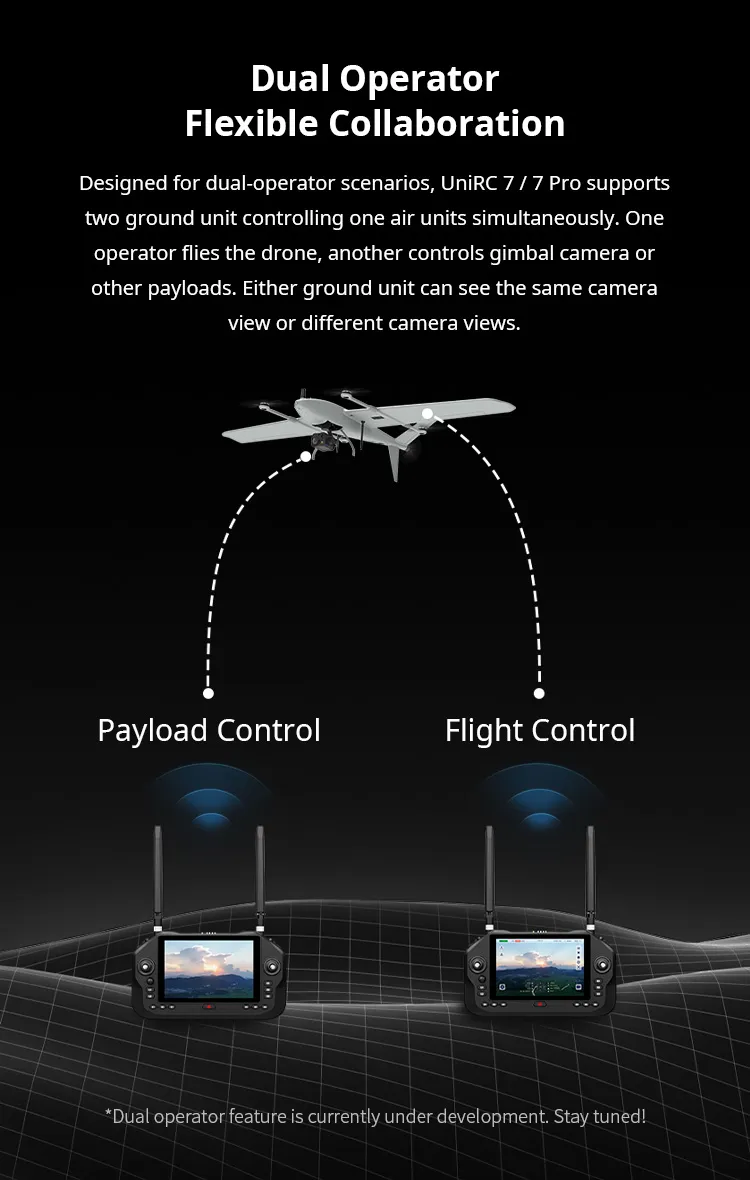

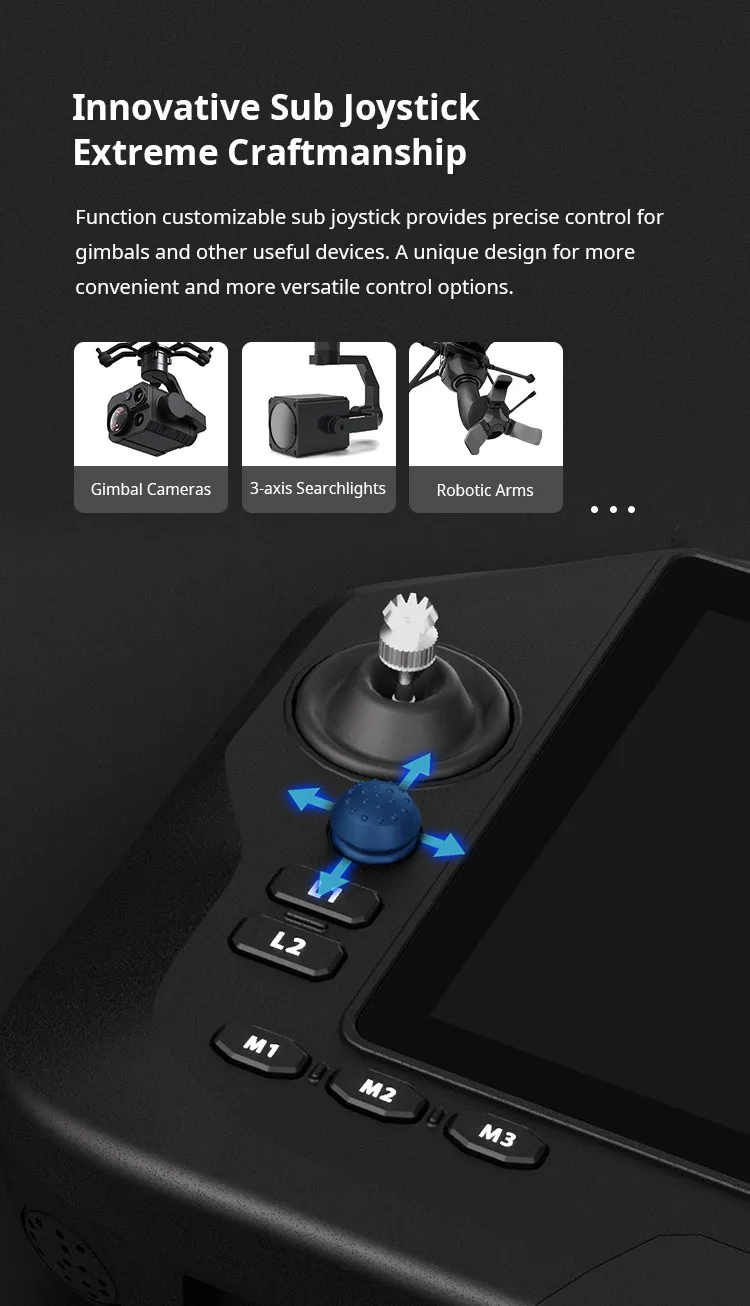

• Operation: dual-operator mode for separate flight and payload control, sub-joystick, six flight-mode buttons, active cooling and IP54 sealing.

Specifications

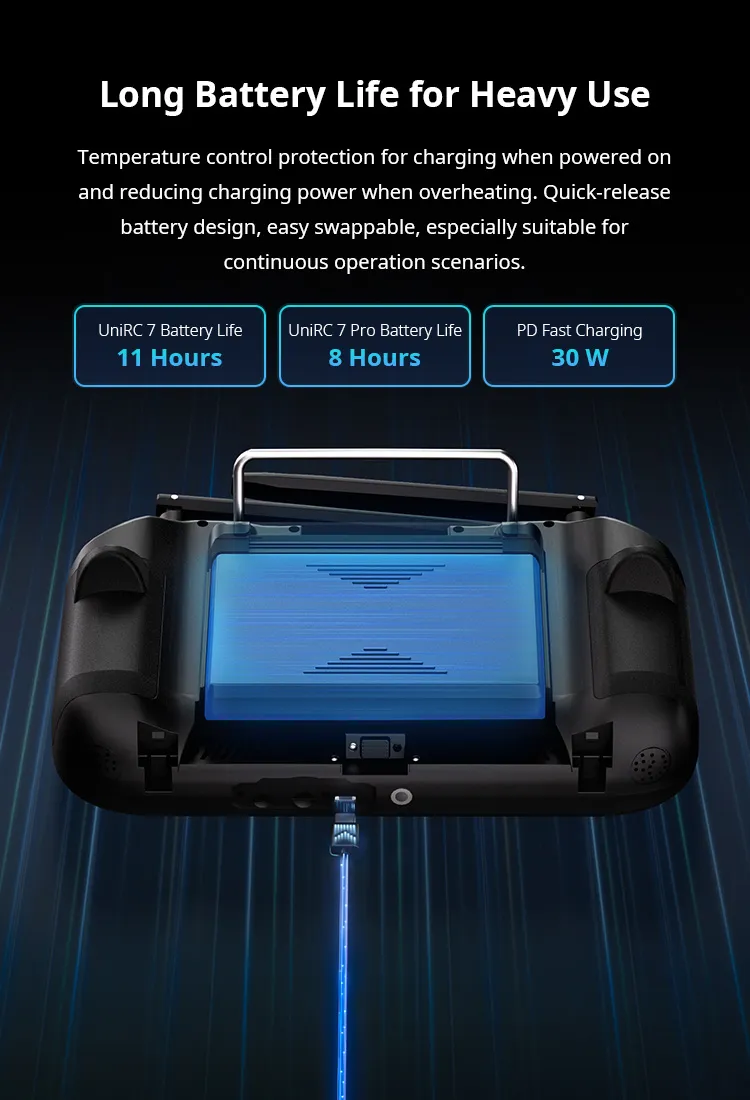

• Battery: 13400 mAh, approx. 8 hours

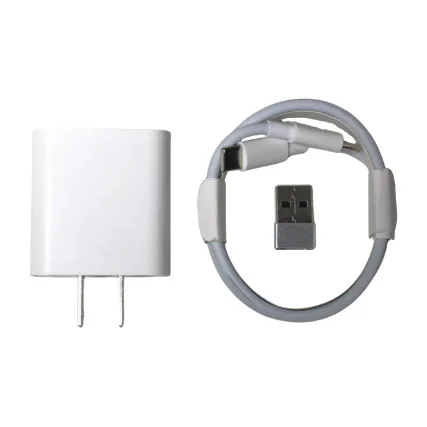

• Charging: 30 W PD, approx. 4.5 hours

• Ground station: 274 × 190 × 100 mm, 1.46 kg

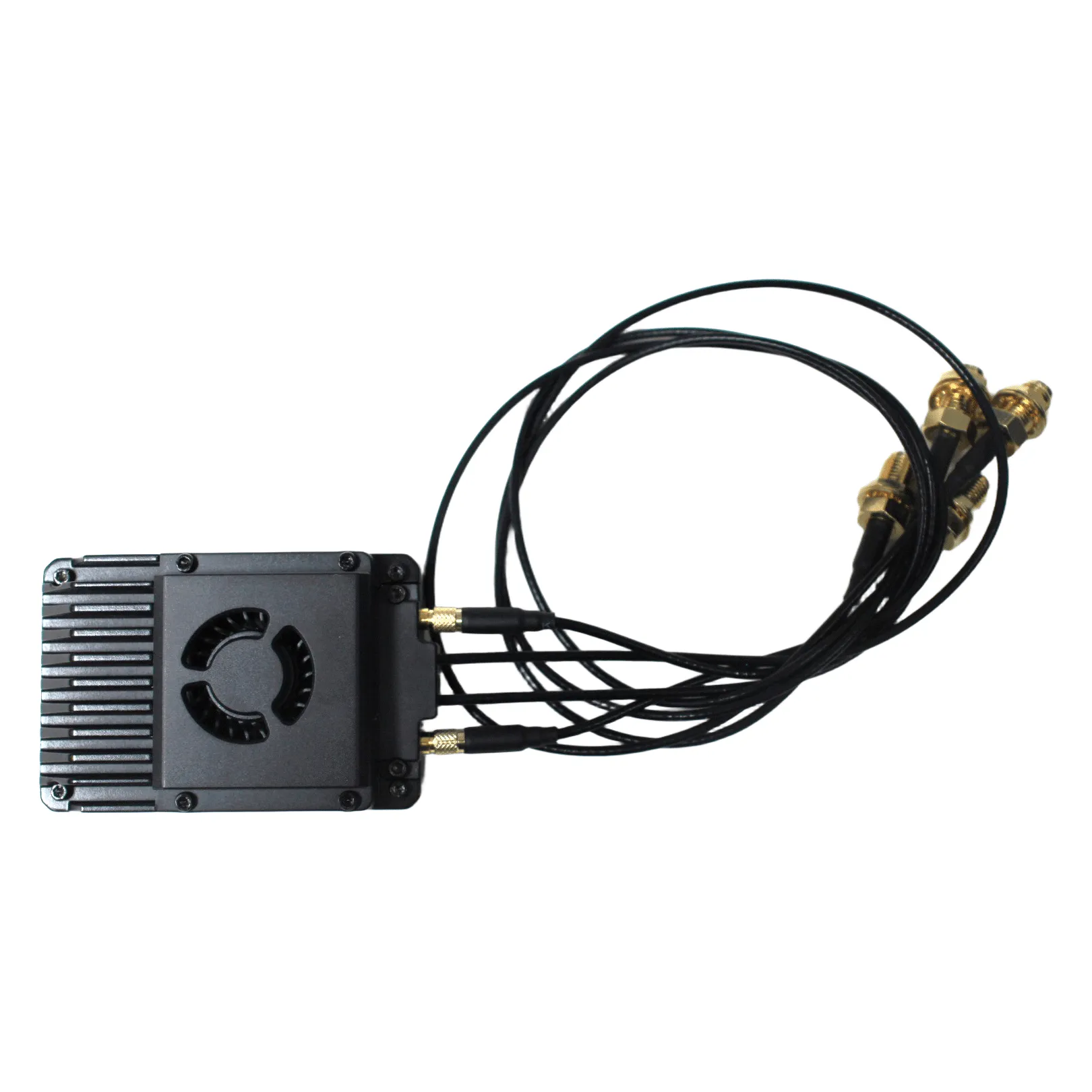

• Air unit: 63 × 40 × 27 mm, 115 g, 8 W

• Air unit input: 12–76 V

• Air unit outputs: 16-channel S.Bus, 5-channel PWM

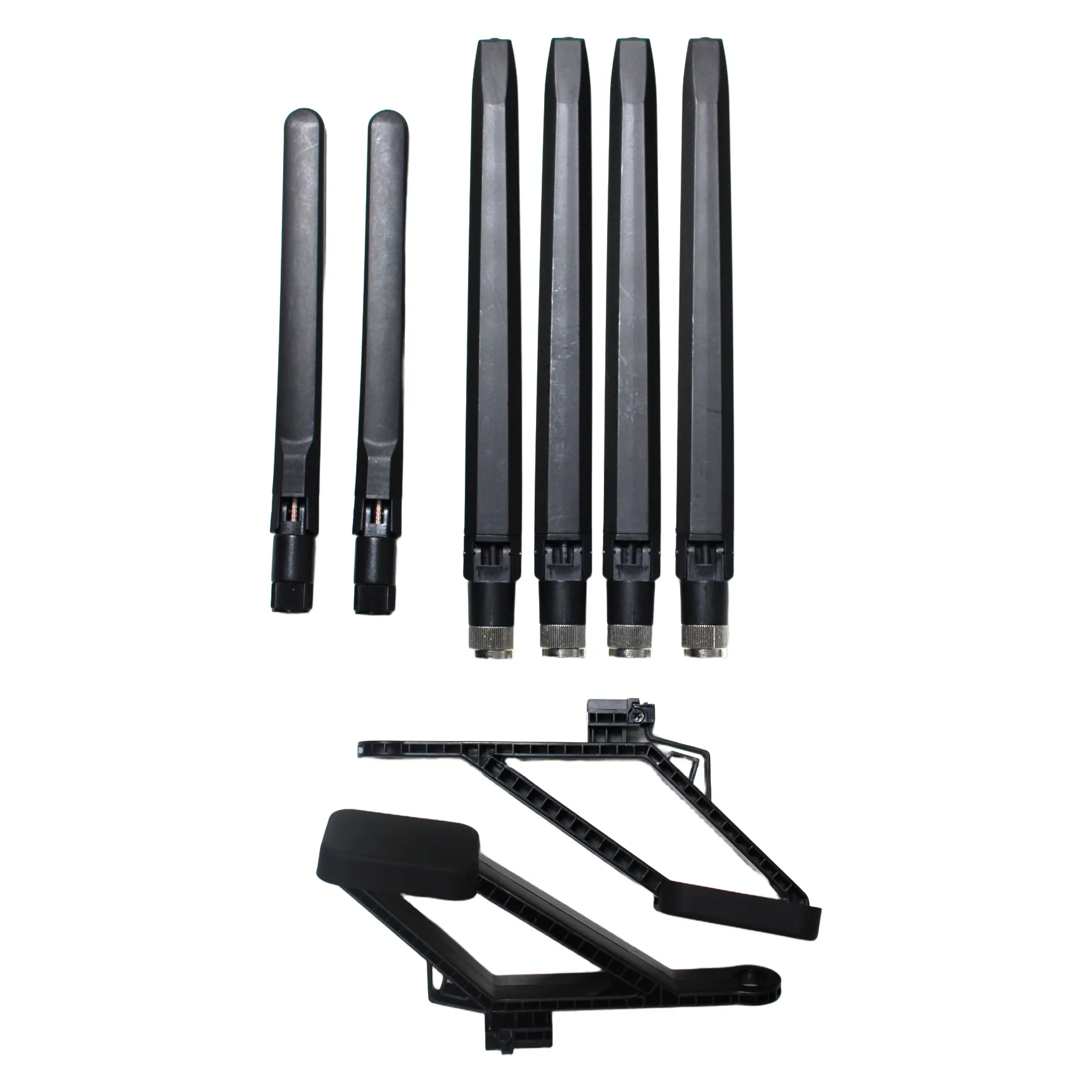

• Air unit antennas: 2 × quick-release MMCX (5.8 GHz), 2 × detachable IPEX (2.4 GHz)

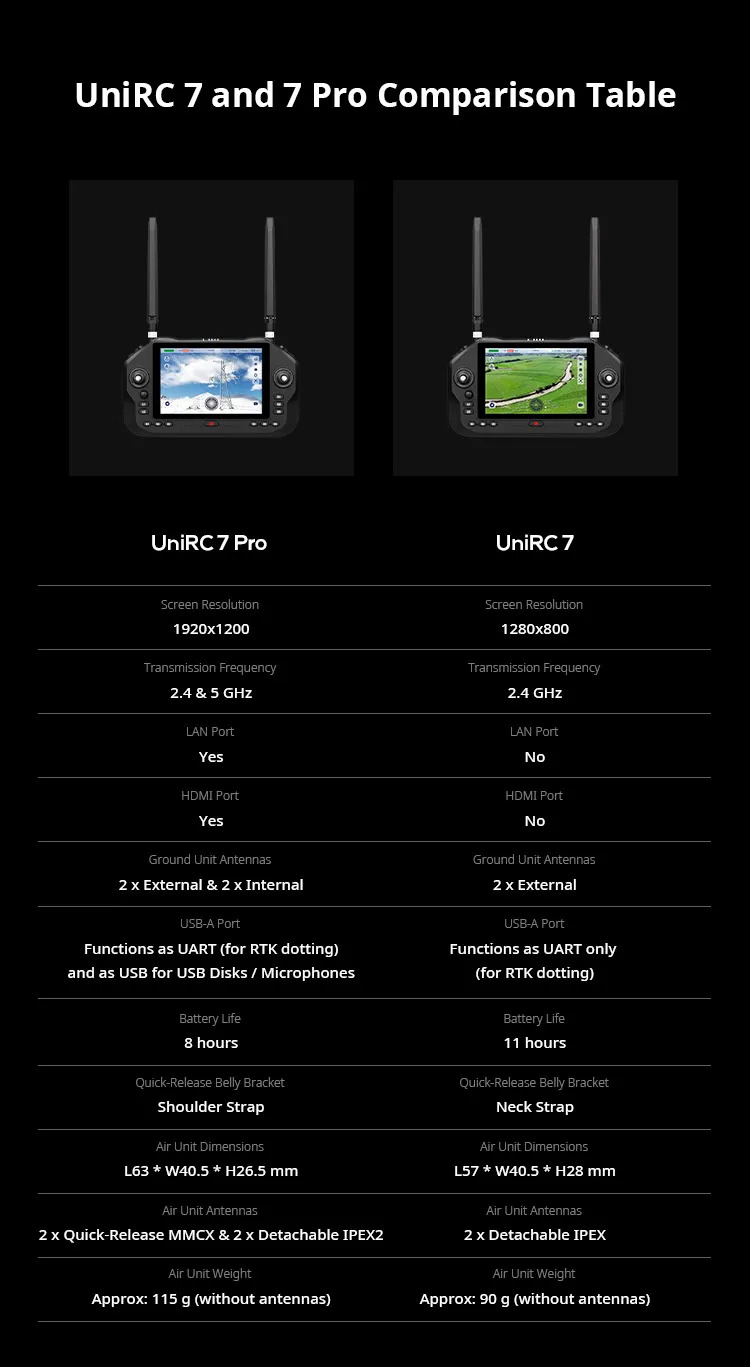

Pick the standard UniRC 7 if 2.4 GHz alone is enough and you want its longer 11-hour runtime; the Pro trades some endurance for the higher-resolution screen, second band and wired video outputs.
