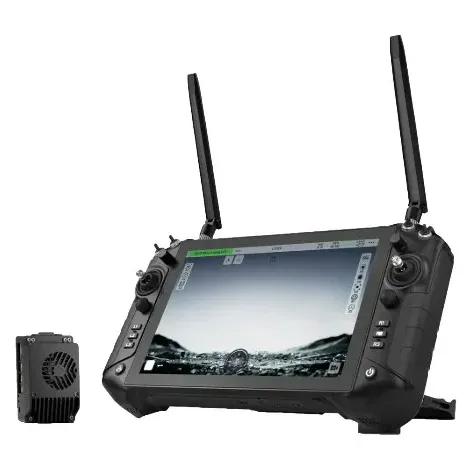

SIYI UniRC 10 Pro Triple-Frequency Smart Controller

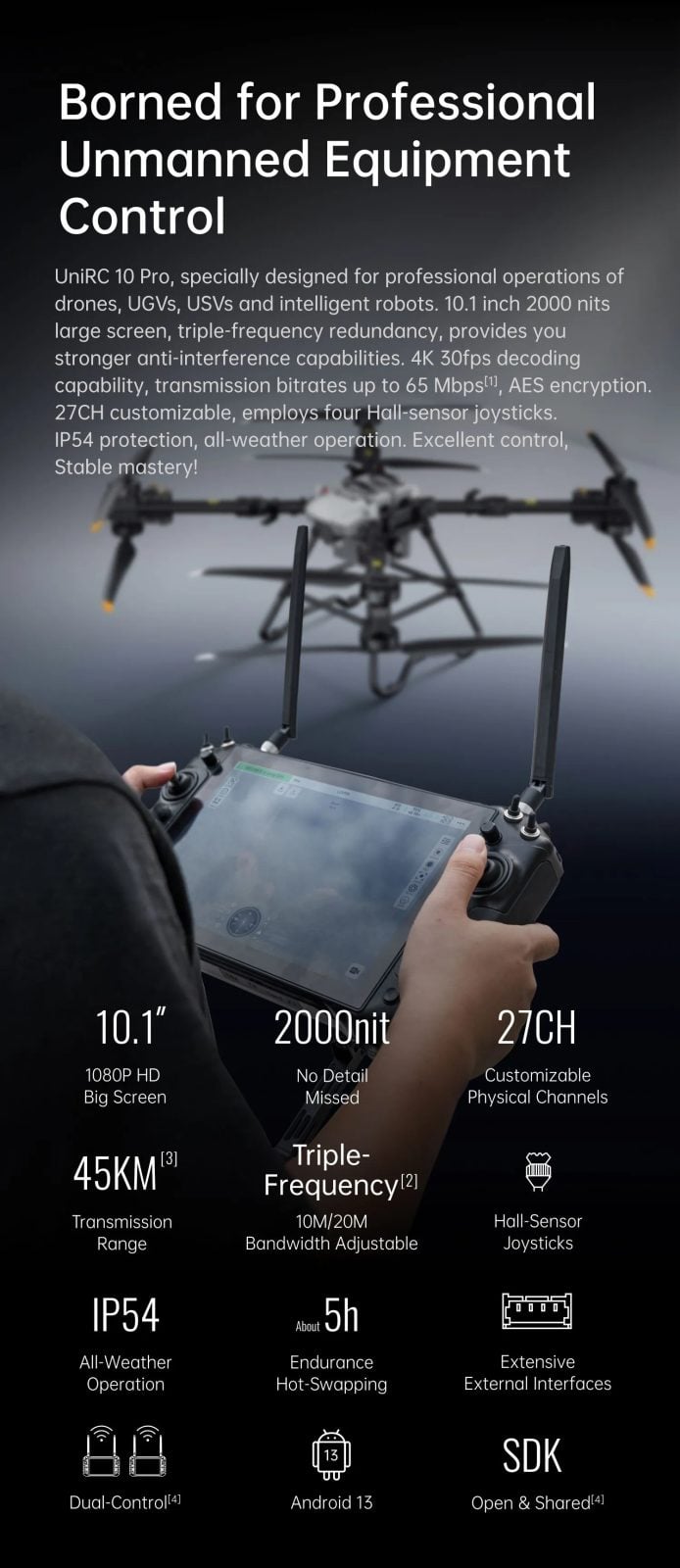

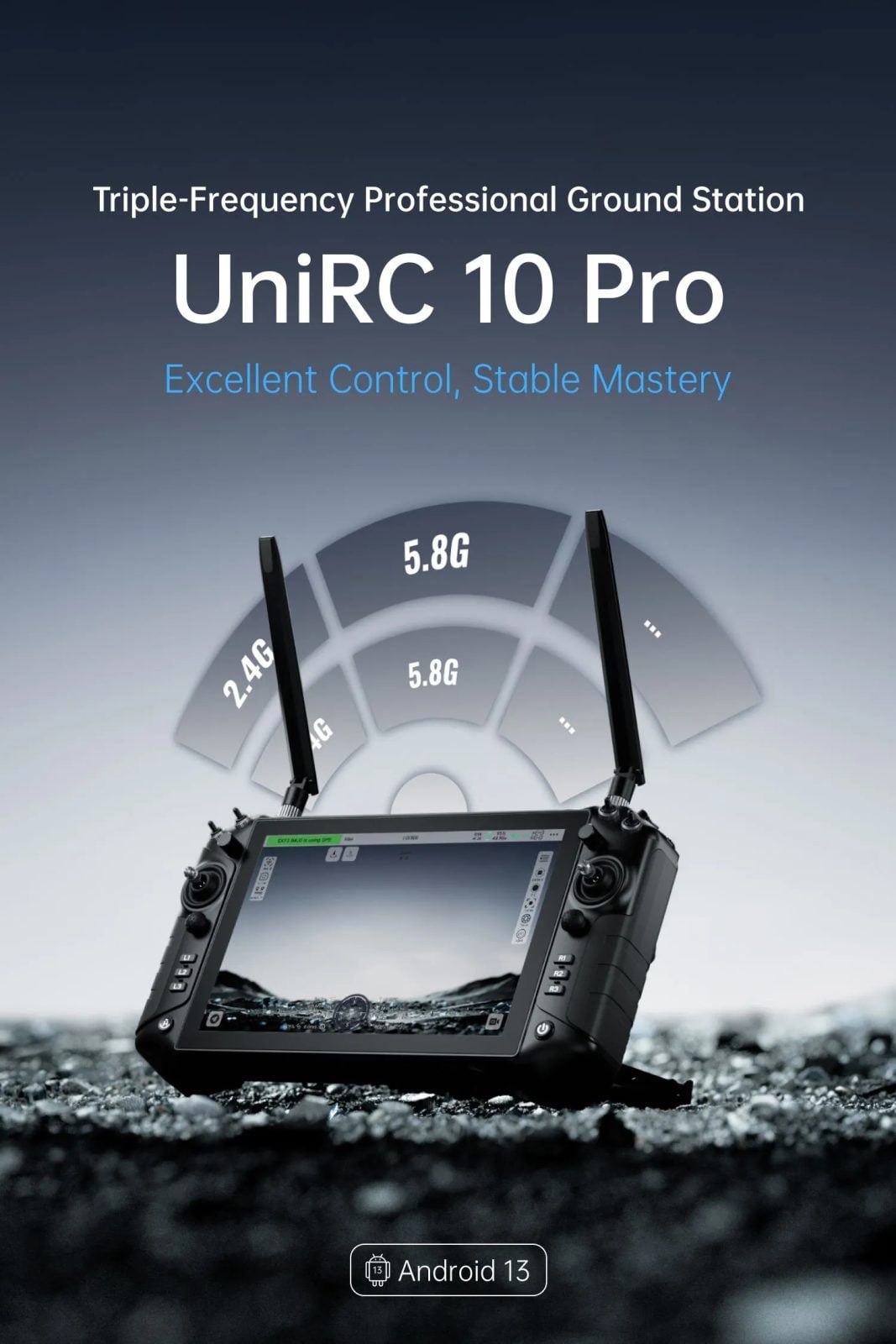

The SIYI UniRC 10 Pro is a professional handheld ground station with a 10.1-inch screen and a triple-frequency digital link, built to command drones, ground vehicles, unmanned boats and robots. It suits industrial and long-range survey work where the operator needs high-resolution video, telemetry and payload control on one large display.

Key features

• Triple-frequency redundancy: 2.4 GHz, 5.8 GHz and a third band with AES encryption, rated 35–45 km in low interference and 20–25 km in medium interference.

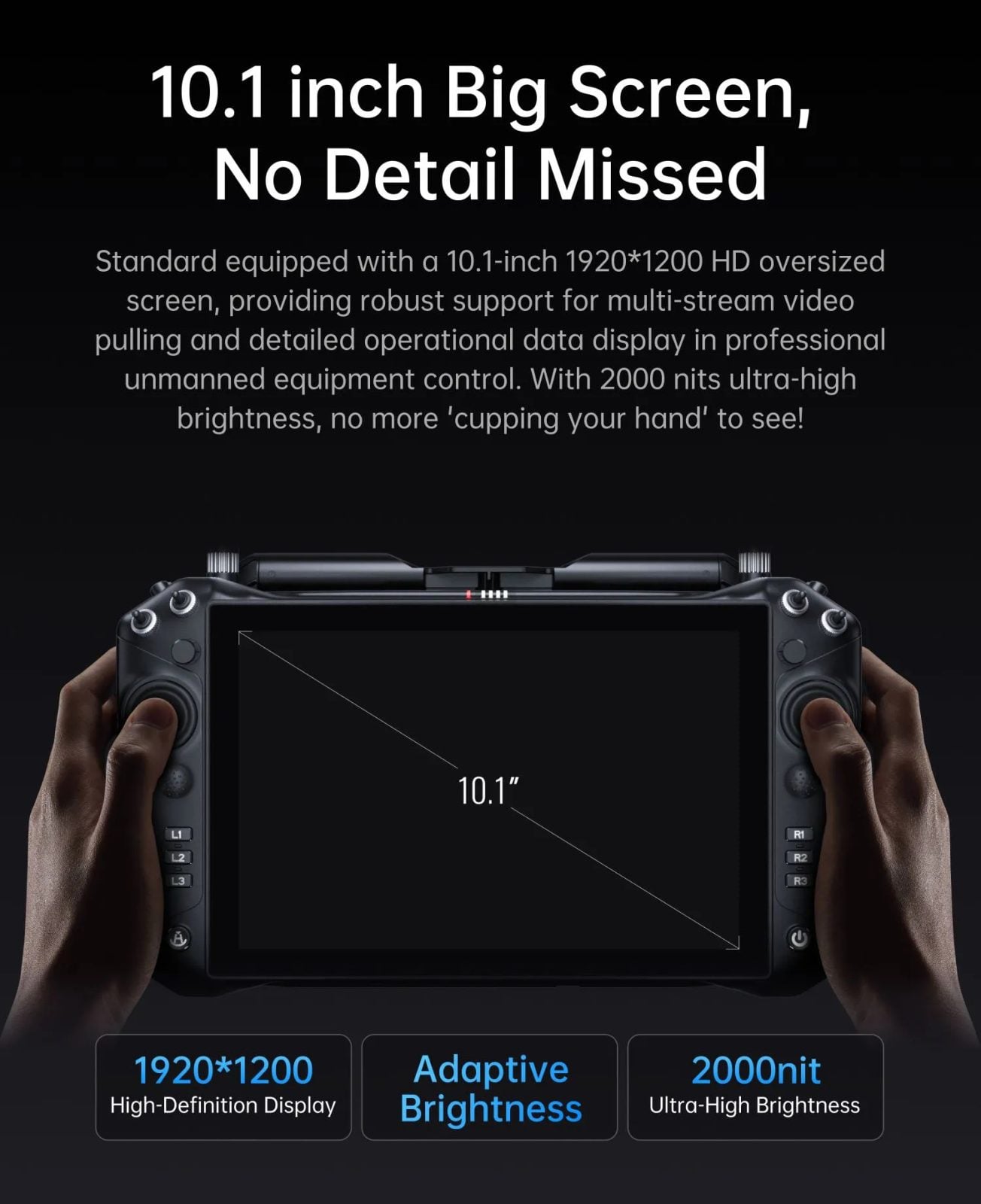

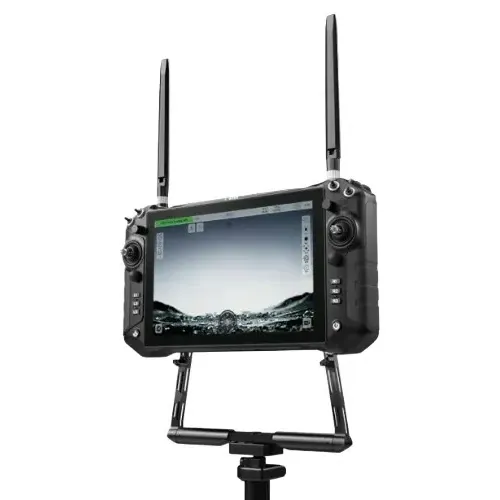

• Large bright screen: 10.1-inch 1920 × 1200 display at 2000 nits and 60 fps.

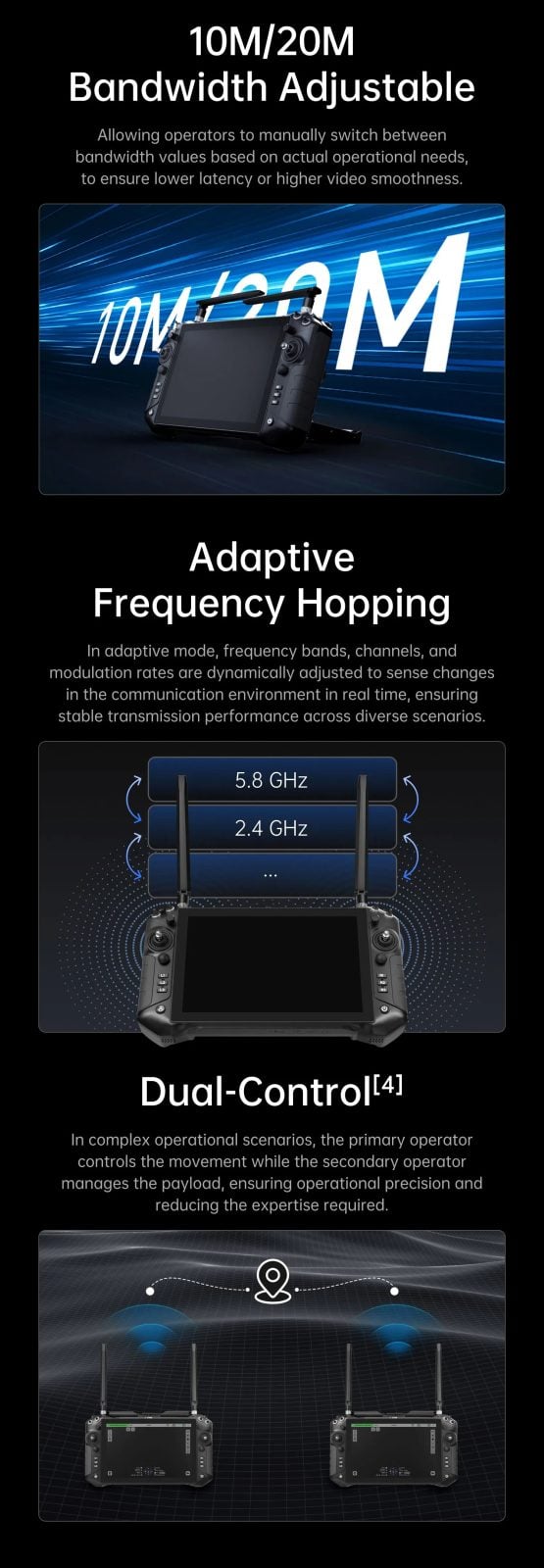

• Video: 4K30 decoding at up to 65 Mbps over 10 or 20 MHz bandwidth.

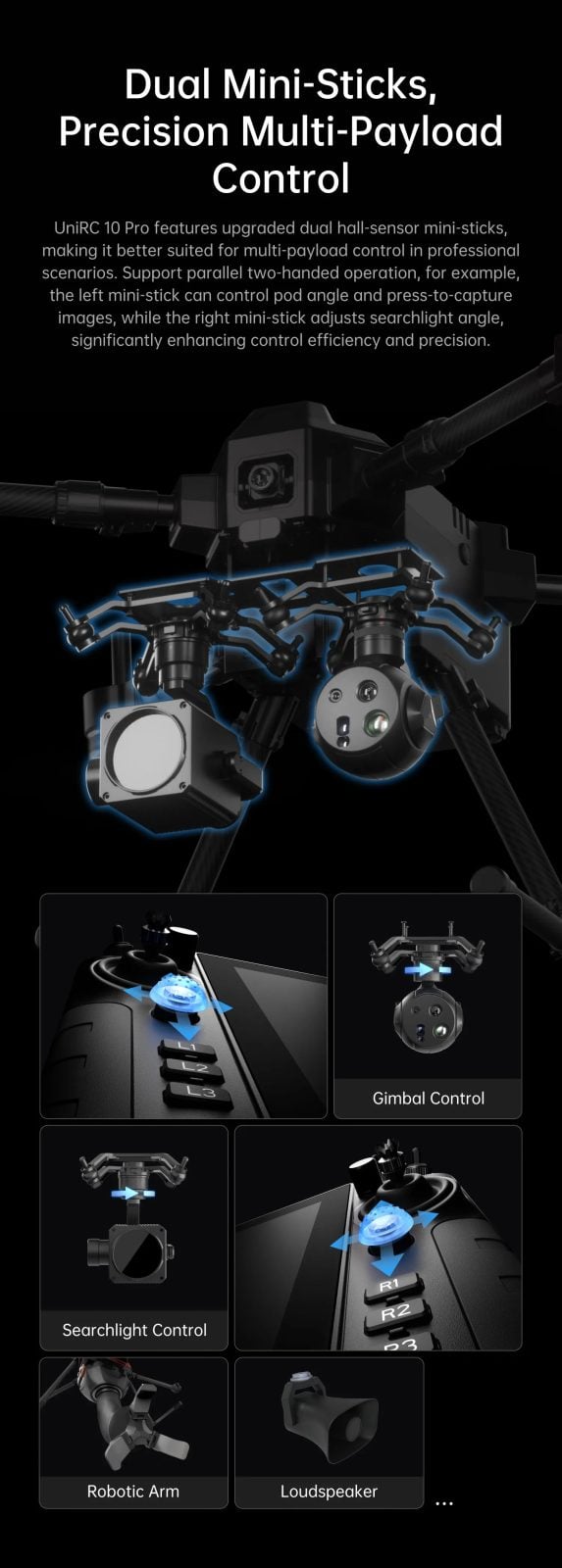

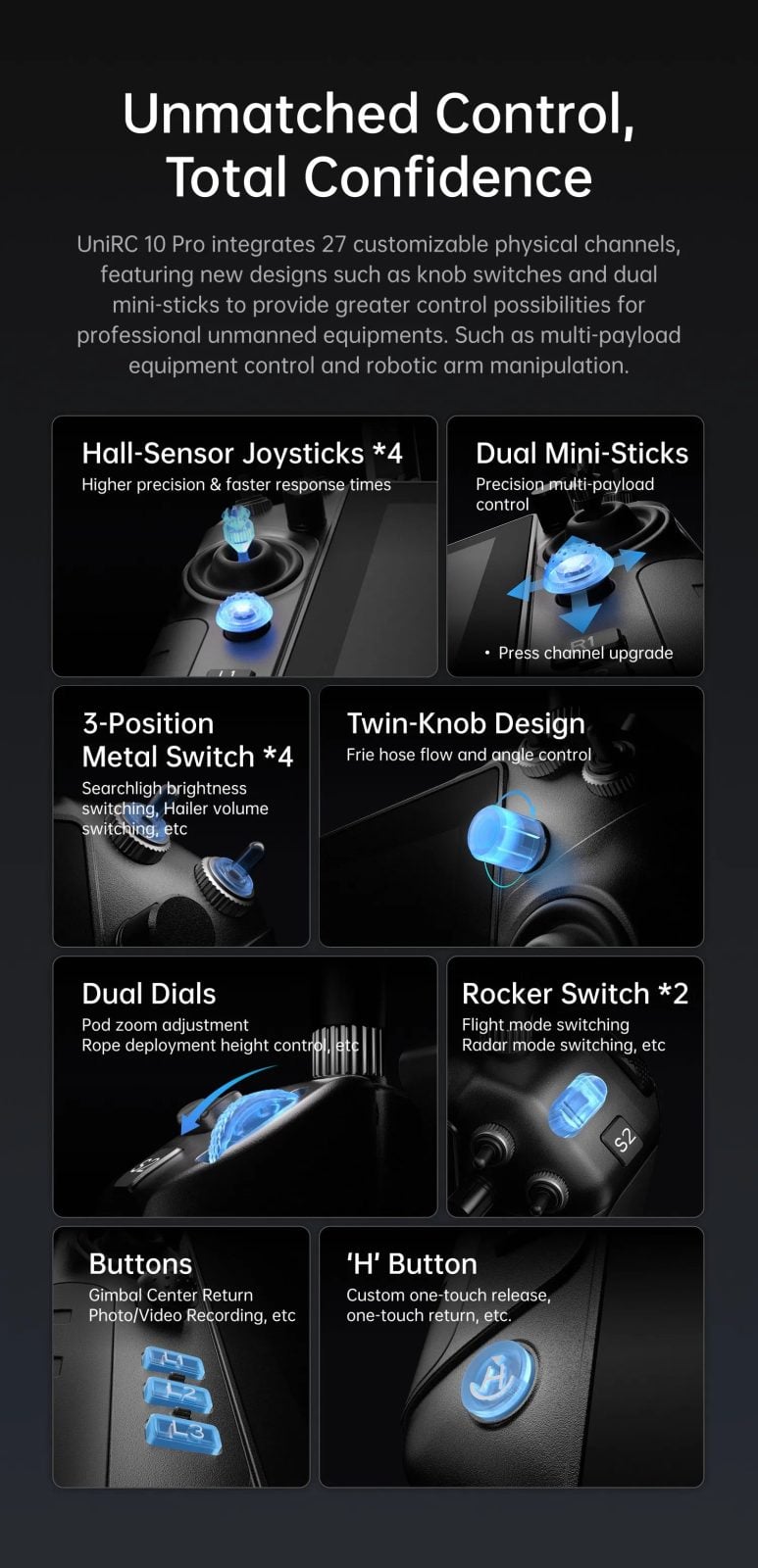

• Controls: 27 customisable physical channels — two main and two mini Hall-sensor sticks, 13 buttons, six 3-position switches, two dials and two knobs.

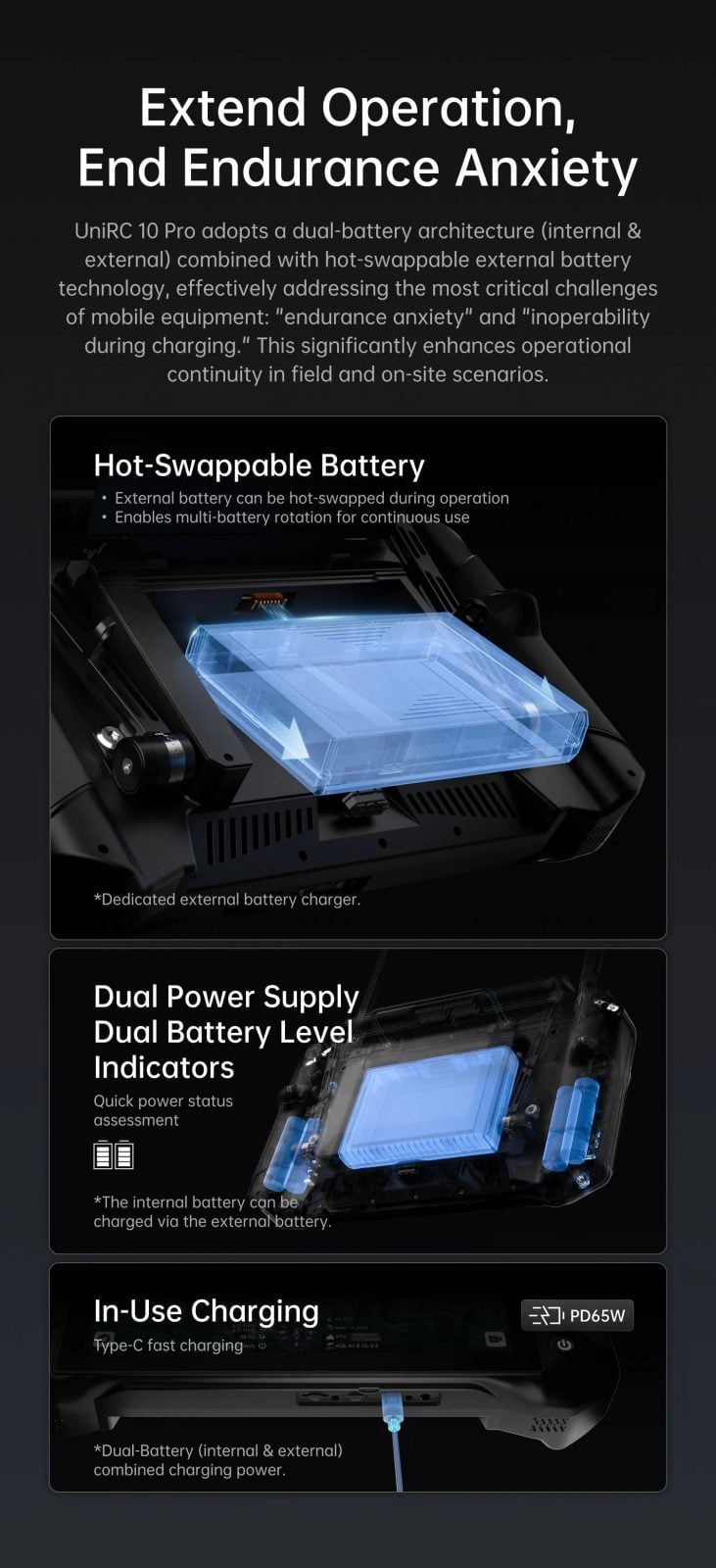

• Dual batteries: 6700 mAh internal plus a 13400 mAh hot-swappable external pack for about 5 hours, with 65 W fast charging.

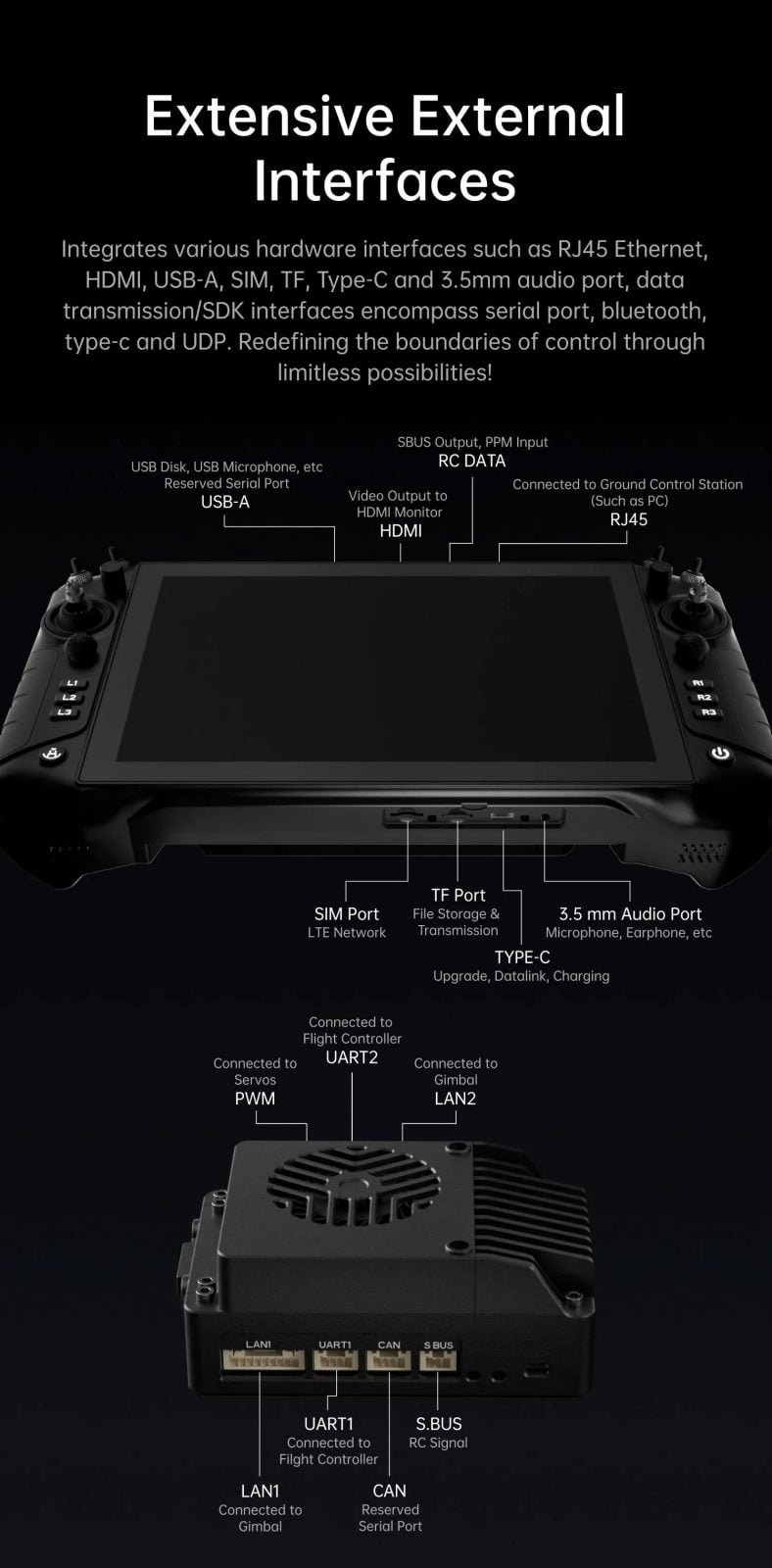

• Connectivity: HDMI, RJ45 Ethernet, USB-A, USB-C, SIM and TF card slots, Wi-Fi 5, Bluetooth 5.0 and multi-constellation GNSS.

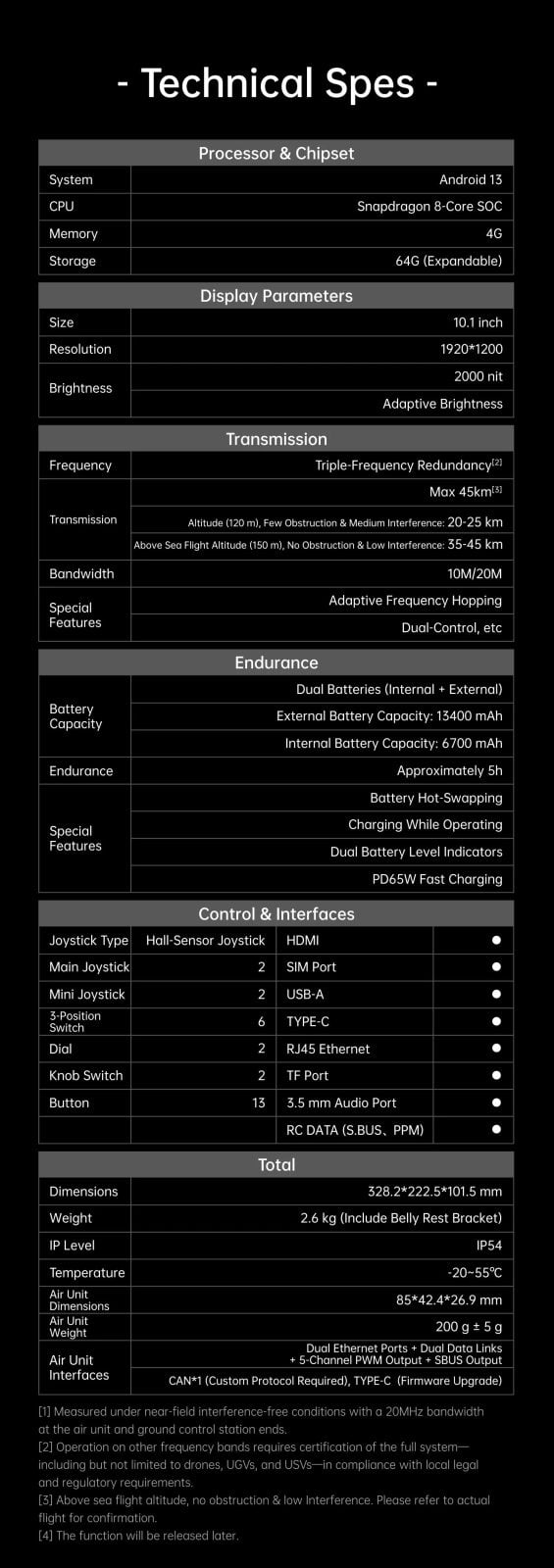

Specifications

• Operating system: Android 13, Snapdragon 8-core, 4 GB RAM, 64 GB expandable storage

• Charging time: 1.5 hours internal only, 4 hours with the external pack

• Controller: 328.2 × 222.5 × 101.5 mm, 2600 g with belly-rest bracket, IP54

• Power draw: 34 W

• Operating temperature: −20 to 55 °C

• Air unit: 85 × 42.4 × 26.9 mm, 200 ± 5 g, 7 W

• Air unit input: 3S–18S via XT30

• Air unit I/O: 16-channel S.Bus, 5-channel PWM, 2 × UART, 2 × Ethernet, CAN

• Air unit antennas: 2 × quick-release MMCX, 2 × detachable IPEX
