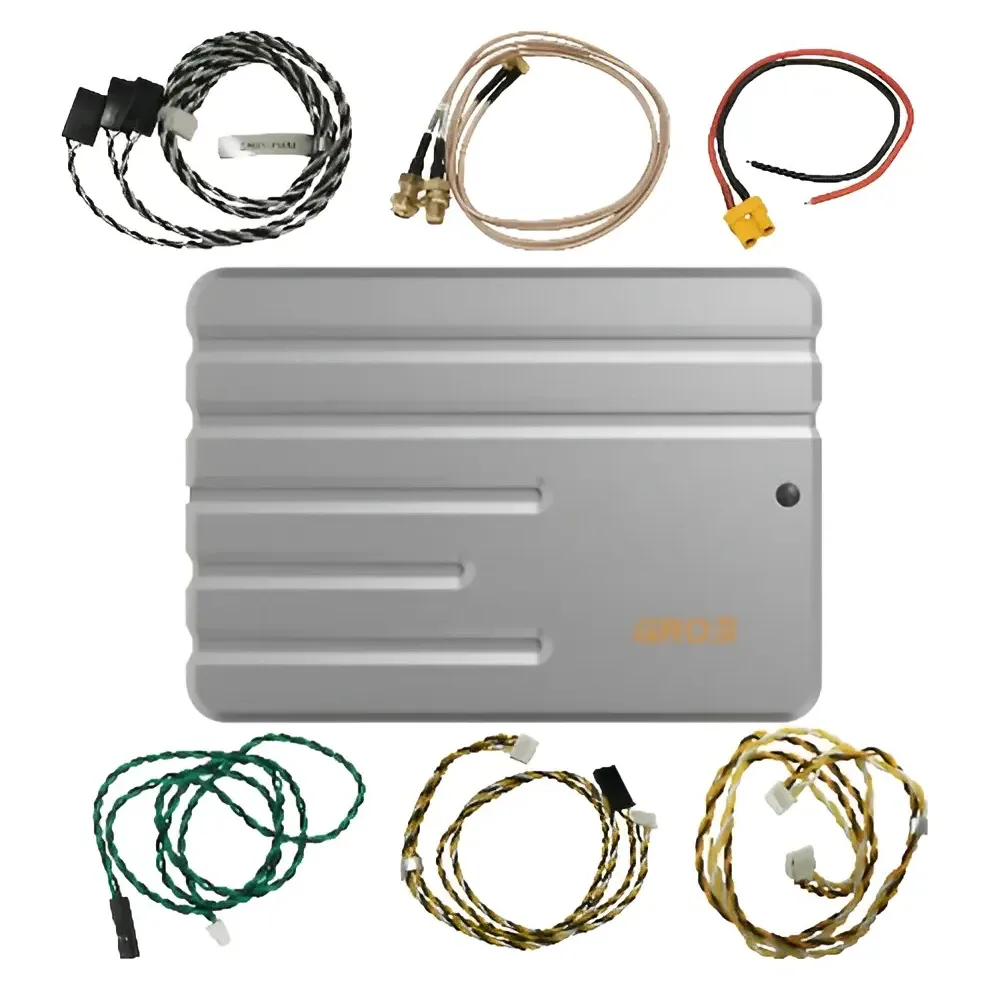

Skydroid GR03 2.4GHz/5.8GHz Dual-Band Receiver

The Skydroid GR03 is the dual-band 2.4GHz/5.8GHz airborne receiver of Skydroid's G30 ground-station system. It carries control, telemetry and network video on one link for industrial, agricultural and inspection UAVs. The aluminium-alloy housing protects the electronics and acts as a heat sink.

Key features

• Dual-band link on 2.4GHz and 5.8GHz with 23dBm RF power
• High-bandwidth downlink: 10 Mbps down and 200 kbps up
• Two Ethernet ports for network cameras and other IP devices, plus two data-transmission ports
• Flight controller interfaces: a dedicated FC port, SBUS, 3 PWM channels and an audio output
• 7.2–72V supply via XT30, drawing about 350 mA at 12V

Specifications

• Frequency: 2.4GHz / 5.8GHz
• RF power: 23dBm (about 200 mW)
• Data rate: 10 Mbps downstream, 200 kbps upstream
• Supply: 7.2–72V (XT30)
• Working current: 350 mA at 12V

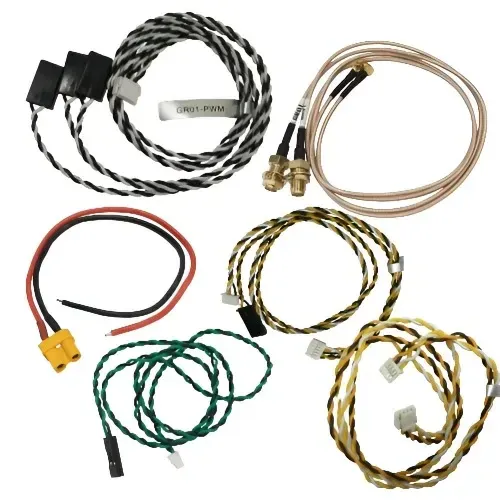

• Interfaces: 2 × Ethernet, 2 × data transmission, 1 × FC, 1 × SBUS, 3 × PWM, 1 × audio out
• Serial baud rates: 57600 / 115200 / 921600
• Dimensions: 58.7 × 82 × 20 mm
• Operating temperature: -10 to 60 °C

The GR03 is matched to the Skydroid G30 ground station. Confirm your remote model before ordering it as a spare or second-aircraft receiver.
