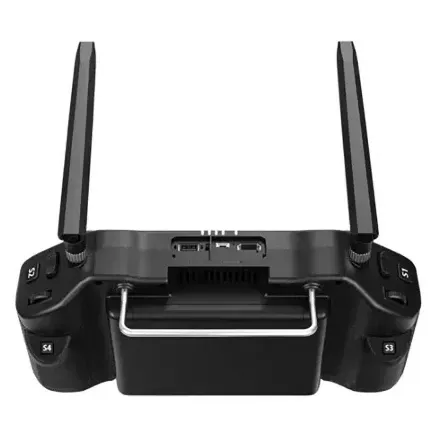

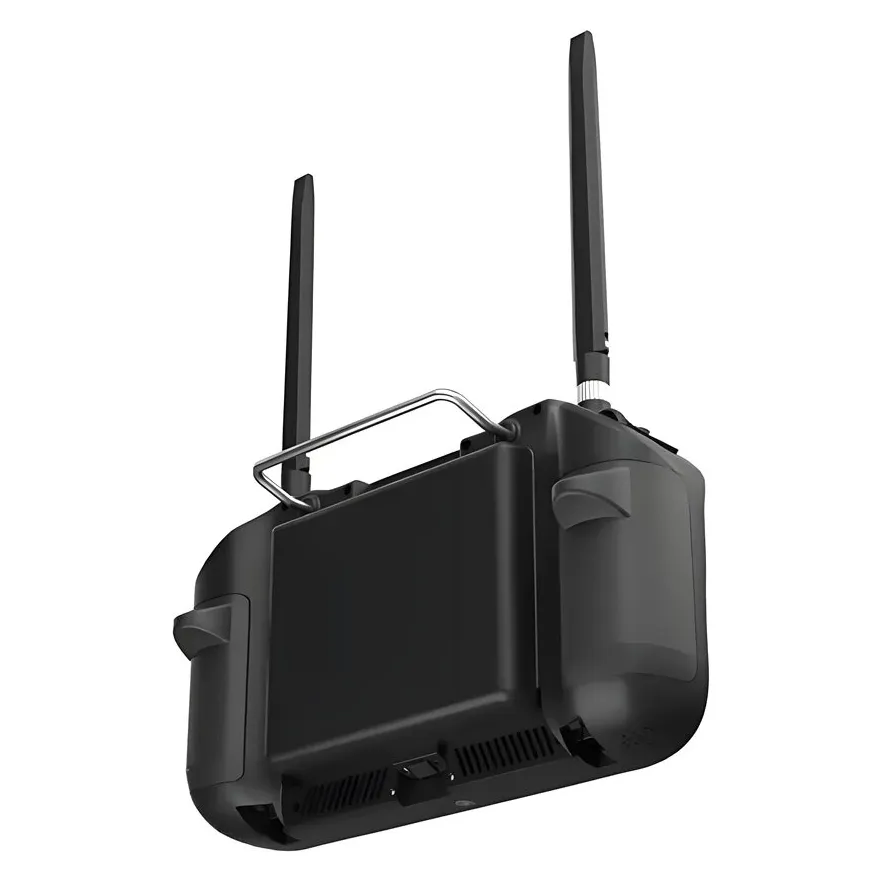

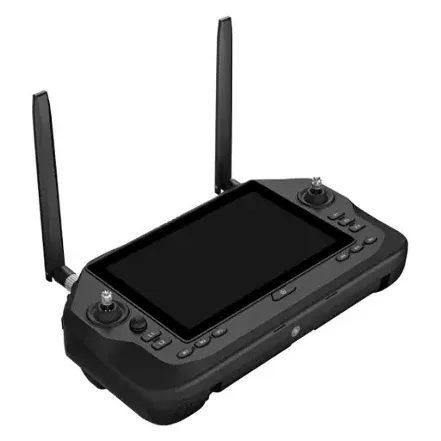

SIYI UniRC 7 2.4GHz Handheld Ground Station

The SIYI UniRC 7 is a 7-inch Android handheld ground station with a 2.4 GHz digital link, supplied with its air unit, for drones, ground vehicles, boats and robots. Long battery life and a sub-joystick for payload control make it a practical fit for spray drones and long-range survey multirotors.

Key features

• 2.4 GHz link: automatic channel selection, AES encryption and up to 65 Mbps; SIYI rates 3–6 km at 3–6 m spraying altitude, 10–15 km at 120 m over rural areas and 30–40 km at 150 m over open sea.
• Video: 4K30 single-stream or dual 1080p60 decoding with latency from about 170 ms.
• Handset: 7-inch 1280 × 800 touchscreen at 1600 nits, Android 13, 4 GB RAM and 64 GB storage, Wi-Fi 5, Bluetooth 5.0 and multi-constellation GNSS.
• Controls: two main sticks plus a sub-joystick, six flight-mode buttons, 10 custom buttons, two dials and two 3-stage switches.
• Battery: 13400 mAh for about 11 hours, recharged in about 4.5 hours over 30 W PD.

Specifications

• Frequency: 2.400–2.476 GHz
• Ground station: 274 × 190 × 100 mm, 1.44 kg, IP54
• Ports: USB-C, SIM card slot, TF card / USB-A (USB-A works as a UART for RTK dotting)
• Air unit: 57 × 40 × 28 mm, 90 g, 6 W
• Air unit input: 12–76 V
• Air unit outputs: 16-channel S.Bus, 5-channel PWM
• Air unit antennas: 2 × detachable IPEX

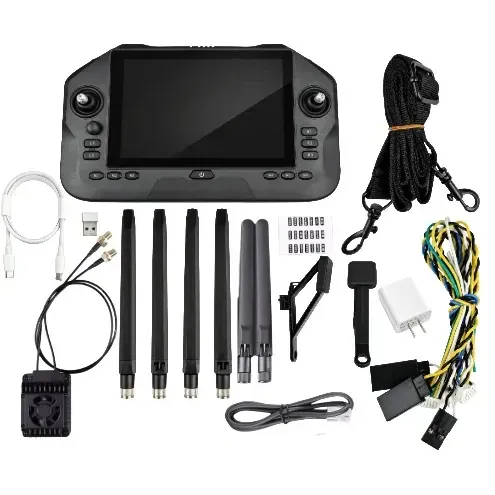

In the box: ground station, air unit, antennas, PX4/ArduPilot datalink cable, S.Bus and PWM leads, 30 W PD charger with USB-C cables, storage case, quick-release belly brackets and strap. Choose the UniRC 7 Pro if you need HDMI or Ethernet output on the handset or a second 5.8 GHz band.
