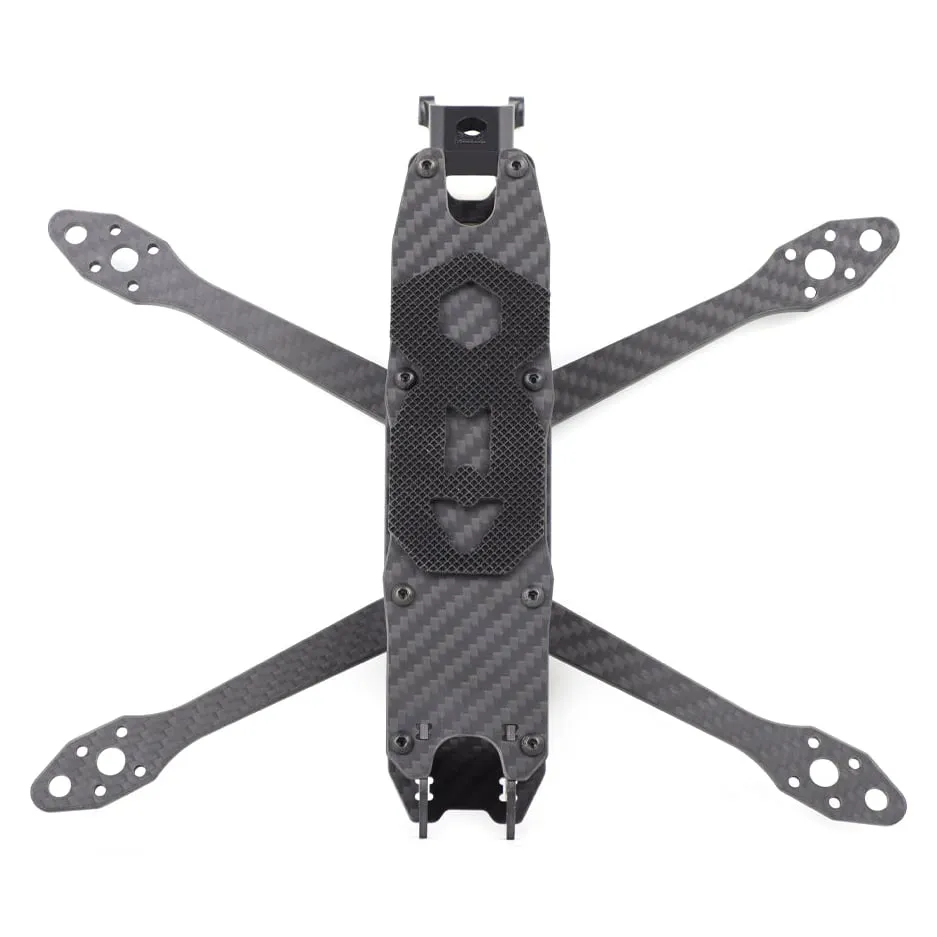

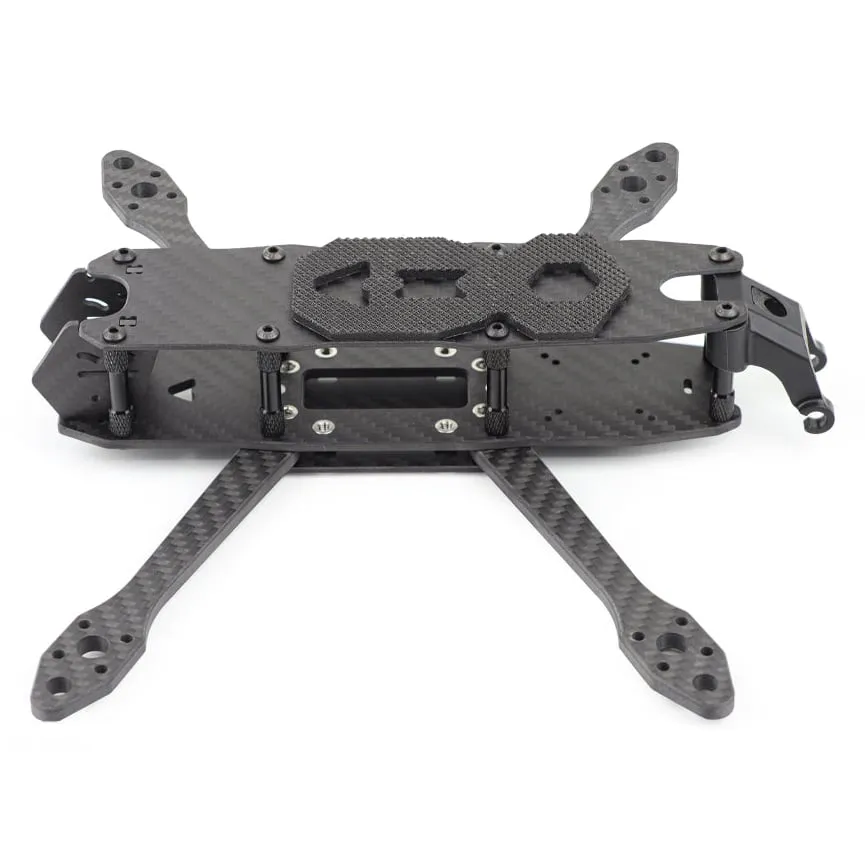

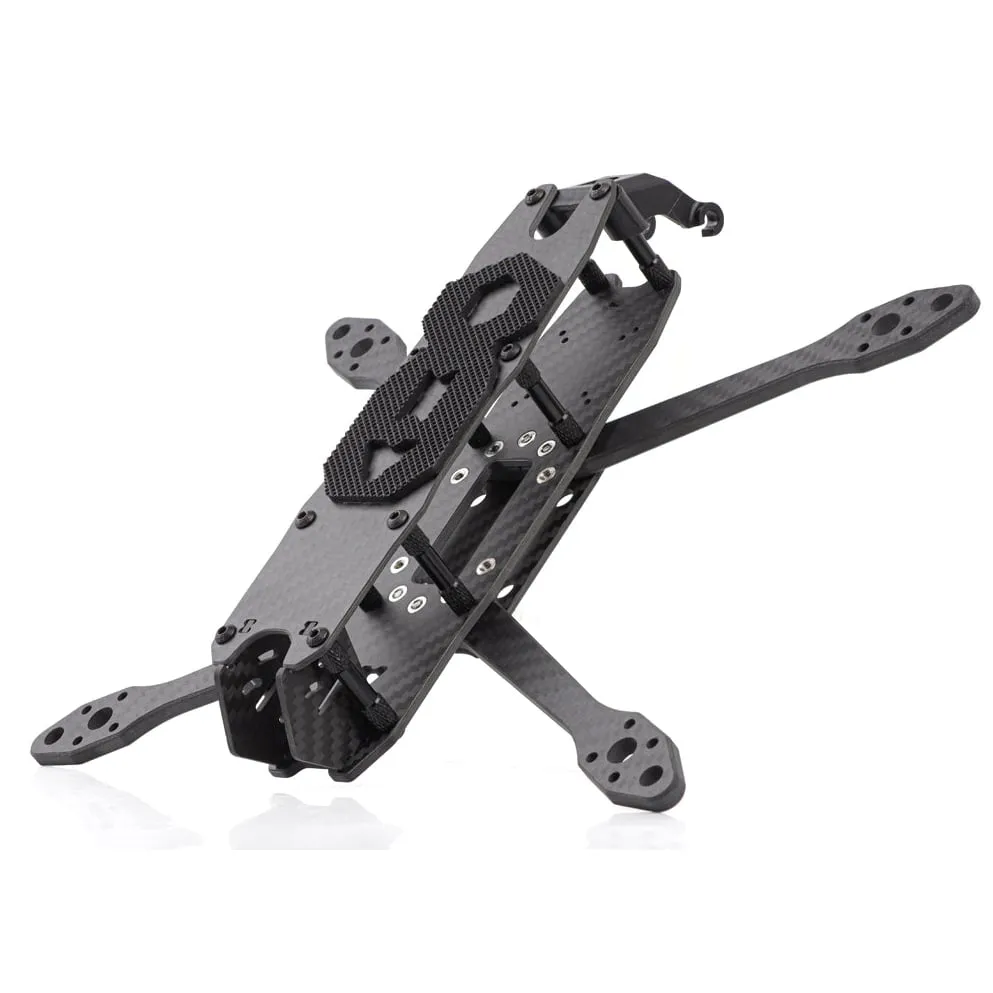

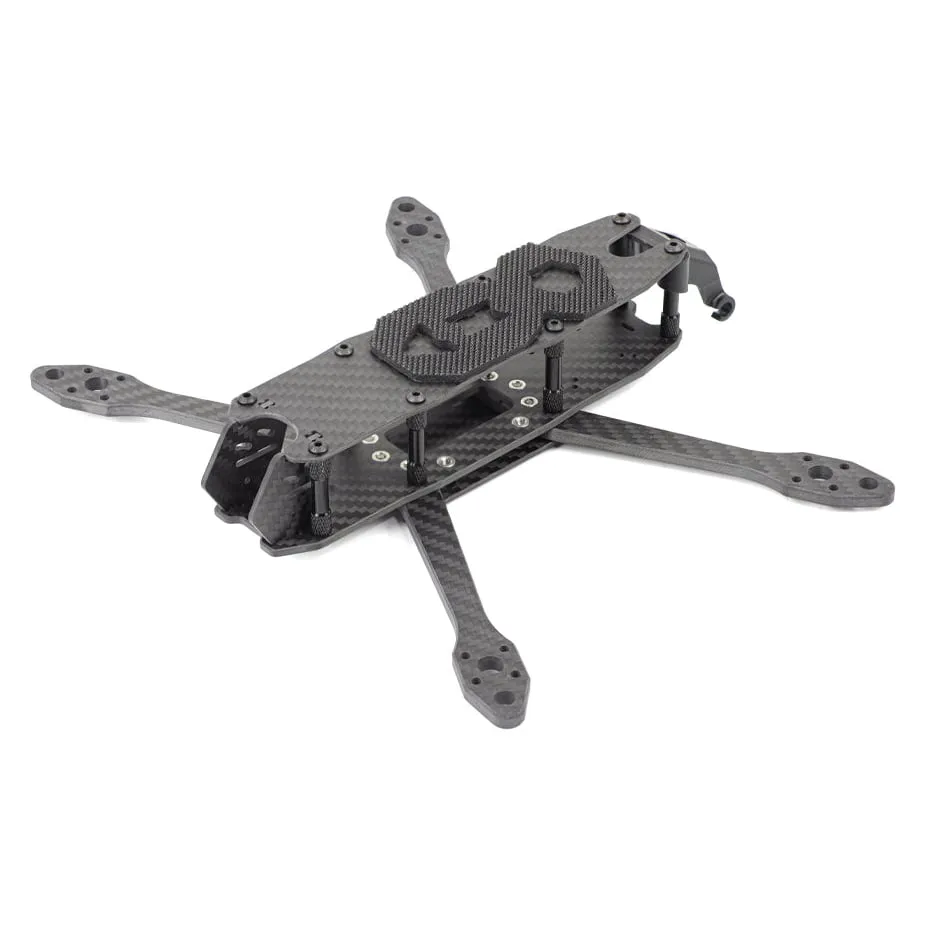

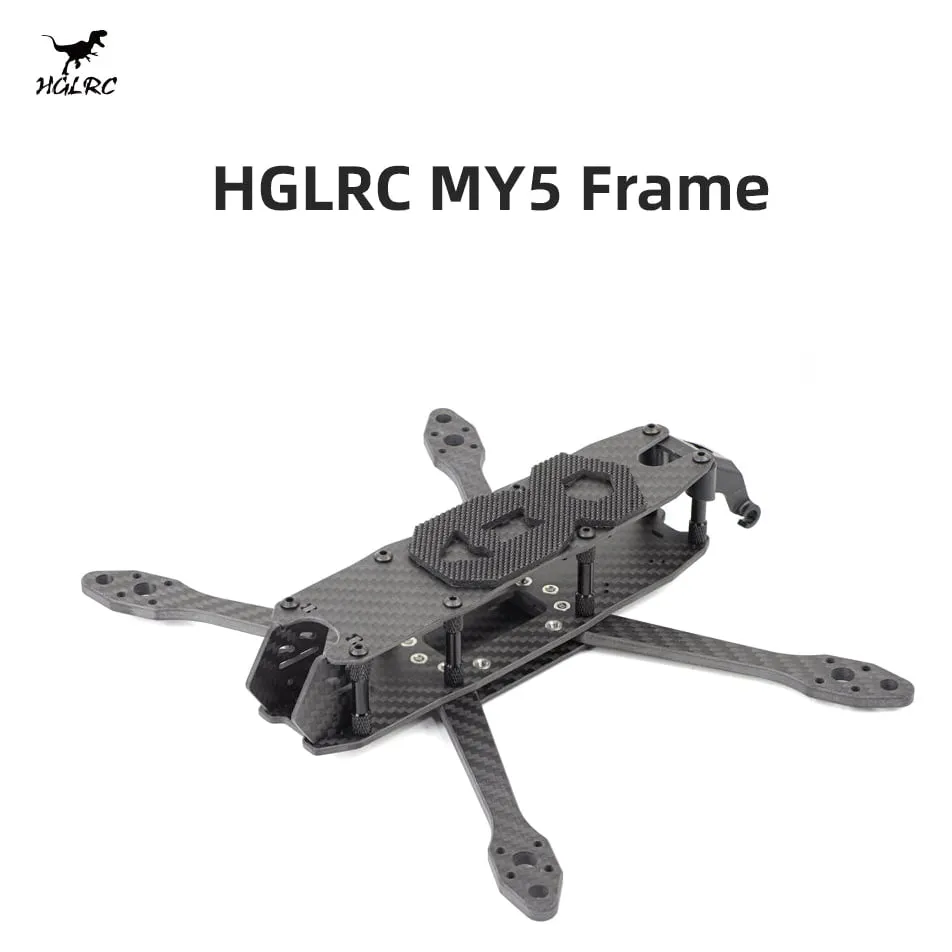

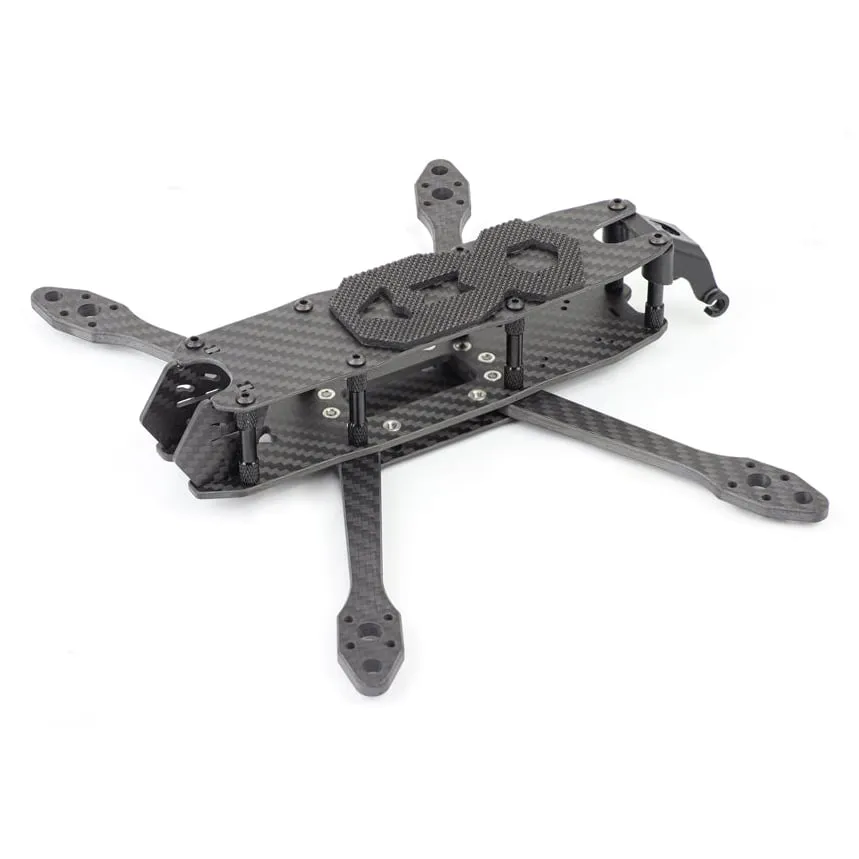

HGLRC MY5 5 Inch Freestyle FPV Frame

The HGLRC MY5 is a budget-friendly 5-inch carbon fibre frame built for freestyle flying and durable enough for training use.

Key features

• 225mm wheelbase with a standard 30.5 x 30.5mm flight-controller mounting pattern and a 16 x 16mm motor mount.

• VTX can be mounted on either a 25.5 x 25.5mm or 20 x 20mm pattern, and the camera plate takes 19-20mm cameras.

• 5mm arms with a 2mm top plate, 3mm middle plate, 2mm bottom plate and 2mm camera side plates absorb crash impacts without adding excess weight.

• Frame-only weight of 140g keeps the kit light for a 5-inch build.

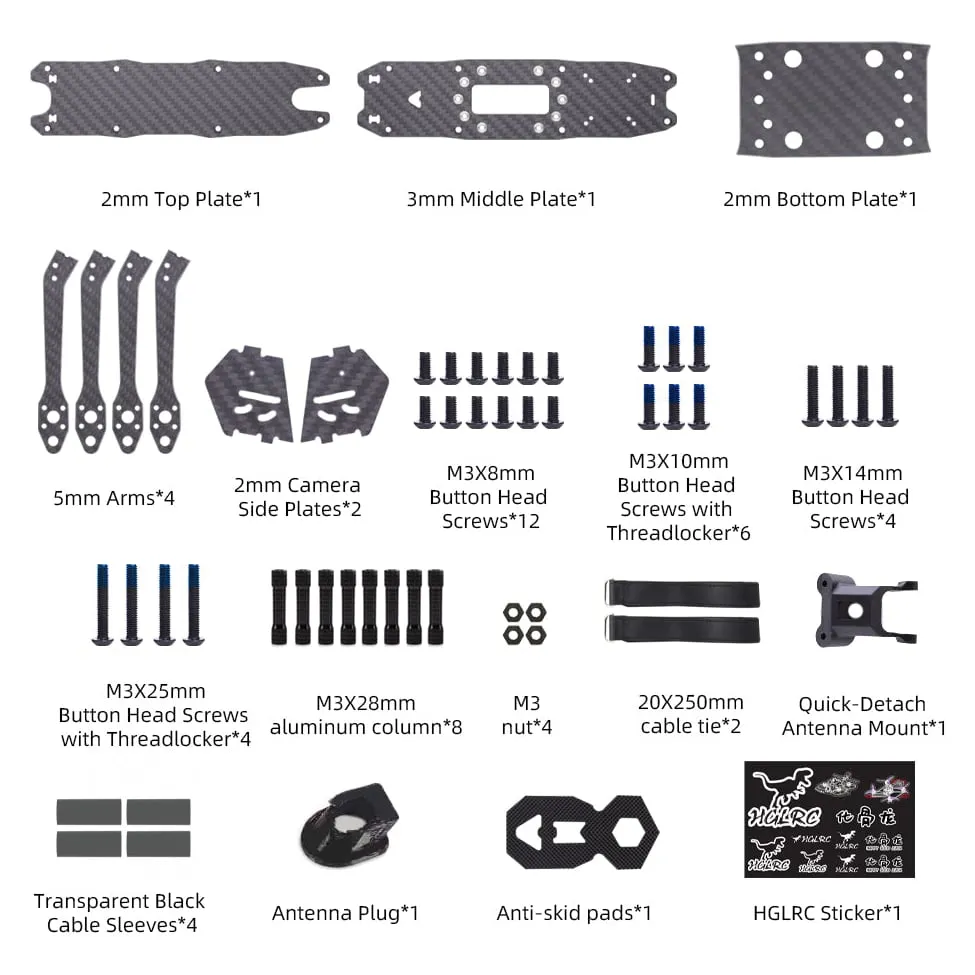

• Ships with a full hardware set: standoffs, screws, nylon lock nuts, an antenna mount and cap, motor wire guides, cable ties and a battery pad.

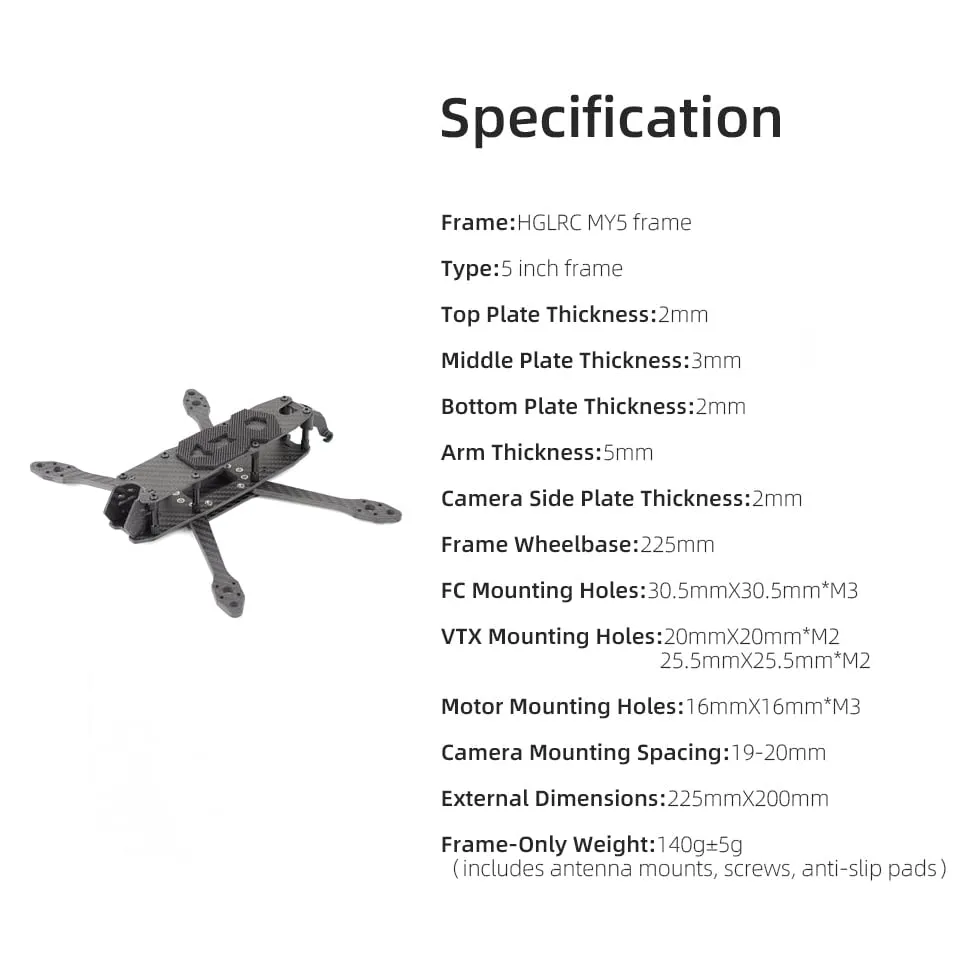

Specifications

• Wheelbase: 225mm

• Overall dimensions: 225 x 200mm

• FC mount: 30.5 x 30.5mm (M3)

• Motor mount: 16 x 16mm (M3)

• VTX mount: 25.5 x 25.5mm or 20 x 20mm (M2)

• Camera mount: 19-20mm

• Frame-only weight: 140g (plus or minus 5g)

Plan your flight-controller stack and camera around the listed mounting patterns before ordering the remaining electronics.
