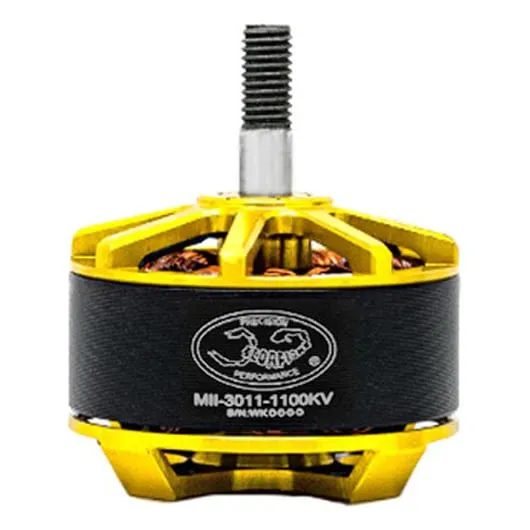

Scorpion MII-3011 8-9in Cinematography Motor

The Scorpion MII-3011 Cinematography Edition motor is intended for 8-9in cinematography builds, cinelifters and long-range drones that use larger propellers. It is offered in 1100KV and 875KV windings, both optimised for 6S power.

Key features

• 3011 stator provides the motor platform used for larger multirotor propulsion.
• 1100KV winding suits 8-9in cinematography applications.
• The 1100KV version produces up to 3200 g of thrust, suiting X4 builds around 3.5 kg or X8 builds up to 4.5-5 kg all-up weight.
• The 875KV version produces up to 2711 g of thrust and suits coaxial builds in the 4.0-4.5 kg range.
• Designed for smooth propulsion in cinelifter and long-range builds.
• Use with a compatible ESC and battery system selected for the complete aircraft.

Specifications

• Stator Size: 3011
• KV: 1100KV or 875KV
• Application: 8-9in cinematography
• Configuration: 12N14P, 8T delta wind (1100KV)
• Input voltage: 6S (1100KV rated for 4-6S)
• Max thrust: 3200 g (1100KV), 2711 g (875KV)
• Power (1100KV): 844 W continuous, 1332 W peak
• Internal resistance (1100KV): 55 mOhm
• Weight (875KV): 90 g
• Recommended propeller (1100KV): 8 x 4 tri-blade

Match the motor to the propeller diameter, cell count and ESC rating specified for your airframe.
