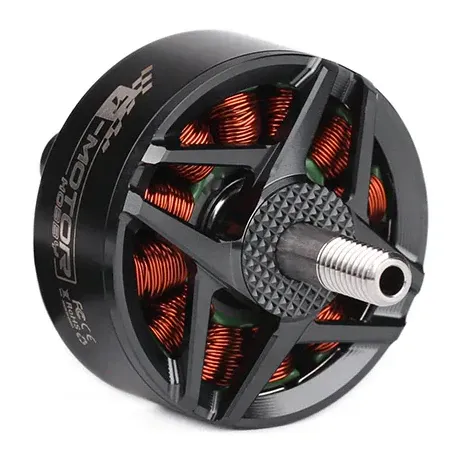

T-Motor F100 2810 Long Range Cinelifter Motor
SKU TM-F100-2810-1100KV
KV: 1100KV
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The T-Motor F100 2810 is a high-torque cinelifter motor built for heavy-lift 7-inch to 8-inch long-range platforms carrying professional camera payloads. The F100 2810 line ships in 1100KV and 1350KV windings; this listing is the 1100KV version, matched to 5S-6S power for smooth, controlled thrust rather than outright speed.
Key features
- Large 2810 stator volume delivers strong low-end torque for recovering heavy cinema cameras from dives
- Suited to 5S and 6S LiPo power on 7-inch to 8-inch macro and heavy-lift frames
- Ribbed unibell design improves airflow over the stator to shed heat on long flights
- Standard 19x19mm mounting pattern fits most modern 7-inch and X-Class frames
Specifications
- Stator Size: 2810
- KV: 1100
- Configuration: 12N14P
- Shaft Diameter: 5mm
- Mounting Pattern: 19x19mm (M3)
- Recommended Voltage: 5S–6S
- Dimensions: 33.4 x 38.05 mm
- Leads: 18AWG, 250 mm
- Weight: 57.5 g
Pair this motor with a 60A-or-higher ESC to give it enough current headroom when flying large propellers or a dedicated cinema payload.
| Stator Size | 2810 |
|---|---|
| Stator Diameter | 28mm |
| Stator Height | 10mm |
| KV | 1100 KV, 1350 KV |
| Prop Mount | M5 |
| Shaft | 5mm |
| Motor Mount | 19x19mm |
| Input Voltage | 5–6S |
| Weight | 57.5 g |
| Brand | T-Motor |
| Made in India | No |
