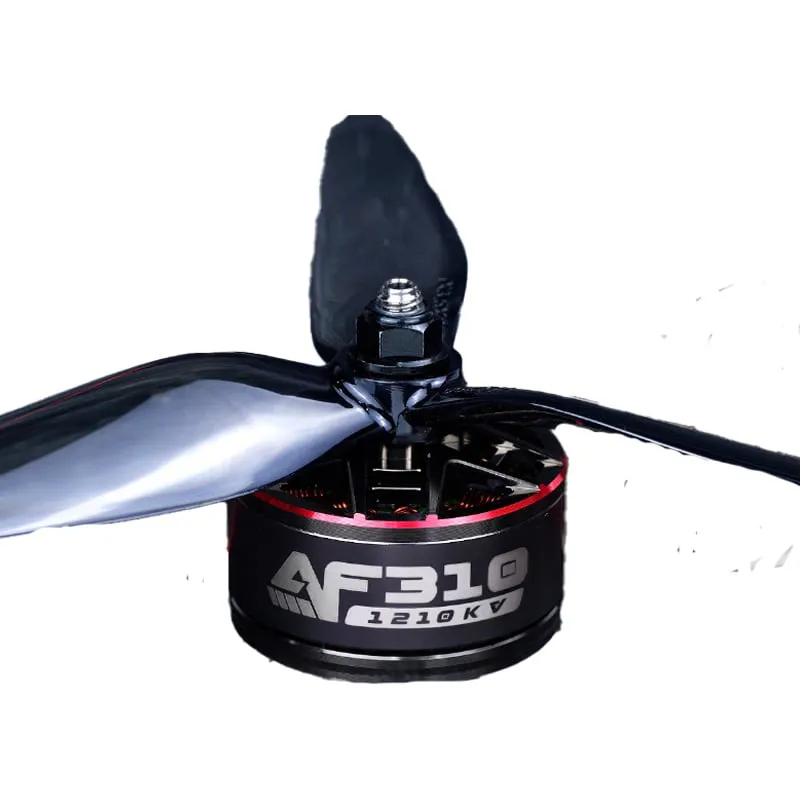

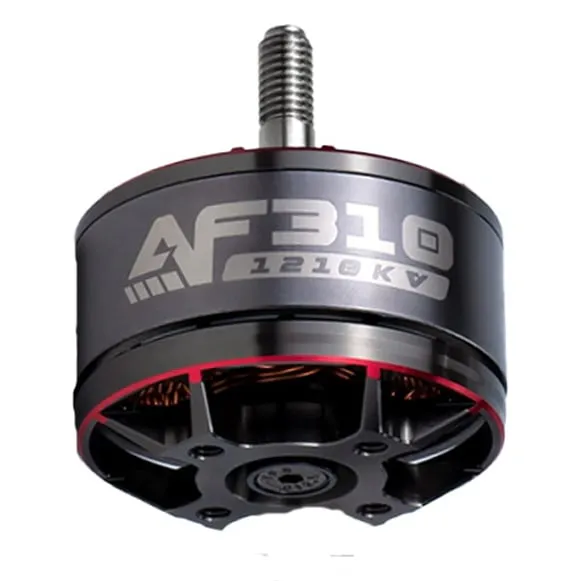

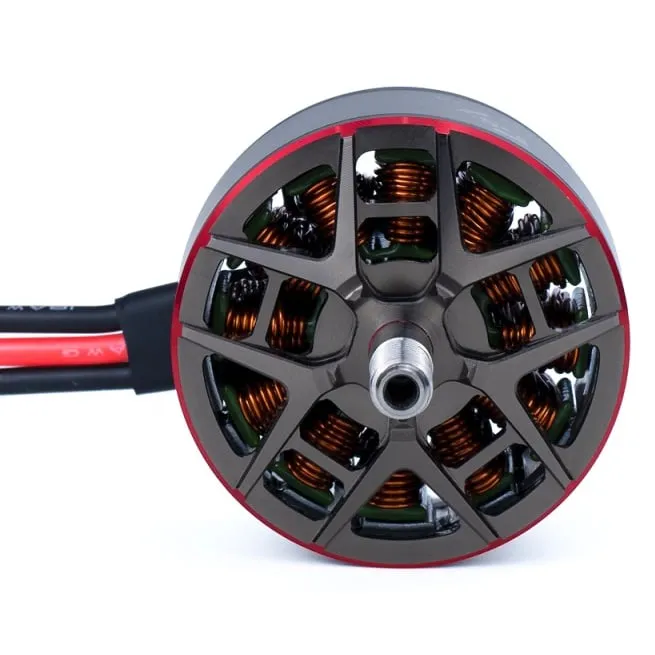

Axisflying AF310 3010 1210KV Motor
₹3,699Incl. GST
SKU AXIS-AF310-3010-1210KV
Stator Size: 3010KV: 1210 KVProp Mount: M5Shaft: 5mm
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Axisflying AF310 3010 1210KV is a premium cinelifter motor built for 7-inch heavy-lift FPV platforms carrying camera or payload loads on 6S.
Key features
- 1210KV winding is tuned for 6S power on 7-inch cinelifter propellers.
- 12N14P configuration with N52H arc magnets gives more torque and power than a standard 2810-class motor.
- Bearing Shield Technology adds an IP53 dust and water seal around the bearings to extend service life.
- M5 shaft accepts standard 7-inch prop-mount hardware.
- Rated for over 3kg of thrust at around 60A current draw, enough to lift a loaded 7-inch cinelifter airframe.
Specifications
- Stator size: 3010
- KV: 1210KV
- Input voltage: 6S LiPo
- Shaft: 5mm (M5)
- Weight: 72g, motor only
- Configuration: 12N14P
Confirm your frame's motor-mount hole spacing (4 x M3, 19mm) and ESC current rating before fitting, and use four matched motors per cinelifter build for balanced thrust.
| Stator Size | 3010 |
|---|---|
| Stator Diameter | 30mm |
| Stator Height | 10mm |
| KV | 1210 KV |
| Prop Mount | M5 |
| Shaft | 5mm |
| Input Voltage | 6S |
| Weight | 72 g |
| Brand | Axisflying |
| Made in India | No |
