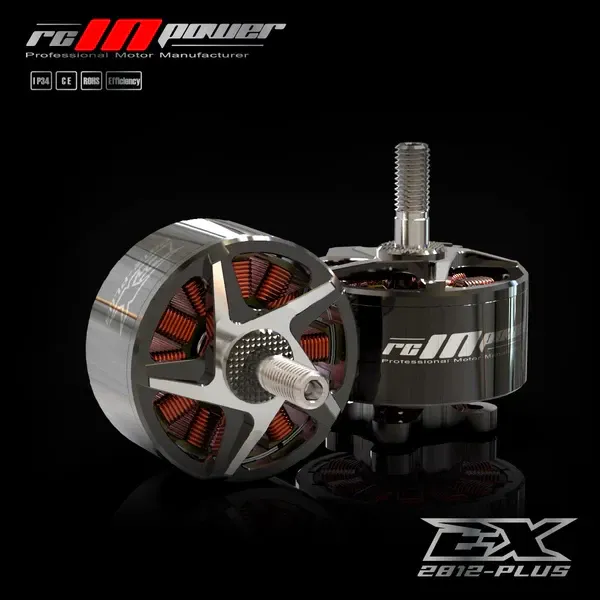

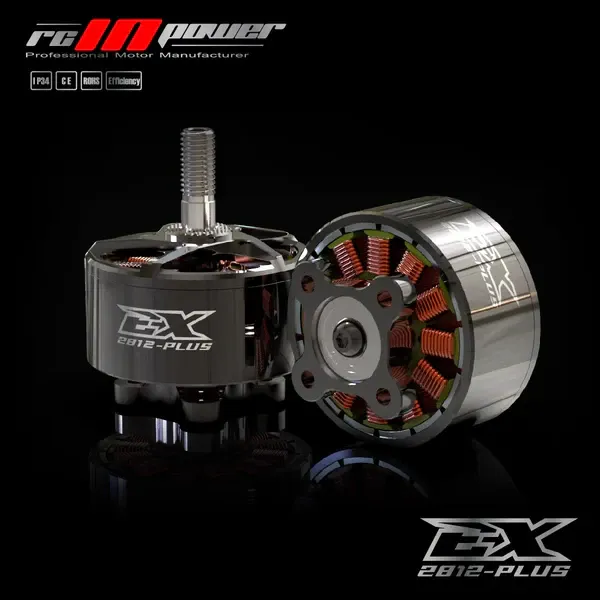

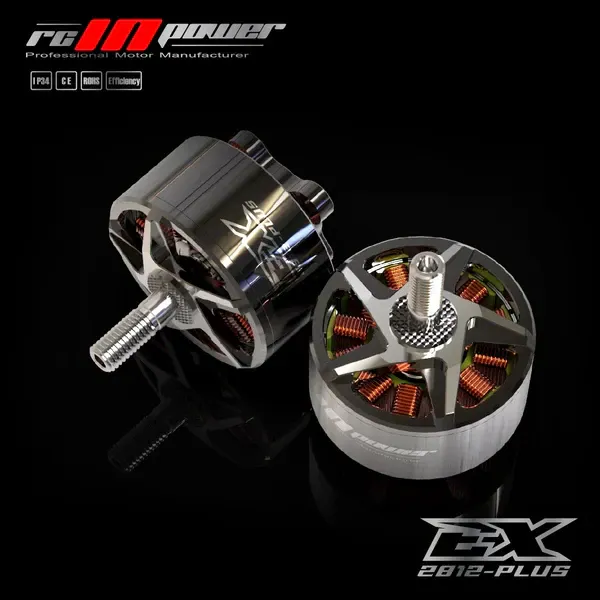

RCINPower EX2812 Plus 900KV Heavy-Lift Motor (4–6S)

The RCinpower EX2812 Plus 900KV is a high-torque brushless motor engineered for 7-inch to 9-inch long-range builds, heavy-lift cinelifters, and macro quads carrying substantial payloads. Optimised for 4S to 6S LiPo voltages, its massive 2812 stator provides the low-end authority needed to recover heavy camera rigs from dives and maintain precise throttle resolution in turbulent winds.

Key features

• Large 2812 stator delivers exceptional torque, ideal for heavy payloads and aggressive cinelifter flying.
• 900KV winding provides an efficient power band for 4-6S setups swinging 7-inch to 9-inch propellers.
• Robust threaded prop shaft with a reinforced base withstands high-stress flight operations and heavy disc loading.
• Extended 18AWG phase wires ensure easy routing through large macro frame arms without splicing.

Specifications

• KV: 900
• Configuration: 12N14P
• Stator Dimensions: 28mm diameter x 12mm height
• Input Voltage: 4-6S LiPo
• Mounting Pattern: 19x19mm (M3)
• Propeller Shaft: M5
• Wire: 18AWG, 250mm length
• Weight: 76.5g (including wires)

Utilising an industry-standard 19x19mm mounting footprint, the EX2812 Plus bolts directly onto modern large-scale frames. It serves as a highly capable powerplant for X8 coaxial builds or heavy-duty quadcopters hauling full-size cinema gear.
