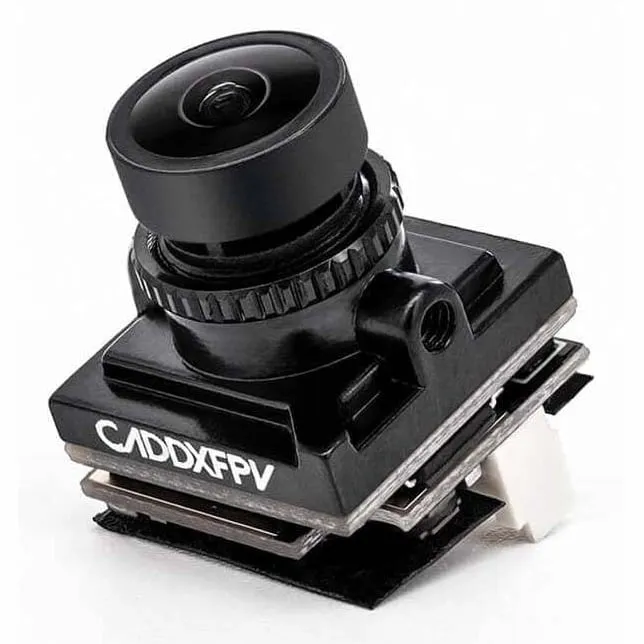

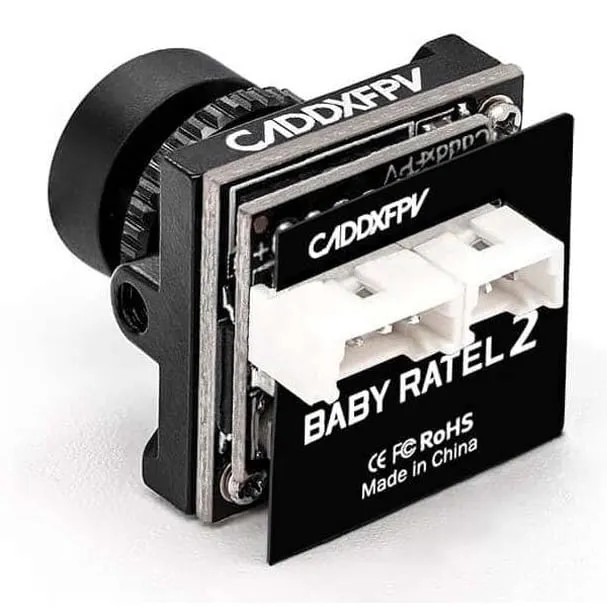

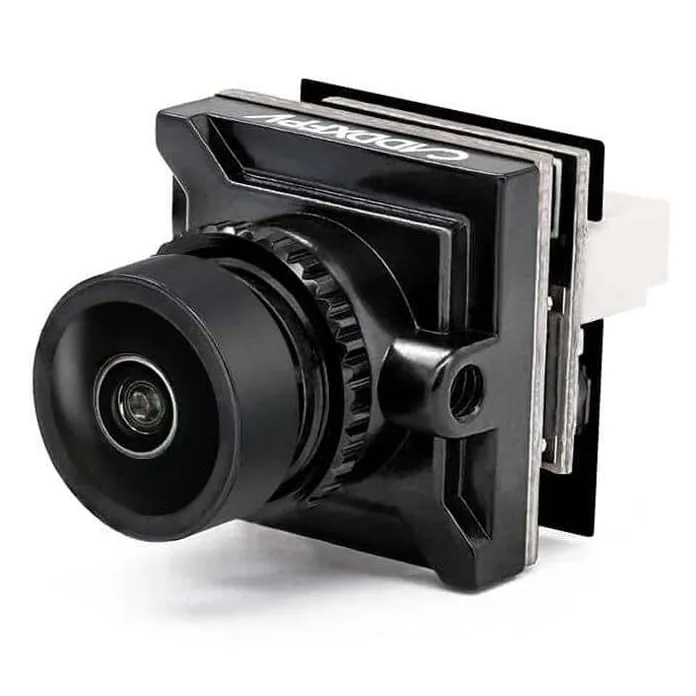

Caddx Baby Ratel 2 1200TVL 1.8mm FPV Camera

The Caddx Baby Ratel 2 is a 14mm nano-sized analogue FPV camera built around a large 1/1.8-inch starlight HDR sensor. Weighing just 3 grams, it brings the low-light performance and dynamic range of the full-sized Ratel 2 to micro drones, whoops, and lightweight toothpick builds.

Key features

• Nano form factor (14x14mm) with a tough magnesium-aluminium alloy casing for crash durability.

• 1/1.8-inch starlight sensor provides excellent visibility in low-light and twilight flight conditions.

• Super WDR technology prevents blown-out skies and crushed shadows in high-contrast environments.

• OSD menu allows quick switching between 4:3 or 16:9 aspect ratios and NTSC or PAL video standards.

• Wide 5-40V input voltage range allows direct power from your video transmitter or flight battery.

Specifications

• Image sensor: 1/1.8-inch Starlight HDR

• Horizontal resolution: 1200TVL

• Lens: 1.8mm

• Field of view (FOV): 165°

• Image format: 4:3 and 16:9 (switchable)

• TV system: NTSC and PAL (switchable)

• Minimum illumination: 0.0001 Lux

• Wide Dynamic Range (WDR): Super WDR

• Video output: CVBS

• Input voltage: 5-40V

• Dimensions: 14 x 14 x 20.5 mm

• Weight: 3g

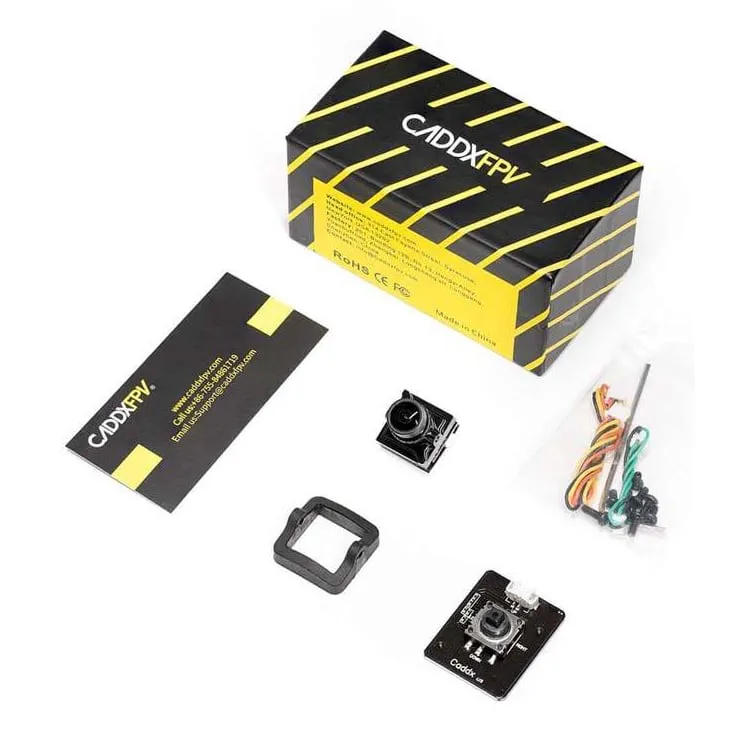

• In the box: camera, screw pack, OSD menu board, 2-pin and 3-pin silicone cables, 14mm-19mm bracket, 1.5 mm Allen key

This camera includes a 14mm to 19mm adapter bracket, allowing seamless installation into frames designed for either nano or micro-sized camera mounts.
