GEPRC Pulsar LR10 10-inch Long Range Frame Kit
₹15,399Incl. GST
SKU GEPRC-PULSAR-LR10
Prop Size: 10"Brand: GEPRCWeight: 576 gMade in India: No
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

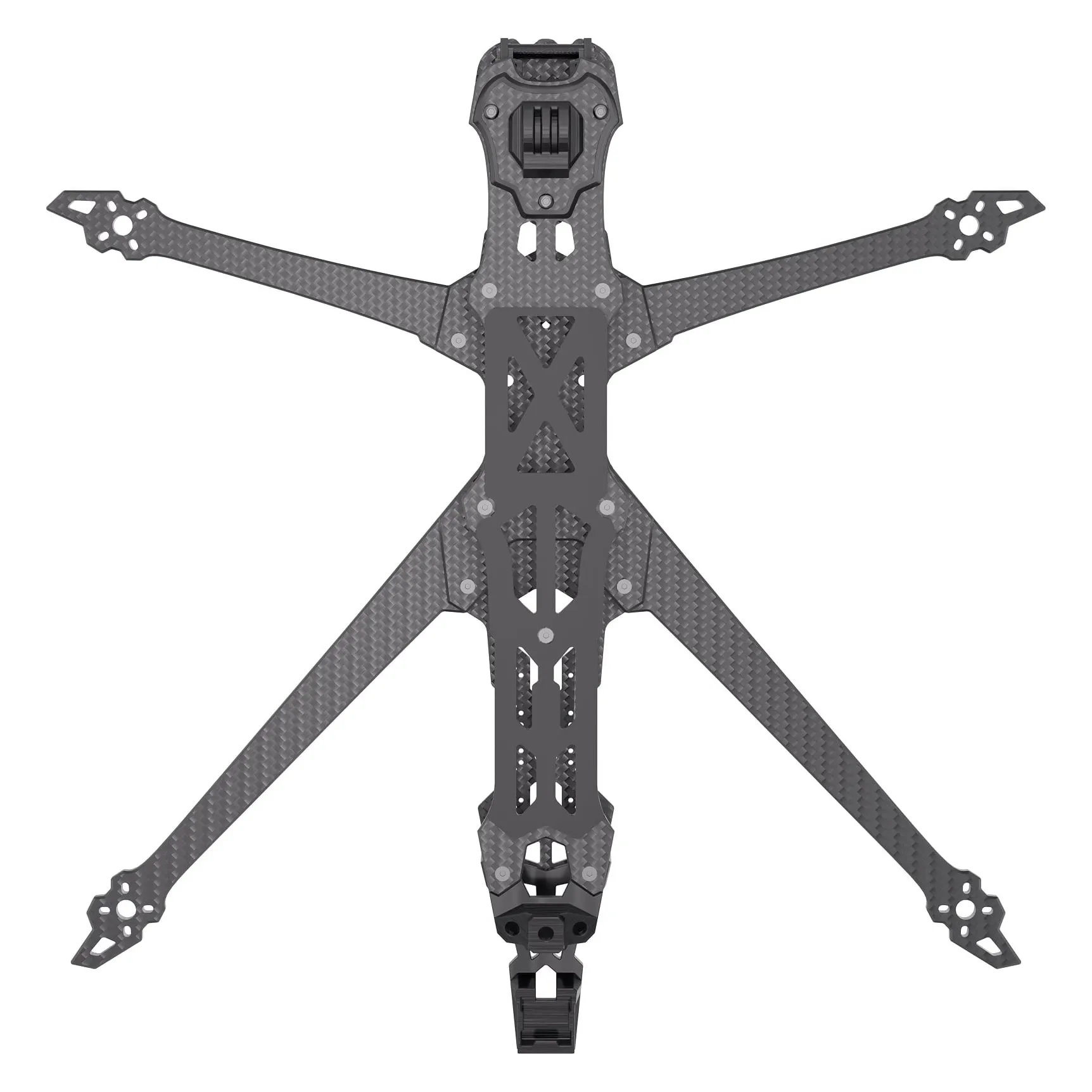

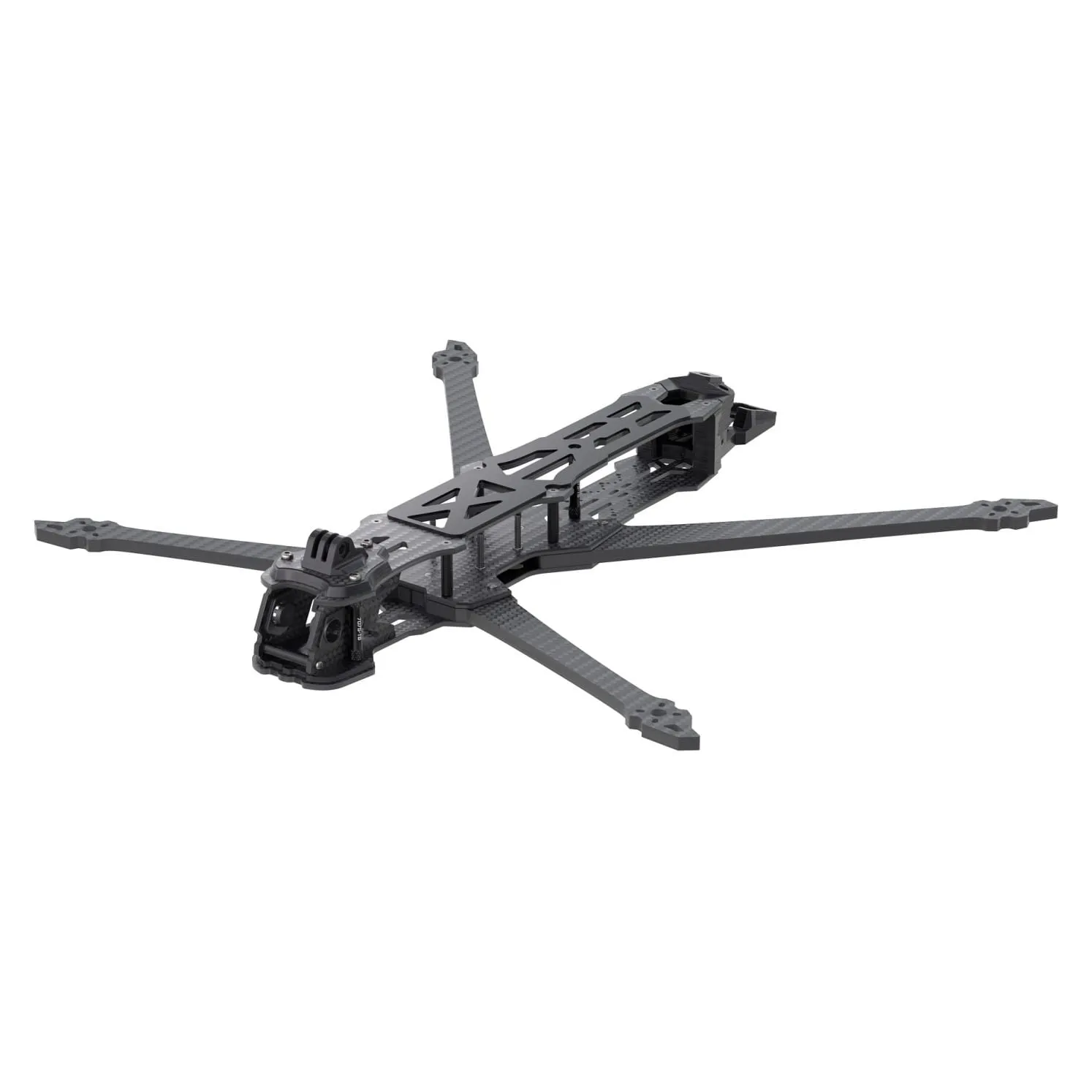

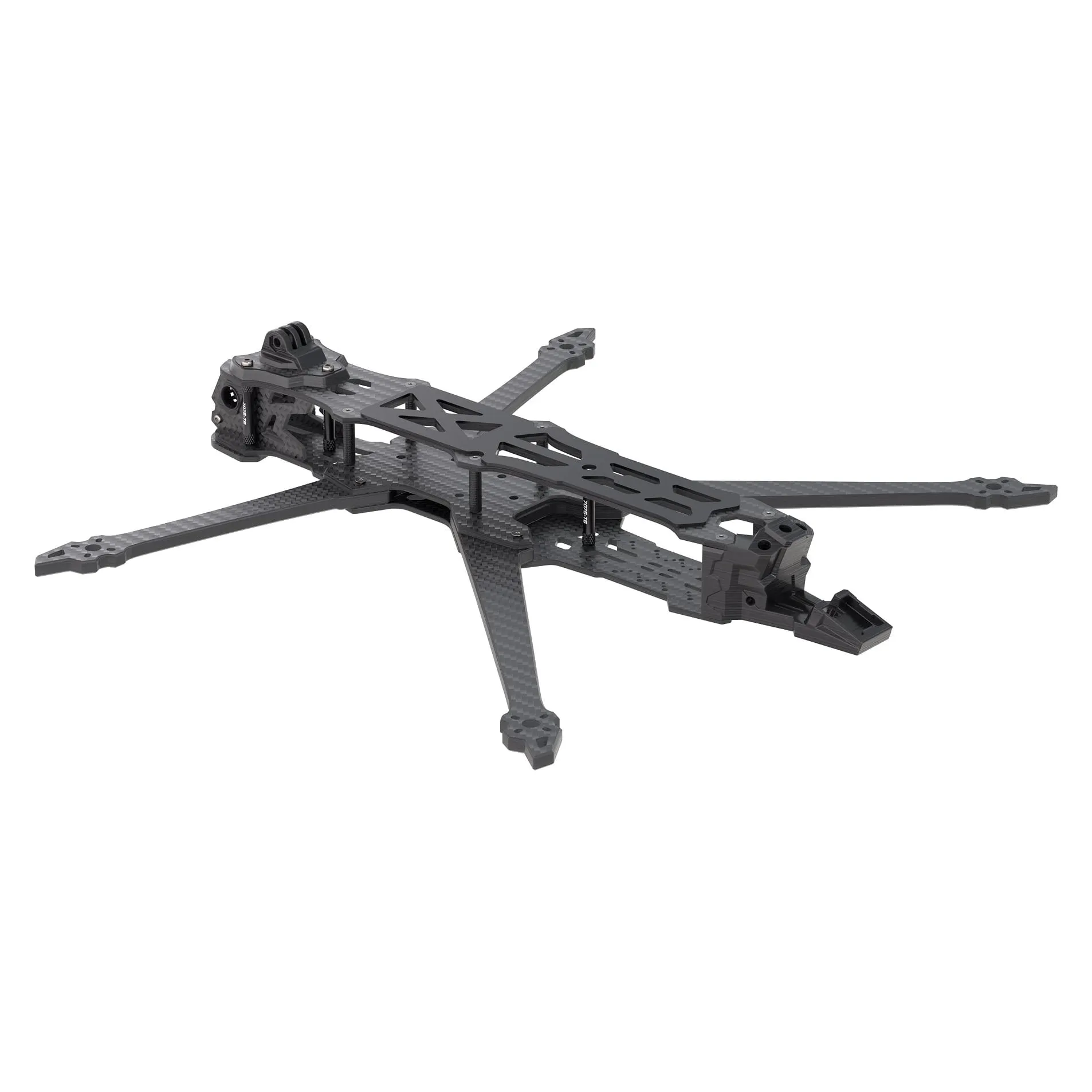

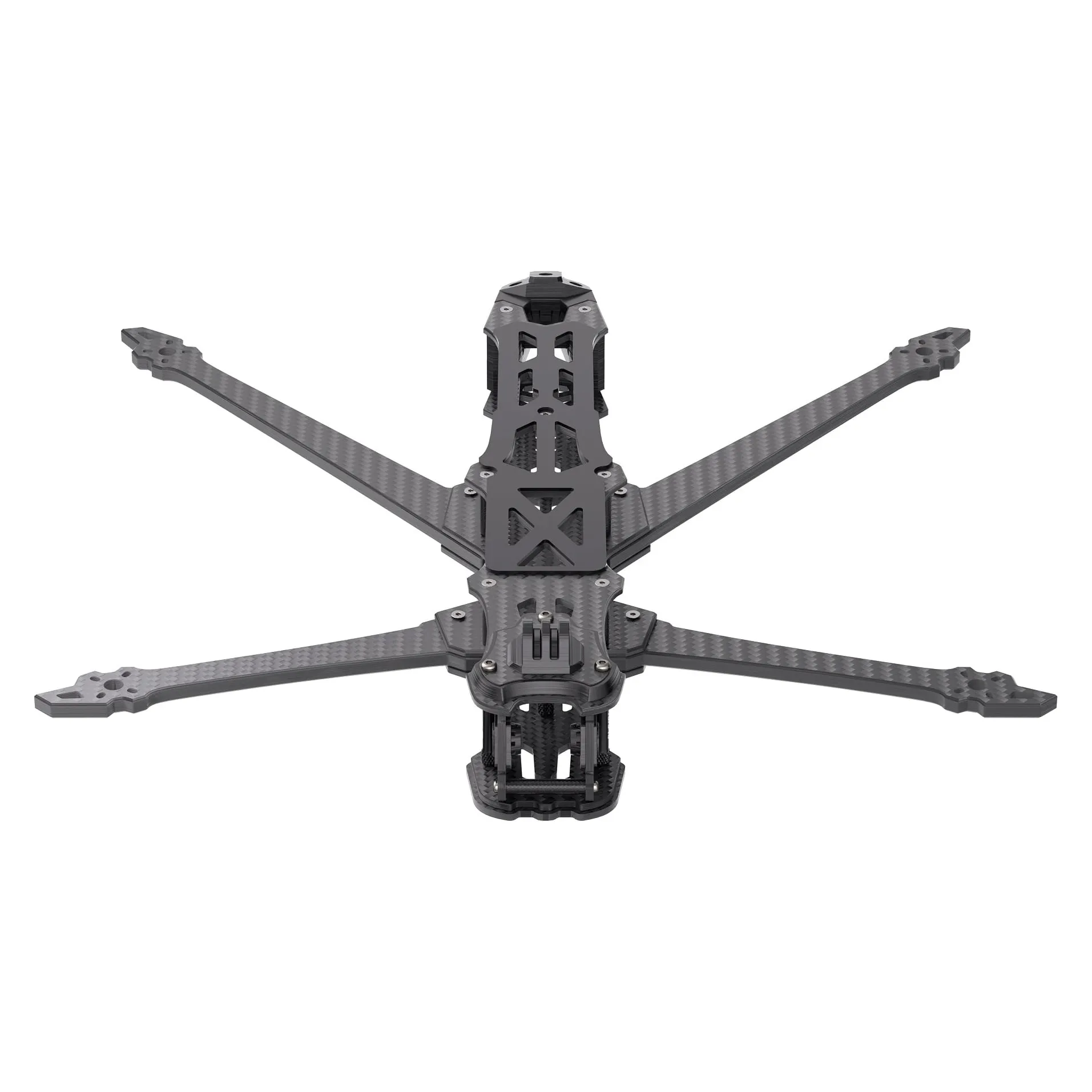

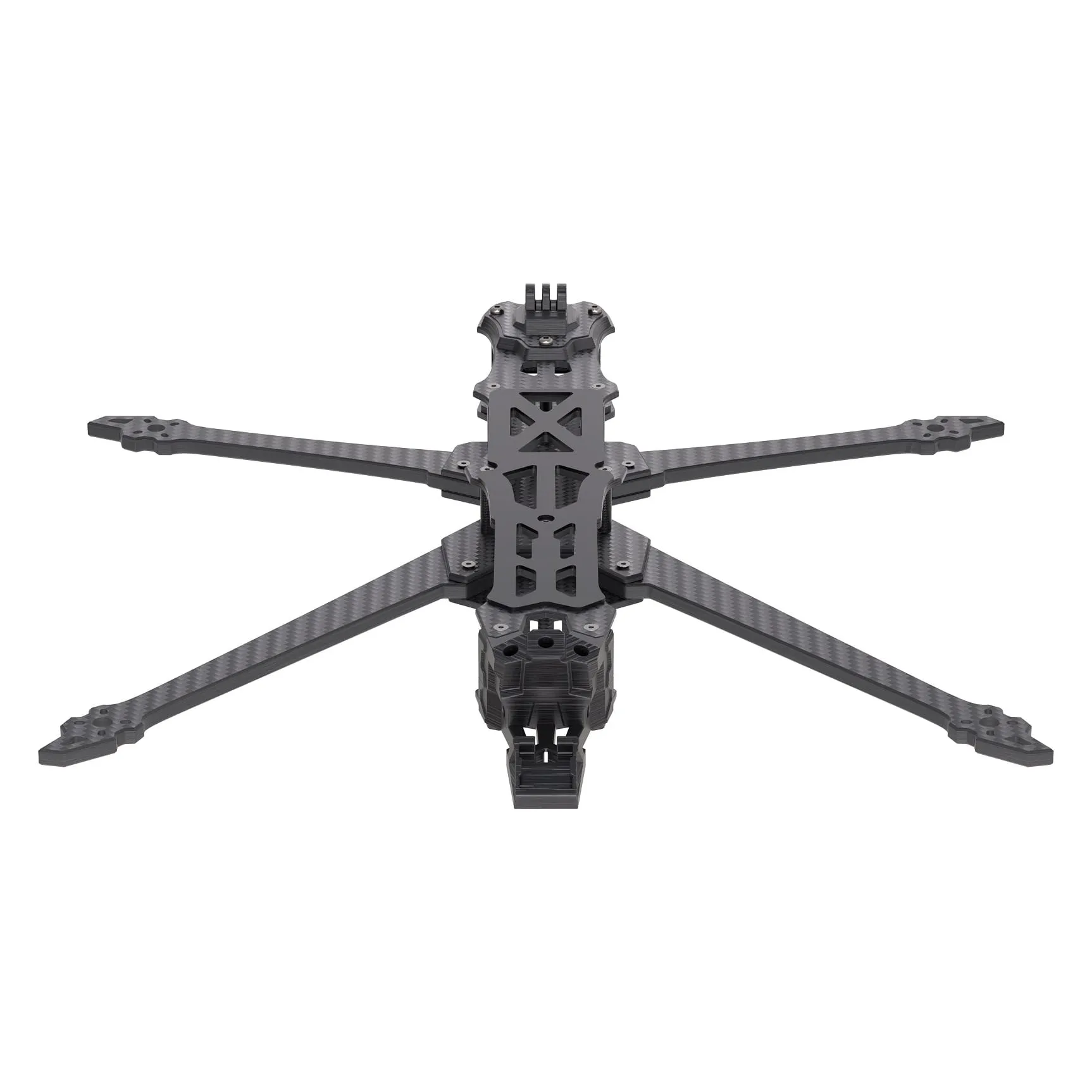

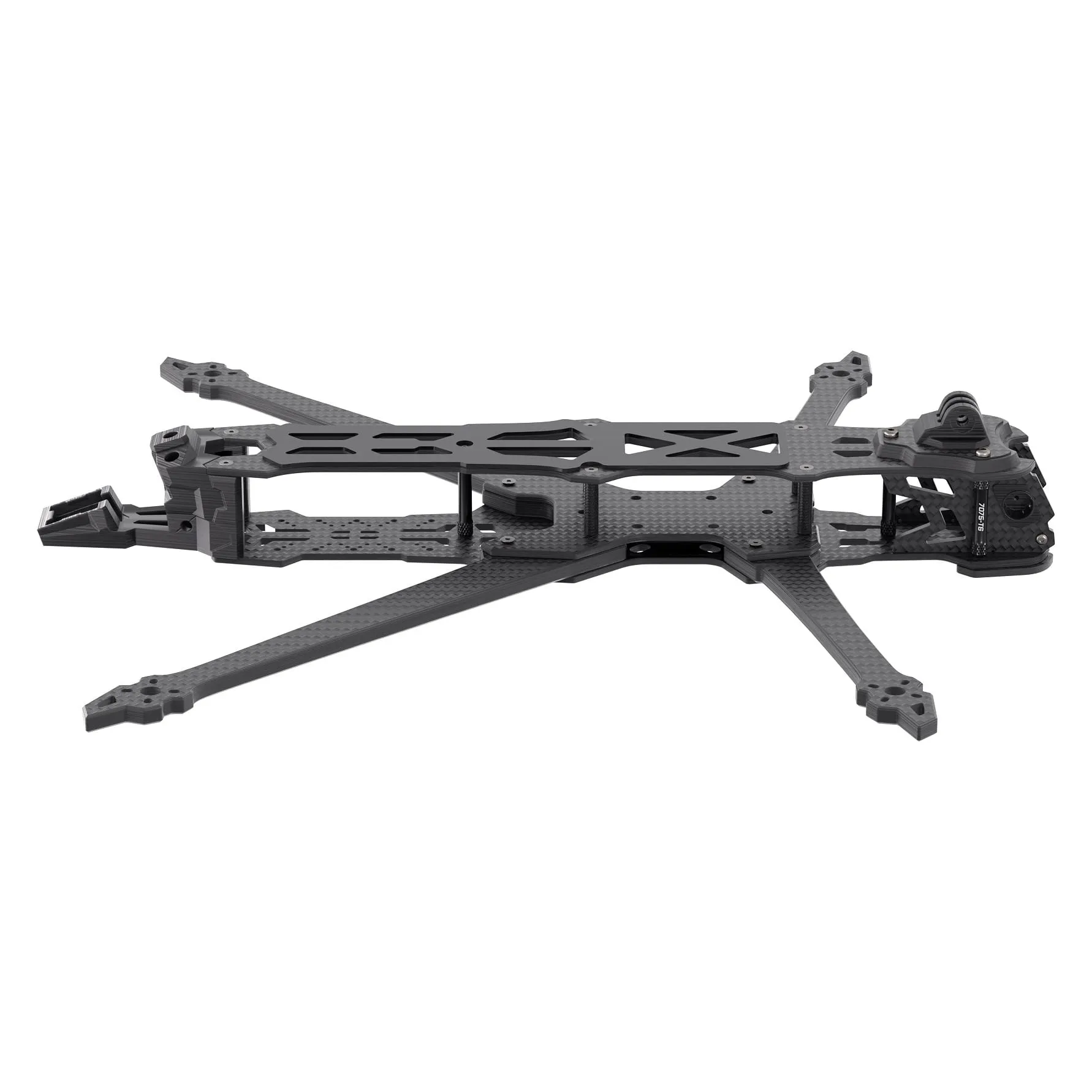

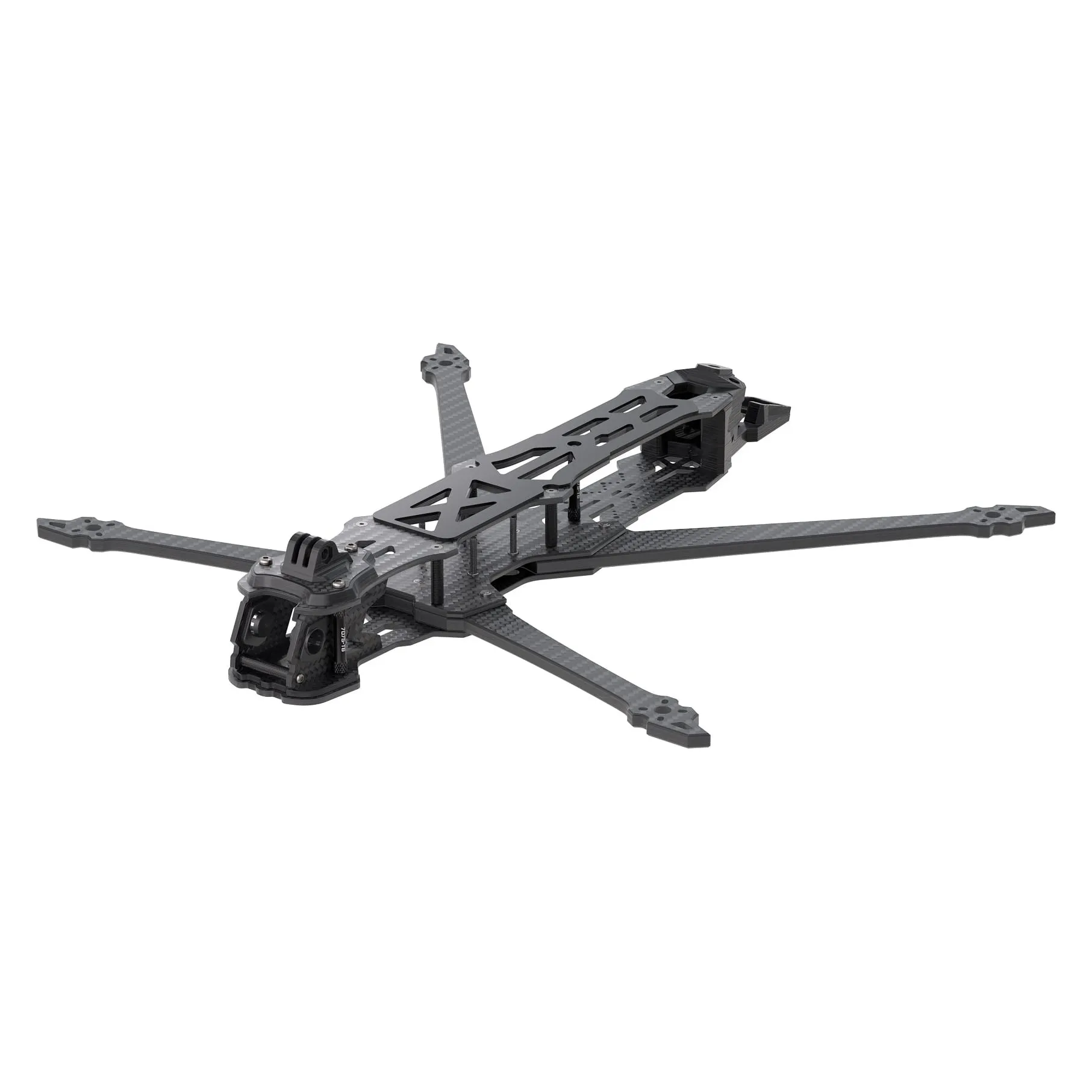

The GEPRC Pulsar LR10 is a 10-inch carbon-fibre frame kit built on a 435mm wheelbase for long-range flight, with a roomy fuselage for larger propulsion and payload gear.
Key features
- 435mm wheelbase and 3mm-thick arm splints give a stiff, wind-resistant airframe for 10-inch propellers.
- 7075-T6 aluminium standoffs and 7mm arm plates handle heavy-lift propulsion loads.
- TPU-printed camera mount helps damp jello on long, exposed lenses.
- Flight controller mounting matches the 30.5x30.5mm standard; VTX mounting supports 20x20mm, 25.5x25.5mm and 30.5x30.5mm boards.

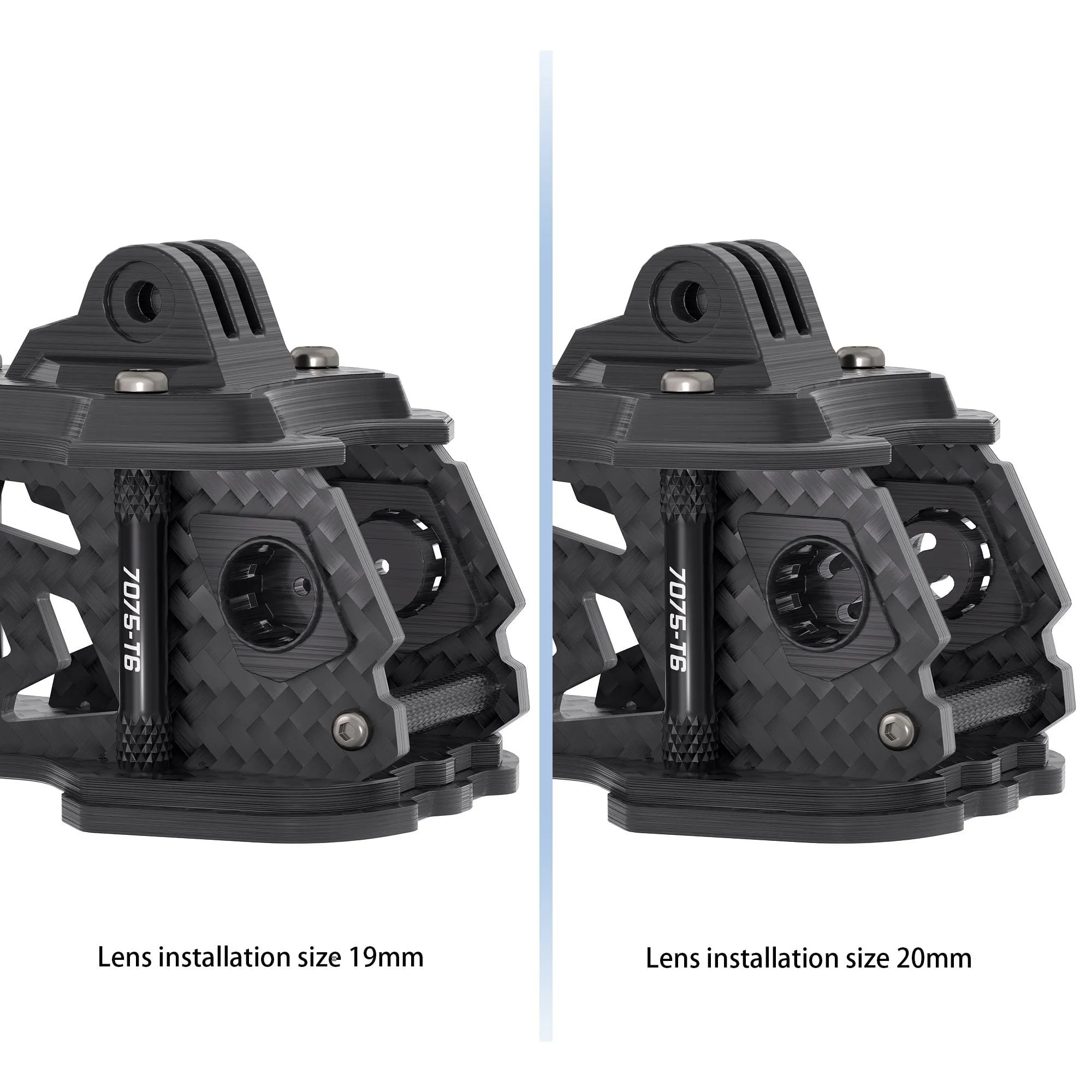

- Camera bay fits 19mm and 20mm wide FPV cameras.
Specifications
- Wheelbase: 435 mm
- Frame weight: 576 g
- Top / bottom plate: 3.0 mm
- Arm plate: 7.0 mm
- Propeller size: 10 in
- In the box: frame, 2 battery straps, 2 battery non-slip pads, screw pack, 3D-printed parts, 1.5/2/3 mm L-shaped hex drivers
Choose motors, ESCs, VTX and battery to suit long-range flight, and check their physical fit and current draw against this frame before building.
| Prop Size | 10" |
|---|---|
| Brand | GEPRC |
| Weight | 576 g |
| Made in India | No |
| Mounting Size | 30.5x30.5 |
| Camera Size | 19mm, 20mm |
| Wheelbase | 435 mm |
