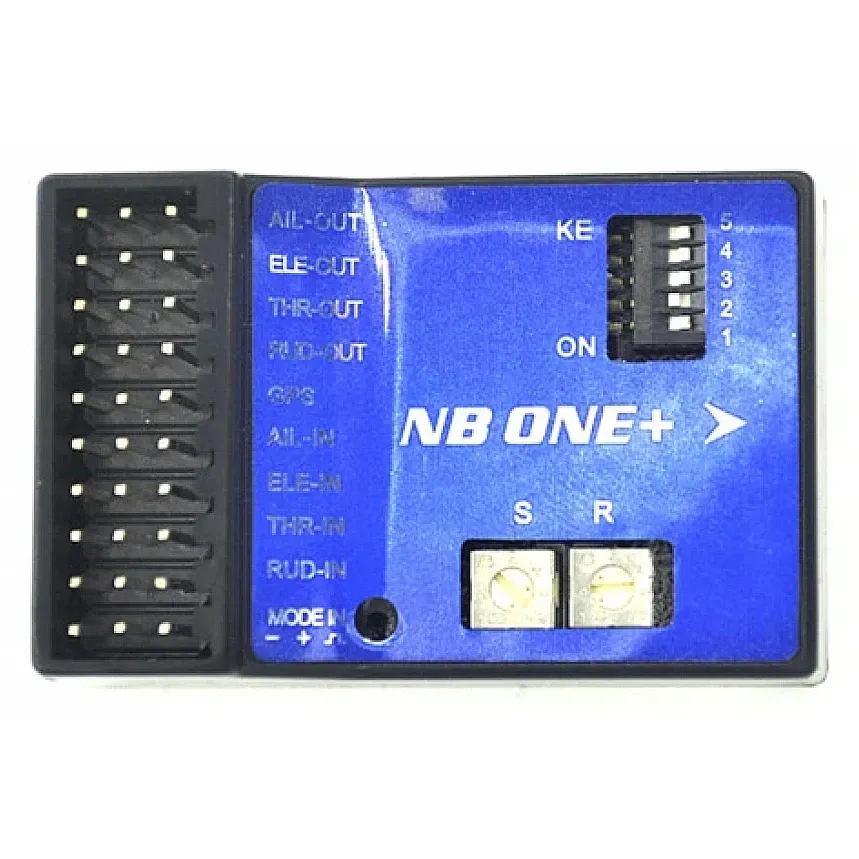

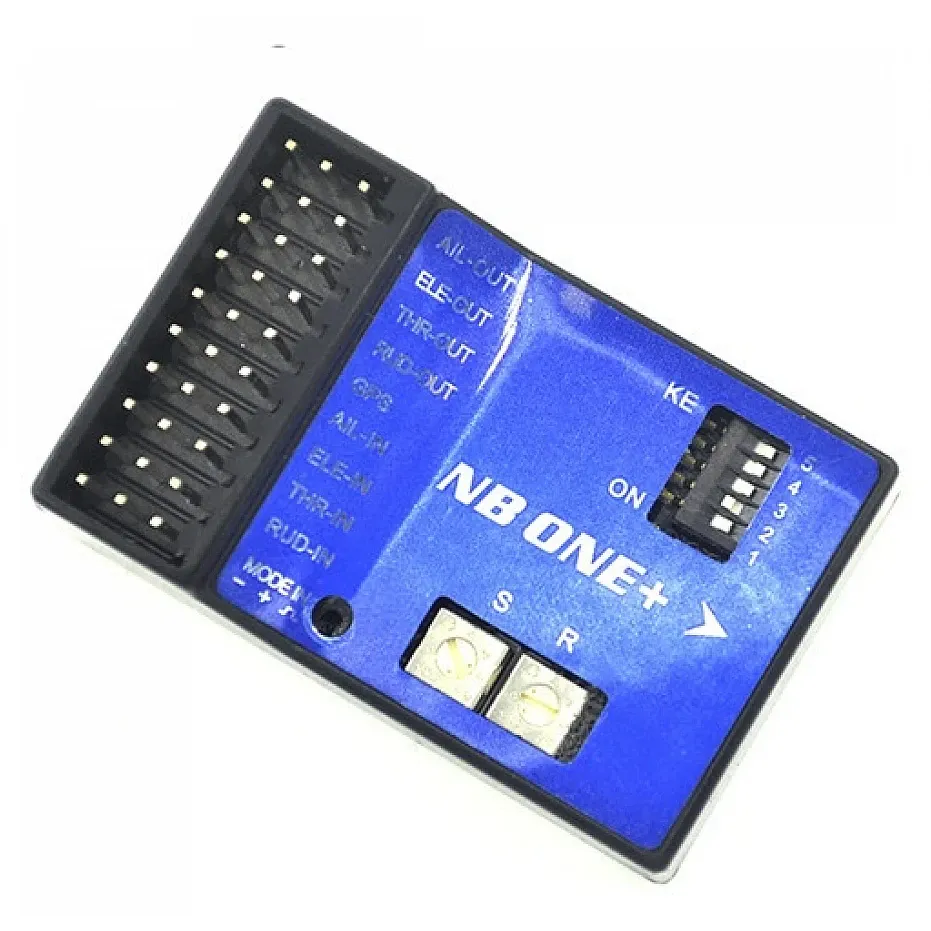

NB One+ 32-Bit Fixed-Wing Flight Controller with GPS Module

The NB One+ is the GPS-equipped version of the NB One 32-bit fixed-wing stabiliser: the same controller with a barometer for altitude hold, supplied together with a GPS module. Like the NB One, it is aimed at beginners and trainer planes that need a safety net while learning.

Key features

• Three flight modes: self-stabilising, manual and barometric altitude hold
• Supports conventional (T-tail), V-tail and delta-wing airframes
• 32-bit processor with a 6-axis gyro/accelerometer and a high-precision barometer
• GPS module included in the box
• Works with PPM, PCM and 2.4GHz receivers
• Draws only 20 mA across a 5–16 V working range

Specifications

• Processor: 32-bit
• Sensors: 6-axis IMU, barometer, external GPS module
• Working voltage: 5–16 V
• Working current: 20 mA
• Operating temperature: −15 °C to 65 °C
• Controller size: 43 × 28 mm

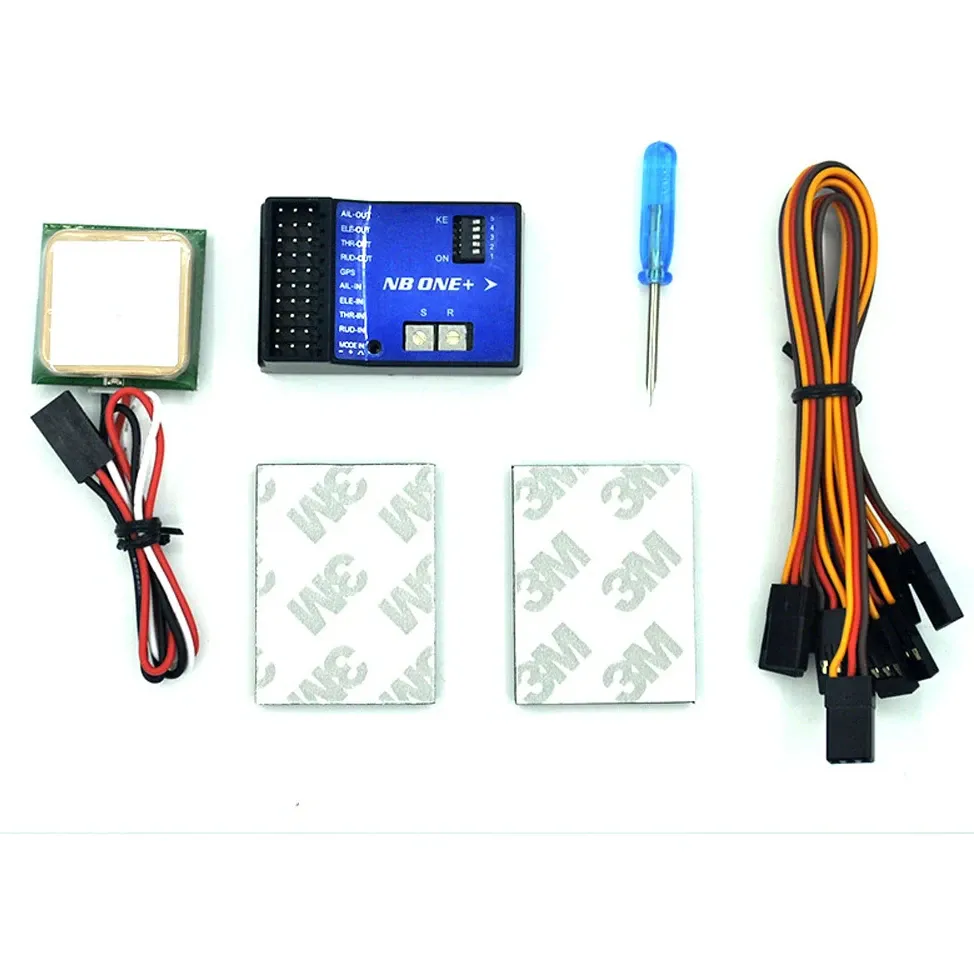

• In the box: NB One+ flight controller, GPS module

Mount the GPS on top of the fuselage with a clear view of the sky and away from the motor, ESC and battery wiring for a reliable fix. If you do not need GPS, the NB One gives the same stabilisation and altitude hold without the module.
