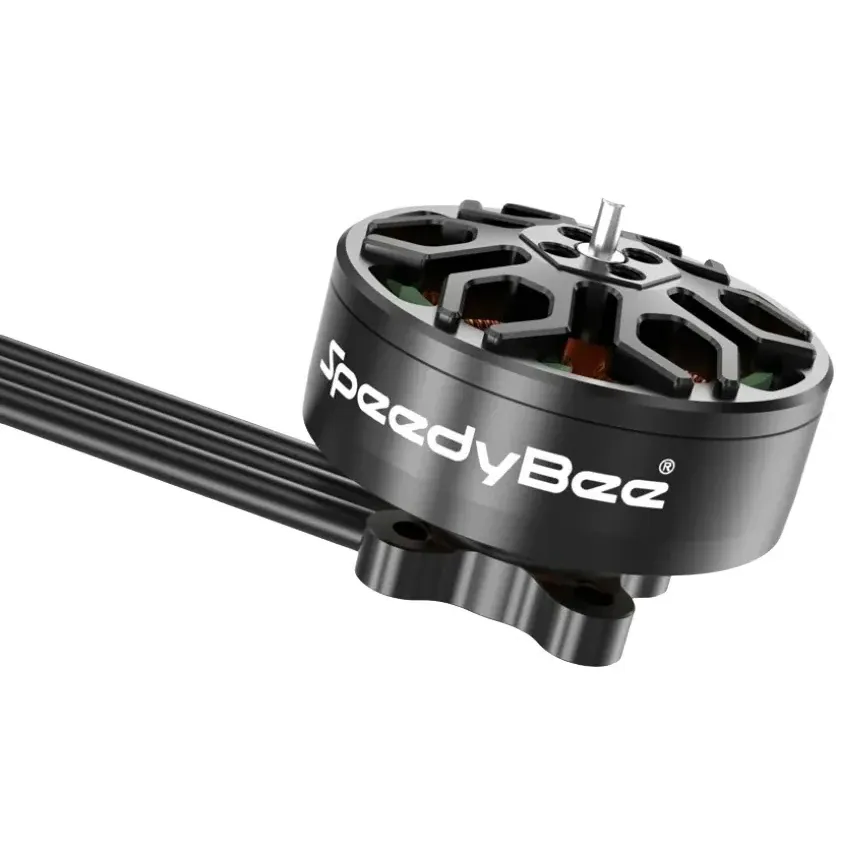

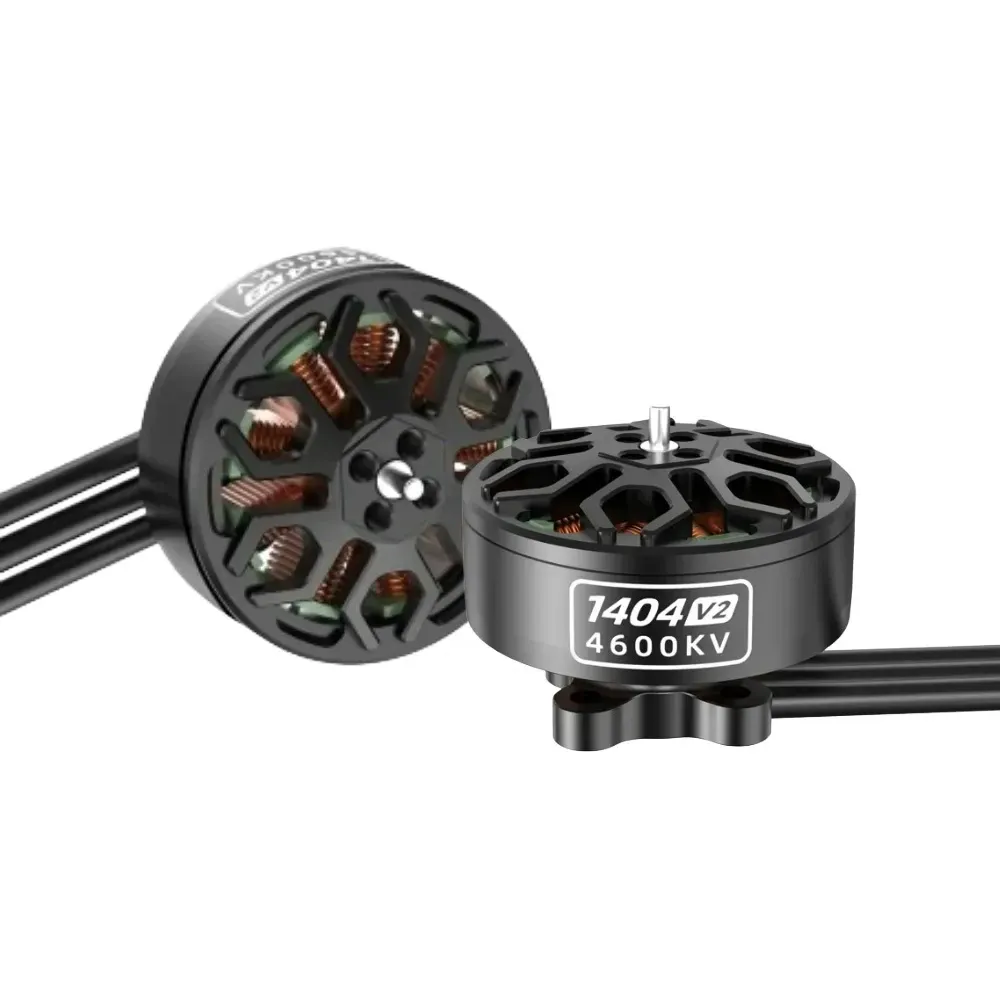

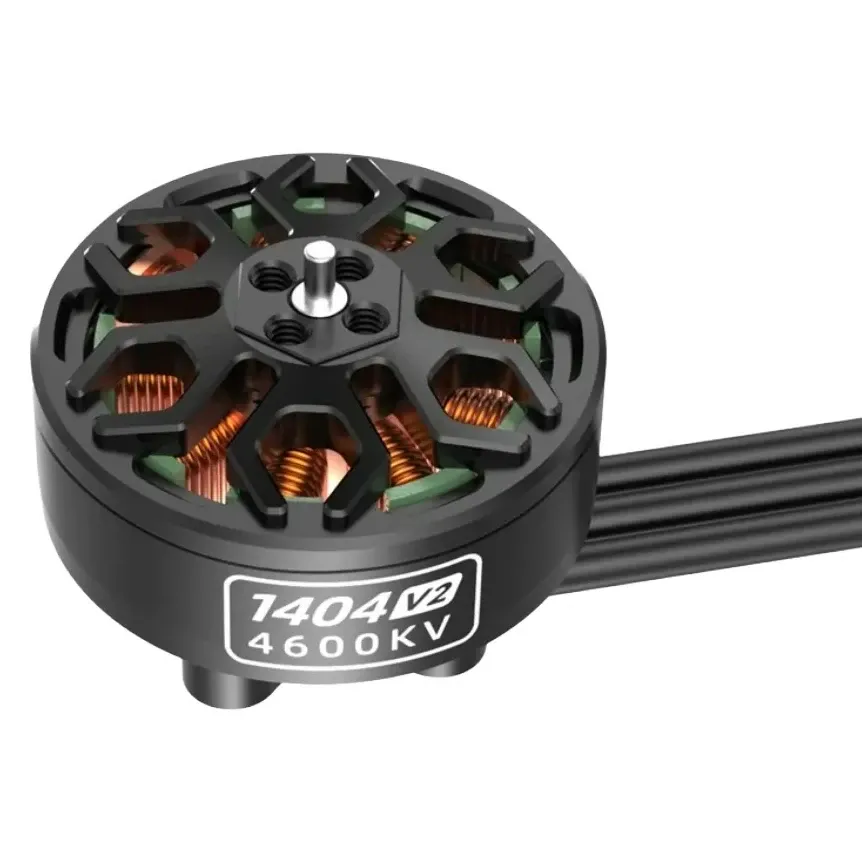

SpeedyBee 1404 4600KV Motor
₹1,949Incl. GST
SKU SPEEDYBEE-1404-4600KV-BEE25
Quantity: SingleStator Size: 1404KV: 4600 KVPack Size: 1Prop Mount: 1.5mm
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
SpeedyBee's 1404 4600KV is the motor made for the Bee25 2.5-inch cinewhoop, and it suits other 2.5-inch micro builds running 3S or 4S LiPo — compact freestyle, racing and cinematic micro flying. It is sold as a single motor: order four for a full build, or one to replace a damaged motor on a Bee25.
Key features
- 9N12P stator configuration on a 1.5 mm shaft
- 9.12 g including leads, keeping all-up weight low on micro builds
- Rated for up to 12.85A and 201.87W
- Four M2 mounting screws on a 9 × 9 mm pattern
- 24AWG silicone leads, 120 mm long
Specifications
- Stator size: 1404
- KV: 4600KV
- Configuration: 9N12P
- Shaft diameter: 1.5 mm
- Battery: 3S–4S LiPo
- No-load current: 0.45A at 10V
- Maximum current: 12.85A
- Maximum power: 201.87W
- Phase resistance: 152.34 mΩ (with leads)
- Leads: 24AWG, 120 mm
- Mounting: 4 × M2, 9 × 9 mm
- Weight: 9.12 g (with leads)
Use 2.5-inch props made for a 1.5 mm shaft, and an ESC rated for at least 13A per motor.
| Stator Size | 1404 |
|---|---|
| Stator Diameter | 14mm |
| Stator Height | 4mm |
| KV | 4600 KV |
| Pack Size | 1 |
| Prop Mount | 1.5mm |
| Shaft | 1.5mm |
| Motor Mount | 9x9mm |
| Input Voltage | 3–4S |
| Weight | 9.12 g |
| Brand | SpeedyBee |
| Made in India | No |
