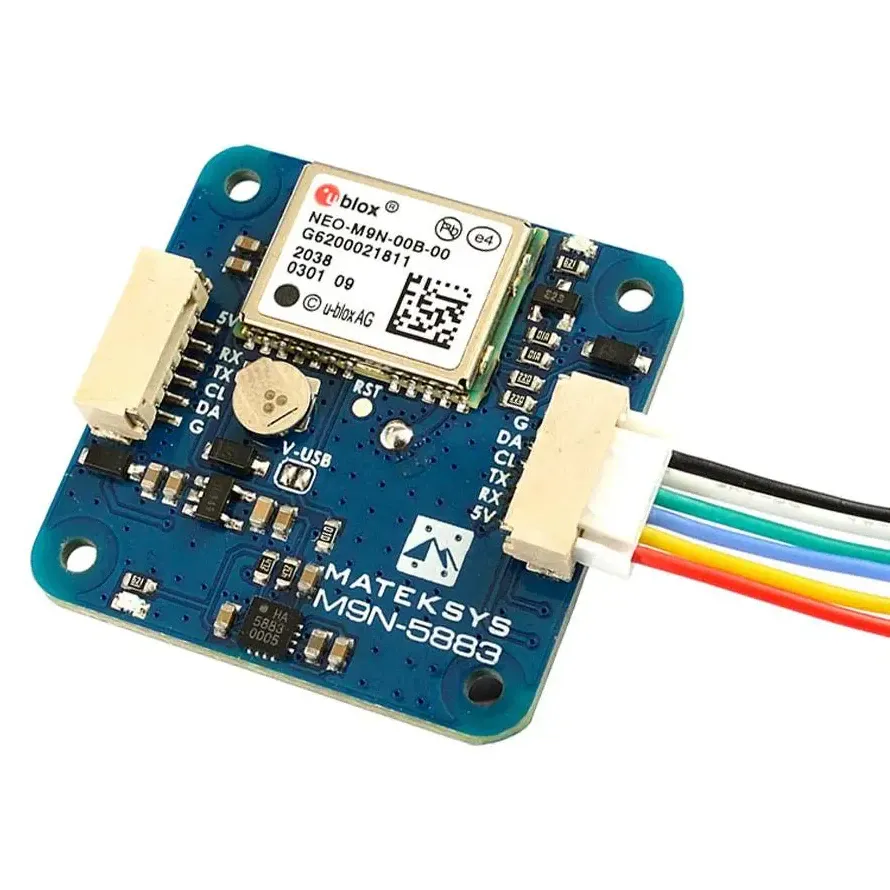

MATEKSYS M9N-5883 GNSS and Compass

The Mateksys M9N-5883 is a robust GPS and compass module built around the advanced u-blox NEO-M9N receiver. Tailored for long-range FPV drones, cinelifters, and autonomous fixed-wing builds running INAV or ArduPilot, it locks onto multiple satellite constellations simultaneously. This concurrent reception provides exceptionally rapid satellite acquisition and pinpoint positional accuracy for return-to-home and waypoint navigation.

Key features

• u-blox NEO-M9N engine supports concurrent reception of up to four GNSS constellations.
• Integrated QMC5883L magnetic compass delivers stable heading data for autonomous flight.

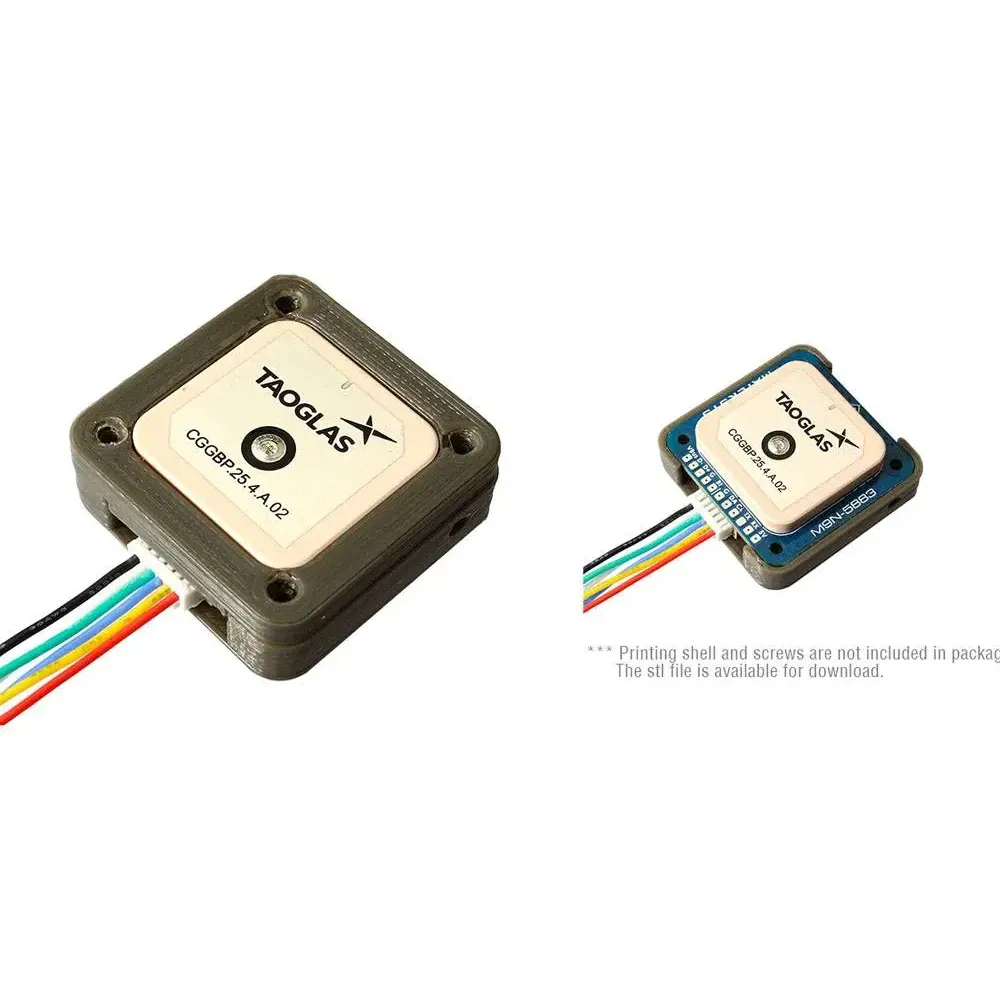

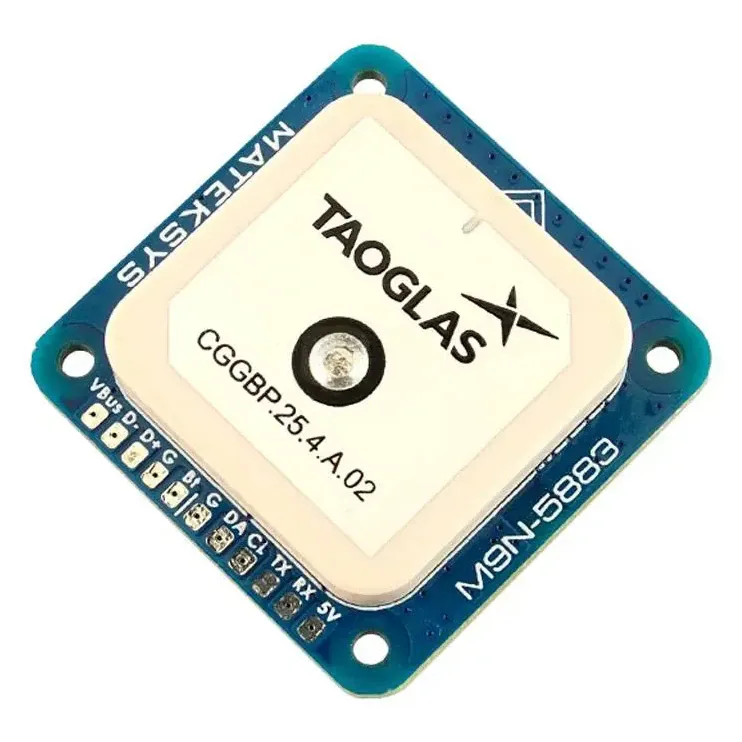

• High-gain 25x25mm patch antenna improves signal reception in challenging RF environments.
• Built-in supercapacitor provides backup power for rapid hot starts.
• Standard 6-pin JST-GH connector enables quick interfacing with modern flight controllers.

Specifications

• GNSS Receiver: u-blox NEO-M9N
• Compass: QMC5883L (I2C)
• Supported Constellations: GPS, GLONASS, Galileo, BeiDou
• Input Voltage: 4.0V - 5.5V
• UART Baud Rate: 115200 (default)

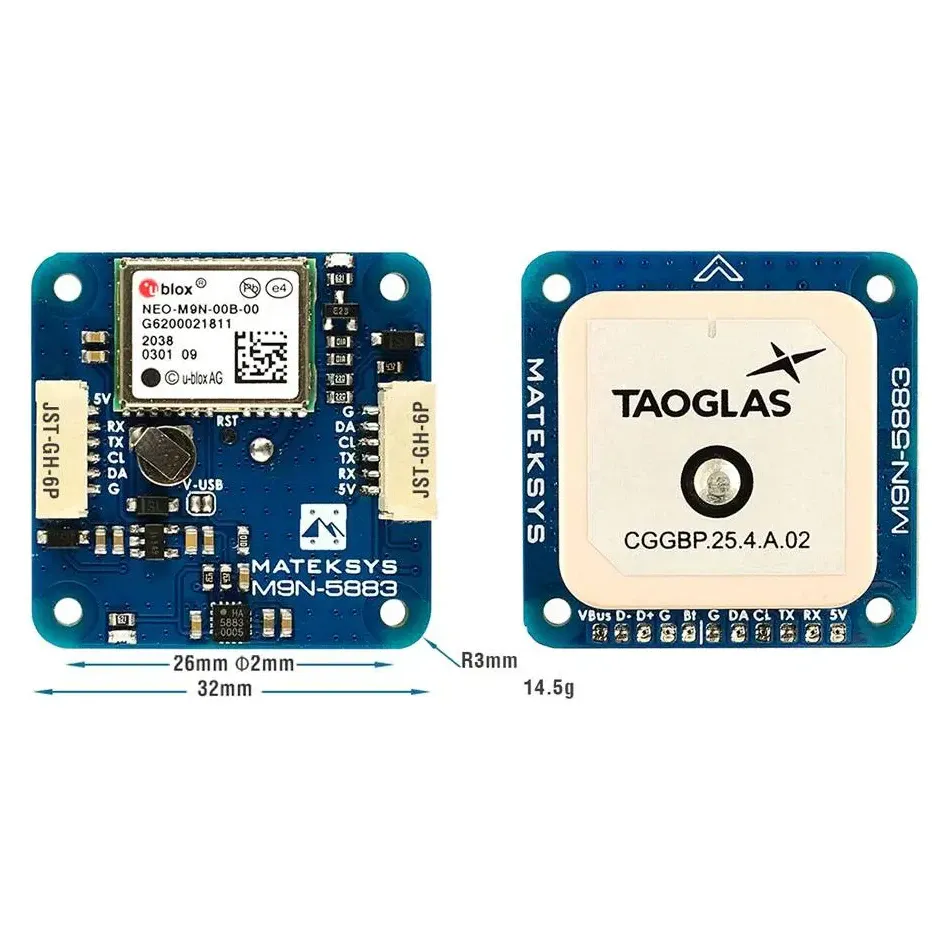

• Dimensions: 32 x 32 x 10 mm
• Weight: 14.5 g

To ensure accurate heading data, mount the module on a mast or a high point on your frame, keeping the internal compass as far away from high-current battery wires, motors, and VTX antennas as possible to minimise electromagnetic interference.
