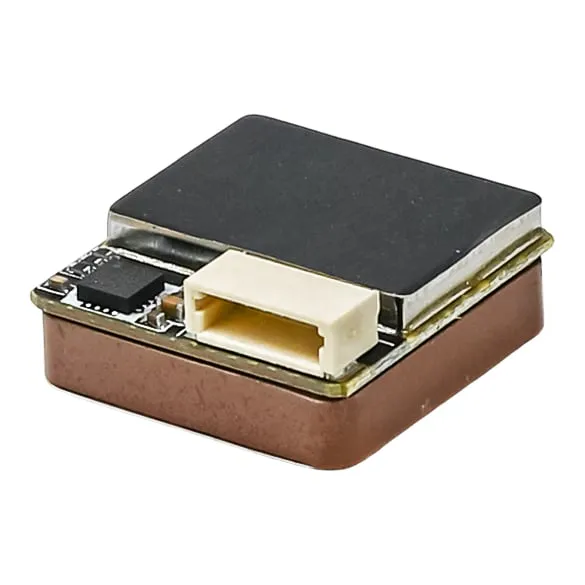

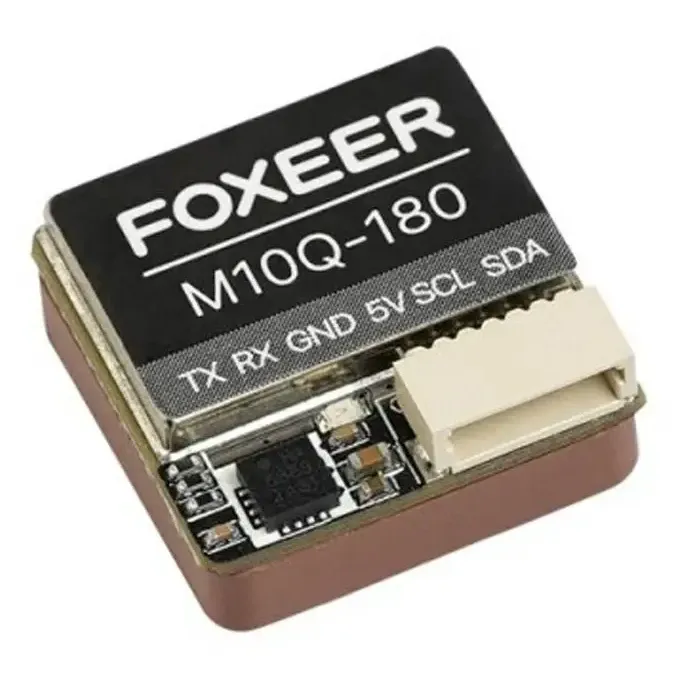

Foxeer M10Q 180 GPS with 5883 Compass
SKU FOXEER-M10Q-180-5883
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Foxeer M10Q 180 is a GPS/GNSS module for FPV and autonomous drone builds that accept an external navigation receiver and compass. It combines a 10th-generation M10 GNSS chipset with a QMC5883 compass in a compact 18 x 18 mm package.
Key features
Uses an M10 GNSS chipset for satellite positioning.
Includes a 5883 compass for electronic heading data.
Compact 18 x 18 x 8 mm module with an 18 mm-class ceramic antenna, weighing 7.5 g.
Suitable for flight controllers with compatible external GPS and compass interfaces.
Specifications
GNSS chipset: M10
Compass: QMC5883 (Betaflight orientation CW 180 flip, plug facing forward, antenna up)
Channels: 72
Input voltage: 5 V
Baud rate: 115200 bps
Protocol: NMEA / UBLOX
Update rate: 1-10 Hz (10 Hz default)
Operating temperature: -40 to +85 °C
Dimensions: 18 x 18 x 8 mm
Weight: 7.5 g
Connect it only to a flight controller with suitable GPS and compass interfaces, and position the module with a clear sky view for satellite reception during setup.
| Compass Included | Yes |
|---|---|
| Made in India | No |
| Brand | Foxeer |
| RTK Support | No |
| GNSS Chipset | u-blox M10 |
| Weight | 7.5 g |
| Supported Firmware | Betaflight |
| Barometer | No |
