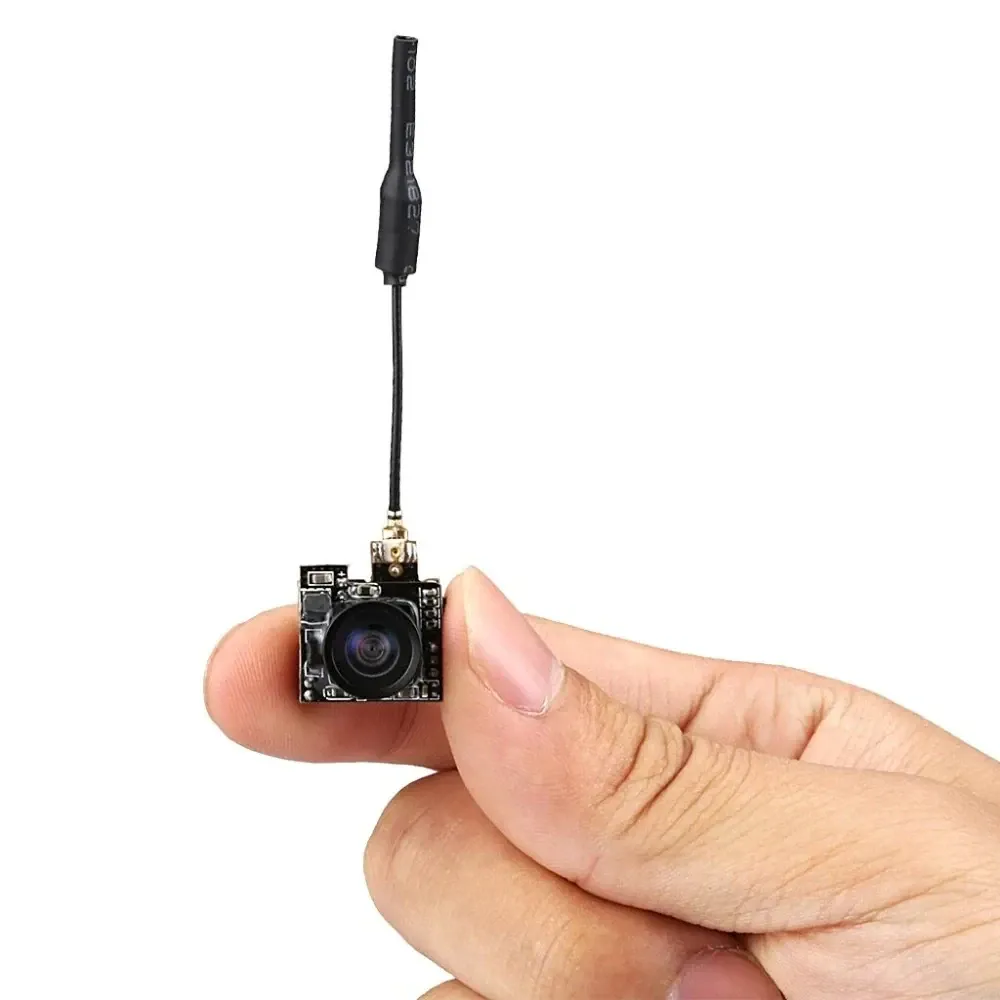

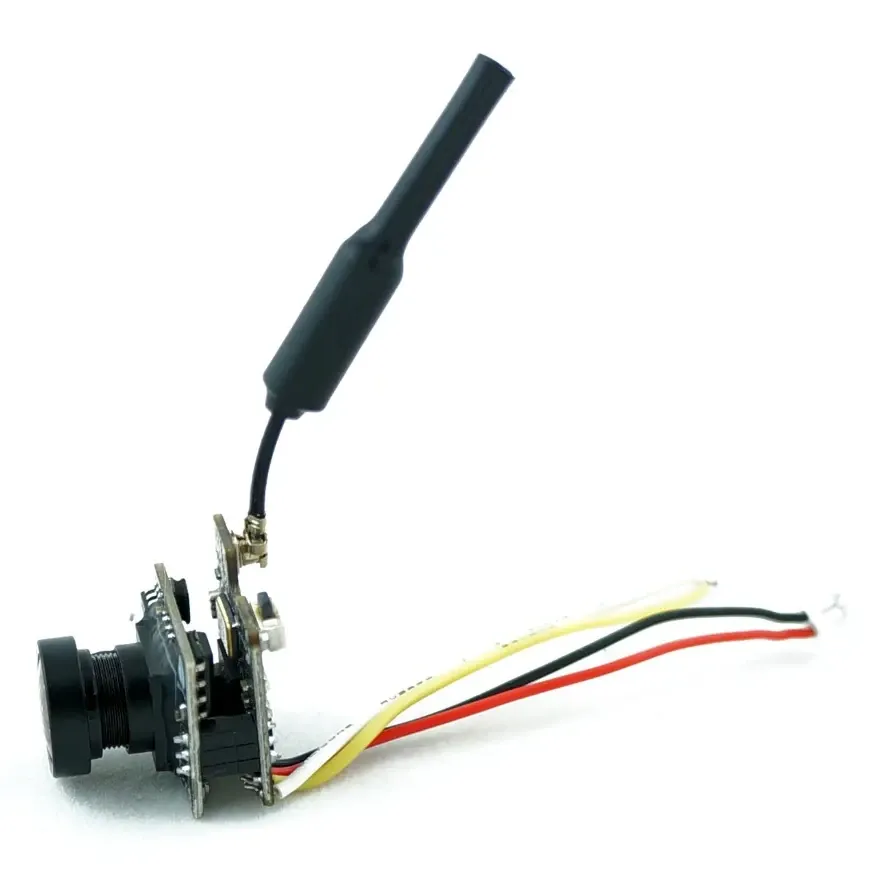

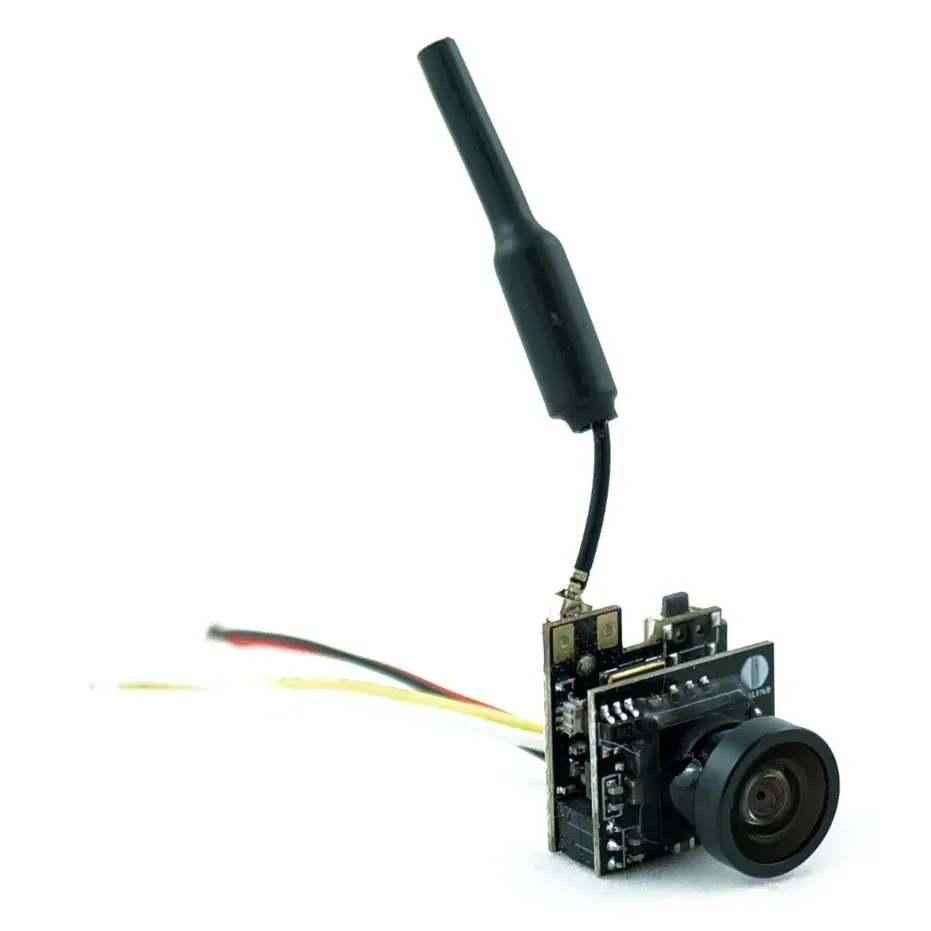

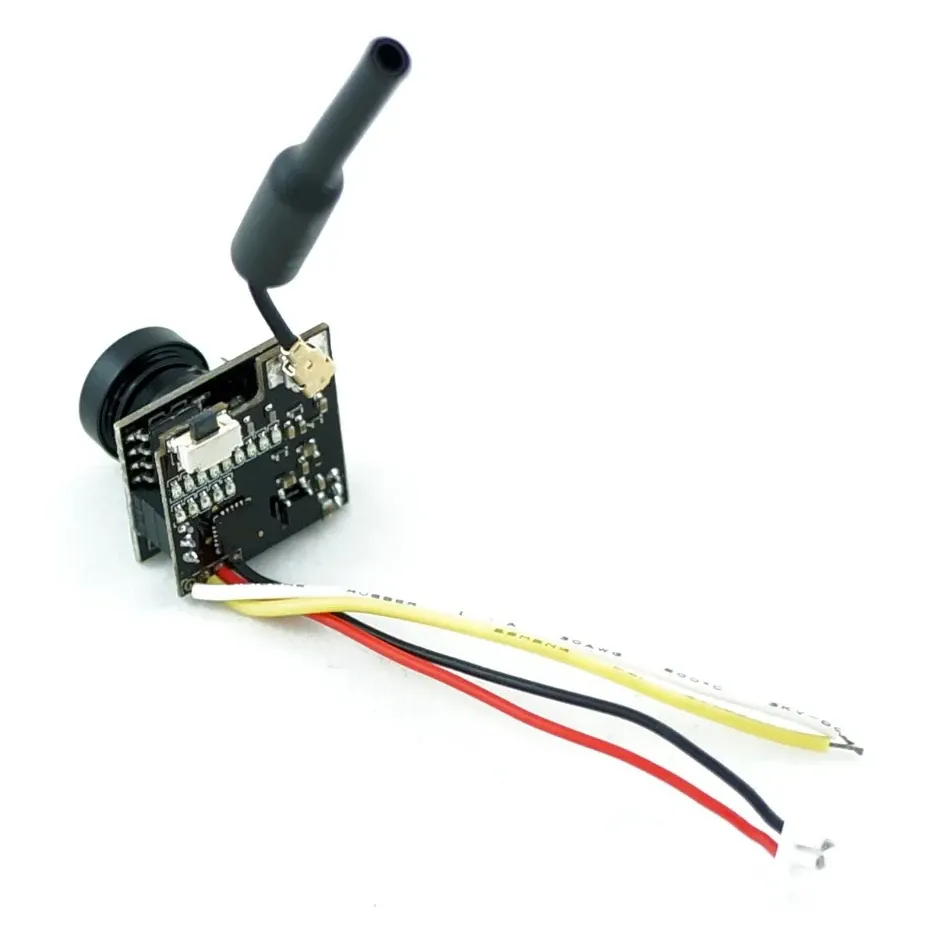

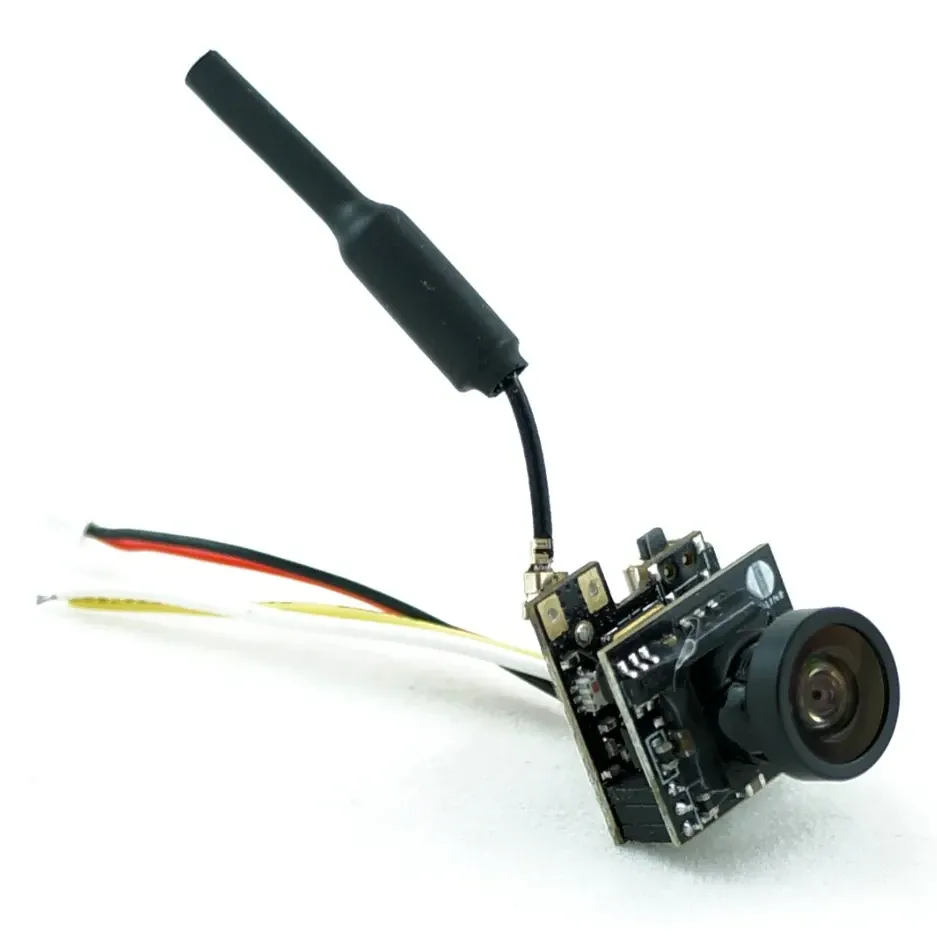

LST S2 OSD Camera with VTX

The LST S2 combines an FPV camera and a fixed-power analogue video transmitter with on-screen display support in one compact unit, designed for tiny whoops and small EPP planes where every gram matters.

Key features

• Uses a 1/4 inch CMOS sensor with an M8 2.1mm lens for a wide 170 degree diagonal field of view.
• Transmits at a fixed 25mW on 5.8GHz, with channel, band and video standard selected by a single button and shown on onboard LEDs.
• Accepts 3.6-5.5V input, so it can run from a 1S battery or a 5V BEC.
• The linear antenna connects via a u.FL connector for easy replacement.
• Separate camera and VTX cables let you wire in an OSD signal from the flight controller, or bypass it entirely.

Specifications

• Dimensions: 26 x 20 x 18mm (excluding antenna)
• Weight: 3.6g
• Sensor: 1/4 inch CMOS, M8 2.1mm lens
• Field of view: 170 degrees diagonal
• Power: 25mW fixed, 5.8GHz
• Input voltage: 3.6-5.5V
• Antenna connector: u.FL

The video transmitter runs hot in use, so mount it where airflow can reach it, and never power it up without an antenna fitted.
