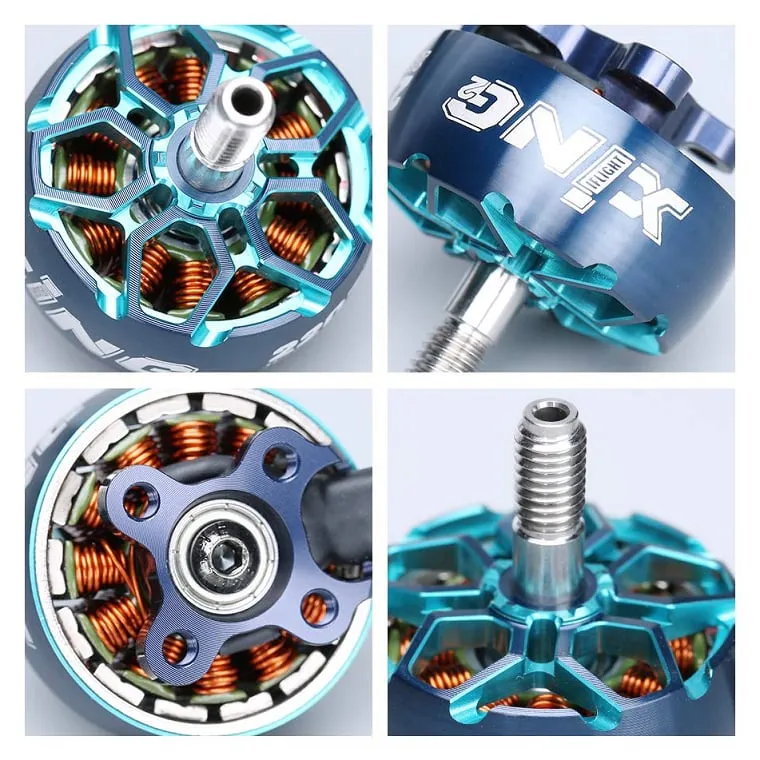

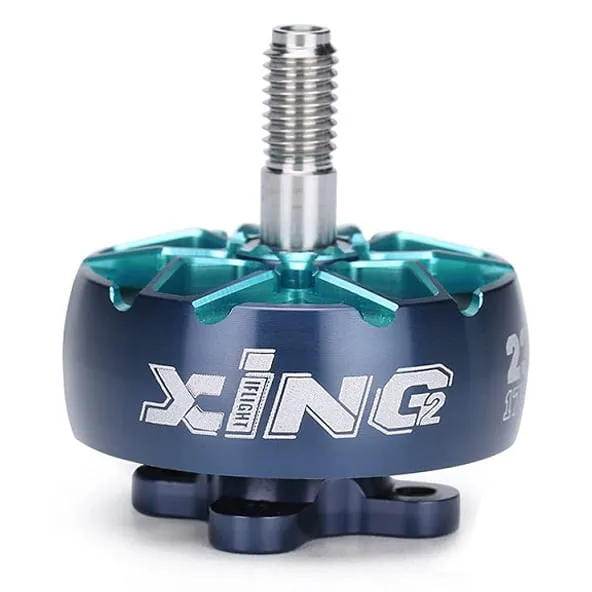

iFlight XING2 2306 Unibell Motor

The iFlight XING2 2306 is a unibell brushless motor built for 5-inch freestyle and racing FPV drones. Building on the original XING architecture, this second generation reduces the magnet air gap and stator lamination thickness to increase magnetic flux. This structural refinement lowers motor response time, translating into faster braking, quicker acceleration, and tighter PID loop responses. It is available in a 1755KV version optimised for 6S power, and a 2555KV version designed for high-RPM 4S setups.

Key features

• Crash-resistant 7075 aluminium unibell housing

• Centre-slotted N52H curved arc magnets for reduced throttle latency

• 5mm titanium alloy shaft to withstand heavy frame impacts

• NSK 9x4x4 bearings with a built-in O-ring gap shield against dust

• Integrated wire protector to secure the stator leads against prop strikes

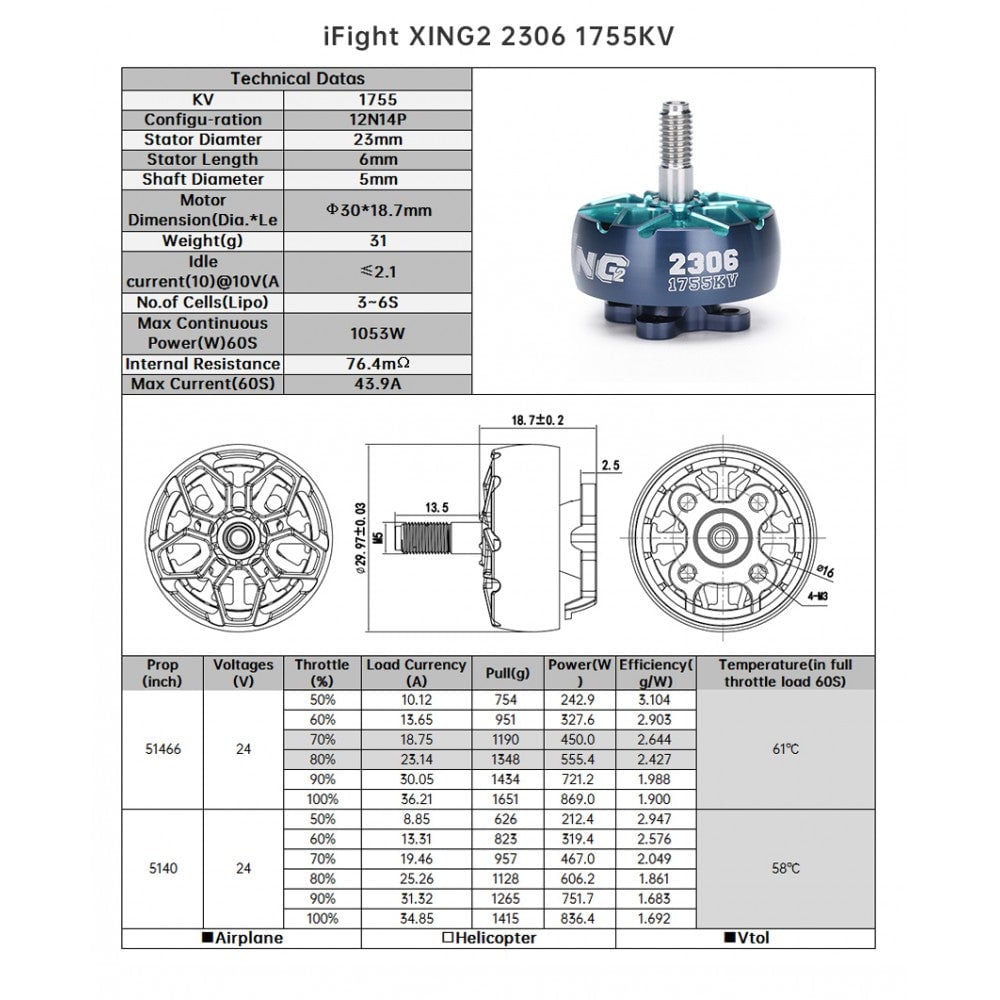

Specifications

• KV: 1755KV, 2555KV

• Input Voltage: 6S (1755KV), 4S (2555KV)

• Peak Current: 36.21A (1755KV), 51.3A (2555KV)

• Configuration: 12N14P

• Weight: 31.6g (short wire), 32.5g (with full 160mm lead)

• Wire Length: 20AWG, 160mm

• Mounting Pattern: 16x16mm (M3)

• Prop Mount: M5

Choose the 1755KV variant for standard 6S freestyle builds, or select the 2555KV version if you are running a 4S power system. Each motor mounts using the included M3 screws and pairs directly with 5-inch propellers. Motors are sold individually; ensure you order four units to complete a standard quadcopter build.
