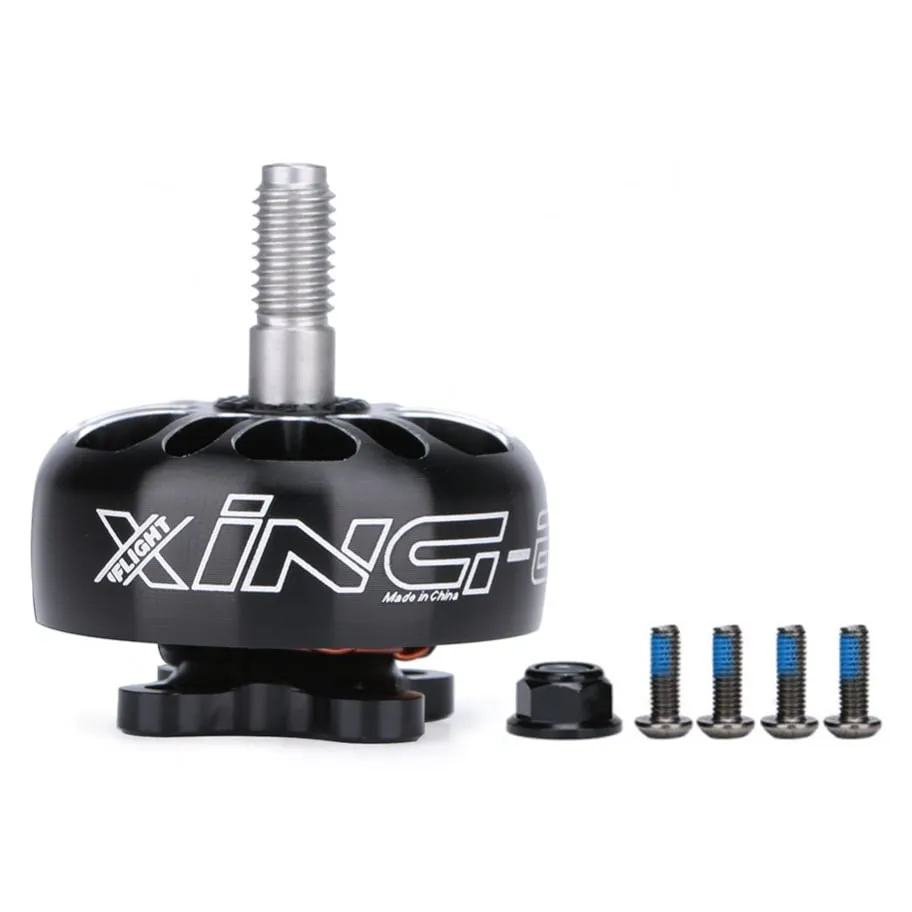

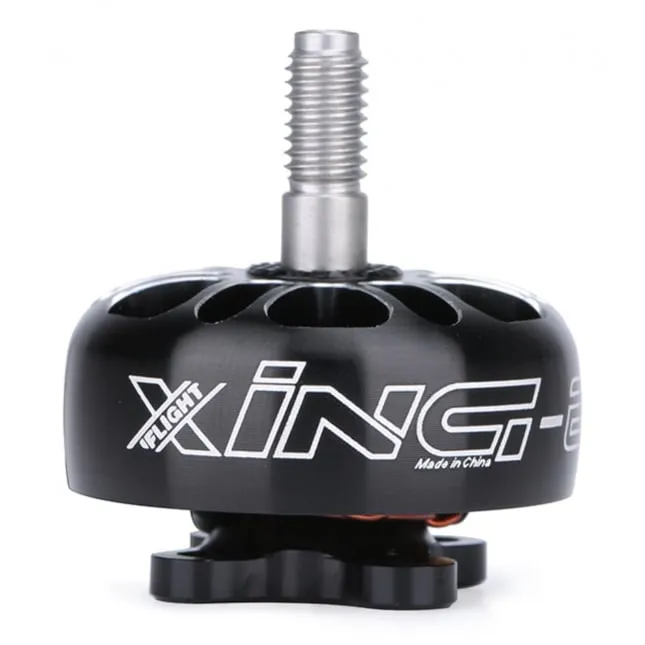

iFlight XING-E Pro 2306 2-6S FPV Motor

The iFlight XING-E Pro 2306 brings the torque and resilience of the flagship XING series to a more budget-friendly design, tailored for 5-inch FPV freestyle and racing builds. It features a robust steel internal shaft, high-temperature N52SH magnets, and standard 16x16mm mounting to withstand hard impacts while maintaining responsive throttle control.

Key features

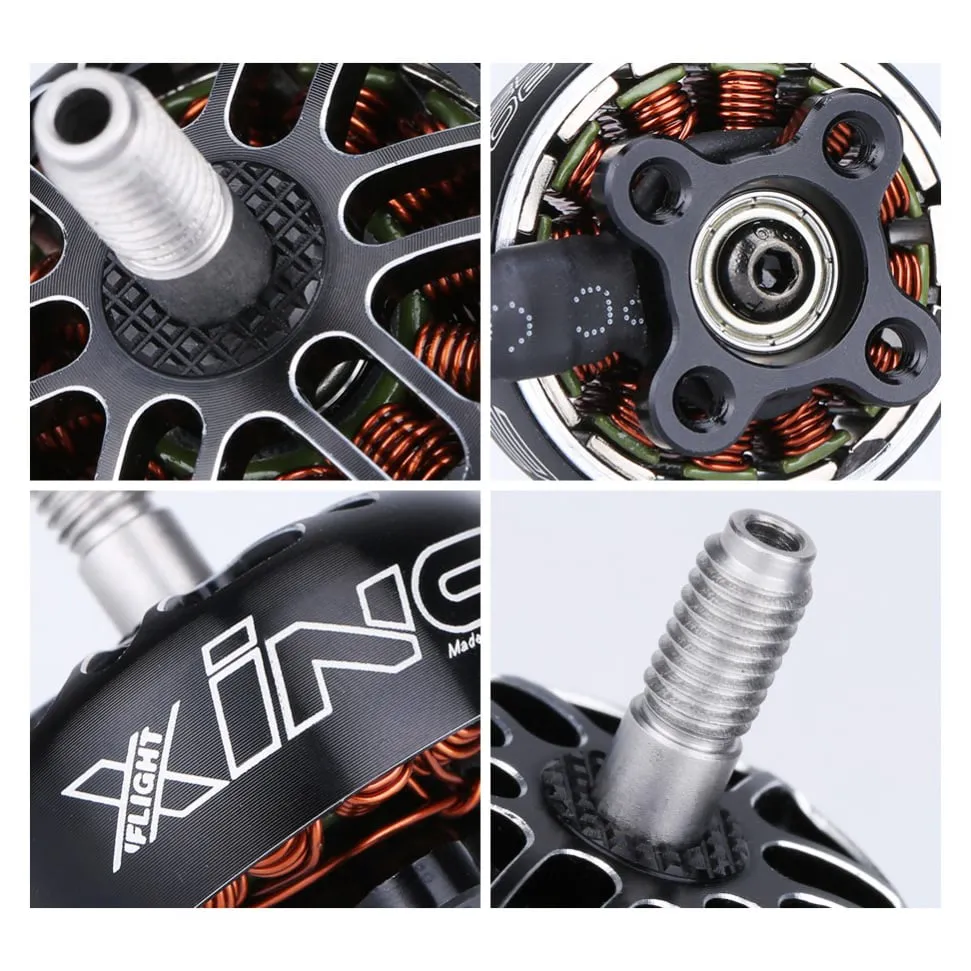

• High-strength 4mm steel internal shaft and standard 5mm threaded prop shaft for crash resilience
• High-temperature N52SH curved magnets to maintain consistent torque under heavy loads
• Precision-machined aluminium bell with a reinforced base to resist structural deformation
• Pre-tinned 20AWG silicone motor wires for direct ESC soldering

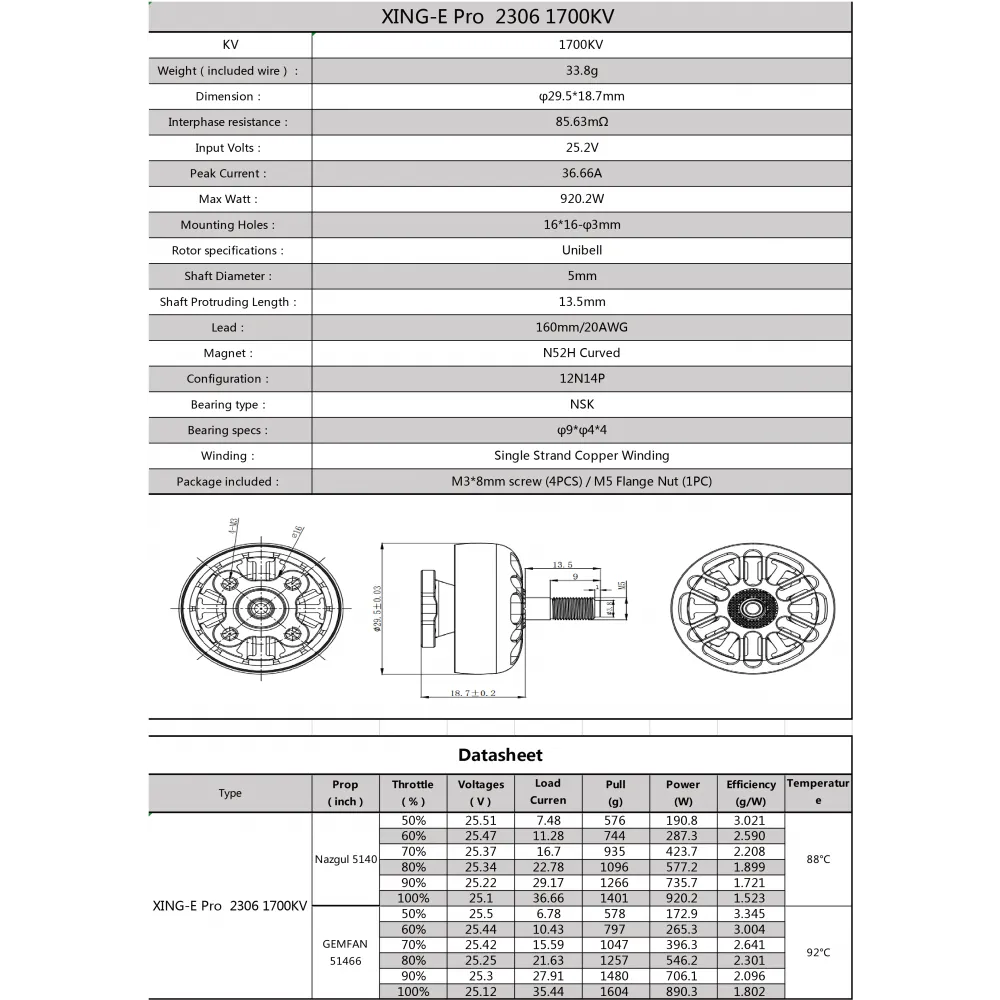

Specifications

• Stator size: 2306
• KV options: 1700KV / 2450KV
• Configuration: 12N14P
• Input voltage: 2-6S LiPo
• Mounting pattern: 16x16mm (M3)
• Shaft diameter: 5mm (propeller adapter), 4mm (internal)
• Bearings: NSK, 9x4x4 mm
• Motor dimensions: 29.5 x 18.7 mm
• Max burst current (under 10 s): 55.22 A
• Max power (60 s): 885.4 W
• Internal resistance: 40.6 mOhm
• Wire specification: 20AWG, 150mm length

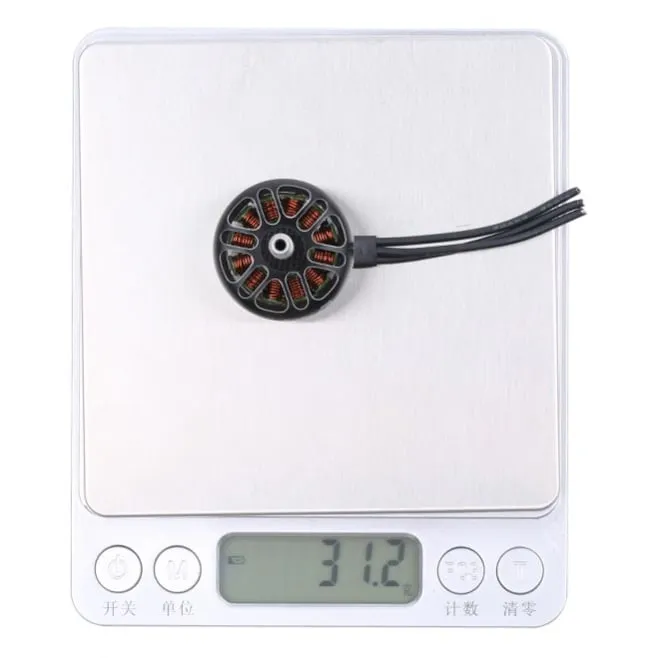

• Weight: 33.1 g (with 150 mm wires)

Select the 1700KV variant for efficient 6S freestyle setups requiring smooth mid-throttle resolution, or choose the 2450KV option for aggressive top-end speed on standard 4S battery packs.
