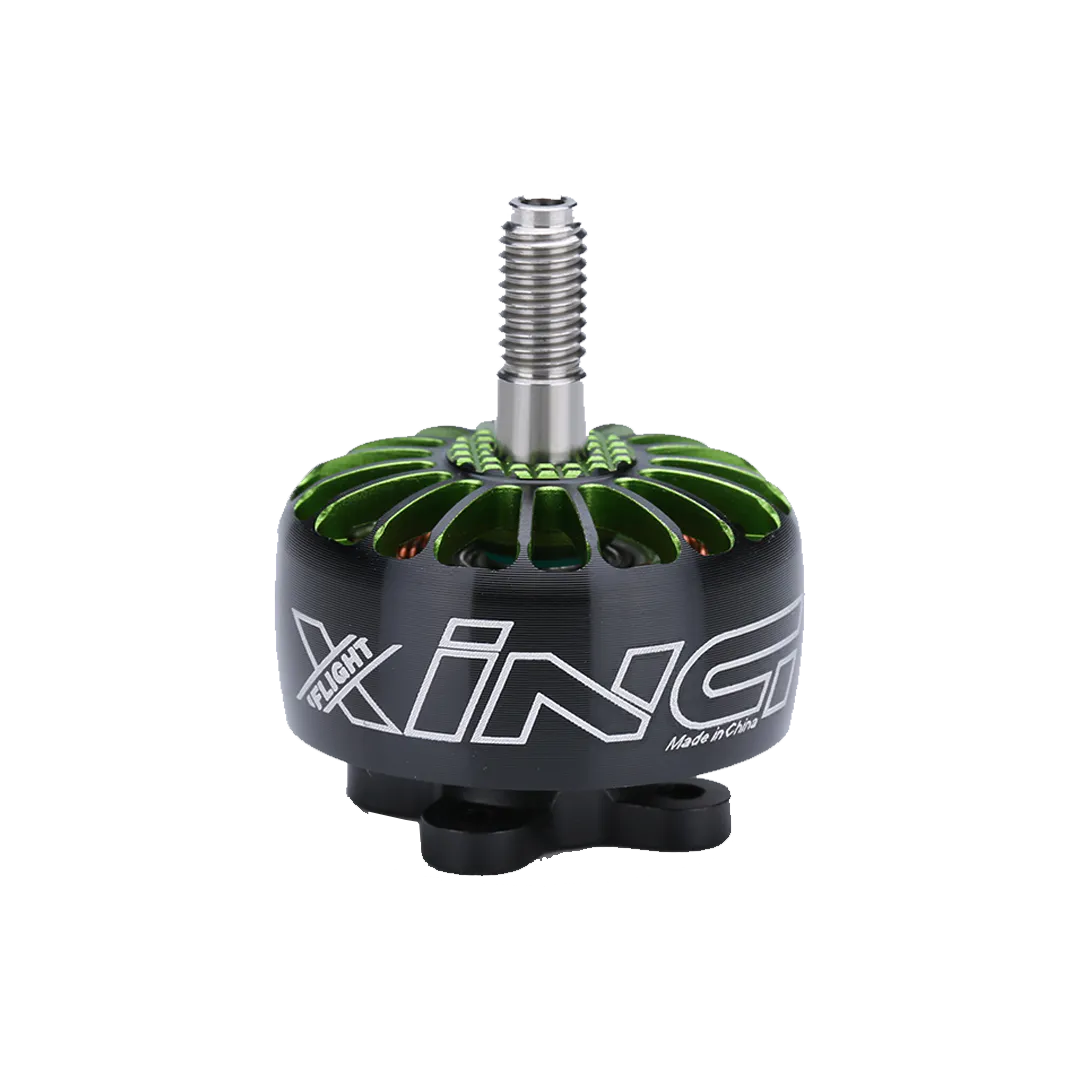

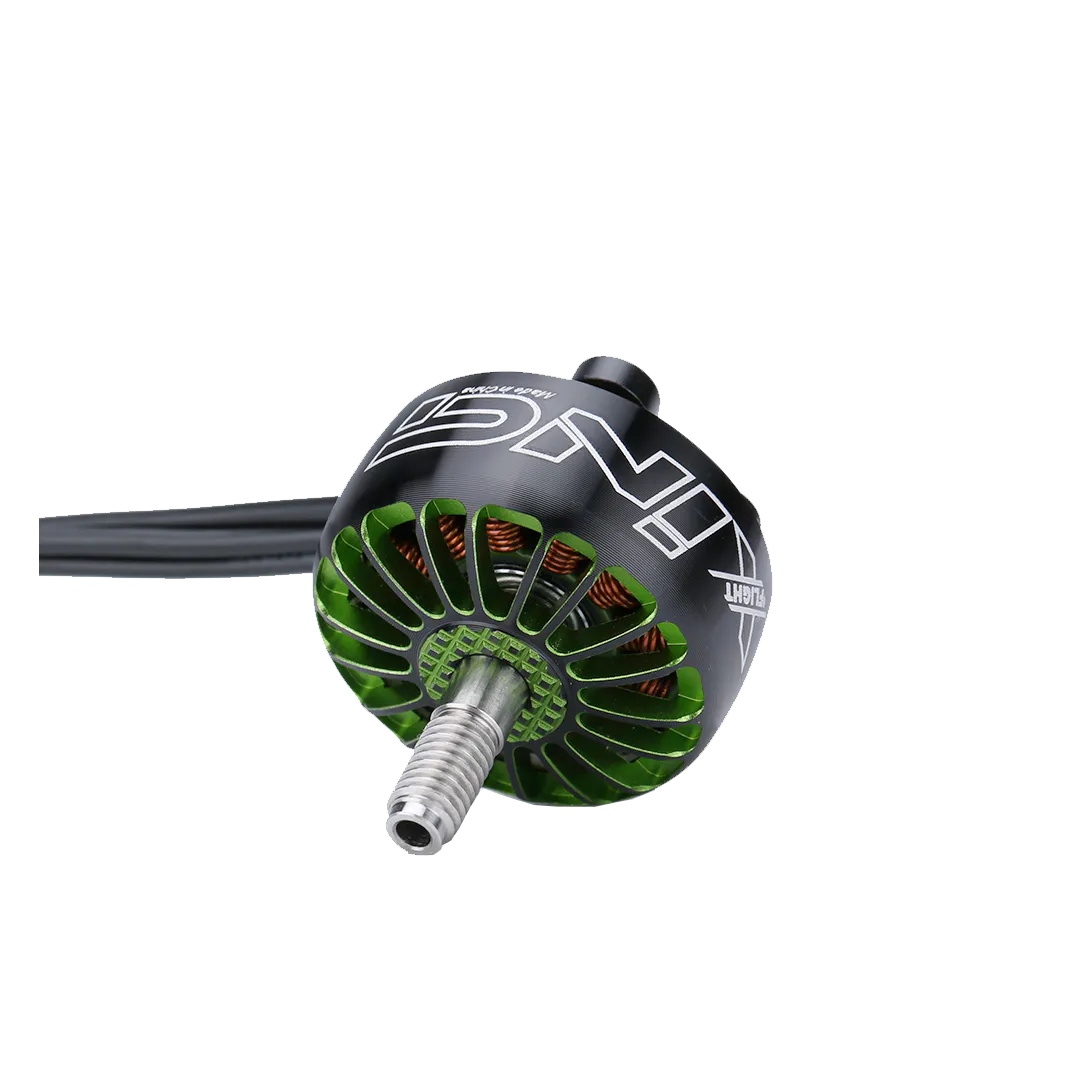

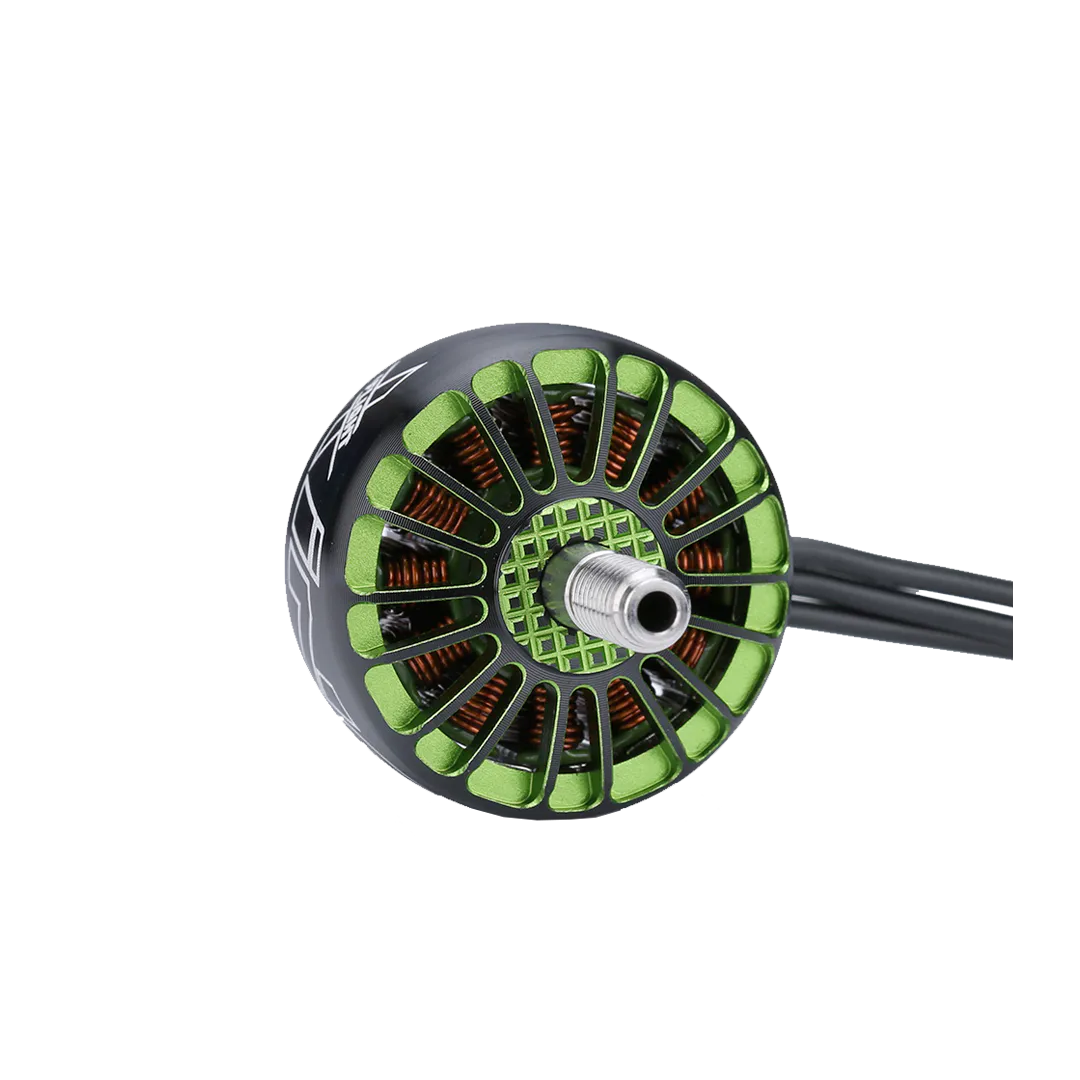

iFlight XING 2208 Unibell Race Motor 1800KV

The iFlight XING 2208 Unibell 1800KV is a high-torque unibell motor built for 5-inch freestyle and racing quads running 3S to 6S power, with a taller 2208 stator than the standard 2207 for extra low-end torque.

Key features

• One-piece Unibell design removes the weak point of multi-piece bells, improving crash resilience.
• 5mm titanium alloy shaft keeps weight down without sacrificing durability.
• N52H curved magnets and Japanese NSK bearings deliver consistent torque and low vibration.
• Non-slip prop-contact surface and multiple heat-dissipation vents on the bell.
• Standard 16x16mm M3 mounting pattern drops straight onto modern 5-inch frames.

Specifications

• KV: 1800
• Configuration: 12N14P
• Shaft: 5mm titanium alloy
• Shaft protruding length: 13.5 mm
• Dimensions: 28.5 x 34.2 mm
• Interphase resistance: 53.7 mOhm
• Peak current: 46.57 A
• Max power: 1118 W
• Motor wire length: 160 mm
• Weight (with wire): approximately 37g
• Mounting: 16x16mm, M3
• Input voltage: 3–6S LiPo
• In the box: 1 motor, hardware set

On 6S, pair this motor with a 50A-or-higher ESC and standard 5- to 5.1-inch freestyle propellers to make the most of its torque.
